Description

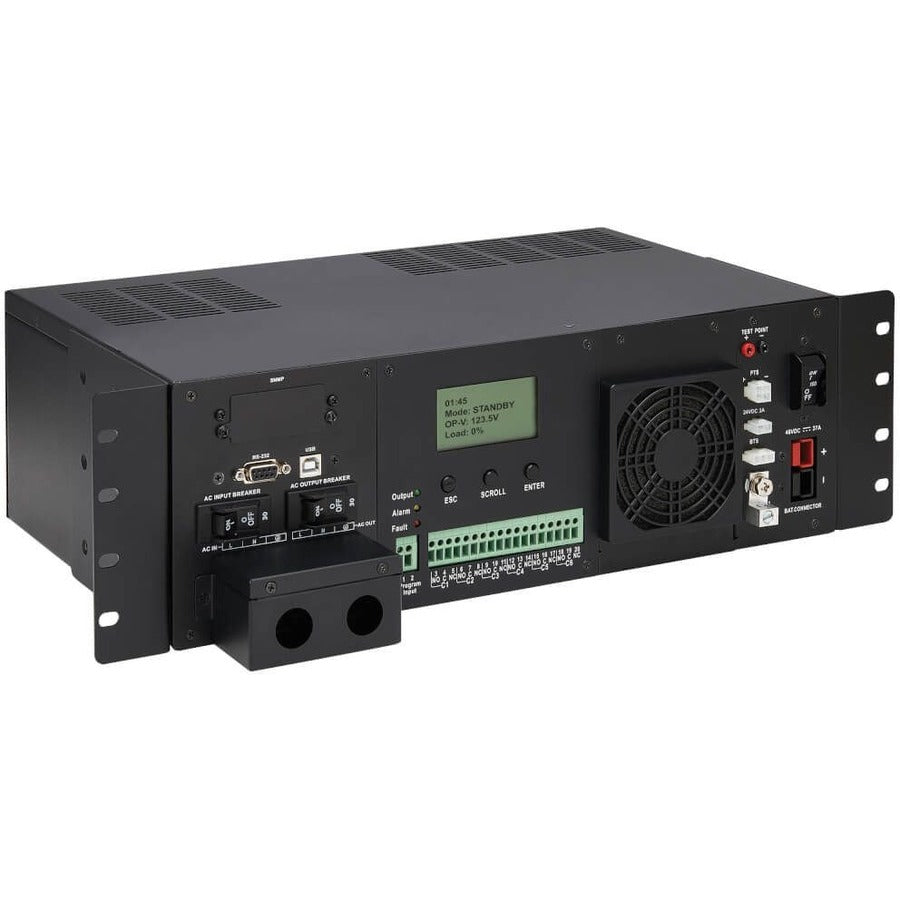

The Eaton Tripp Lite SMART1524ET is a rugged 2kVA/1600W line-interactive UPS engineered for reliable performance in extreme temperatures ranging from -40°C to 80°C. Designed for industrial, military, traffic control, and remote IT applications, this 3U rackmount UPS features hardwire input/output, buck-and-boost Automatic Voltage Regulation (AVR), and a conformal-coated interior for enhanced durability. It supports external 24V battery banks up to 200Ah for extended runtime and includes dry contacts, USB/RS-232 ports, and optional remote management via the WEBCARDLXMINI network interface. With >95% efficiency, EMI/RFI line noise filtering, and a front-panel LCD, the SMART1524ET ensures consistent, clean power even in the harshest environments.
| Specification | Details |
|---|---|
| Model | SMART1524ET |
| Form Factor | 3U Rackmount (2-post or 4-post); desktop compatible |
| UPS Type | Line-Interactive with AVR (Buck and Boost) |
| Input Voltage | 120V AC (Hardwire, 30A breaker) |
| Input Phase / Frequency | Single-Phase / 50/60Hz |
| Output Capacity | 2000VA / 1600W |
| Output Voltage Regulation | 120V ±4% (Battery Mode), -14%/+8% (Line Mode, adjustable) |
| Power Factor | 0.8 |
| Output Connections | Hardwire Line, Neutral, Ground terminals (with strain relief) |
| Output Waveform | Pure Sine Wave |
| Operating Temp. Range | -40°C to 80°C |
| Battery Voltage / Type | 24V DC / External VRLA (user-supplied) |
| Runtime (100% / 50% Load) | 43 min @ 1600W / 113 min @ 800W with 24V 100Ah battery bank |
| Battery Expansion | Supports up to 24V 200Ah (batteries and cables not included) |
| Monitoring Ports | USB, DB9 Serial, Dry Contact I/O, SNMP (optional) |
| Remote Management Option | WEBCARDLXMINI (0–70°C operation) |
| Cooling | High-speed fan with dust filter |
| Surge Protection | 474 Joules; EMI/RFI suppression |
| Indicators | LCD screen + 3 LEDs (Green: OK, Yellow: Alarm, Red: Fault) |
| Efficiency | >95% (at full load) |
| Dimensions (H x W x D) | 5.24 x 15.75 x 9.45 in (133 x 400 x 240 mm) |
| Weight | 32.41 lbs (14.7 kg) |
| Certifications | UL 1778, CSA, NOM, TAA Compliant |
| Warranty | 2-Year (3-Year with Registration) |
| Insurance (US/Canada/Puerto Rico) | $250,000 Ultimate Lifetime Insurance |
