Description

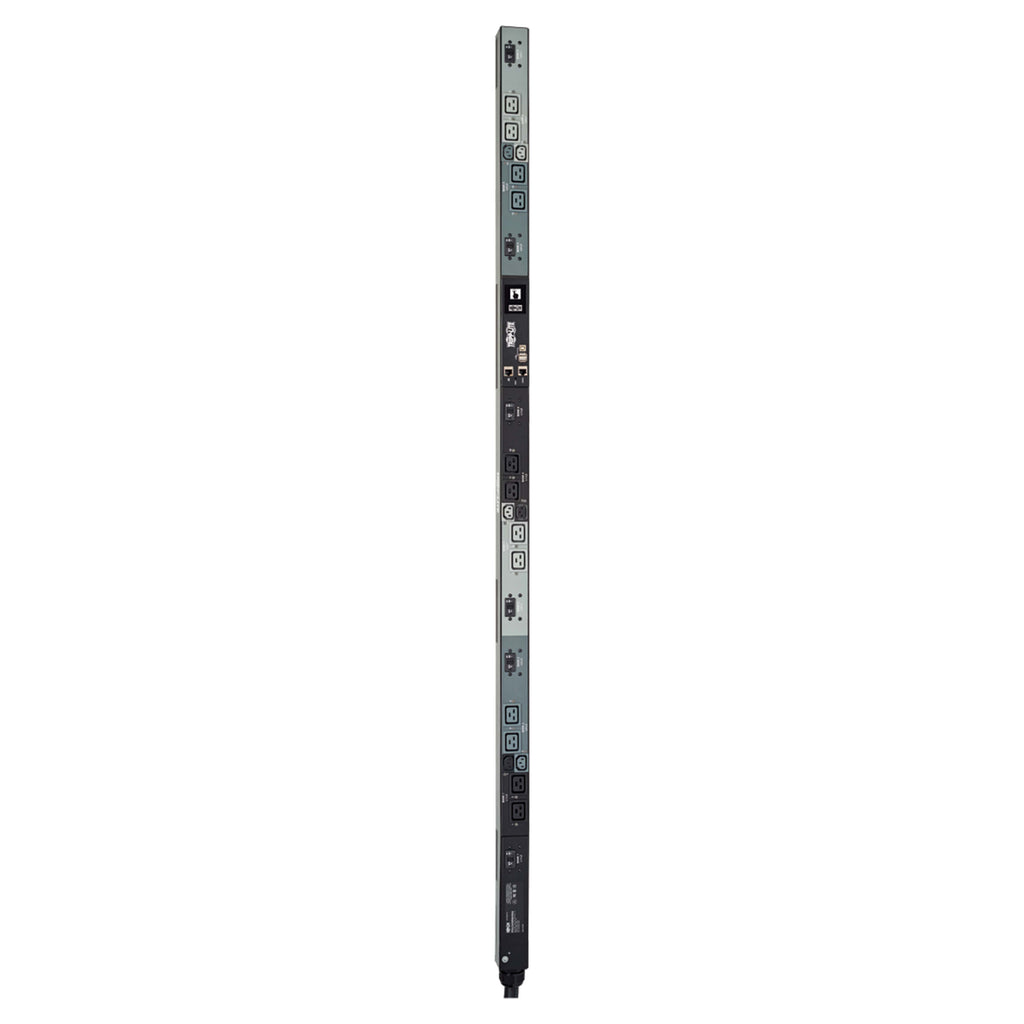

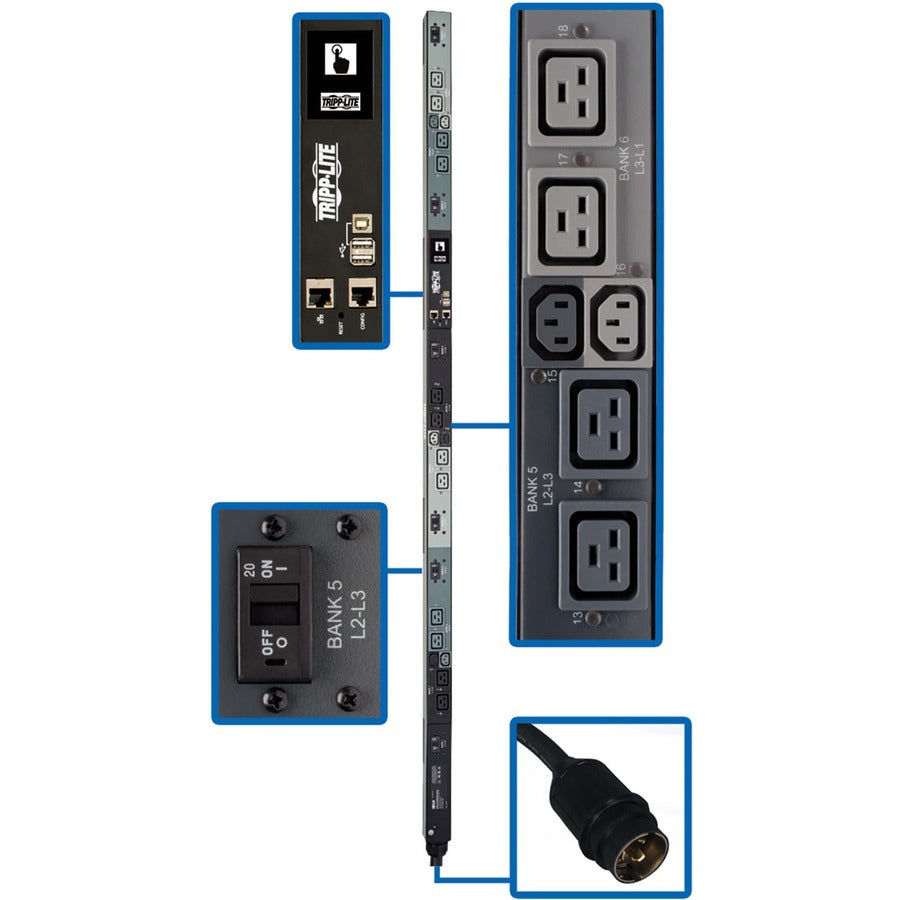

The Eaton Tripp Lite PDU3EVNR6H50A is a high-capacity, 14.4kW 3-phase monitored per-outlet PDU engineered for critical power distribution in enterprise, industrial, or government environments. Featuring 18 individually monitored outlets (6 C13 & 12 C19), this 0U vertical rack PDU provides precision outlet-level metering, load balancing, and environmental monitoring via a Gigabit-enabled LX Platform interface with touchscreen LCD.
The integrated WEBCARDLX and PowerAlert Device Manager (PADM20) allow remote power monitoring, alert configuration, and automated maintenance functions. Built for high-density IT infrastructure, this unit includes a 50A Hubbell CS8365C plug, a 6 ft input cord, color-coded outlet groups, plug-lock sleeves, and full TAA compliance.
| Specification | Details |
|---|---|
| Model Number | PDU3EVNR6H50A |
| Power Capacity | 14.4kW @ 208V 3-Phase |
| Input Voltage | 208V |
| Input Plug Type | HUBBELL CS8365C (50A) |
| Input Cord Length | 6 ft (1.83 m) |
| Output Receptacles | 6 x C13, 12 x C19 |
| Max Output per Phase | 23A (L1-L2, L2-L3, L3-L1) |
| Max per Bank / Outlet | 20A per bank, 16A per C19, 12A per C13 |
| Form Factor | 0U Vertical Rack Mount |
| Mounting Hardware | Toolless buttons and brackets included |
| Dimensions (HxWxD) | 70.0 x 2.17 x 2.86 in (177.8 x 5.51 x 7.26 cm) |
| Weight | 14.13 lbs (6.41 kg) |
| Monitoring Interface | Gigabit LX Interface (WEBCARDLX with PADM20) |
| Display | Color Touchscreen LCD |
| Network Ports | RJ45 (LAN), USB, RS-232 |
| Remote Monitoring | Voltage, Current (per phase, per bank, per outlet), Power, Environmental (with optional sensor) |
| TAA Compliant | Yes |
| Certifications | UL 60950-1, CSA, NOM, RoHS, FCC Part 15 Class A |
| Operating Temp | 0° to 40°C (32° to 104°F) |
| Warranty | 2-Year Limited Warranty |
