Description

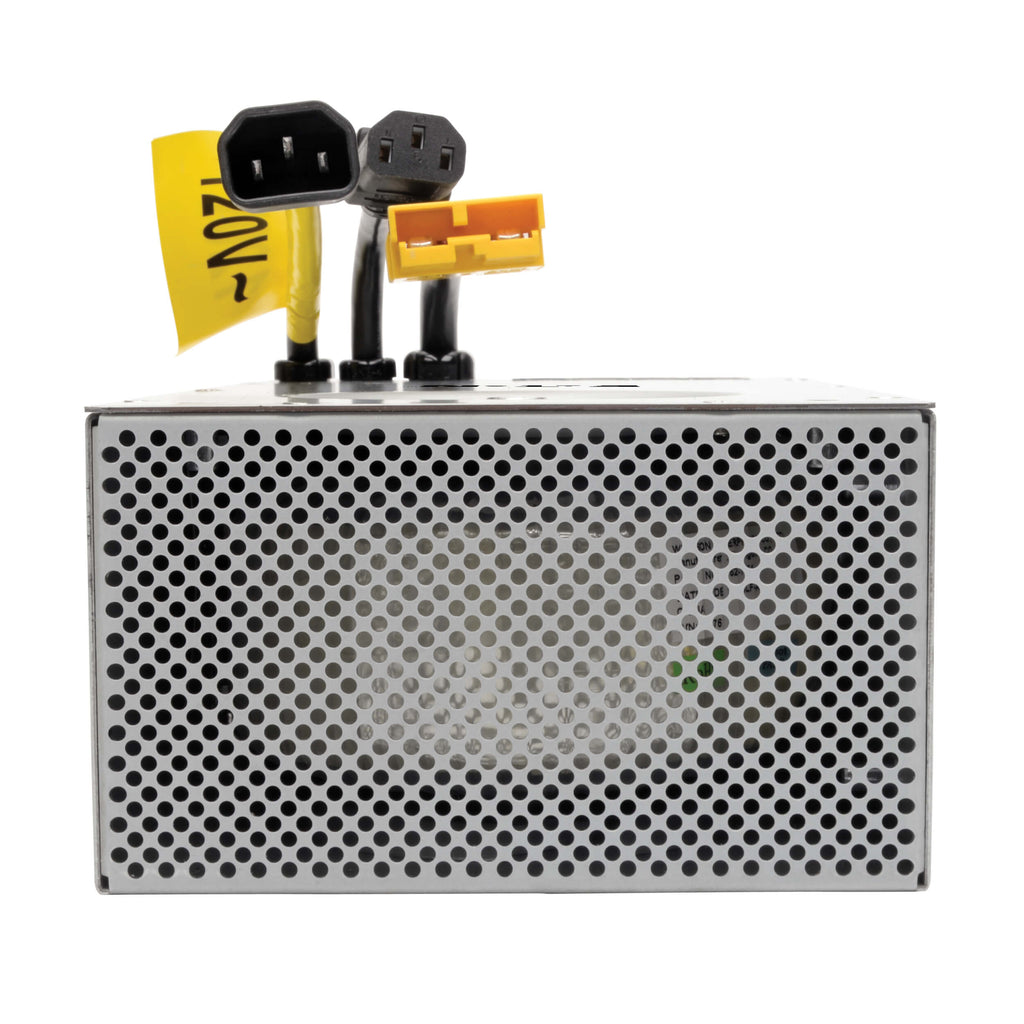

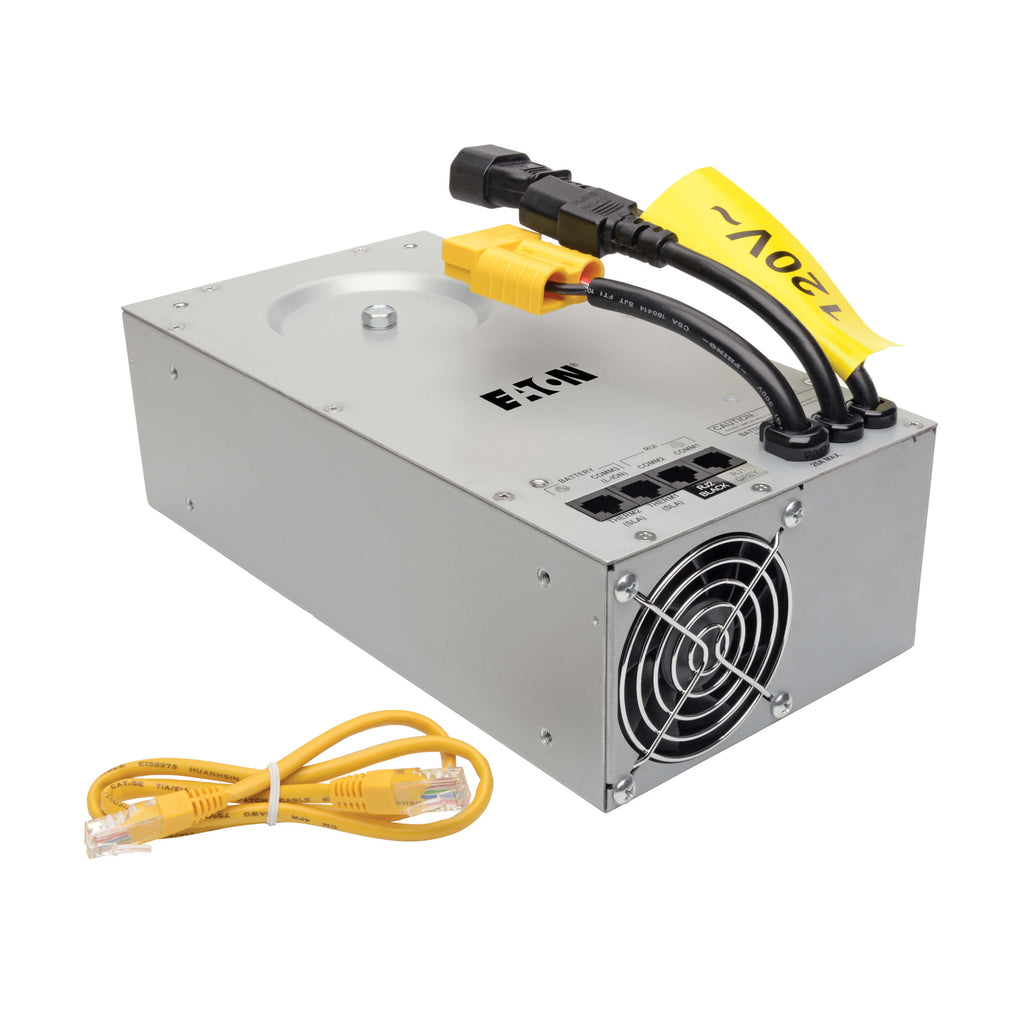

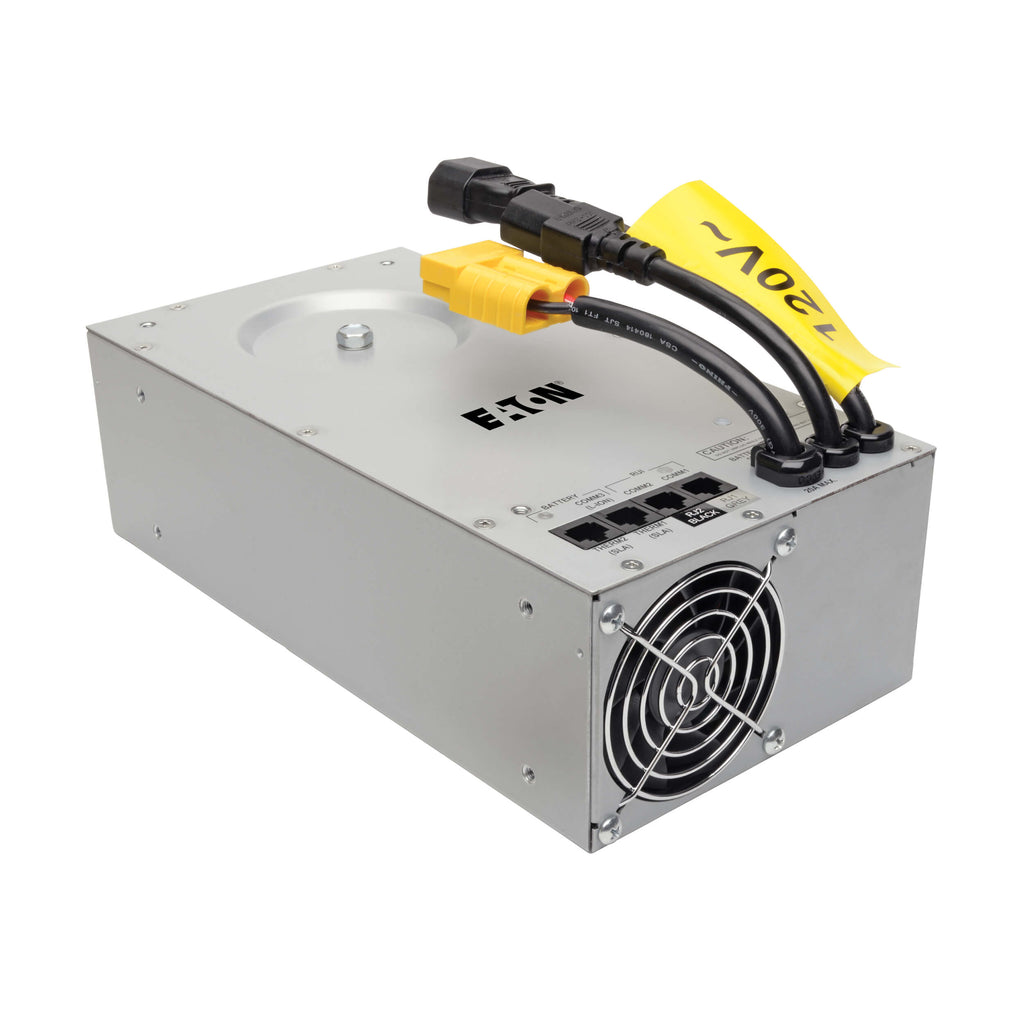

The Eaton HC150SL is a 150W medical-grade inverter/charger designed to deliver safe, reliable, and compliant power for mobile medical carts and equipment. Built to meet IEC 60601-1 standards, it ensures electrical isolation and safety across patient care and clinical environments. Featuring an integrated automatic transfer switch (ATS), the HC150SL powers devices while simultaneously charging the battery, offering uninterrupted operation and efficiency.
Its three-stage smart charging system supports both Sealed Lead Acid (SLA) and Lithium Iron Phosphate (LiFePhos) batteries for extended life and flexibility. The inverter filters out EMI/RFI line noise, protecting sensitive medical devices from interference and data loss. With rugged steel construction, PowerAlert® software compatibility, and optional remote user interface (RUI), this unit is engineered for demanding healthcare use inside and outside patient areas.
| Category | Details |
|---|---|
| Model | HC150SL |
| Brand | Eaton |
| Type | Medical-Grade Mobile Power Inverter/Charger |
| Power Capacity | 150W continuous / 225W peak |
| Input Voltage | 120V AC / 12V DC |
| Input Connection | C14 inlet |
| Output Voltage | 120V AC |
| Output Frequency | 60 Hz |
| Output Receptacle | (1) IEC C13 |
| Output Waveform | Pure sine wave |
| Battery Type Compatibility | Sealed Lead Acid (SLA), Lithium Iron Phosphate (LiFePhos) |
| Battery Charger | 3-stage smart charger (9–20A) |
| Runtime | Up to 6 hours (depends on battery and load) |
| Transfer Switch | Automatic (ATS) – powers load and recharges battery simultaneously |
| Noise Suppression | EMI/RFI filtering |

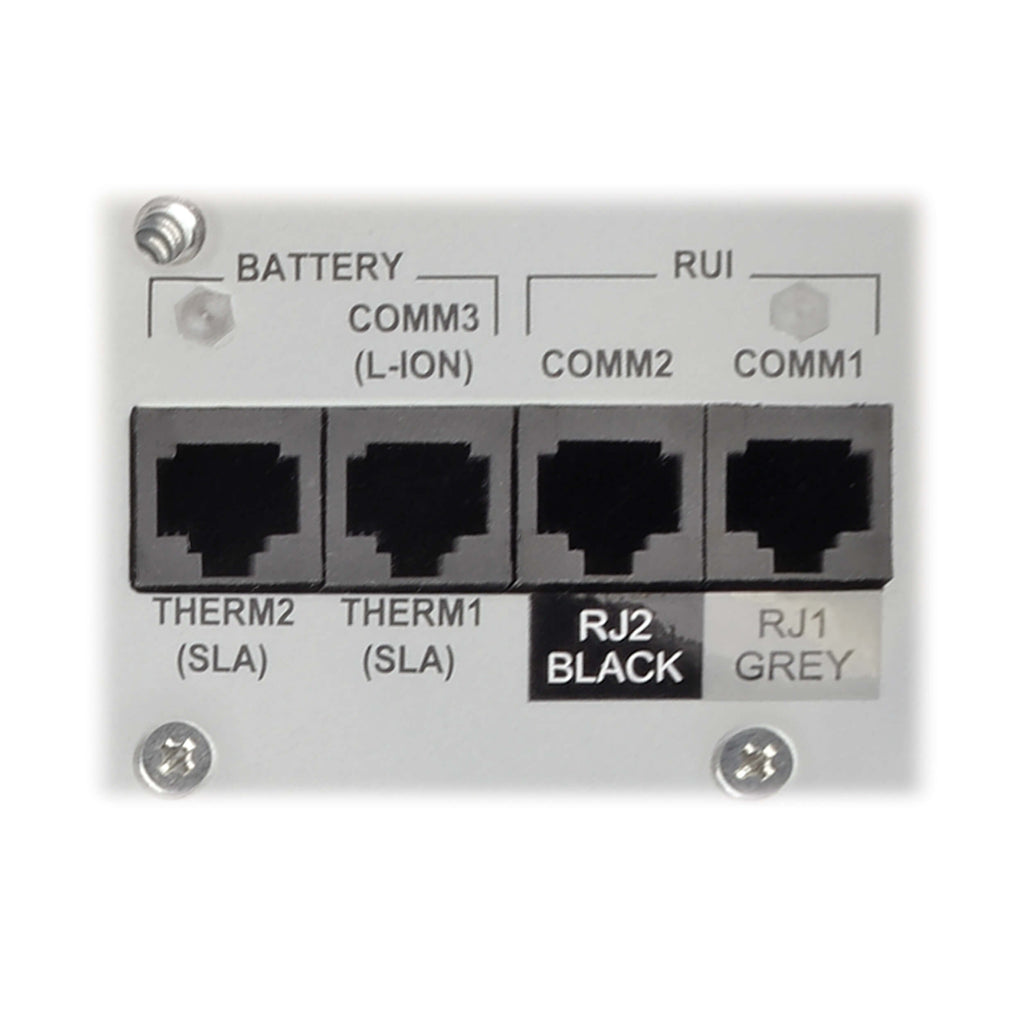

| User Interface (Optional) | Remote User Interface (RUI) with power, battery, and alarm indicators |
| Communication Port | USB |
| Software Support | PowerAlert® for data protection |
| Construction | Steel, gray finish |

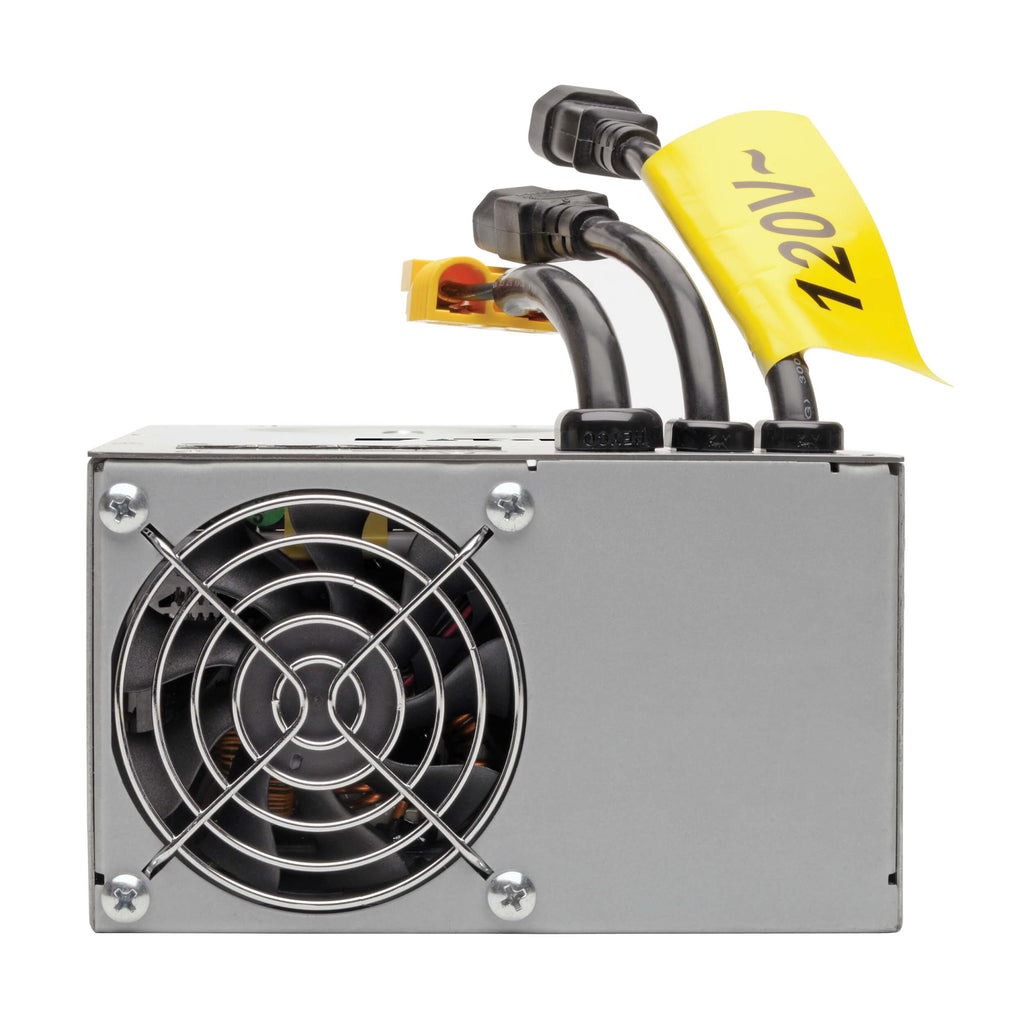

| Cooling | Fan-cooled |
| Unit Dimensions (H x W x D) | 3.5 x 11.5 x 6.0 in (8.9 x 29.2 x 15.2 cm) |
| Unit Weight | 14 lbs (6.35 kg) |
| Certifications | IEC 60601-1, EN60601-1-2:2015 (4th Edition), UL 1778, CAN/CSA-C22.2 No. 601.1, RoHS |
| Warranty | 2-year limited warranty (optional 1–3 year extensions available) |
