Description
The Eaton B024-H4U16 16-Port 4K HDMI/USB KVM Switch provides seamless control over up to sixteen HDMI-enabled computers or media devices using a single 4K monitor, keyboard, and mouse. Designed for efficiency and clarity, it supports ultra-high-definition video resolutions up to 4096 x 2160 @ 60 Hz with 2.1-channel surround sound audio for crystal-clear output.
Ideal for IT environments, media centers, or control rooms, this rack-mountable switch allows cascading up to 256 systems and includes a USB 3.2 Gen 1 hub to share peripherals such as printers, scanners, or flash drives between connected devices. Users can easily switch between sources using push buttons, hotkeys, or an on-screen display (OSD) interface.
Built for reliability and compliance, the B024-H4U16 features a durable metal 1U chassis, TAA certification for federal procurement, and wide compatibility with Windows, macOS, Linux, UNIX, and Novell operating systems. With plug-and-play installation, included 4K HDMI/USB cables, and multi-language support, it delivers both performance and convenience for demanding workflows.
| Specification | Details |
|---|---|
| Model | B024-H4U16 |
| Brand | Eaton |
| Product Type | 16-Port 4K HDMI/USB KVM Switch |
| Video Resolution | Up to 4096 x 2160 @ 60 Hz |
| Audio | 2.1 Channel Surround Sound |
| Ports | 16 × HDMI (Female), 16 × USB-B (Female), 16 × 3.5 mm Audio (Female) |
| Console Ports | 1 × HDMI, 2 × USB-A, 1 × 3.5 mm Audio |
| USB Hub | 2 × USB 3.2 Gen 1 (5 Gbps, backward compatible) |
| Control Methods | Push Buttons, Hotkeys, On-Screen Display (OSD) |
| Cascade Capability | Up to 2 levels (control up to 256 computers) |
| Video Compatibility | HDMI with HDCP 2.2 |
| Operating Systems Supported | Windows, macOS, Linux, UNIX, Novell |
| Power Input | 100–240 V AC, 50/60 Hz, 1.4 A |
| Power Output | 12 V DC, 5 A |
| Power Consumption | 9.77 W |
| Form Factor | 1U Rack-Mount or Desktop |
| Construction Material | Metal |
| Dimensions (H × W × D) | 1.73 × 17.02 × 8.44 in (4.4 × 43.2 × 21.4 cm) |
| Weight | 7.8 lb (3.54 kg) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Humidity | 0–80% non-condensing |
| Certifications | CE, FCC, RoHS, REACH, WEEE, TAA, UL, GS, CCC, NOM |
| Warranty | 3-Year Limited Warranty |

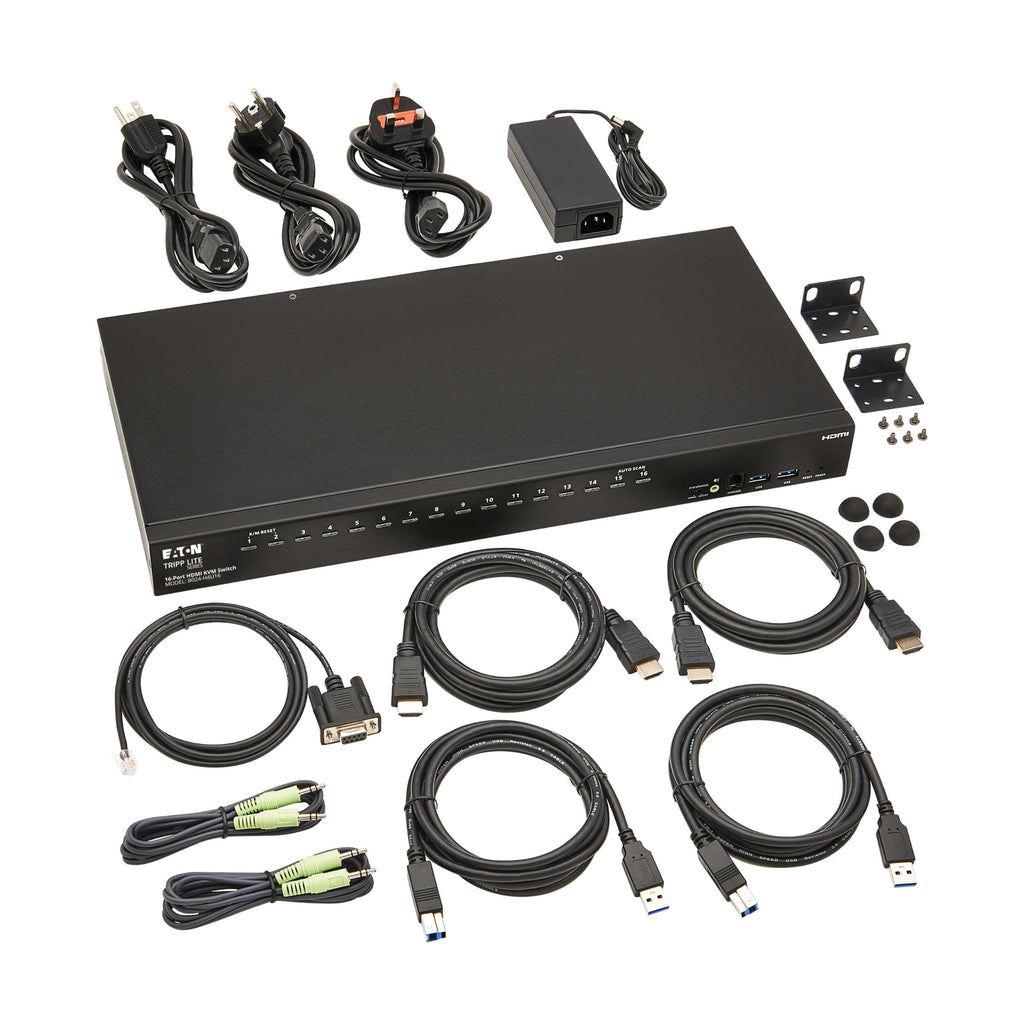

| Included Accessories | (2) HDMI/USB KVM Cable Kits (6 ft), Firmware Upgrade Cable, Power Supply with 3 Intl Cords, Rack Hardware, Rubber Feet, Quick Start Guide |
