Description
The Eaton B024-HU16 16-Port HDMI/USB KVM Switch provides centralized control of up to 16 HDMI-enabled computers, servers, or A/V devices from a single HDMI monitor, USB keyboard, and mouse. Designed for efficiency and space savings, it’s ideal for IT administrators, media control rooms, and high-performance workstations. The unit supports cascading up to two levels, allowing management of as many as 256 systems from one console.
It delivers crisp Full HD 1080p video at 60 Hz, 2.1-channel audio, and includes a two-port USB 2.0 hub for sharing peripherals like printers and storage drives among connected computers. Users can switch between devices using front-panel buttons, keyboard hotkeys, or an intuitive on-screen display (OSD). Its heavy-duty steel construction supports 1U rack-mounting or desktop use, while its TAA compliance ensures suitability for government and enterprise procurement.
Key Features:
-
Manage up to 16 HDMI-connected computers or A/V sources
-
Supports video resolutions up to 1920 × 1200 (1080p)
-
Cascade up to 256 computers via two levels
-
Two USB 2.0 ports for shared peripherals
-
Simple control via buttons, hotkeys, or OSD
-
Works with Windows, macOS, and Linux
-

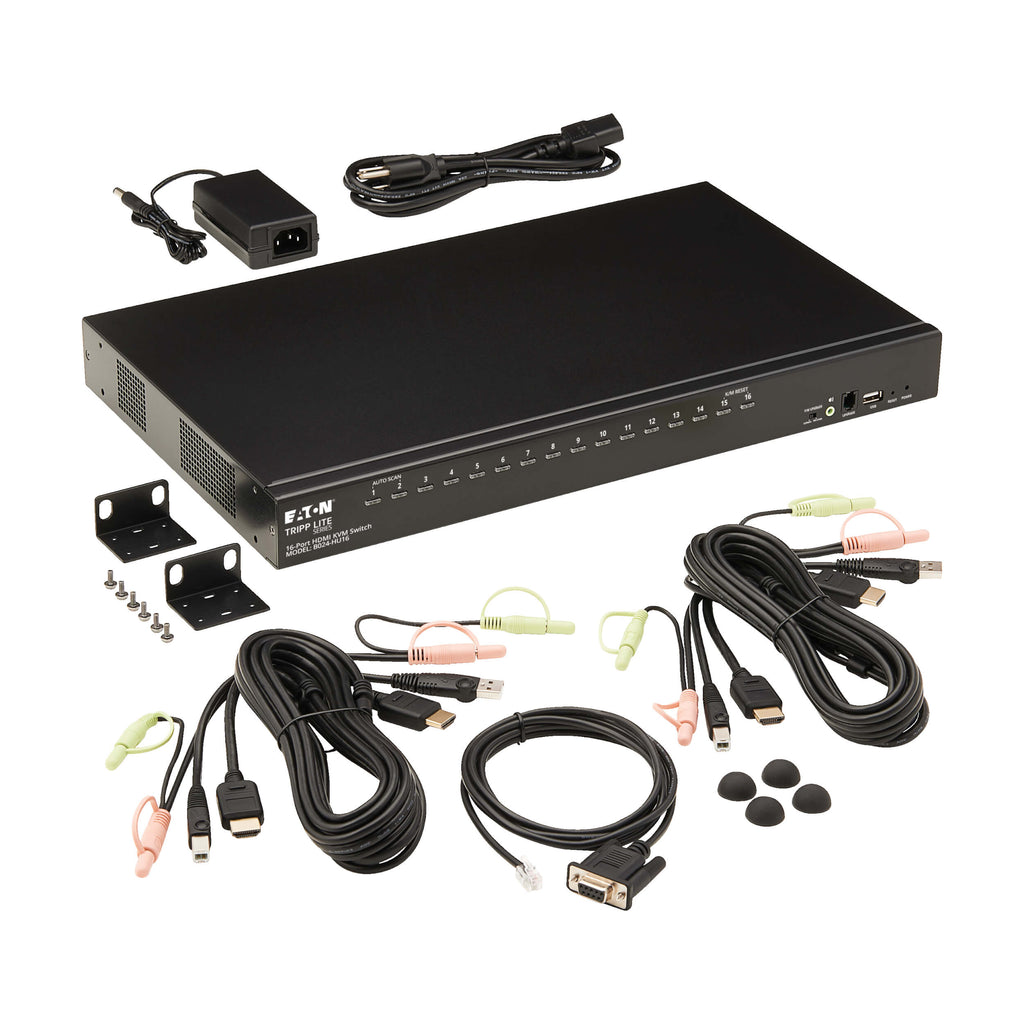

Durable 1U rackmount design with included hardware
-
TAA-compliant for GSA schedule purchases
| Category | Specification |
|---|---|
| Model Number | B024-HU16 |
| Type | 16-Port HDMI/USB KVM Switch |
| Video Resolution | Up to 1920 × 1200 @ 60 Hz (1080p) |
| Audio | 2.1-channel surround sound |
| USB Hub | 2 × USB 2.0 ports (480 Mbps, backward compatible with USB 1.1) |
| Max. Computers Supported | 16 (up to 256 via cascading) |
| Monitor Interface | HDMI |
| Keyboard/Mouse Interface | USB |

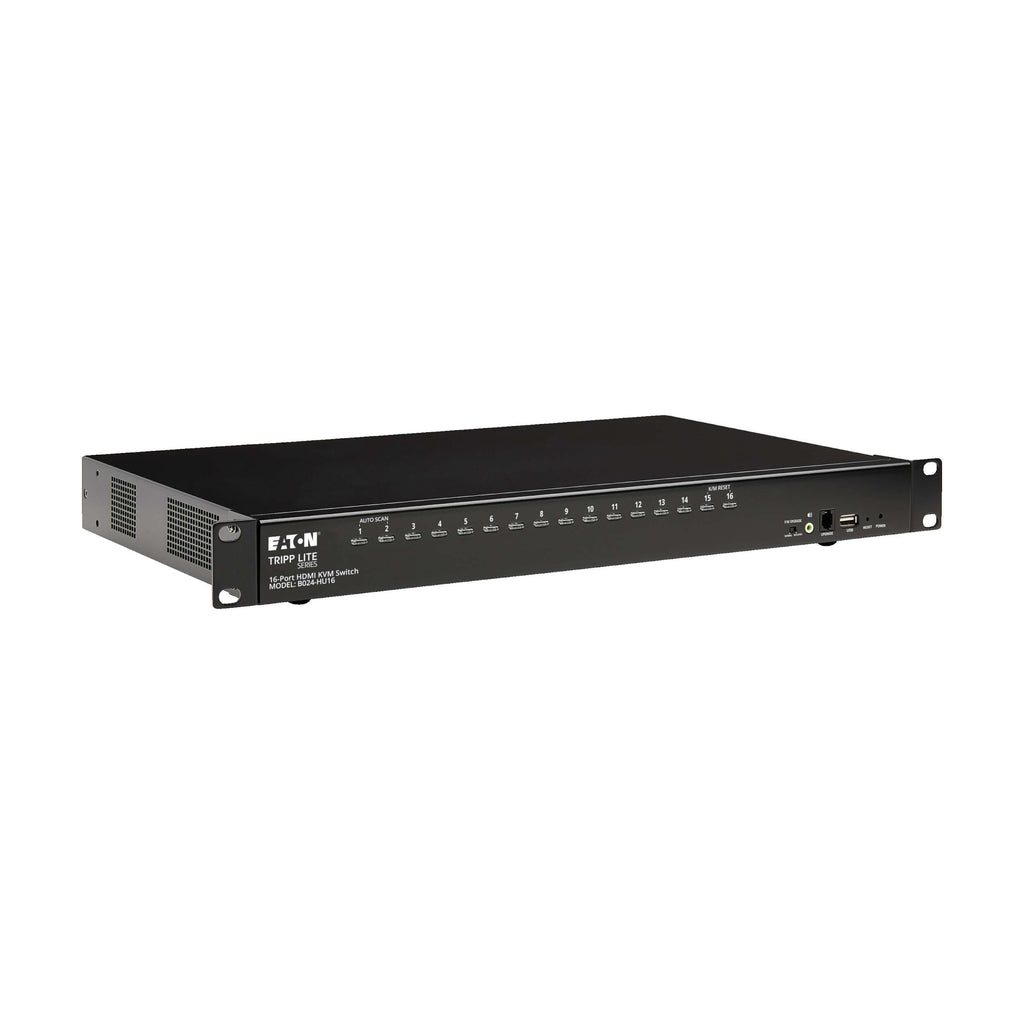

| Switching Methods | Front-panel pushbuttons, hotkeys, OSD |
| Indicators | Orange (KVM & Audio), Green (USB), Dark Green (Power) |

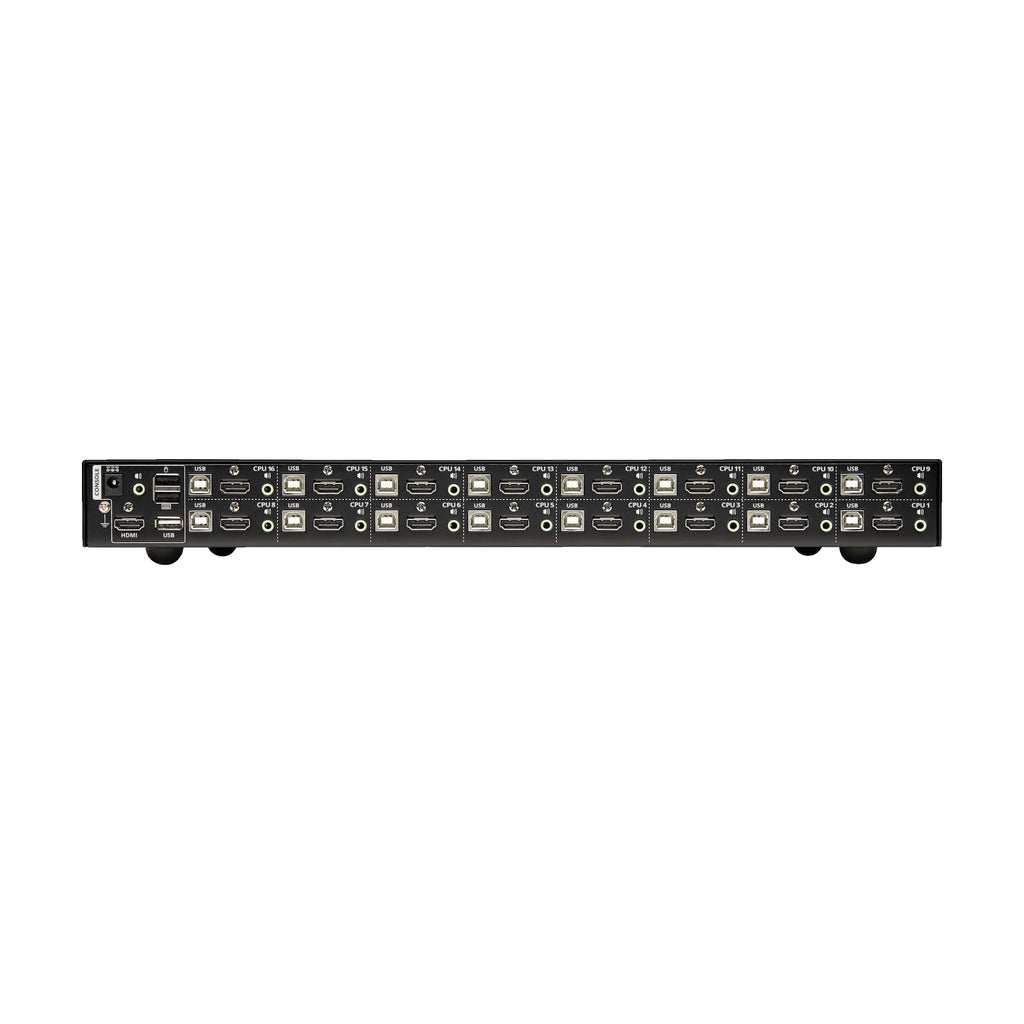

| Input Ports | 16 × HDMI (F), 16 × USB-B (F), 16 × 3.5mm (F) |
| Output Ports | 1 × HDMI (F), 4 × USB-A (F), 2 × 3.5mm (F), 1 × RJ11 (F) |
| Compatibility | Windows, Mac, Sun, Linux |
| Power Input | 100–240V AC, 50/60 Hz, 0.7A |
| Power Output | 5V DC, 4A |
| Rackmountable | Yes (1U) |
| Material | Steel |
| Unit Dimensions (H × W × D) | 1.72 × 17.02 × 10.10 in (43.7 × 432 × 256 mm) |
| Unit Weight | 8.8 lb (3.99 kg) |
| Operating Temperature | 32°F–122°F (0°C–50°C) |
| Compliance | RoHS, FCC (USA), TAA |
| Warranty | 2-Year Limited Warranty |
