Description

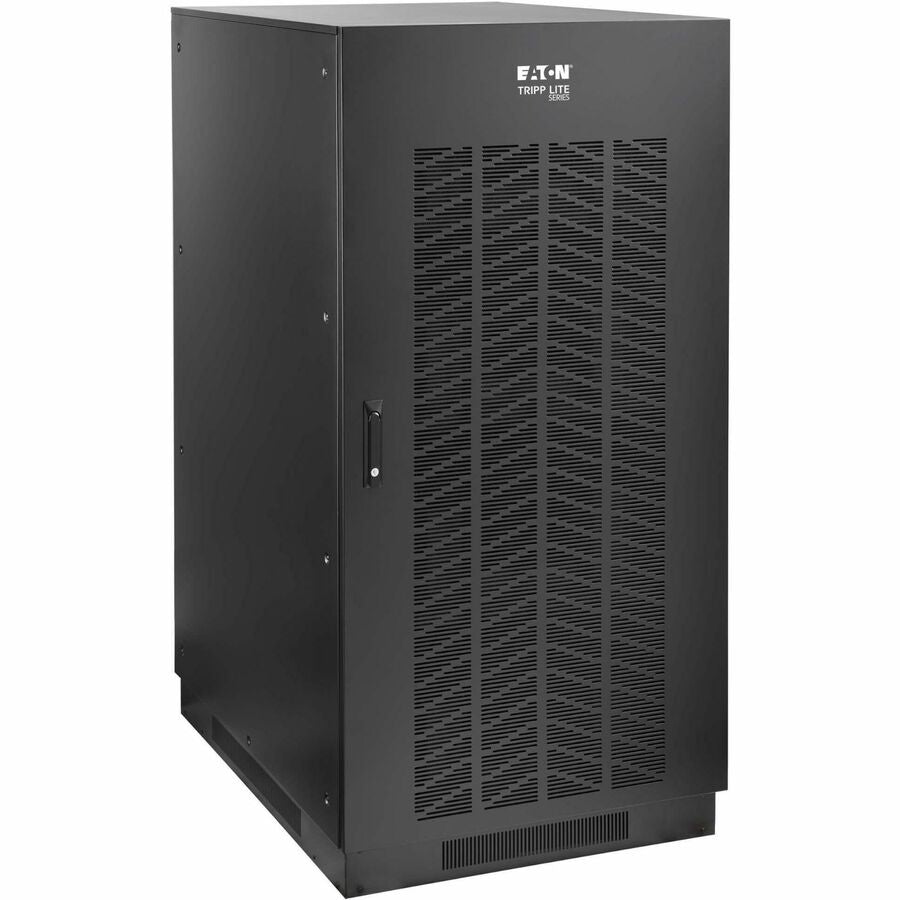

The Eaton BP240V100L-NIB is a high-capacity ±120VDC external battery cabinet designed to extend the runtime of Eaton Tripp Lite SmartOnline® S3M-Series 3-phase UPS systems rated from 50kVA to 100kVA. Constructed from durable steel with a locking front door, this battery pack accommodates 40 user-installed 100Ah VRLA (AGM) batteries (not included), offering scalable backup power for mission-critical applications such as data centers, telecom, industrial, and emergency systems.
The cabinet supports daisy-chaining with additional BP240V100L-NIB units to further enhance backup duration. It includes all internal cabling, copper jumpers, and external battery cables for seamless installation. Ideal for environments demanding high availability and extended runtime with clean, professional aesthetics.
| Specification | Details |
|---|---|
| Model Number | BP240V100L-NIB |
| UPC Code | 037332257796 |
| Supported UPS Models | Eaton Tripp Lite S3M50K, S3M60K, S3M80K, S3M100K |
| System Voltage | ±120VDC |
| Battery Type | VRLA (AGM), 100Ah (user-supplied, 40 pcs) |
| Battery Runtime | Expandable via daisy-chaining |
| UPS Connection | Hardwire (see manual for cable gauge) |
| Form Factor | Tower |
| Material | Steel with powder-coated finish |
| Access | Locking hinged front door |
| Protection | Output breaker and internal fuses |
| Dimensions (in.) | 63.0 (H) x 31.5 (W) x 45.4 (D) |
| Dimensions (cm) | 160 (H) x 80 (W) x 100.24 (D) |
| Shipping Dimensions (in.) | 70.9 (H) x 36.2 (W) x 49.1 (D) |
| Unit Weight | 628.9 lbs / 285.26 kg |
| Shipping Weight | 783.3 lbs / 355.3 kg |
| Certifications | RoHS Compliant |
| Warranty | 1-Year Limited Warranty |
| Included Accessories | (16) External Battery Cables, (28) Copper Jumper Bars, (4) Bottom Skirts, Owner’s Manual |
