Description

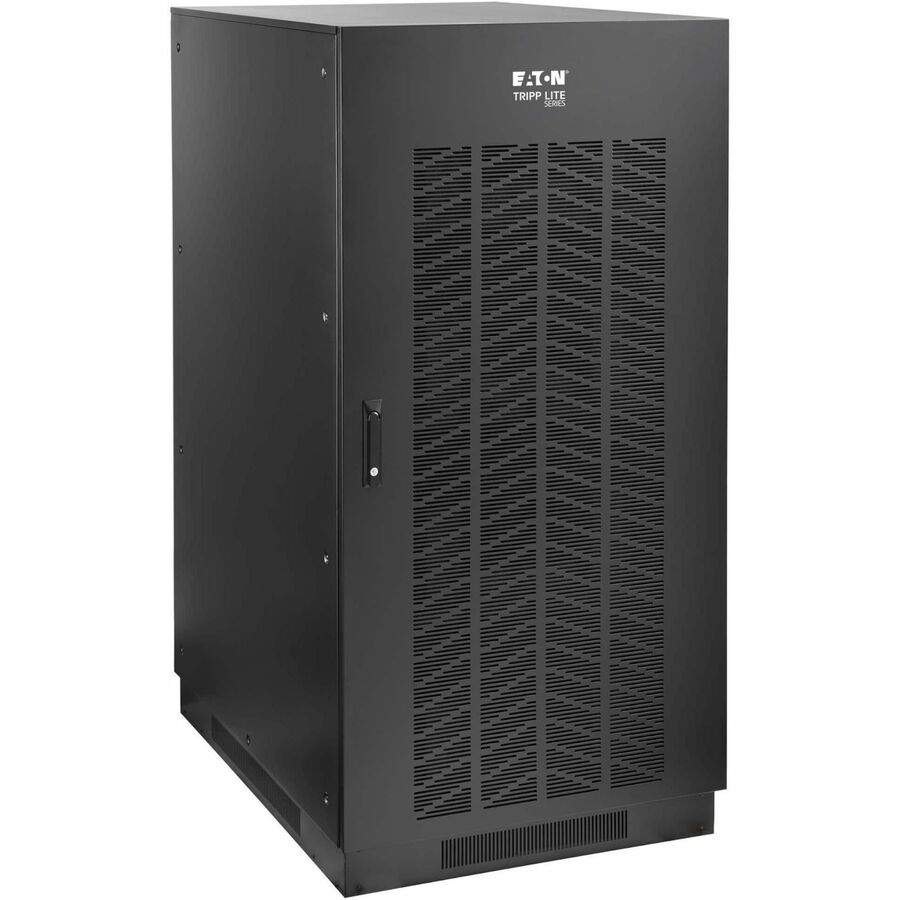

The Eaton BP240V100-NIB External Battery Cabinet delivers extended backup runtime for Eaton Tripp Lite SmartOnline® S3M-Series 3-phase UPS systems ranging from 10KVA to 60KVA. Designed with rugged steel construction and baked powder-coated finish, this cabinet accommodates 20 user-installed 100Ah VRLA (AGM) batteries (not included) for high-availability IT, industrial, and emergency applications. For enhanced flexibility, multiple BP240V100-NIB units can be daisy-chained for longer runtimes. It comes pre-cabled internally and includes fuses, output breaker, locking front door, and external battery cables for immediate integration into your UPS system.
| Specification | Details |
|---|---|
| Model Number | BP240V100-NIB |
| UPC Code | 037332257802 |
| Battery Type Supported | User-installed VRLA (AGM), 20x 100Ah (not included) |
| DC System Voltage | ±120VDC |
| Expandable Runtime | Yes – supports daisy-chaining with same model |
| UPS Compatibility | Eaton S3M10K-NIB, S3M15K-NIB, S3M20K-NIB, S3M25K, S3M30K, S3M50K, S3M60K |
| UPS Connection | Hardwire (contractor-installed) |
| Form Factor | Tower |
| Rack Height | 0U |
| Material | Heavy-gauge steel, powder-coated |
| Front Door | Hinged, lockable |
| Protection | Built-in fuses and output breaker |
| Unit Dimensions (H x W x D) | 47.2 x 31.5 x 35.4 in (119.89 x 80 x 89.92 cm) |
| Shipping Dimensions (H x W x D) | 54.9 x 36.2 x 41.2 in |
| Unit Weight | 573.7 lbs (260.23 kg) |
| Shipping Weight | 728 lbs (330.26 kg) |
| Compliance | RoHS |
| Warranty | 1-Year Limited Warranty |
| Package Includes | External and internal battery cables, jumper bars, cabinet skirts, user manual |
