Description

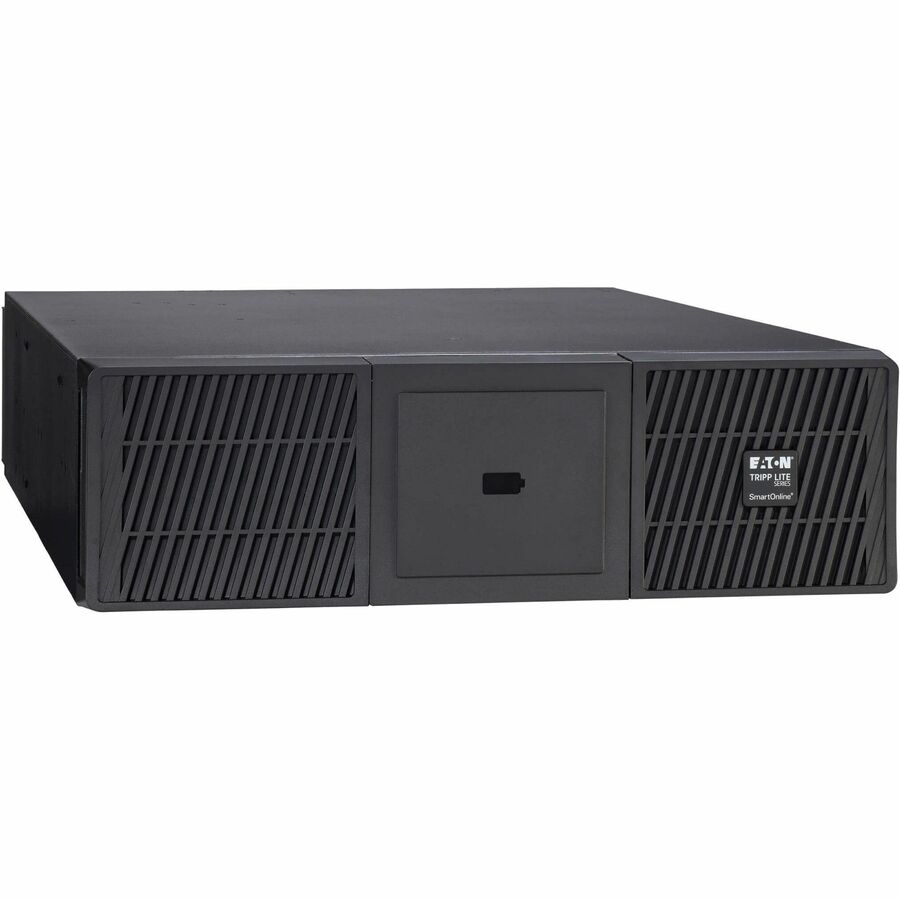

The Eaton Tripp Lite Series BP180RT is a 180V external battery module (EBM) designed to extend the runtime of select 5kVA–6kVA SmartOnline UPS systems. Housed in a 3U form factor, it features hot-swappable, user-replaceable VRLA batteries and includes heavy-gauge DC cabling for safe and simple installation.
The BP180RT supports both rackmount (4-post) and upright tower configurations, with optional 2-post mounting available. Ideal for critical power backup in small business, education, healthcare, retail, and financial environments, this EBM can be daisy-chained (up to 4 total units) for even longer runtime.
| Specification | Details |
|---|---|
| Model Number | BP180RT |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| DC System Voltage | 180V |
| Form Factor | 3U Rack/Tower |
| Installation | 4-post rack (included), 2-post optional (RK2PC), tower stands |
| Runtime Expansion | Supports daisy-chaining up to 4 battery packs |
| Hot-Swappable | Yes |
| User Replaceable | Yes |
| Replacement Battery Cartridge | 744-A1974 (2 required) |
| UPS Compatibility | SU5000RT, SU5000RTMB, SU5000RTF, SU5000RTFMB, SU6000RT, SU6000RTMB, SU6000RTF, SU6000RTFMB |
| Rack Height | 3U |
| Unit Dimensions (H x W x D) | 5.10 x 17.30 x 25.40 in. (129.5 x 439.4 x 645.2 mm) |
| Unit Weight | 150 lbs. (68.04 kg) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 0–95% (non-condensing) |
| Certifications | cUL, NOM, EN 62040-2 |
| Compliance | FCC Class A, CE, RoHS, ENERGY STAR |
| Warranty | 2-Year Limited Warranty |
| Extended Service Plans | 5-Year depot and onsite options available |
| Included Accessories | Rackmount hardware, tower stands, 1 ft. battery cable, guide |
