Description

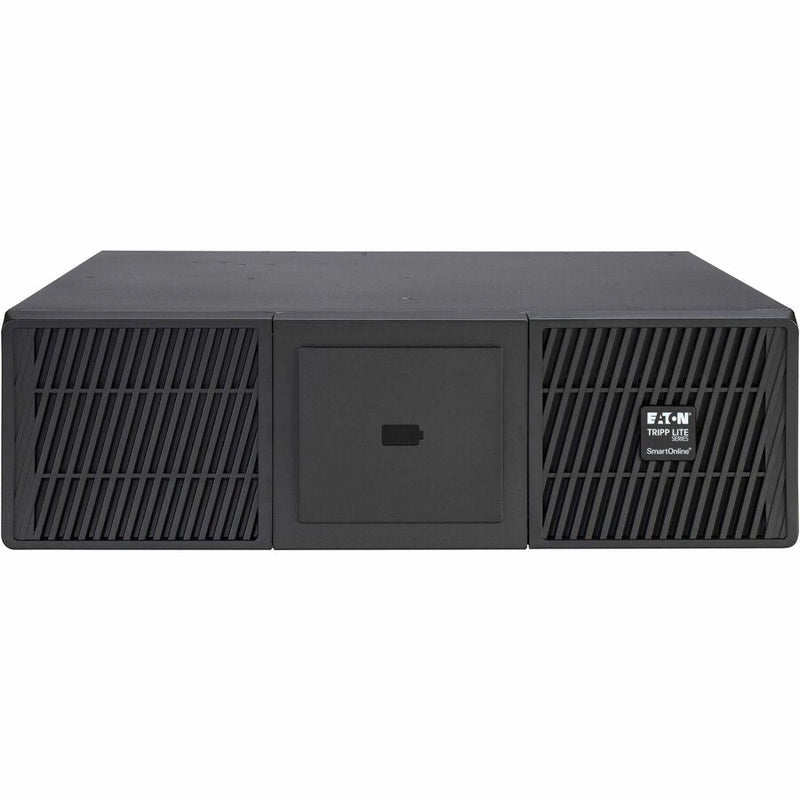

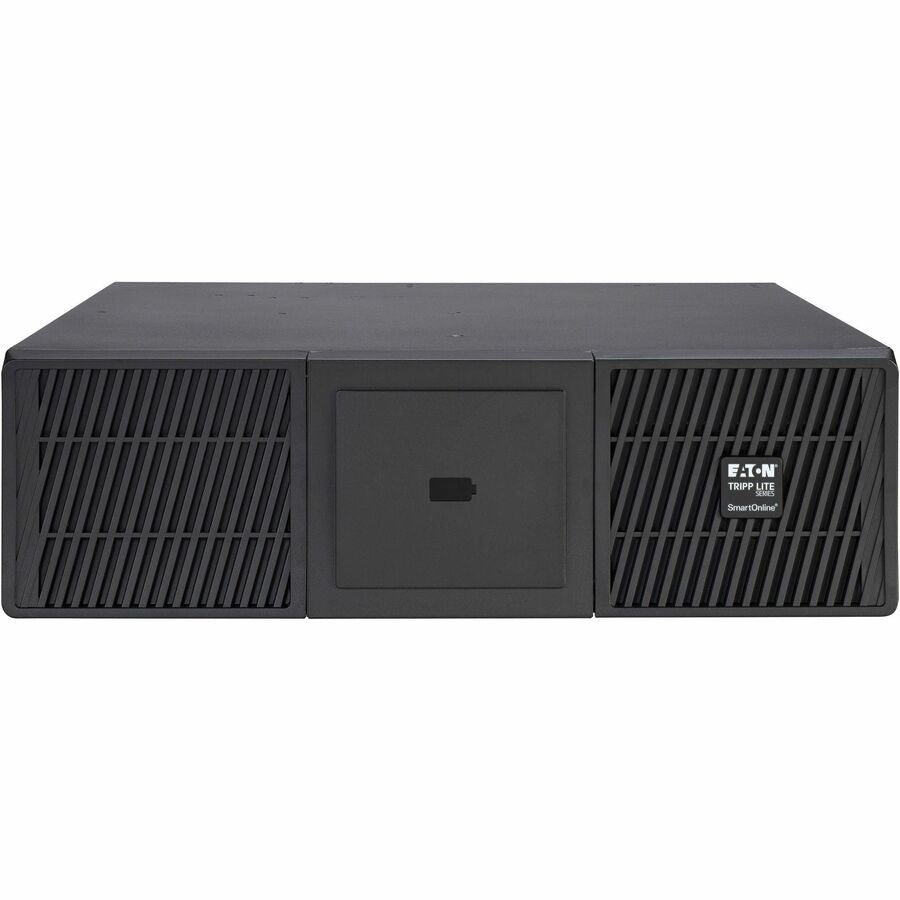

Extend the runtime of your Eaton SmartOnline UPS with the Eaton Tripp Lite Series BP180RT3UTAA Extended Battery Module. This 180V EBM is engineered for compatibility with the SU6000RT3UTAA UPS system, offering scalable backup power with support for daisy-chaining up to four battery packs. Built with reliable VRLA battery technology, it provides mission-critical runtime for network, healthcare, government, and military installations requiring TAA compliance.
The BP180RT3UTAA installs easily in 3U of rack space or can be converted to a tower setup using the included accessories. A 4-post rackmount rail kit is included, with optional support for 2-post mounting. Featuring hot-swappable, user-replaceable batteries and high-current DC connectors, this EBM ensures both flexibility and ease of maintenance.
| Specification | Details |
|---|---|
| Model Number | BP180RT3UTAA |
| Product Type | Extended Battery Module (EBM) |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Voltage | 180 VDC |
| Capacity | 10 Ah |
| Compatibility | SU6000RT3UTAA UPS only |
| Runtime Expansion | Daisy-chain up to 4 EBM units |
| Form Factor | 3U Rackmount / Tower Convertible |
| Mounting Options | 4-post rack (included), 2-post rack (optional) |
| Dimensions (H x W x D) | 5.1 x 17.3 x 25.4 in (129.5 x 439.4 x 645.2 mm) |
| Weight | 150 lbs (68.04 kg) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0–95% (non-condensing) |
| Battery Replacement | Hot-swappable; uses 2 x 744-A1974 cartridges |
| Certifications | UL 1778, cTUVus |
| Compliance | CE, FCC, REACH, RoHS, TAA |
| Warranty | 2-Year Limited Warranty |
| Extended Service Options | 3-year and 5-year depot & onsite plans available |
