Description

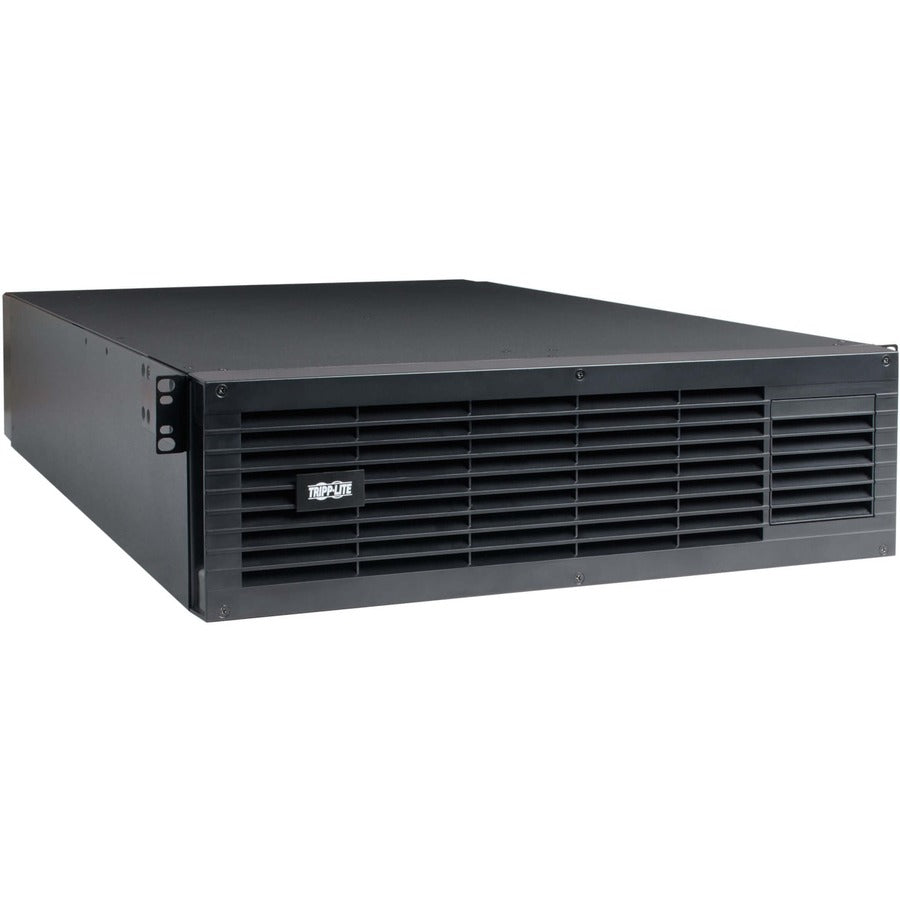

Extend the runtime of your compatible Tripp Lite SmartOnline UPS systems with the Eaton Tripp Lite BP192V12RT3US 192V External Battery Pack. Designed specifically for 5kVA and 6kVA Unity Power Factor models, this smart battery pack ensures optimal performance with automatic sensing, temperature-compensated charging, and daisy-chain expansion capability. Housed in a 3U rack/tower form factor with steel construction, it includes high-current DC cabling and 4-post rack mounting hardware for fast deployment. TAA-compliant and certified to meet global safety standards, it’s a reliable backup power extension for mission-critical environments.
Package Includes
-
BP192V12RT3US External Battery Pack
-
DC Power and Smart Communication Cables
-
4-Post Rack-Mounting Hardware
-
Owner’s Manual
| Specification | Details |
|---|---|
| Model Number | BP192V12RT3US |
| UPC Code | 037332238610 |
| Battery Voltage | 192V DC |

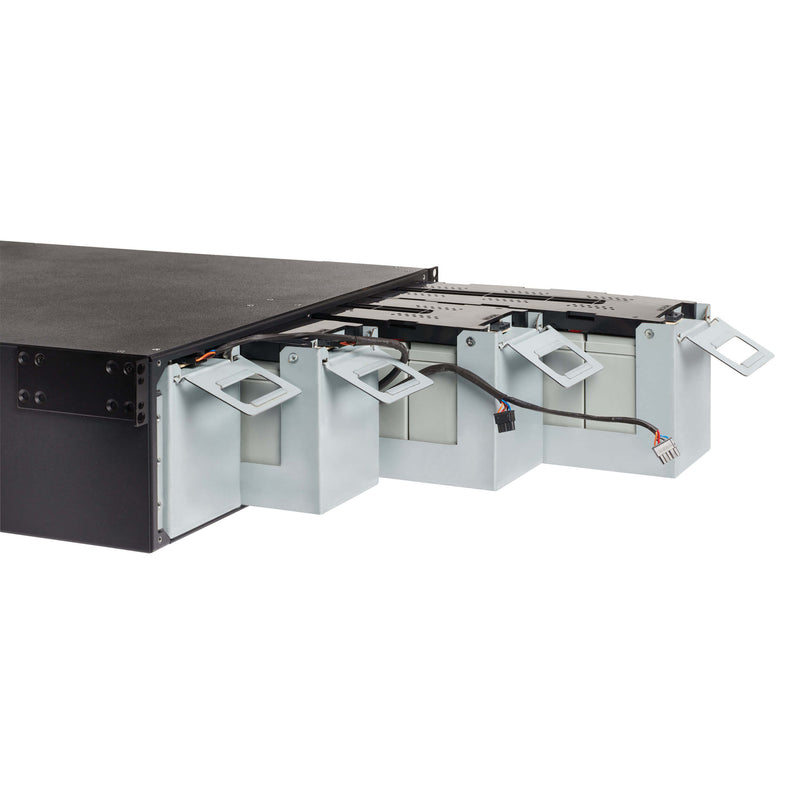

| Battery Type | Valve-Regulated Lead-Acid (VRLA), Replaceable Trays |
| Runtime Expandability | Yes – Daisy-chain capable |
| Compatibility | Tripp Lite SmartOnline 5kVA/6kVA Unity PF UPS (See list) |

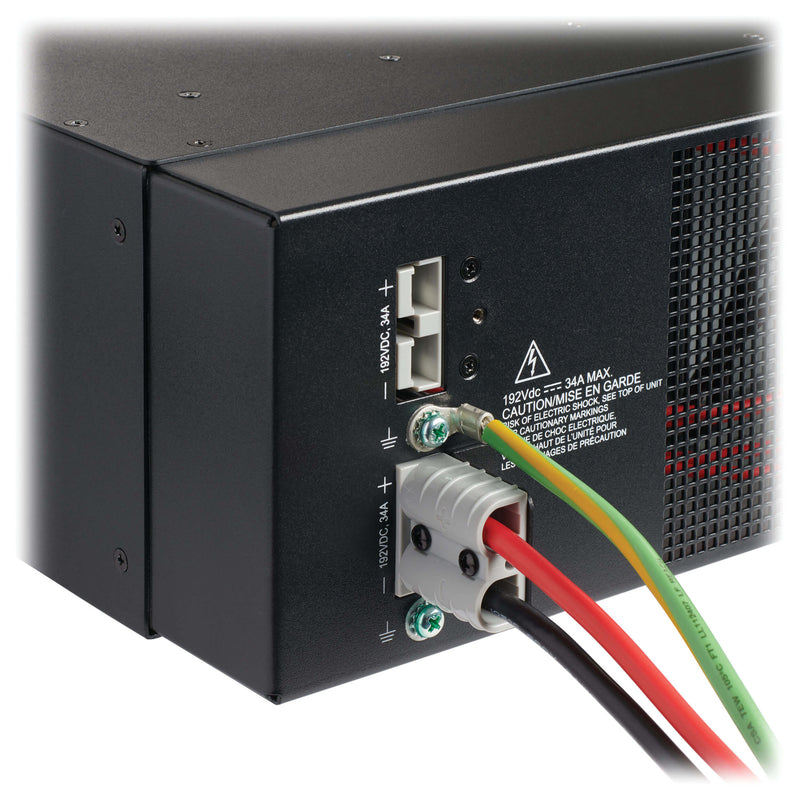

| UPS Connection | Detachable DC cable with UPS-specific connector (90 cm) |
| Smart Communication | Runtime, temperature, and charging via data cable |
| Form Factor | Rackmount / Tower |
| Rack Height | 3U |
| Material | Steel |
| Mounting Options | 4-post (included), 2-post / Tower (optional) |
| Rack Depth (Minimum Required) | 31 in. (78.74 cm) |
| Unit Dimensions (H x W x D) | 5.25 x 17.5 x 28 in (13.3 x 44.5 x 71.1 cm) |
| Shipping Dimensions (H x W x D) | 11 x 23 x 33 in |
| Unit Weight | 174 lbs (78.93 kg) |
| Shipping Weight | 194 lbs (88 kg) |
| Overload Protection | 50A DC Output Fuse |
| Certifications | UL 1778, CAN/CSA, IEC/EN 62040 |
| Compliance | RoHS, CE, TAA |
| Warranty (U.S./Canada) | 2-Year Limited Warranty |
