Description

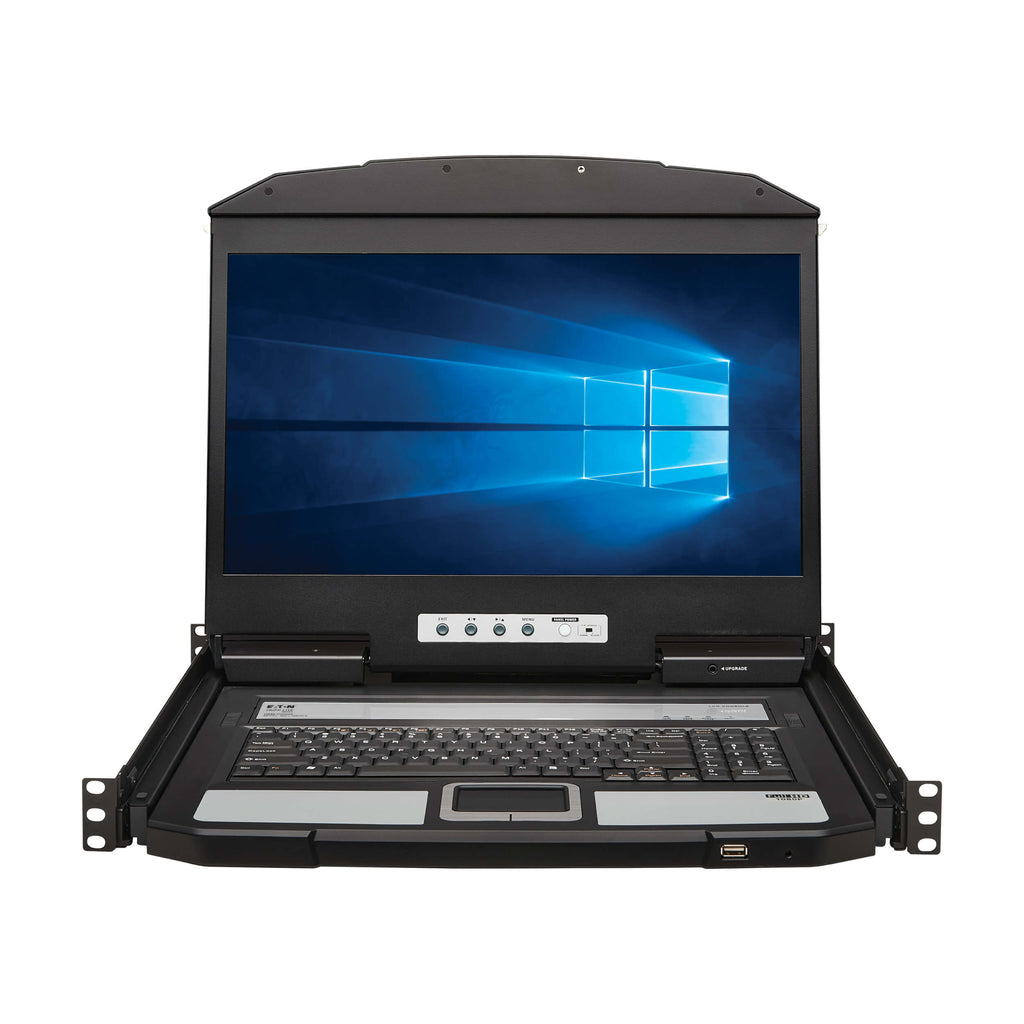

The Eaton Tripp Lite B021-SWHD-K is a space-saving 1U rack-mount HDMI KVM console designed to deliver centralized, high-performance control for servers and KVM switch environments. Featuring an integrated 18.5-inch widescreen LCD with full HD 1080p resolution, this console provides clear, reliable visual access for managing mission-critical infrastructure.

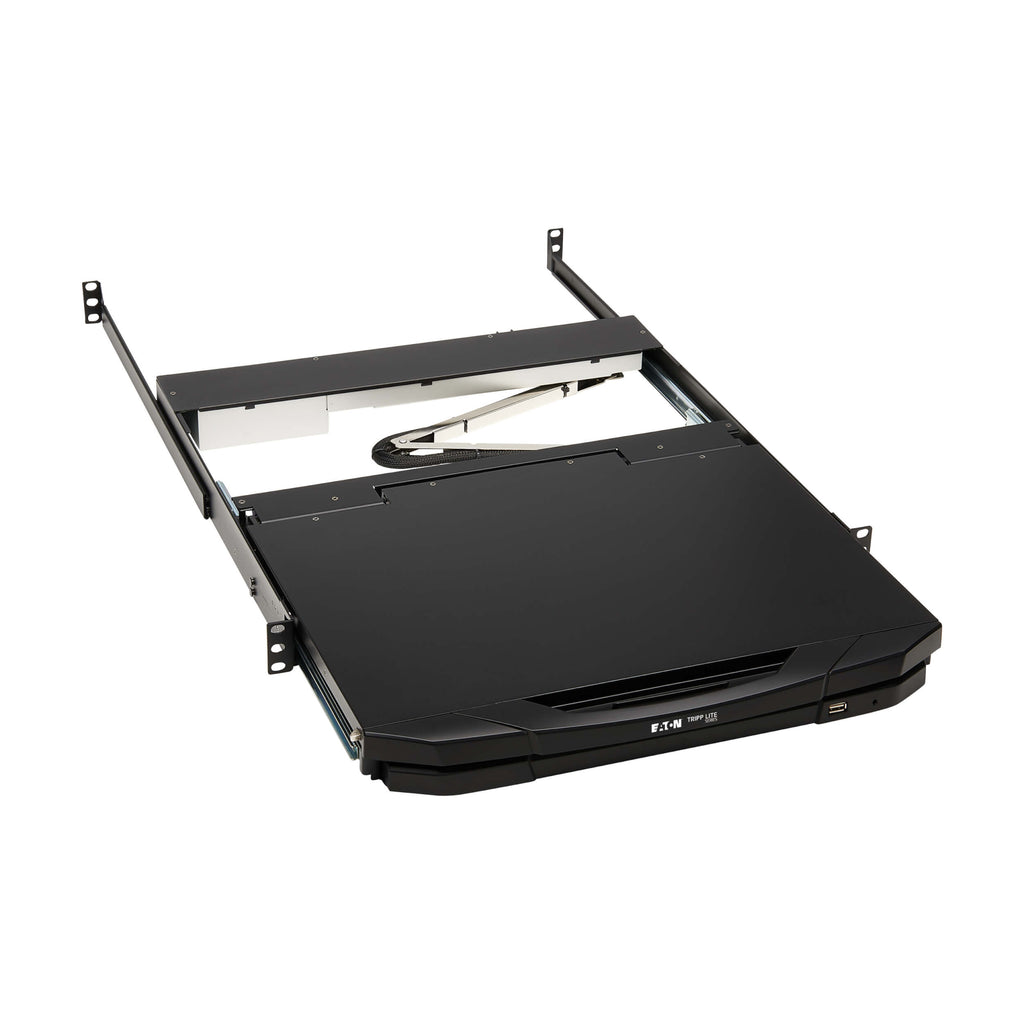

Engineered for efficiency in high-density racks, the short-depth design allows installation in the same rack space as a connected KVM switch, maximizing valuable rack real estate. The all-in-one console integrates a full keyboard, touchpad, and LCD into a sliding drawer for streamlined operation and quick deployment.
With HDMI and USB connectivity, along with a front-facing USB pass-through port, the B021-SWHD-K ensures seamless integration with modern IT environments while supporting peripheral access. Its broad OS compatibility and tool-less operation make it an ideal solution for data centers, network closets, and enterprise IT environments requiring dependable, space-efficient control.
| Specification | Details |
|---|---|
| Product Type | Rack-Mount HDMI KVM Console |
| Form Factor | 1U Rack-Mount, Short-Depth Sliding Drawer |
| Display Size | 18.5-inch Widescreen LCD |
| Max Resolution | 1920 x 1080 @ 60 Hz |
| Video Interface | HDMI |
| Keyboard | 105-Key Keyboard with Numeric Keypad |
| Pointing Device | Integrated Touchpad |
| USB Ports | 3 x USB 2.0 Hub Ports (Front USB Pass-Through Included) |
| Connectivity | HDMI and USB Console Connections |
| Supported Systems | Windows, macOS, Linux, Sun |
| Mounting Compatibility | Standard 19-inch EIA Rack |
| Input Voltage | 100–240V AC |
| Input Frequency | 50/60 Hz |
| Power Consumption | Approx. 23–24W |
| Power Connection | IEC-320-C14 |
| Cable Length | 6 ft (1.8 m) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative Humidity | 0–80% Non-Condensing |
| Construction | Metal Housing with Plastic Components |
| Color | Black |
| Unit Dimensions (H x W x D) | 1.69 x 18.78 x 18.92 in |
| Unit Weight | 19.85 lb |
| Shipping Weight | 30.62 lb |
| Certifications | UL 62368-1, IEC 62368-1, CSA, NOM |
| Compliance | FCC, CE, RoHS3, REACH, UKCA |
| Warranty | 1-Year Limited Warranty |
