Description
The Eaton Tripp Lite PDUMNH30AT2 is a high-availability, single-phase automatic transfer switch (ATS) monitored rack PDU designed to deliver continuous, reliable power to critical IT and network equipment. With dual 30A L5-30P inputs, this PDU automatically switches between primary and secondary power sources within milliseconds, ensuring uninterrupted operation during power instability or source failure.
Built for data centers, network closets, and edge environments, the PDUMNH30AT2 provides real-time remote monitoring of voltage, frequency, and load levels via a built-in network interface. A front-panel digital display offers instant visibility into amperage, kilowatt usage, and voltage, helping prevent overloads and maintain balanced loads as equipment scales.

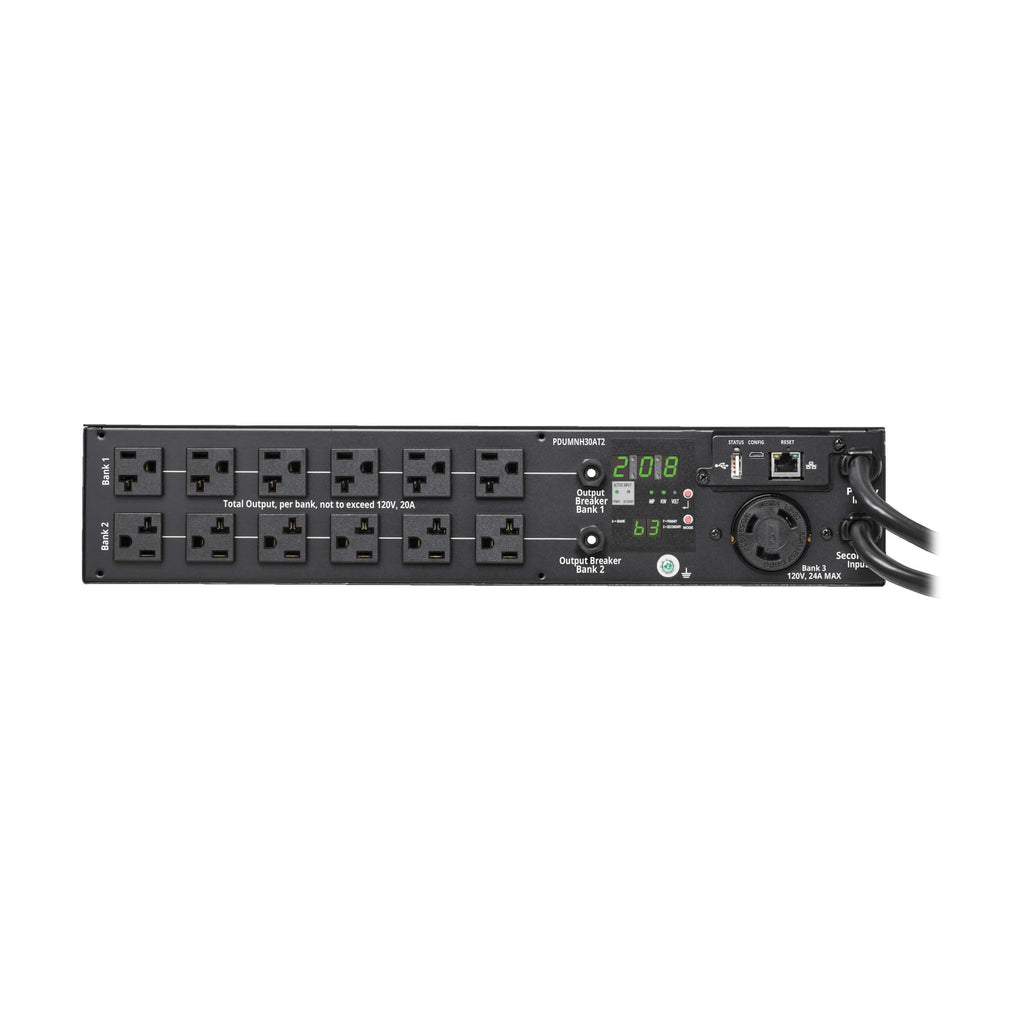

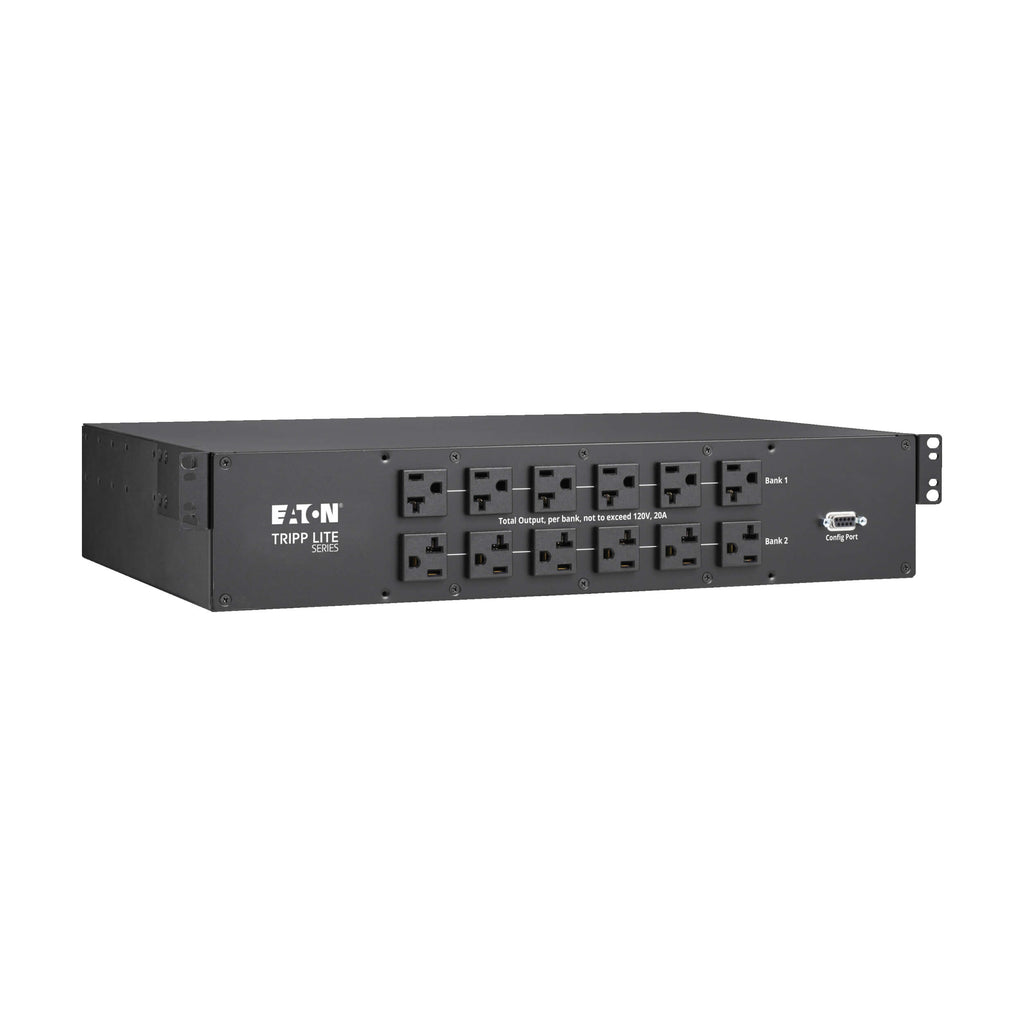

Featuring 24 NEMA 5-15/20R outlets and one L5-30R outlet, this 2U rack-mount PDU supports redundant A/B power configurations for single-corded devices while maintaining compliance with TAA requirements for government and enterprise deployments.
| Specification | Details |
|---|---|
| PDU Type | Automatic Transfer Switch (ATS), Monitored |
| Input Voltage | 120V |
| Input Phase | Single-Phase |
| Input Current | 30A (24A continuous, de-rated) |
| Input Plugs | (2) NEMA L5-30P |
| Input Cord Length | 10 ft (3.05 m) each |
| Output Capacity | Up to 2.9 kW @ 120V |
| Output Receptacles | (24) NEMA 5-15/20R, (1) NEMA L5-30R |
| Output Voltage | 100V / 120V / 127V |
| Frequency | 50 / 60 Hz |
| Overload Protection | Dual 20A breakers (per outlet bank) |
| Monitoring | Remote monitoring via network interface |
| Display | Digital LED (amps, kW, voltage) |
| Network Interface | Ethernet (RJ45), Micro-USB |

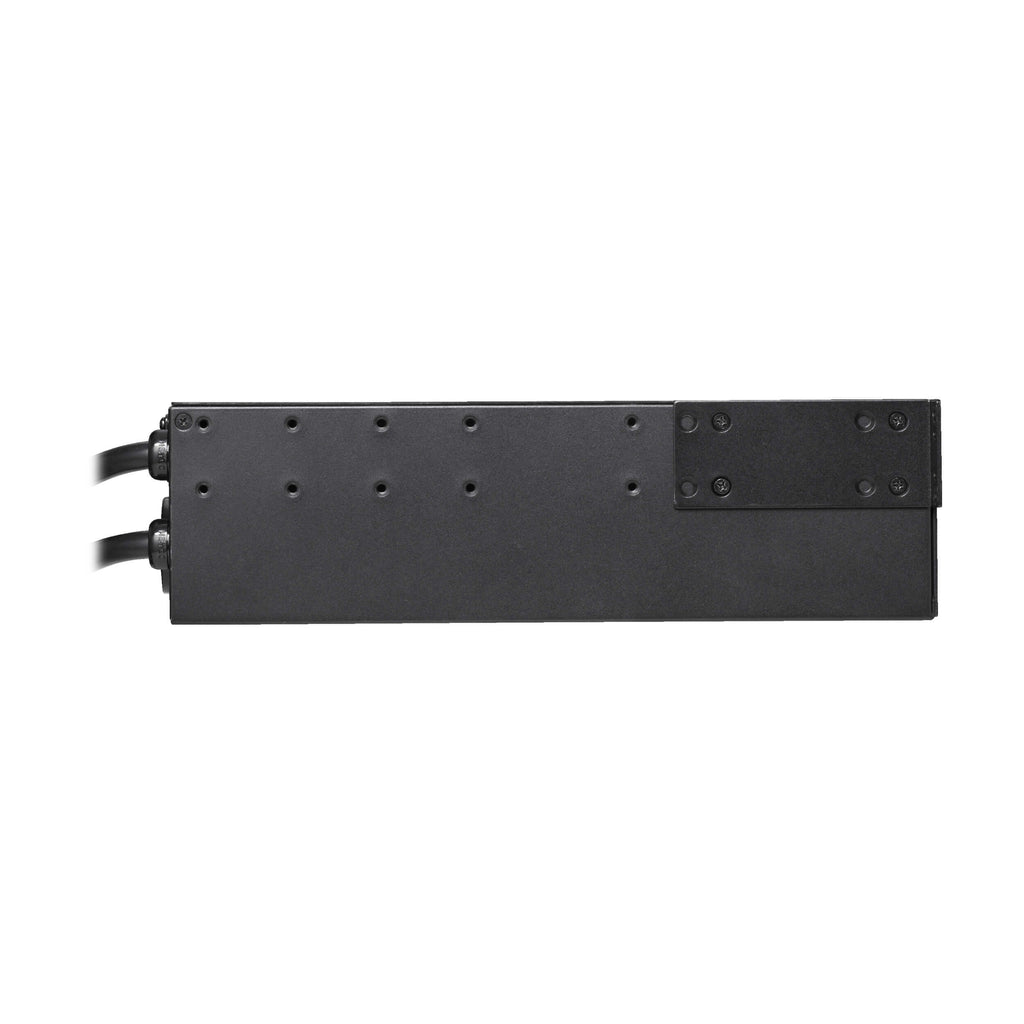

| Rack Mounting | 2U horizontal rack-mount or wall-mount |
| Construction | All-metal housing |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Relative Humidity | 5% to 95% non-condensing |
| Compliance | TAA compliant |
| Warranty | 2-Year Limited Warranty |
