Description

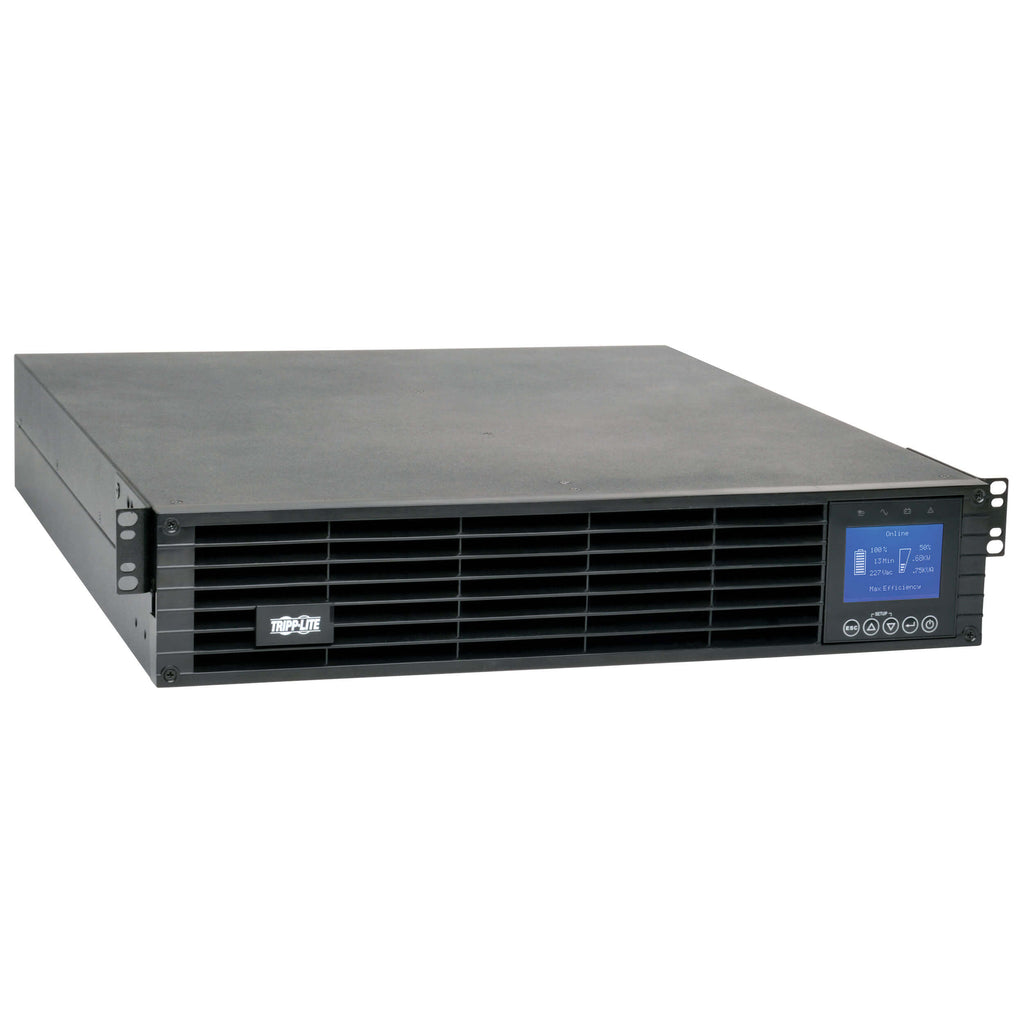

The Eaton SUINT1000LCD2UN SmartOnline UPS delivers reliable, network-grade power protection for critical servers, networking equipment, and data center systems. Featuring double-conversion online topology, it ensures continuous, pure sine wave output with zero transfer time, safeguarding against voltage fluctuations and outages.

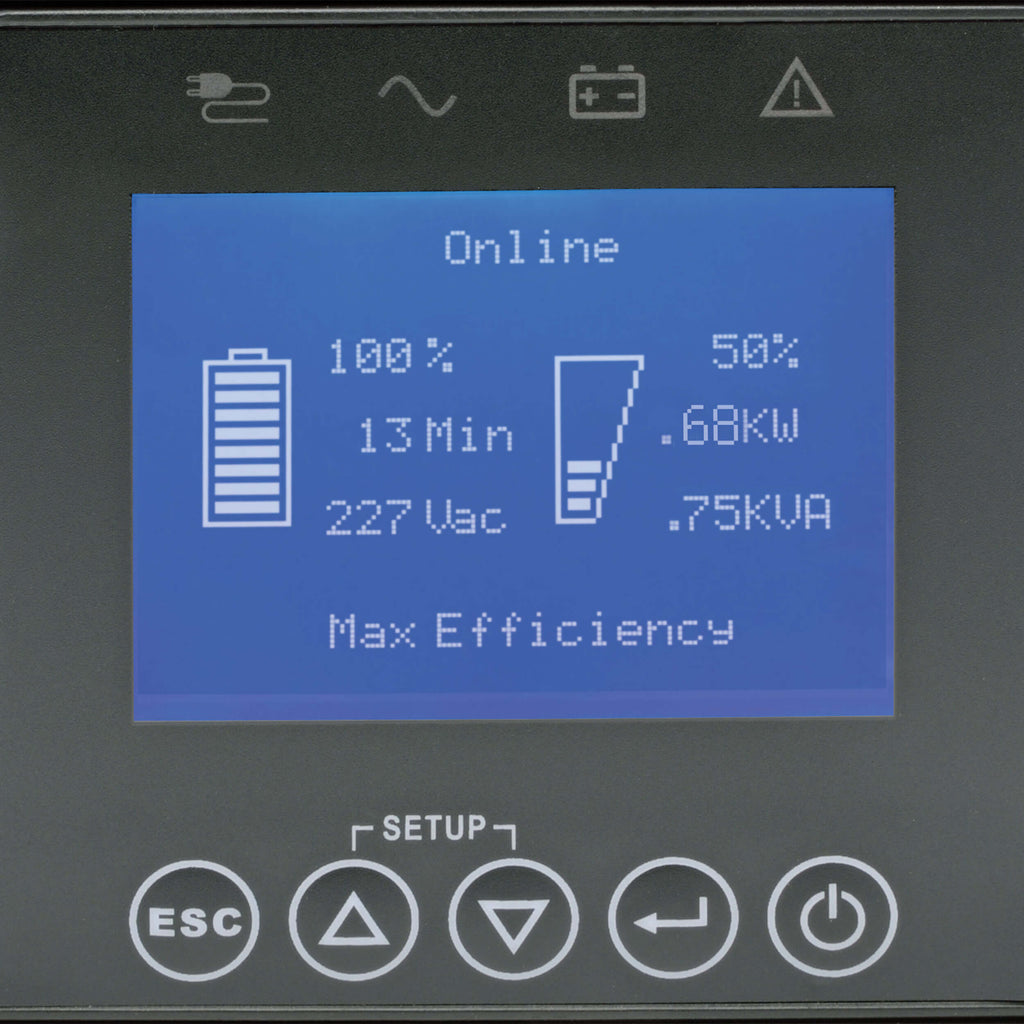

With a 1000VA (900W) capacity and ENERGY STAR® certification, it offers efficient operation and scalability through optional external battery packs. The UPS includes a pre-installed WEBCARDLXE network interface for advanced 24/7 remote monitoring and management via Eaton’s PowerAlert® software suite. Its front-panel LCD display provides real-time system information and configuration options, while two controllable outlet banks allow selective rebooting or load management remotely.
Designed for mission-critical reliability, the SUINT1000LCD2UN supports auto-bypass operation, hot-swappable batteries, and intelligent temperature-compensated charging for extended battery life. Ideal for rackmount installations, it occupies only 2U of rack space and comes equipped with comprehensive communication ports (USB, DB9, EPO).
| Category | Specification |
|---|---|
| Model | SUINT1000LCD2UN |
| UPS Type | On-Line, Double-Conversion |
| Capacity | 1000VA / 900W |
| Input Voltage | 200V / 208V / 220V / 230V / 240V AC |
| Input Connection | IEC C14 inlet (5A max) |
| Output Voltage | 200V / 208V / 220V / 230V / 240V (±2%) |

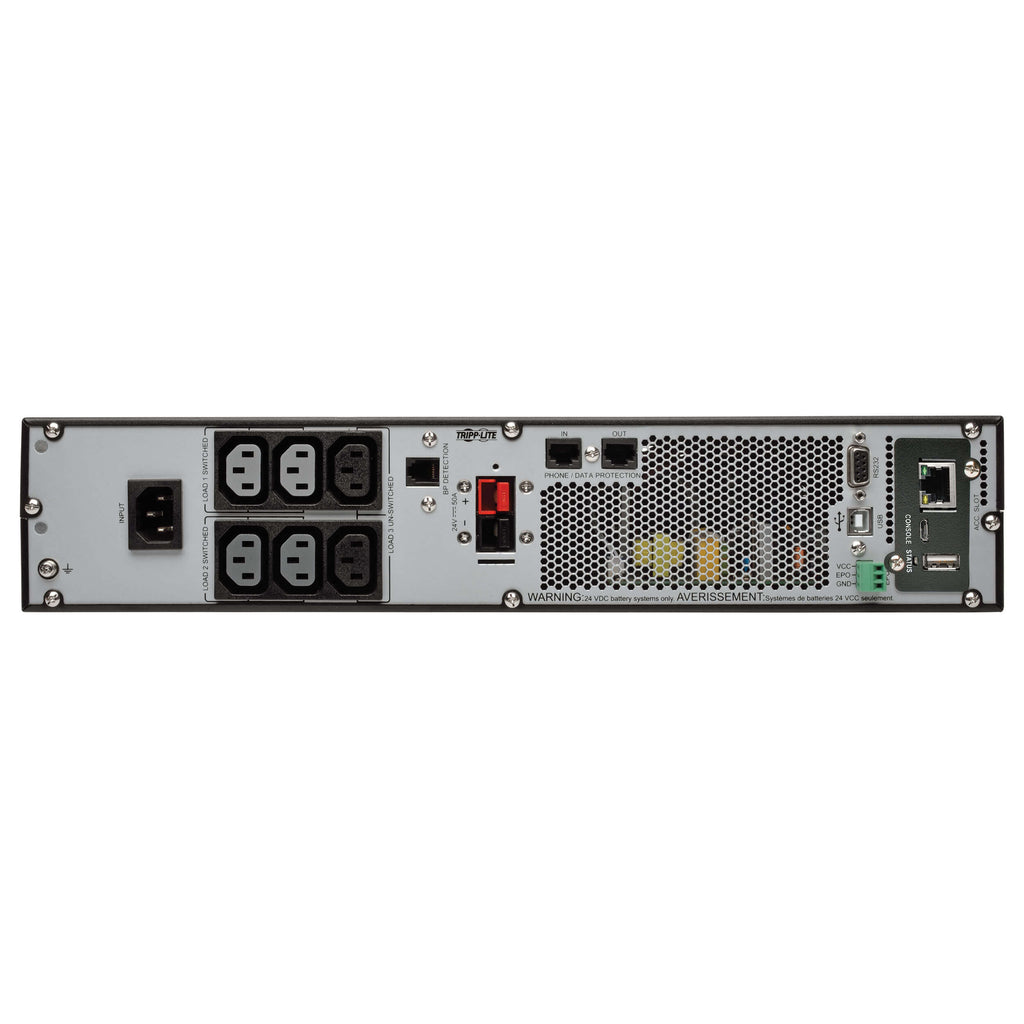

| Output Receptacles | (6) IEC C13 |
| Load Banks | 2 switchable 2-outlet banks (individually controllable) |
| Power Factor | 0.9 |
| Crest Factor | 3:1 |
| Waveform (AC/Battery Mode) | Pure Sine Wave |
| Frequency | 50/60 Hz auto-sensing |
| Transfer Time | 0 ms (online double-conversion) |
| Surge Protection | 627 Joules |
| Battery Type | VRLA, hot-swappable |
| Battery Model | RBC24S (internal, field-replaceable) |
| Runtime (Full Load) | 4.7 min (900W) |
| Runtime (Half Load) | 12.3 min (450W) |
| Expandable Runtime | Yes – supports BP24V15RT2U / BP24V70-3U |
| Recharge Time | <4.1 hours (from 10% to 90%) |
| Cooling Method | Fan |
| Noise Level | <45 dB at 1m |
| Form Factor | Rackmount 2U |
| Dimensions (H × W × D) | 3.5 × 17.25 × 15.63 in (88 × 438 × 397 mm) |
| Weight | 28 lbs (12.7 kg) |
| Efficiency | >93% (online), >96% (economy mode) |
| Operating Temperature | 0° to 40°C |
| Certifications | ENERGY STAR, CE, UL 1778, CSA, NOM, RoHS, EAC, SASO |
| Network Interface | Pre-installed WEBCARDLXE (PADM20) |
| Communications Ports | USB, DB9, EPO, RS-232, SNMP/Web |
| Software | PowerAlert® / PowerAlert Device Manager |

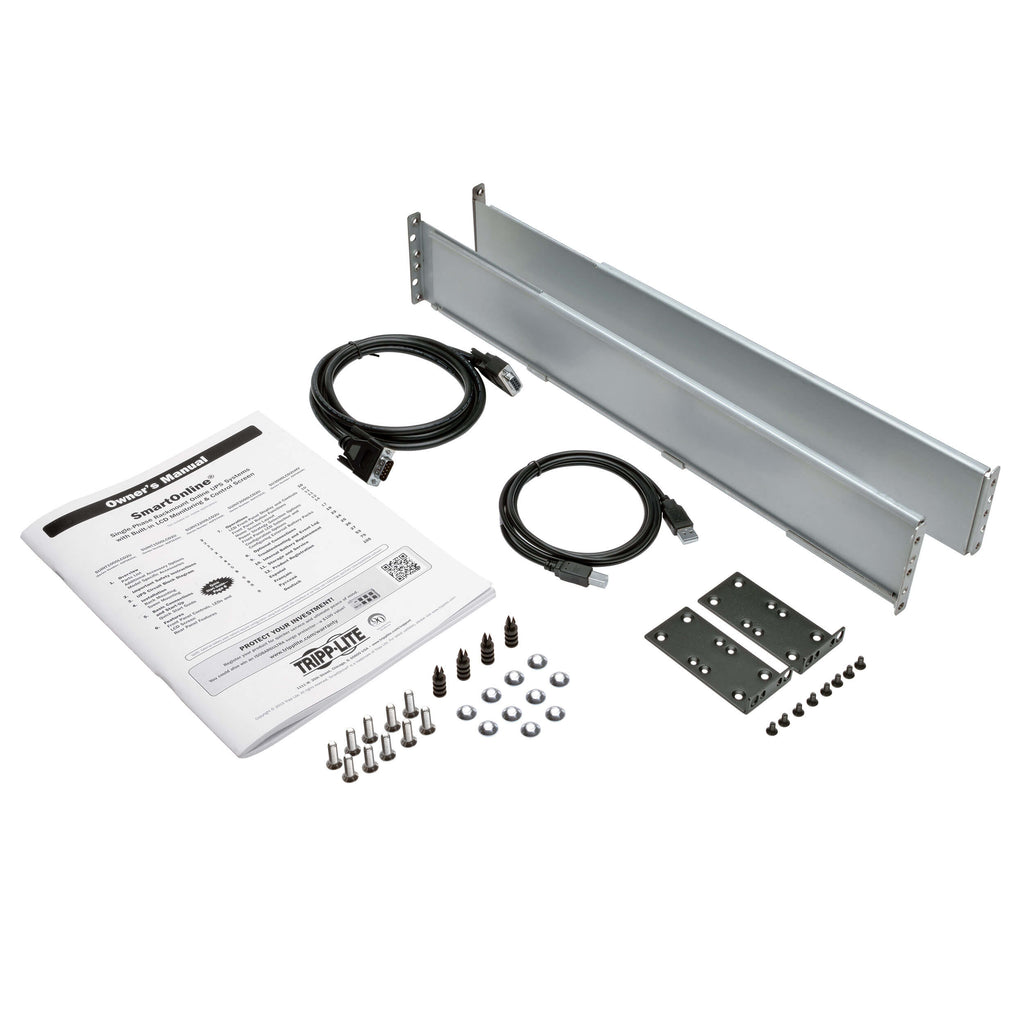

| Included Accessories | WEBCARDLXE, USB cable, RS-232 cable, EPO cable, (2) C13–C14 cords, rack hardware |
| Warranty | 2-Year Limited Warranty |
| Connected Equipment Insurance | $250,000 (U.S., Canada & Puerto Rico) |
