Description
The Eaton Tripp Lite SU3000LCD2UHV SmartOnline UPS delivers premium power protection for mission-critical servers, network closets, and data centers. This 3000VA / 2700W double-conversion UPS ensures continuous, clean, and stable AC output by converting incoming AC power to DC and then back to regulated sine wave AC. Designed for maximum reliability, it features zero transfer time, a high 0.9 power factor, and individually switchable load banks for remote outlet control and rebooting.
The unit supports multiple selectable power strategies—including Max Efficiency, Max Quality, and Frequency Regulation—to adapt to varying power conditions while maintaining uptime. Its hot-swappable, field-replaceable VRLA batteries provide up to 13.5 minutes at half load and 5 minutes at full load, with support for external battery packs (BP72V18-2US) to extend runtime.
Featuring an intuitive LCD interface, USB/RS-232 ports, and an optional WEBCARDLXE for remote monitoring via Ethernet (SNMP/SSH/HTTP), the SU3000LCD2UHV ensures complete visibility and control. ENERGY STAR-certified for efficiency, this UPS is ideal for applications that require clean, uninterrupted power for sensitive IT infrastructure.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite Series |
| Model | SU3000LCD2UHV |
| Form Factor | 2U Rackmount |
| Topology | On-Line (Double Conversion) |
| Capacity | 3000VA / 2700W |
| Input Voltage | 200V / 208V / 220V / 230V / 240V AC |

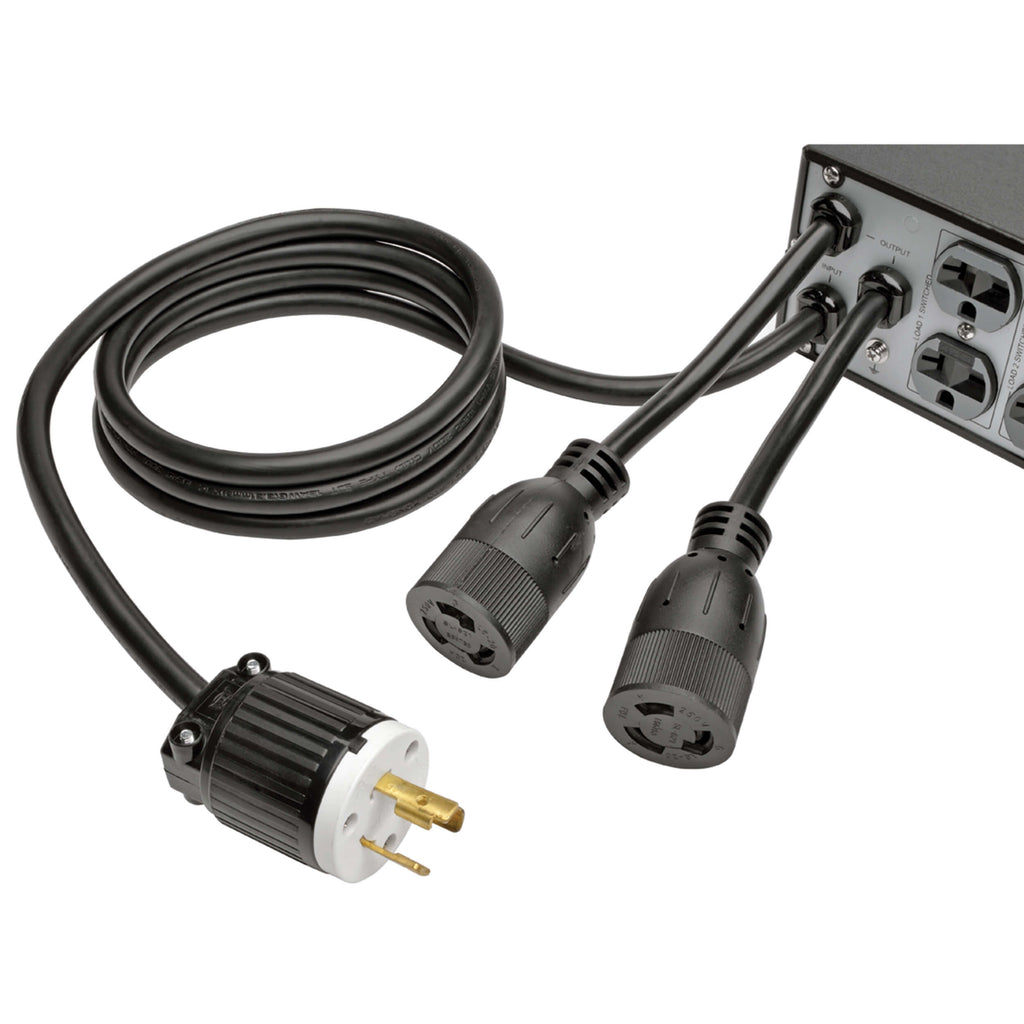

| Input Connection | NEMA L6-20P |
| Input Cord Length | 10 ft (3.1 m) |
| Output Voltage | 200V / 208V / 220V / 230V / 240V (Selectable) |

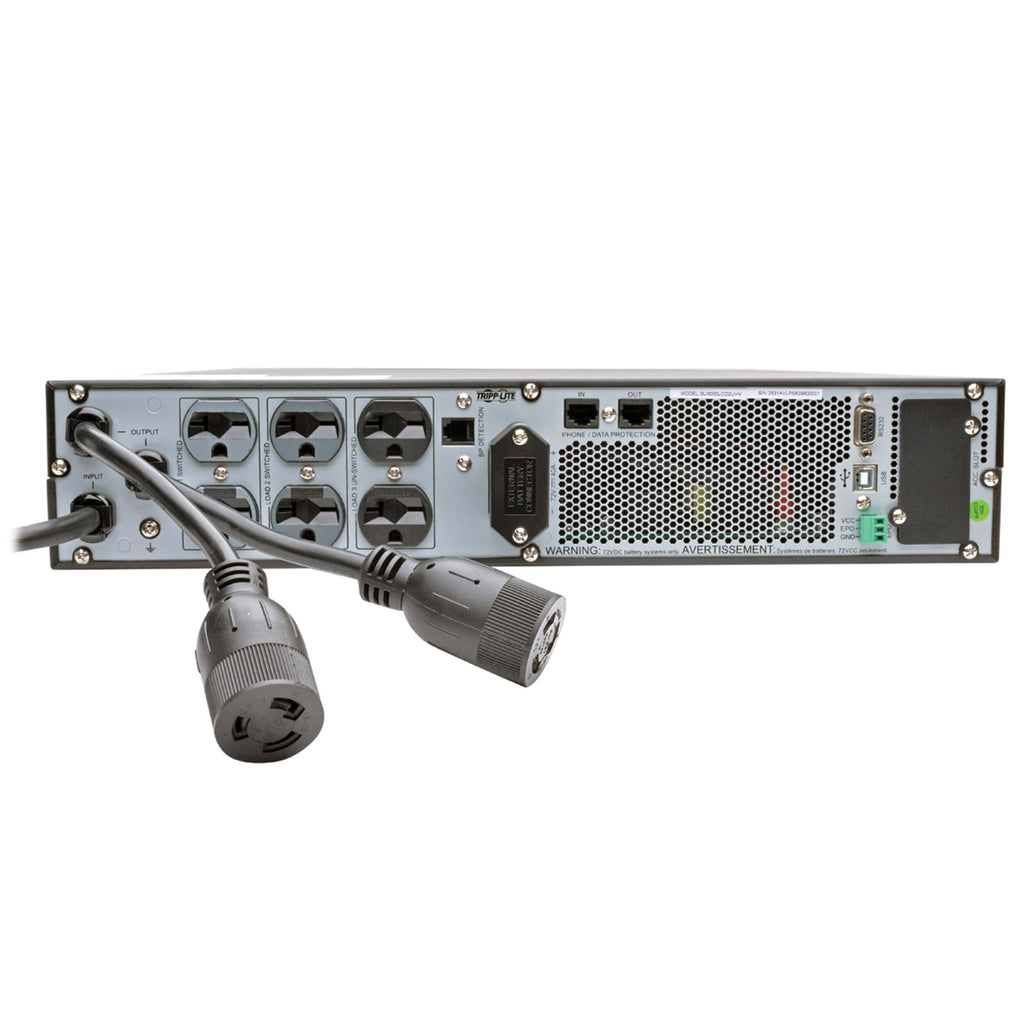

| Output Receptacles | (6) NEMA 6-15/20R, (2) NEMA L6-20R |
| Output Waveform | Pure Sine Wave |
| Power Factor | 0.9 |
| Transfer Time | 0 ms |
| Runtime (Half Load) | 13.5 minutes (1350W) |
| Runtime (Full Load) | 5 minutes (2700W) |
| Battery Type | Valve-Regulated Lead-Acid (VRLA), Hot-Swappable |
| External Battery Support | BP72V18-2US |
| Recharge Time | 3 hours (10% to 90%) |
| Communication Ports | USB, RS-232, EPO, Slot for SNMP/Web Card |
| Optional Network Card | WEBCARDLXE |
| Display | Front-Panel LCD with Status Indicators |
| Surge Protection | 570 Joules |
| Efficiency | >90% (Online), >95% (Economy Mode) |
| Noise Level | <50 dB at 1m |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (H × W × D) | 3.46 × 17.24 × 24.25 in (88 × 438 × 616 mm) |
| Weight | 70.8 lbs (32.1 kg) |
| Certifications | ENERGY STAR, UL 1778, CE, CSA, FCC Class A, RoHS |
| Warranty | 2-Year Limited Warranty |
