Description

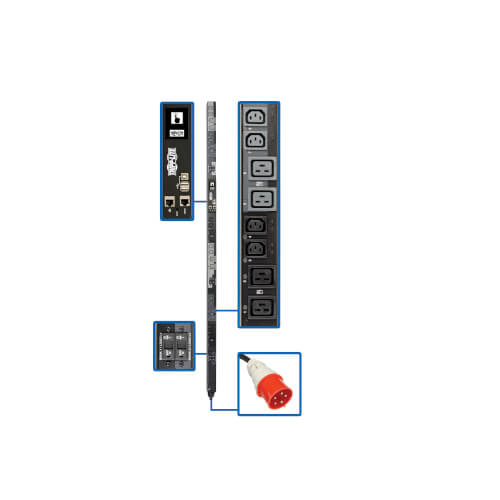

The Eaton Tripp Lite PDU3XEVSR6G32A is a 22.2 kW 3-phase switched power distribution unit designed for enterprise-grade data centers, network closets, and high-density server environments. Equipped with 24 individually controllable outlets (12 × C13, 12 × C19) across six circuit-breakered load banks, it provides remote outlet control, precision load monitoring, and billing-grade metering accuracy (±1%).
This TAA-compliant PDU features a built-in Gigabit WEBCARDLX with PowerAlert Device Manager (PADM20) for 24/7 network-based control and Auto Probe reboot, minimizing on-site maintenance. The color touchscreen LCD displays per-phase load, voltage, and environmental data (with optional EnviroSense2 module). Its 70-inch 0U vertical form factor allows easy toolless rack installation and efficient space utilization.
Designed for long-term reliability and compliance with CE, FCC Part 15 Class A, and RoHS standards, the PDU3XEVSR6G32A ensures stable, intelligent power distribution for mission-critical operations.
| Category | Specification |
|---|---|
| Model Number | PDU3XEVSR6G32A |
| PDU Type | Switched, 3-Phase |
| Input Voltage | 380 V / 400 V / 415 V AC |
| Input Plug Type | IEC 60309 32A Red (3P + N + E) |
| Input Cord Length | 1.83 m (6 ft) |
| Maximum Input Amperage | 32 A |
| Output Voltage | 220 – 240 V AC |
| Total Power Capacity | 23 kW (415/240 V), 22.2 kW (400/230 V), 21.1 kW (380/220 V) |
| Output Receptacles | 12 × C13 + 12 × C19 |
| Outlet Control | Individually switched and monitored via network interface |
| Overload Protection | Six × 20 A circuit breakers (1 per bank) |
| Network Interface | WEBCARDLX (LX Platform), Gigabit Ethernet RJ45, USB, RS-232 |
| Supported Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, Telnet/SSH |
| Display | Color touchscreen LCD with QR code access |
| Current Accuracy | ± 1 % (Amps, Volts, Watts) |
| Mounting Type | Vertical (0U) Rackmount – Toolless or Bracket Mount |
| Material | Metal chassis |
| Dimensions (H × W × D) | 177.8 × 5.51 × 5.41 cm (70 × 2.17 × 2.52 in) |
| Weight | 7.04 kg (15.52 lb) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity Range | 5 % – 95 % non-condensing |
| Compliance | CE, FCC Part 15 Class A, UKCA, RoHS, TAA |
| Warranty | 2-Year Limited Warranty |
| Included Accessories | Configuration cable, plug-lock sleeves (24), mounting hardware, spare buttons, PDUMVROTATEBRKT kit |
