Description

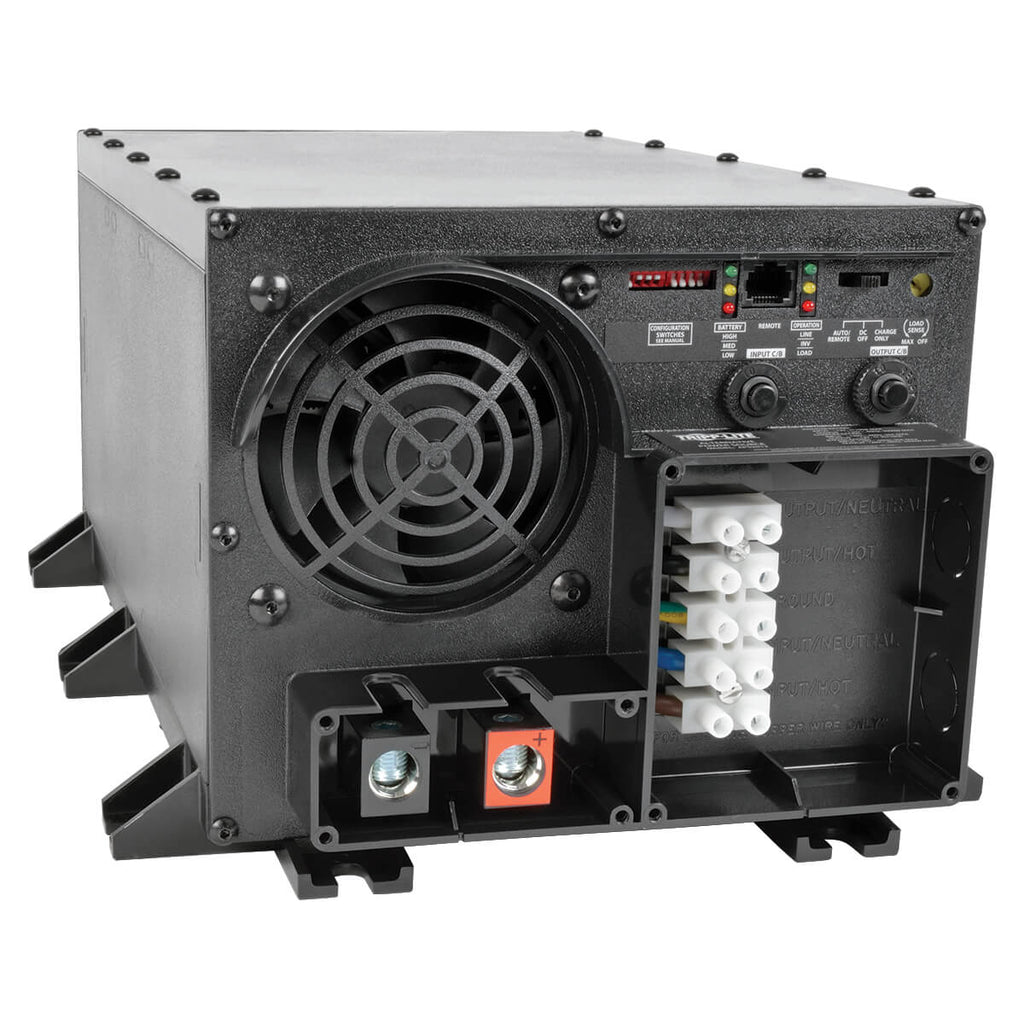

The Eaton Tripp Lite APS2424 PowerVerter APS Inverter/Charger delivers dependable mobile and off-grid power for tools, lighting, and sensitive electronics. Operating at 24VDC and outputting 120V AC power, this 2400W inverter/charger is engineered for RVs, fleet and emergency vehicles, and remote job sites.
With 2400W continuous output, 3600W for up to one hour, and 4800W peak surge power, it ensures smooth operation during high startup loads. Its integrated auto-transfer switch provides seamless UPS functionality, switching to battery power in just 16.6 ms during blackouts. The 3-stage selectable 14/55A battery charger maintains batteries efficiently while preventing overcharge and deep discharge.

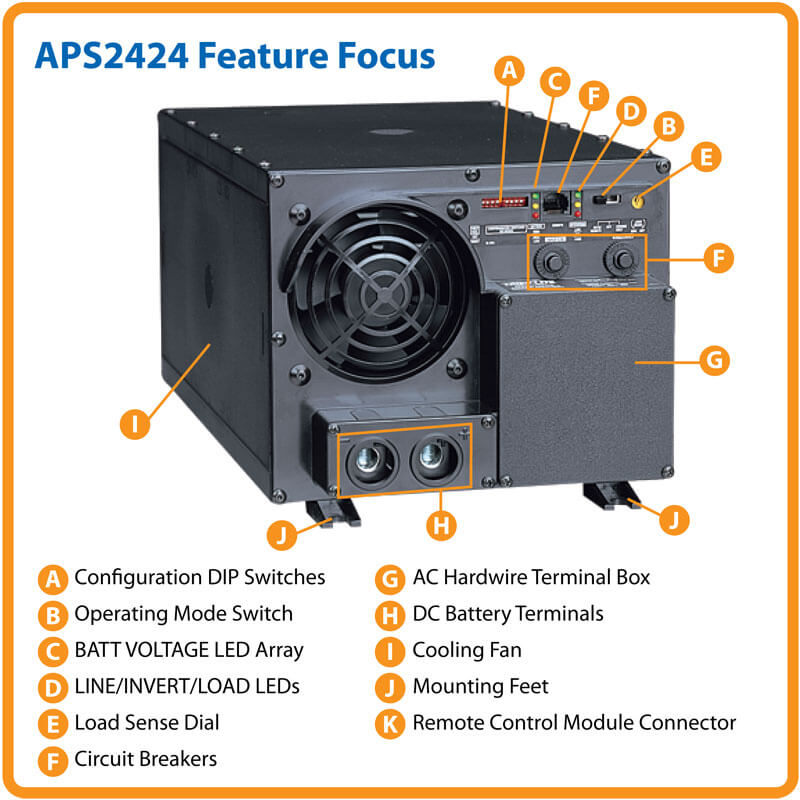

Encased in a rugged polycarbonate housing, the APS2424 resists moisture and impact, while LED indicators and optional remote control capability (APSRM4) make monitoring and operation simple. It’s a versatile, high-performance power solution for professionals needing reliable, clean 120V AC power anywhere.
| Category | Specification |
|---|---|
| Model | APS2424 |
| Brand | Eaton Tripp Lite |
| Input Voltage | 24V DC (battery) / 120V AC (utility) |
| Output Voltage | 120V AC |
| Output Capacity | 2400W continuous / 3600W reserve (1 hr) / 4800W peak (10 sec) |
| Output Frequency | 60 Hz (±0.3 Hz) |
| Waveform Type | PWM sine wave |
| Transfer Time | 16.6 ms typical |
| Battery Charging | 3-stage selectable 14A / 55A |
| DC System Voltage | 24V |
| Overload Protection | Automatic overload detection, AC breakers (30A input, 20A output) |
| Cooling Method | Multi-speed fan |
| Housing Material | Polycarbonate (moisture and impact resistant) |
| Mounting | Horizontal surface mounting feet |
| LED Indicators | AC/DC operation, overload, voltage, shutdown, system fault |
| Optional Remote Control | APSRM4 (via RJ45 port) |
| Surge Protection | 600 Joules |
| Operating Humidity | 0–95% non-condensing |
| Unit Dimensions (H×W×D) | 7.25 × 8.5 × 16.25 in (18.42 × 21.59 × 41.28 cm) |
| Unit Weight | 39 lb (17.69 kg) |
| Shipping Weight | 44 lb (19.96 kg) |
| Compliance | RoHS |
| Warranty (U.S. & Canada) | 1-Year Limited |
| Warranty (International) | 2-Year Limited |
