Description
The Tripp Lite PV2400FC PowerVerter Inverter delivers reliable, industrial-grade power conversion for demanding applications that require stable AC output from a 24V DC power source. Designed to continuously supply 2400 watts of 120V AC power, this inverter is ideal for motor-driven equipment, tools, and inductive loads with high startup current requirements.
Built around a heavy-duty transformer architecture, the PV2400FC provides excellent surge capacity—supporting short-term power spikes up to 4800 watts—while maintaining a locked 60 Hz output frequency for consistent performance. High-efficiency operation helps conserve battery power and extend runtime, making it well suited for mobile, off-grid, and industrial installations.

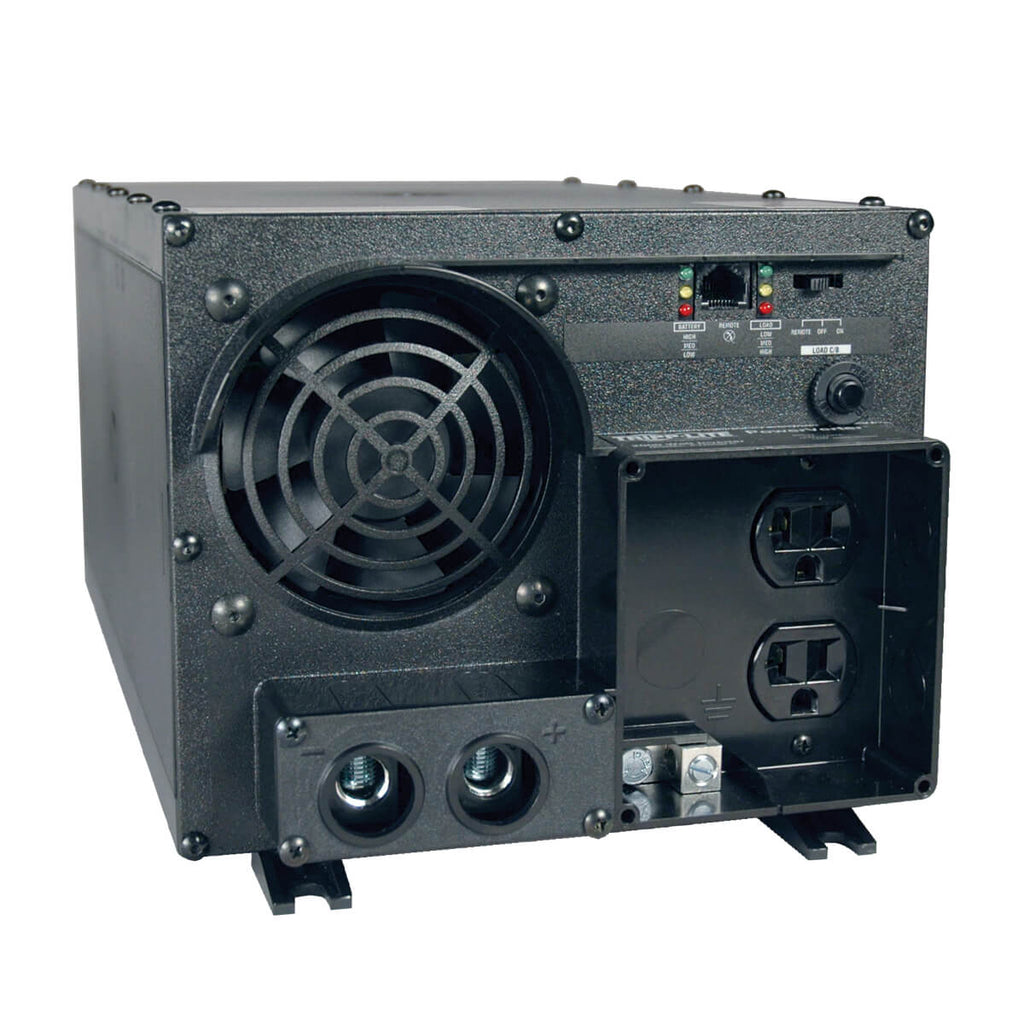

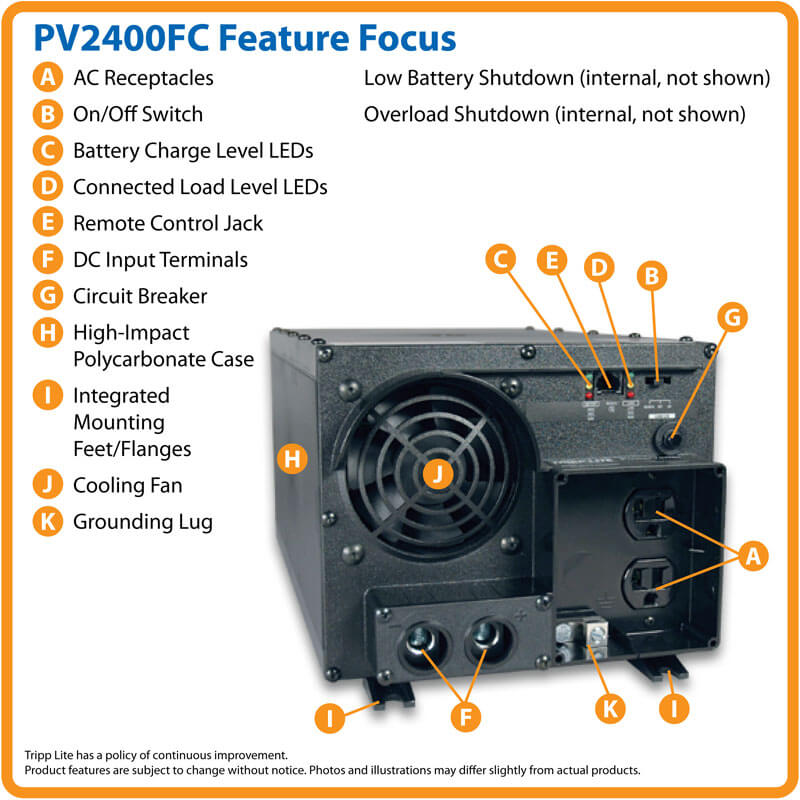

The inverter features two AC output receptacles, rugged polycarbonate housing, integrated overload protection, and diagnostic LEDs that display load and battery status at a glance. Designed for permanent installations, the PV2400FC includes bolt-down DC terminals and supports optional remote on/off control for added convenience.
| Category | Specification |
|---|---|
| Brand | Tripp Lite |
| Model Number | PV2400FC |
| Inverter Type | PowerVerter DC to AC Inverter |
| Continuous Output Power | 2400 W |
| Peak Surge Power | 3600 W (OverPower), 4800 W (Double-Boost) |
| Input Voltage | 24 V DC |
| Output Voltage | 120 V AC |
| Output Frequency | 60 Hz |
| Output Receptacles | 2 × NEMA 5-15R |
| Waveform Type | PWM Sine Wave |
| Voltage Regulation | ±5% |
| Frequency Regulation | ±0.3 Hz |
| Maximum Input Current | 120 A at full load |
| Cooling Method | Fan-assisted |
| Housing Material | High-impact polycarbonate |
| Overload Protection | Circuit breaker |
| Status Indicators | Load level and battery charge LEDs |
| Remote Management | Optional remote on/off support |
| Mounting | Permanent surface mount |
| Unit Dimensions (H × W × D) | 7.25 × 8.50 × 16.25 in |
| Unit Weight | 39 lb |
| Operating Humidity | 0–95% non-condensing |
| Compliance | RoHS |
| Warranty | 1-Year Limited |
