Description

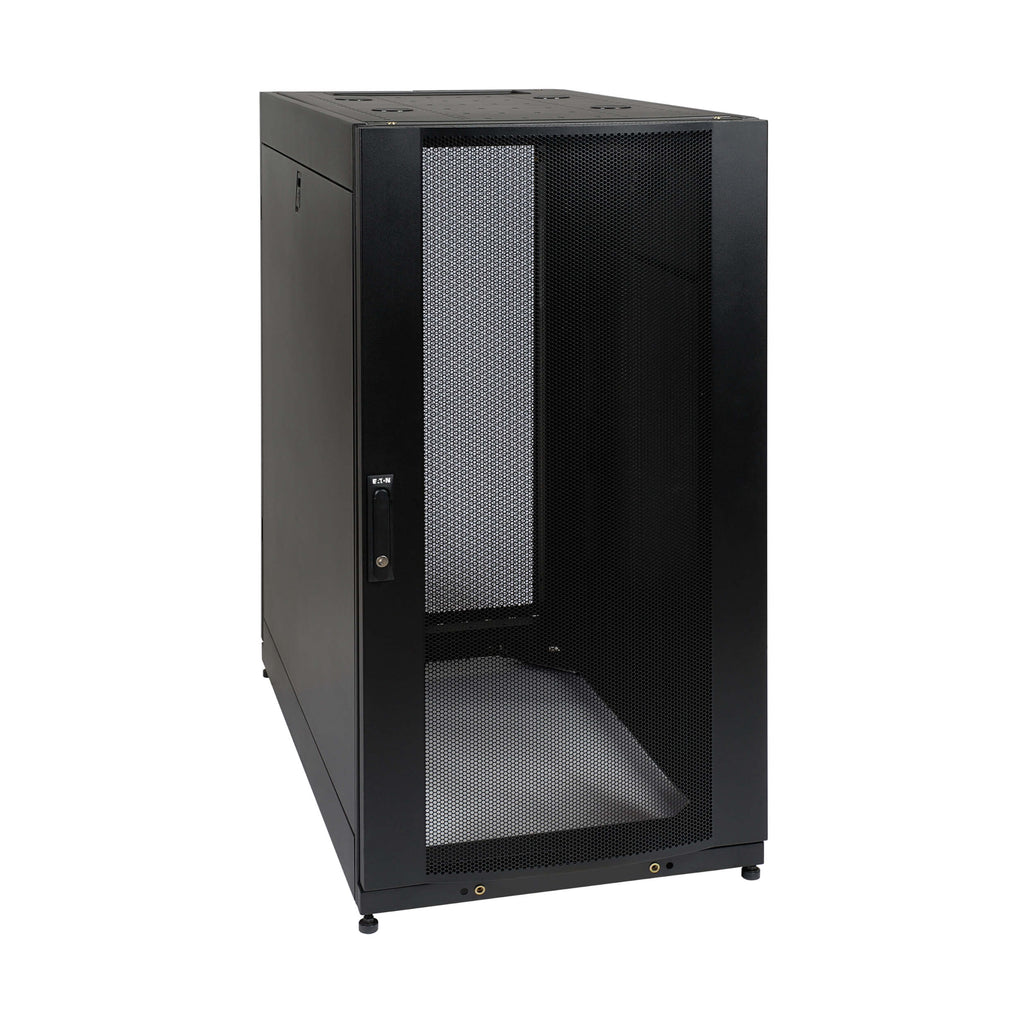

The Tripp Lite SR25UBSP1 SmartRack 25U Enclosure is a rugged, half-height, standard-depth rack cabinet designed for secure, high-density server and networking applications. It ships fully assembled on a shock pallet with reinforcement and shock-absorbing material, ensuring safe transport and deployment of critical equipment. The enclosure supports up to 3500 lbs (1588 kg) stationary and 2250 lbs (1020.6 kg) rolling, making it ideal for configuring and relocating complete rack systems.
Engineered for reliability, this SmartRack features locking, reversible, and removable front and rear doors, ventilated panels for superior airflow, and toolless rail adjustments for fast installation of servers, PDUs, and cable managers. With PCI DSS compliance, EIA-310-D compatibility, and modular baying options, the SR25UBSP1 ensures efficient, secure, and scalable rack infrastructure—perfect for data centers, branch offices, or remote deployments.
| Category | Specification |
|---|---|
| Model | SR25UBSP1 |
| Type | 25U SmartRack Half-Height Enclosure with Shock Pallet |
| Form Factor | Standard-depth enclosure |
| Rack Height | 25U |
| Rack Width | 24 in (600 mm) |
| Rack Depth | 42 in (1050 mm) |
| Maximum Usable Depth | 37 in (94 cm) |
| Material / Finish | Textured black powder coat steel |
| Ventilation | 65% open perforated doors for front-to-rear airflow |
| Load Capacity (Stationary) | 3500 lbs (1588 kg) |
| Load Capacity (Rolling) | 2250 lbs (1020.6 kg) |
| Shock Pallet Capacity | Up to 1250 lbs (566.9 kg) |
| Casters / Leveling Feet | Pre-installed heavy-duty casters, removable levelers |

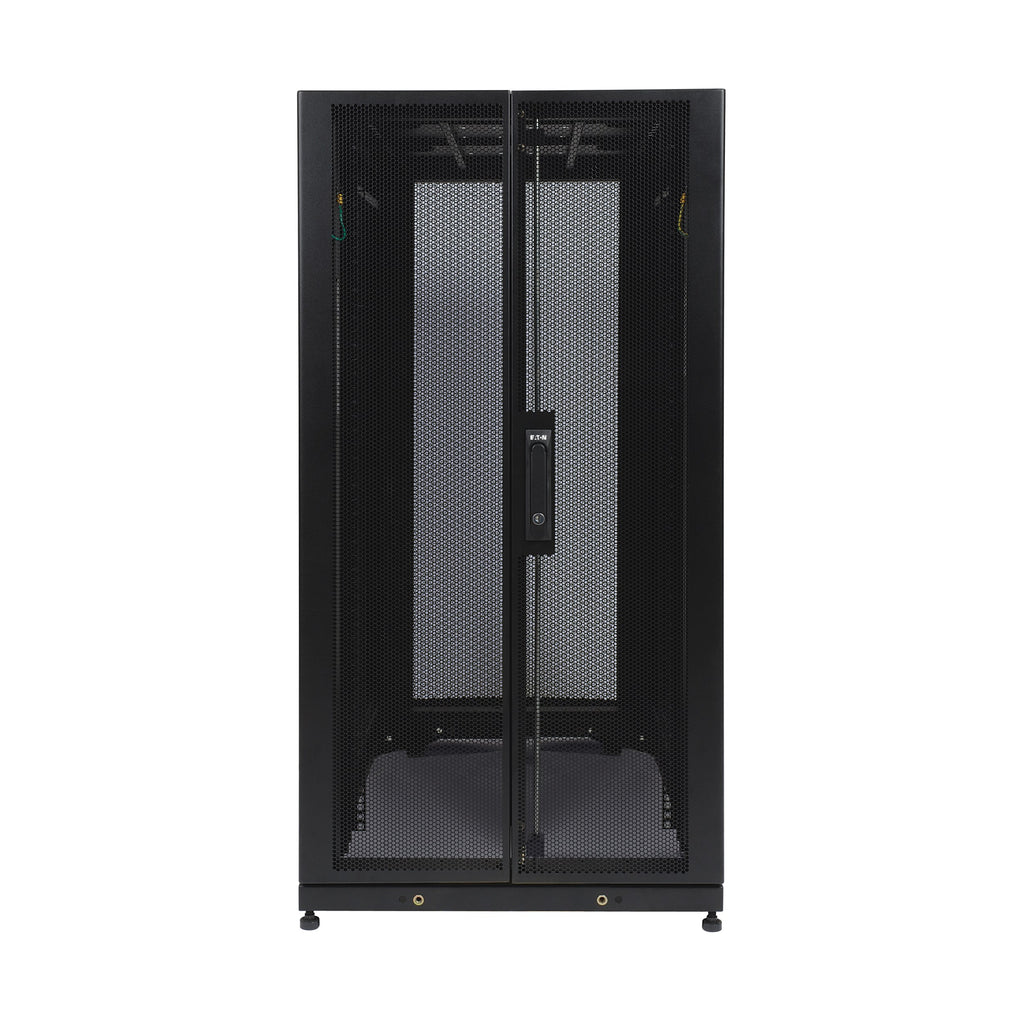

| Doors | Locking, reversible, removable (front and split rear) |
| Side Panels | Locking, removable, keyed alike |
| Mounting Rails | 4 adjustable vertical rails (1/4” increments) |
| Cable Management | Built-in system with top/bottom access |
| Grounding System | Integrated with quick-release ground wires |
| Compliance | EIA-310-D, UL 60950-1, CE, RoHS, PCI DSS |
| Dimensions (H x W x D) | 49.0 x 23.63 x 43.0 in (124.46 x 60.02 x 109.22 cm) |
| Unit Weight | 195 lbs (88.45 kg) |
| Shipping Dimensions (H x W x D) | 56.5 x 43.0 x 25.0 in (143.5 x 109.2 x 63.5 cm) |
| Shipping Weight | 245 lbs (111.13 kg) |
| Warranty | 5-year limited warranty |
| UPC Code | 037332137395 |
