Description

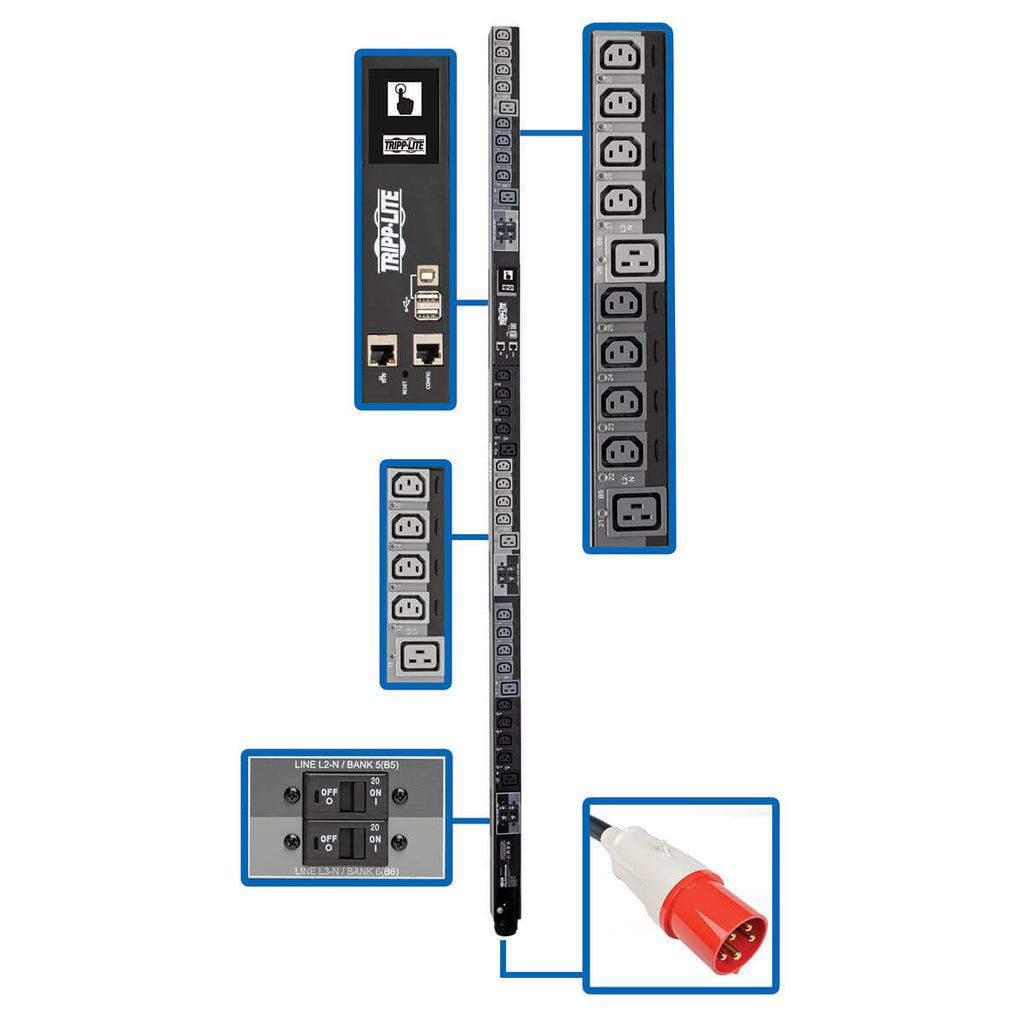

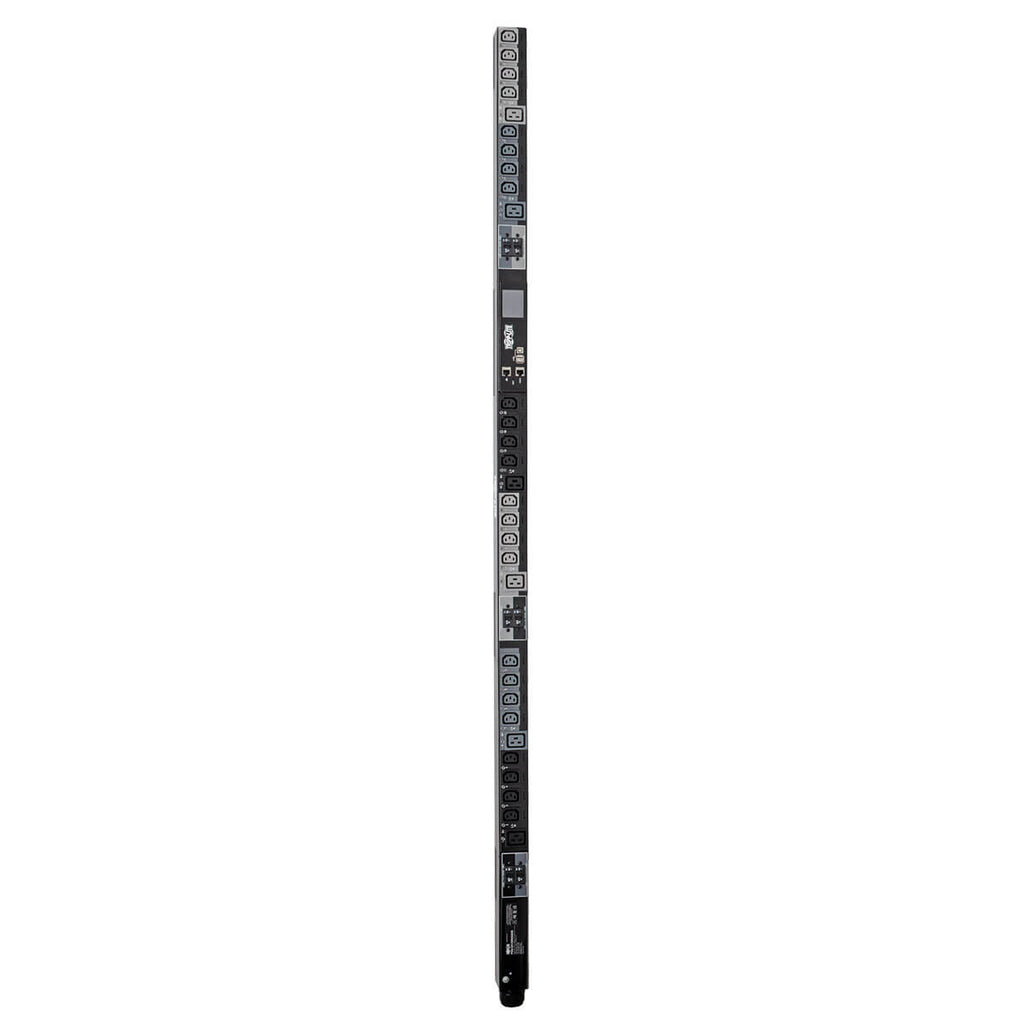

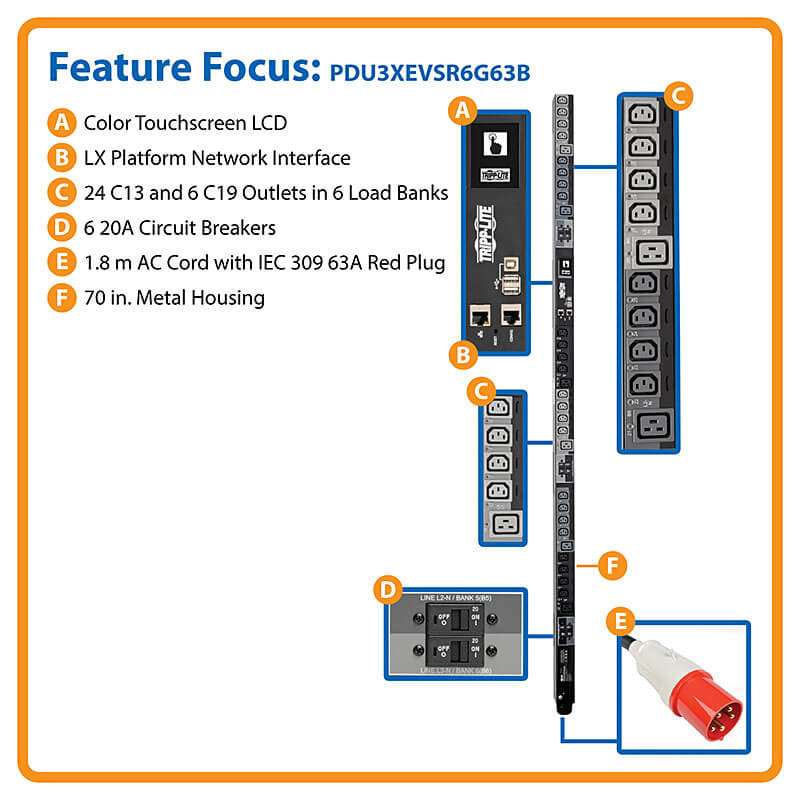

The Eaton Tripp Lite PDU3XEVSR6G63B is a 28.8kW 3-Phase Switched Power Distribution Unit (PDU) designed for intelligent power management in high-density data centers and enterprise environments. Featuring 30 individually controllable outlets (24 × C13, 6 × C19), it enables remote power control, load monitoring, and outlet-level management for critical IT equipment.

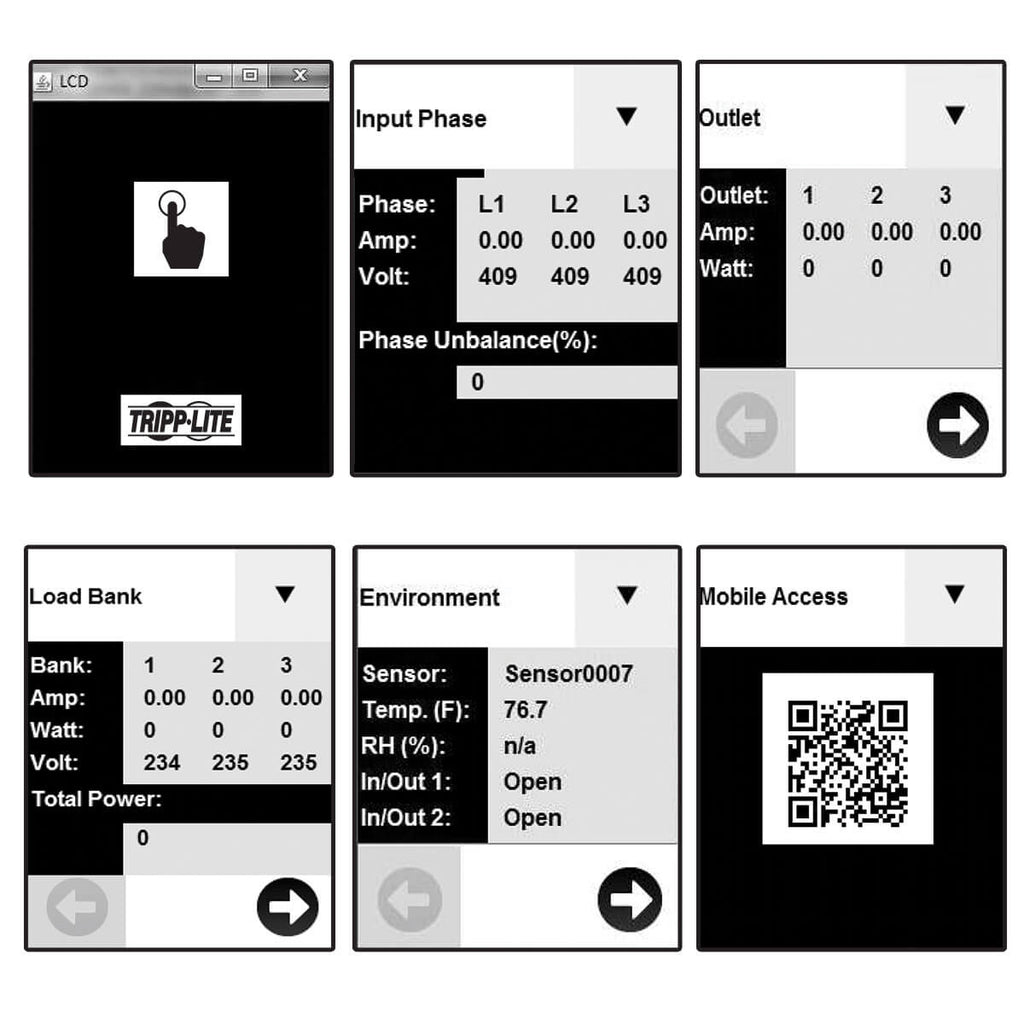

Built on Eaton’s LX Platform, the PDU integrates a Gigabit network interface with Java-free HTML5 access, providing secure remote monitoring via web browser, SNMP, SSH, or telnet. A color touchscreen LCD displays detailed input, output, and environmental data with ±1% billing-grade accuracy.
The IEC 309 63A Red 380-415V input plug with a 1.8 m cord supports robust 3-phase 220–240 V distribution. Optional EnviroSense2 modules enhance environmental visibility for temperature, humidity, and contact sensors. Toolless vertical (0U) installation fits standard EIA 19-inch racks for easy integration.
Compliant with TAA, RoHS, CE, and FCC Class A standards, this switched PDU ensures reliability, scalability, and compliance for modern IT power infrastructures.
| Category | Details |
|---|---|
| Model | PDU3XEVSR6G63B |
| Brand | Eaton Tripp Lite |
| Type | Switched 3-Phase Rack PDU |
| Input Voltage | 380 / 400 / 415 V AC |
| Output Voltage | 220 – 240 V AC |
| Input Plug Type | IEC 60309 63A RED (3P + N + E) |
| Input Cord Length | 1.8 m (6 ft) |
| Input Phase | 3-Phase |
| Output Capacity | 28.8 kW (415/240 V); 27.7 kW (400/230 V); 26.3 kW (380/220 V) |
| Outlets | 30 total (24 × C13, 6 × C19) |
| Maximum Input Amps | 40 A continuous (agency de-rated) |
| Outlet Control | Individual (on/off/reboot/lock-out) via remote interface |
| Load Protection | 6 × 20 A circuit breakers |
| Network Interface | LX Platform with WEBCARDLX (PADM20), 10/100/1000 Mbps Ethernet |
| Protocols Supported | IPv4, IPv6, HTTP/HTTPS, SNMP v1/v2/v3, SSH, Telnet, FTP, DHCP, NTP |
| Display | Color Touchscreen LCD with mobile QR access |
| Accuracy | ±1% (billing-grade for amps, volts, watts) |

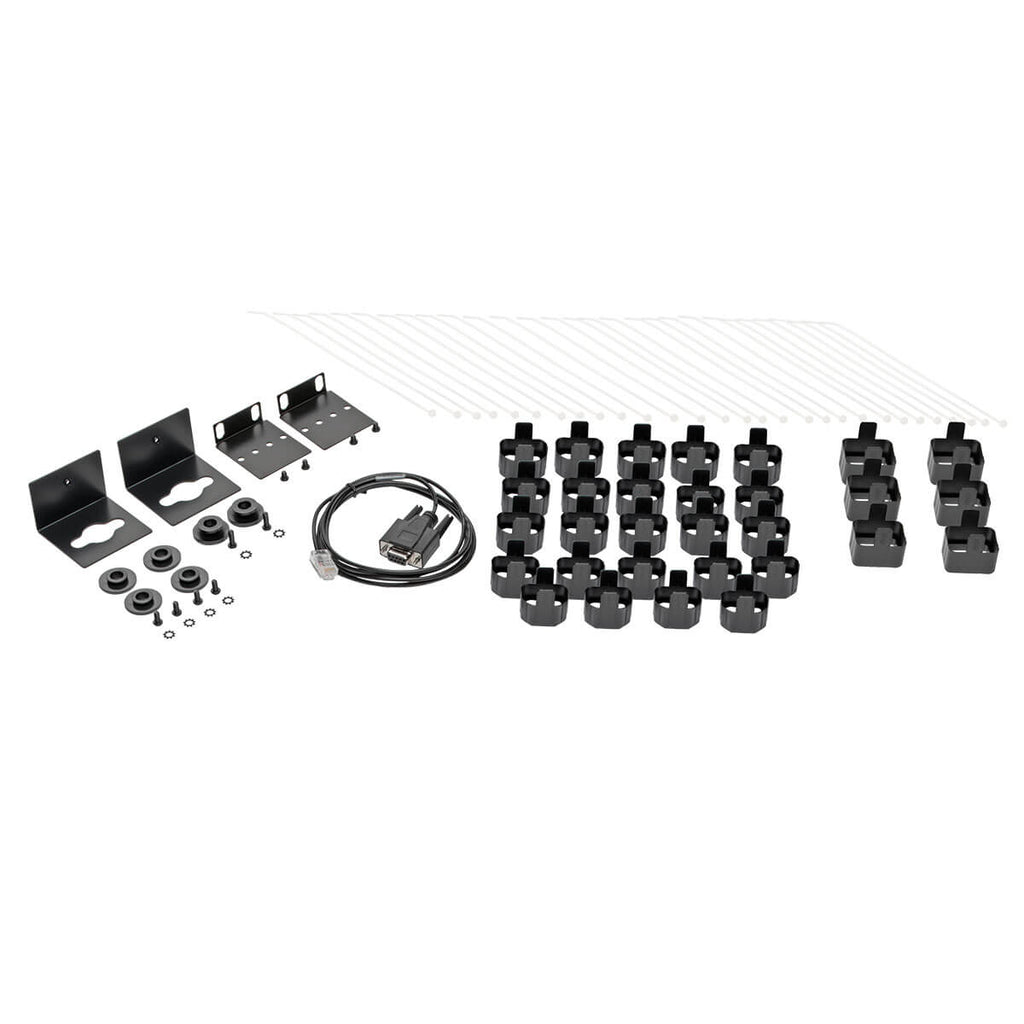

| Mounting Type | Vertical (0U), tool-less buttons or brackets included |
| Material | Metal |
| Dimensions (H × W × D) | 177.8 × 5.51 × 6.4 cm (70 × 2.17 × 2.52 in) |
| Weight | 8.03 kg (17.7 lb) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Compliance | TAA, RoHS, CE, FCC Class A, UKCA |
| Warranty | 2-Year Limited Warranty |
