Description

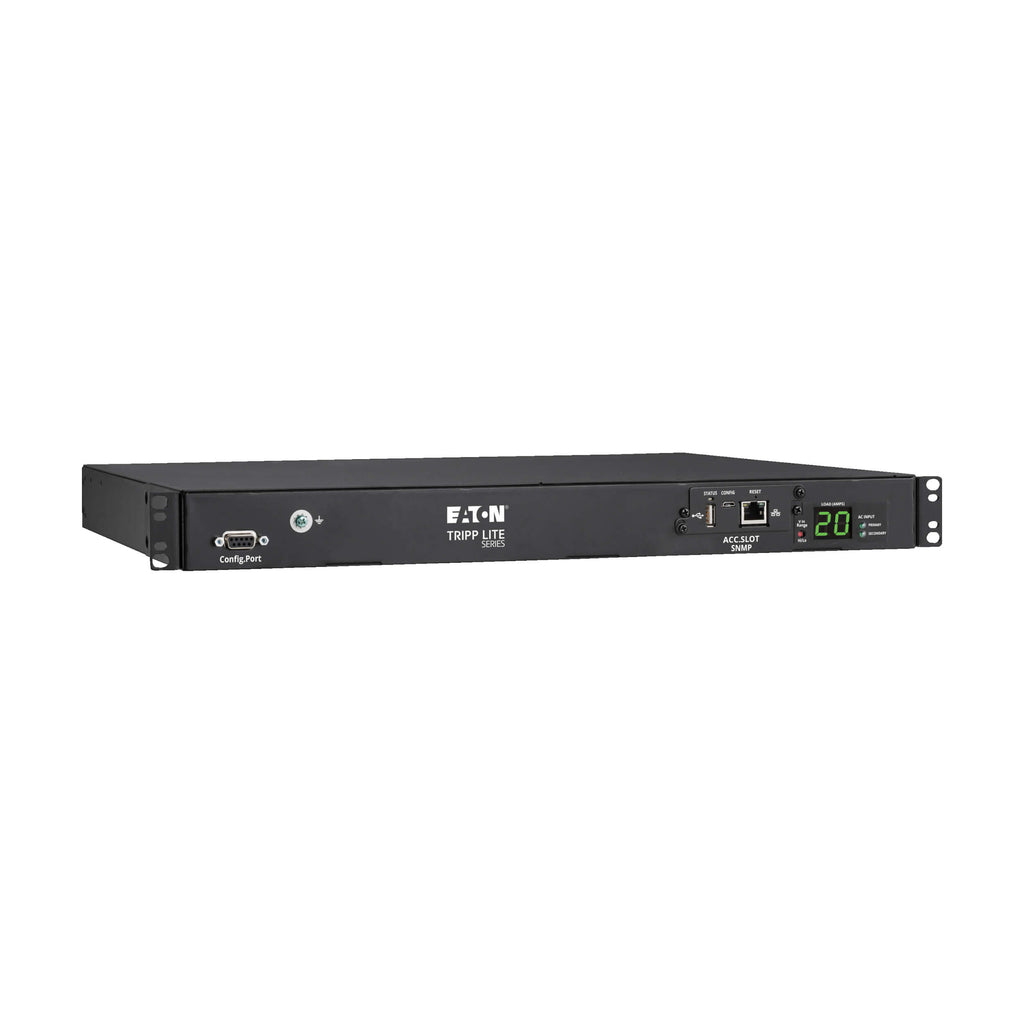

The Eaton Tripp Lite PDUMNH20HVAT1 is a high-availability, single-phase ATS monitored rack PDU designed to deliver reliable, network-grade power for mission-critical IT environments. Supporting 200–240V power distribution at up to 3.8kW, this 1U rackmount PDU features automatic transfer switching (ATS) that seamlessly switches between primary and secondary power sources in milliseconds to maintain continuous uptime.

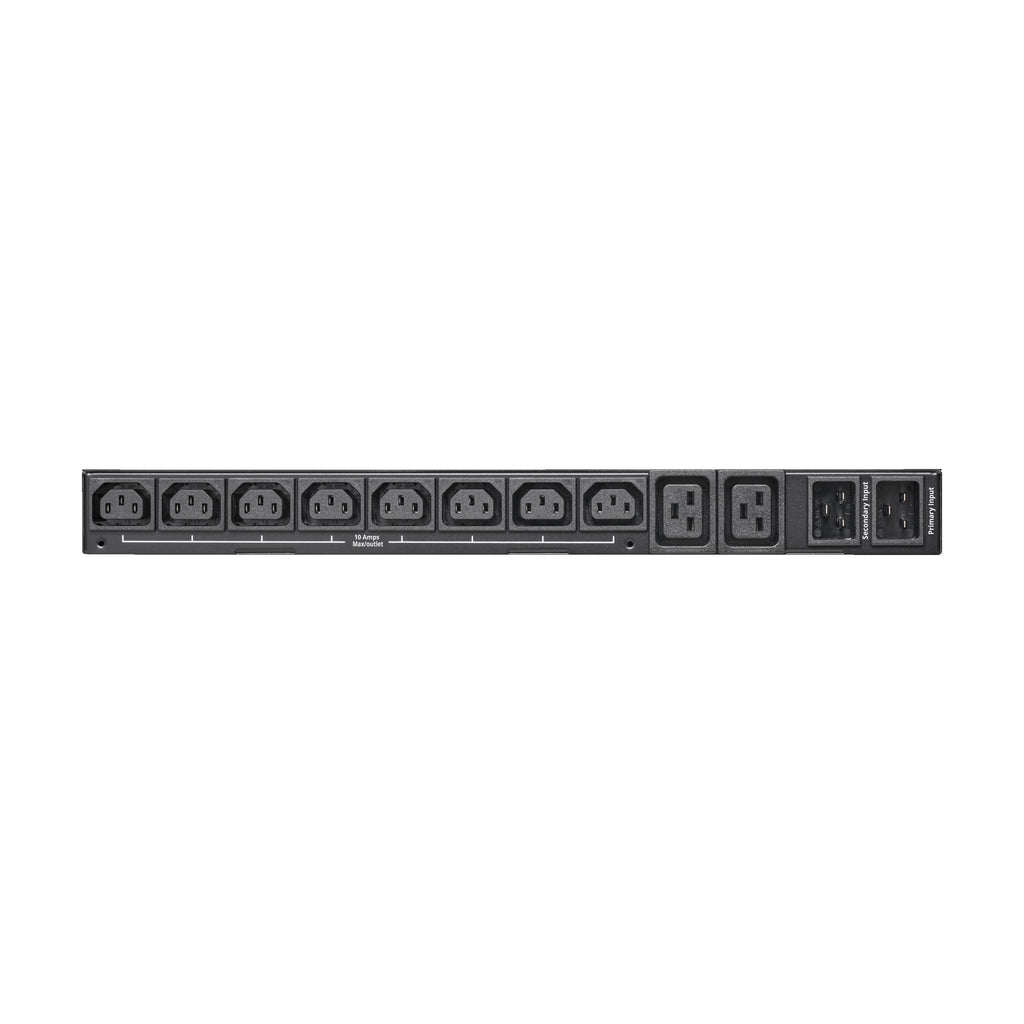

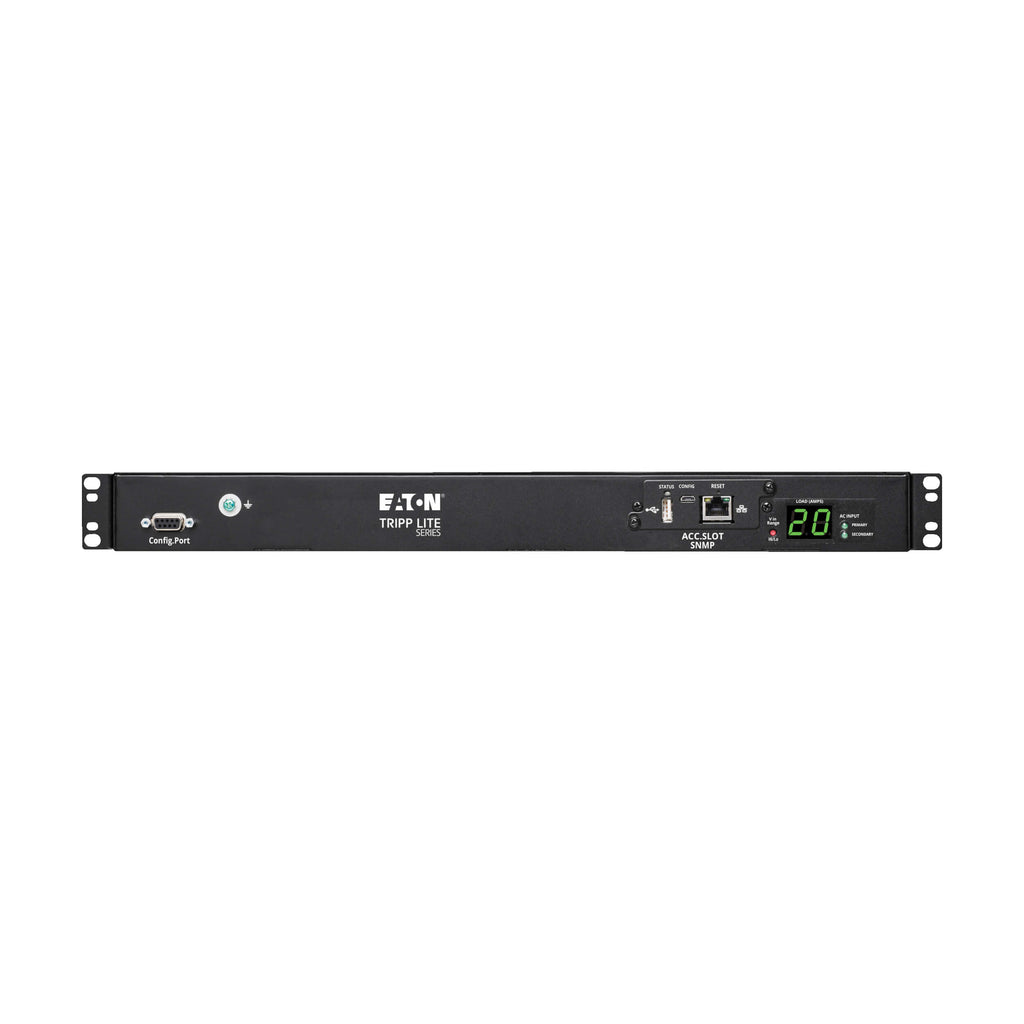

Equipped with eight C13 and two C19 outlets, the PDUMNH20HVAT1 supports mixed IT loads in data centers, network closets, and computer rooms. A built-in network interface enables real-time remote monitoring of voltage, frequency, and load levels via secure web, SNMP, SSH, or telnet access. The front-panel digital ammeter provides at-a-glance load visibility to help prevent overloads and optimize power distribution.
With dual 12-foot C20 input cords, rugged metal construction, and full TAA compliance, this ATS PDU is ideal for government, enterprise, and industrial deployments requiring redundant power and remote visibility.
| Specification | Details |
|---|---|
| Manufacturer | Eaton Tripp Lite |
| Model Number | PDUMNH20HVAT1 |
| PDU Type | Automatic Transfer Switch (ATS), Monitored |
| Form Factor | 1U Horizontal Rackmount |
| Input Phase | Single-Phase |
| Input Voltage | 200 / 208 / 220 / 230 / 240V |
| Maximum Input Current | 20A (16A continuous) |
| Input Connections | (2) IEC C20 (Primary & Secondary) |
| Input Cord Length | 12 ft (3.66 m) each |
| Output Capacity | Up to 3.8kW |
| Output Receptacles | (8) C13, (2) C19 |
| Max Outlet Rating | C13: 12A / C19: 16A |
| Frequency | 50 / 60 Hz |
| Transfer Time | 2–7 milliseconds |
| Load Monitoring | Front-panel digital ammeter |
| Network Management | HTML5 web, SNMP, SSH, Telnet |
| Rack Depth Required | Minimum 18.3 in (46.48 cm) |
| Construction | All-metal housing |
| Operating Temperature | 32°–104°F (0°–40°C) |
| Compliance | TAA, RoHS, CE, FCC Class A |
| Warranty | 2-Year Limited Warranty |
