Description

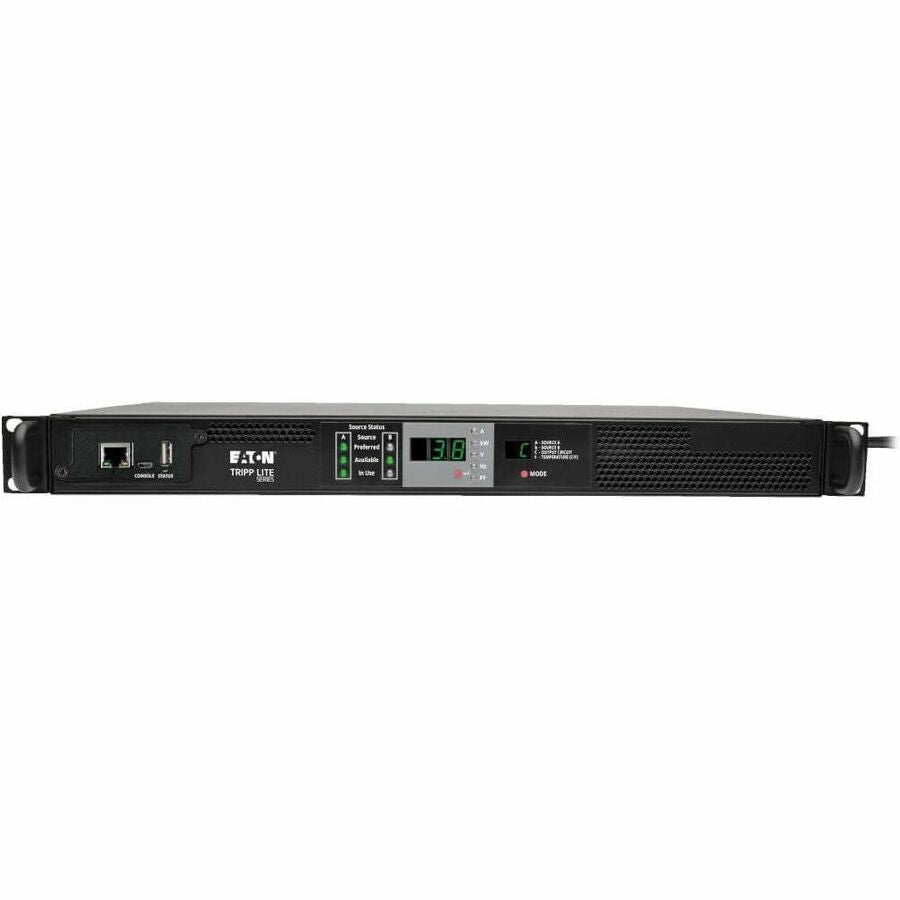

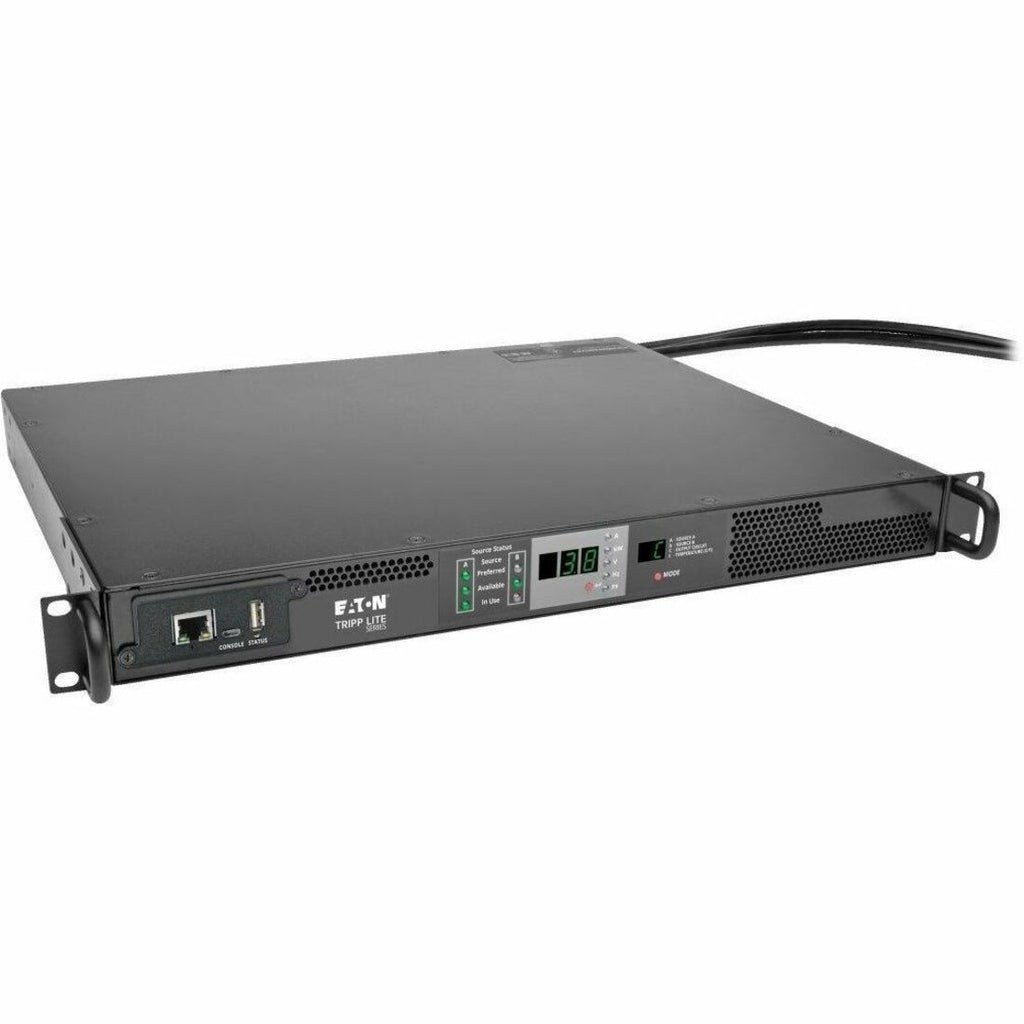

The Tripp Lite by Eaton PDUMNH20HVAT is a high-availability, single-phase monitored automatic transfer switch (ATS) PDU designed to provide redundant power and continuous uptime for critical IT equipment. Delivering up to 3.8kW at 208/240V, this 1U rack-mount PDU is ideal for data centers, server rooms, and network closets supporting non-redundant power supply devices.

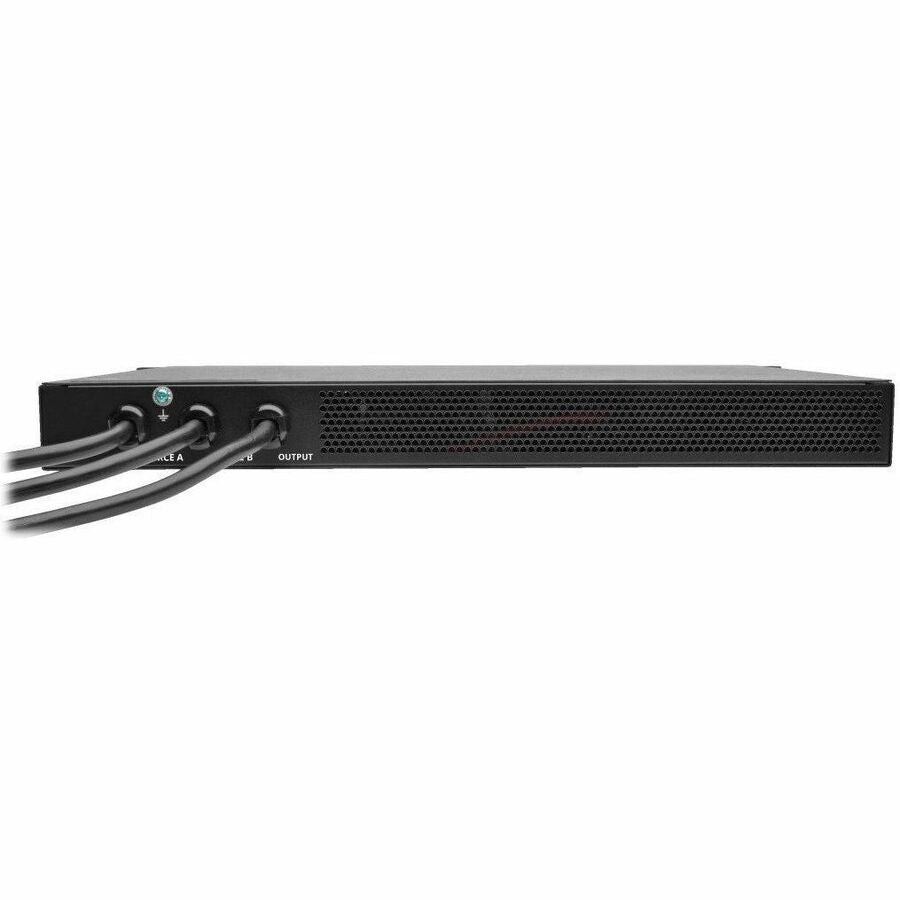

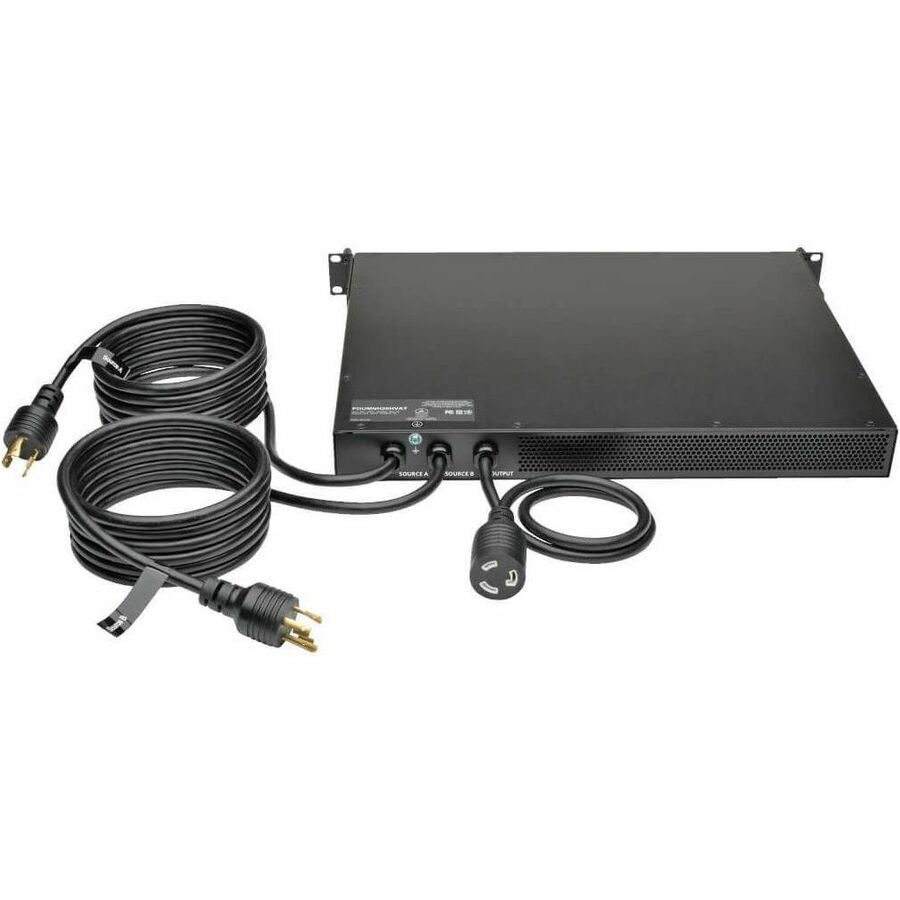

Equipped with dual L6-20P input plugs, the PDUMNH20HVAT continuously evaluates both power sources and performs automatic solid-state transfer switching within 1–5 milliseconds to prevent downtime during power interruptions or instability. A single L6-20R output supports direct connection to mission-critical equipment or downstream PDUs.
The built-in LX Platform HTML5 network interface enables real-time remote power monitoring without Java, supporting secure browser access, SNMP, SSH, and email alerts. Optional EnviroSense2 modules expand monitoring to include environmental conditions such as temperature and humidity. With TAA compliance, RoHS certification, and a compact 1U horizontal rack design, the PDUMNH20HVAT is a dependable solution for enterprise and government IT environments requiring resilient power infrastructure.
| Category | Specification |
|---|---|
| Brand | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMNH20HVAT |
| Product Type | Monitored ATS PDU |
| Power Rating | 3.8 kW |
| Phase | Single-Phase |
| Input Voltage | 208 / 240V AC |
| Output Voltage | 208 / 240V AC |
| Input Current | 20A |
| Input Connections | 2 × NEMA L6-20P (10 ft cords) |
| Output Receptacles | 1 × NEMA L6-20R |
| Transfer Time | 1–5 milliseconds |
| Monitoring Interface | LX Platform (HTML5, Java-free) |
| Network Connectivity | 10/100 Mbps Ethernet |
| Supported Protocols | IPv4, IPv6, HTTP/HTTPS, SNMP v1/v2/v3, SSH, Telnet, SMTP, FTP, DHCP, NTP |
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| Rack Compatibility | Standard 19-inch EIA racks |
| Dimensions (H × W × D) | 1.7" × 16.9" × 14" |
| Weight | Approx. 15.37 lb |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | RoHS |
| Warranty | 2-Year Limited |
| Package Contents | PDU, mounting brackets, owner’s manual |
