Description

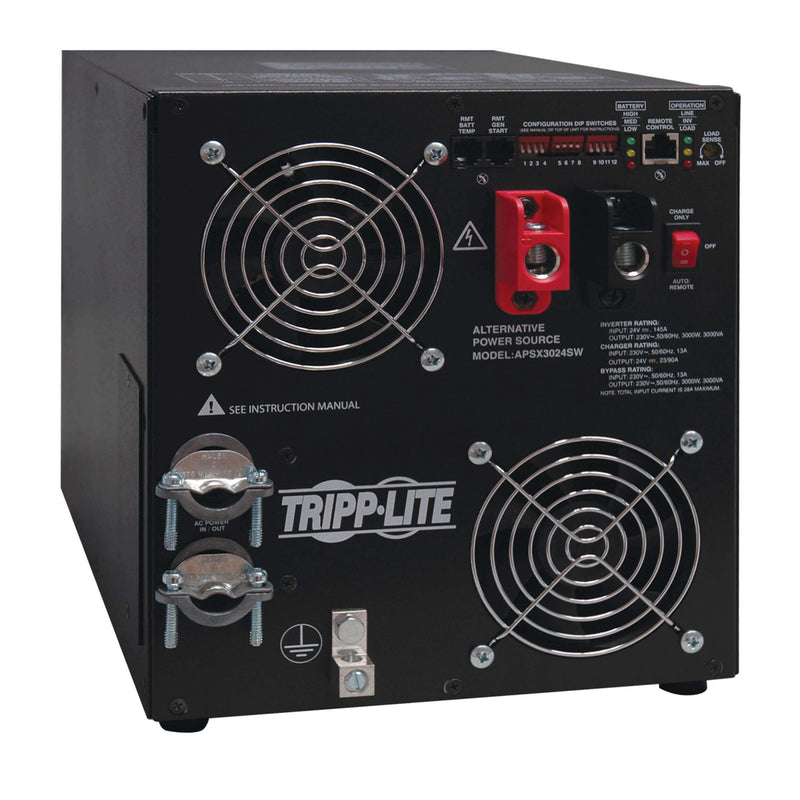

The Eaton Tripp Lite APSX3024SW 3000W APS X Series Inverter/Charger delivers clean, reliable 230V AC power from a 24V DC battery source—ideal for mobile, remote, and emergency applications. Designed for professional-grade performance, it provides pure sine-wave output suitable for sensitive electronics such as computers, variable-speed tools, and AV equipment.
Operating as a vehicle inverter, standalone AC power source, or extended-run UPS, it delivers 3000W continuous power, 4500W for up to one minute, and 6000W peak power for start-up surges. An integrated automatic transfer switch ensures uninterrupted operation during blackouts, while a three-stage selectable battery charger maintains optimal battery health.
Built with rugged steel housing, overload protection, and fan cooling, the APSX3024SW guarantees durability and safety in demanding environments such as RVs, fleet and emergency vehicles, or construction sites.
| Category | Specification |
|---|---|
| Model Number | APSX3024SW |
| Brand | Eaton Tripp Lite |
| Power Output | 3000W continuous / 4500W for 1 min / 6000W peak (10 sec) |
| Input Voltage (DC) | 24V DC |
| Output Voltage (AC) | 230V AC (pure sine wave) |
| Frequency | 50/60 Hz (user-selectable) |
| Voltage Regulation | ±5% (inverter mode); automatic voltage regulation for line power |
| Transfer Time | 10–20 ms (selectable) |
| Battery Charger | 3-stage selectable, 23A or 90A |
| Battery Type Supported | Wet or gel; expandable runtime |
| Protection Features | Automatic overload detection, resettable circuit breakers, cooling fan |
| Indicators | Front-panel LEDs for load and battery charge status |
| Input Connections | DC bolt-down terminals; AC hardwire terminal strip |
| Output Connections | Hardwire |
| Construction | Rugged steel housing with built-in mounting feet |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0–95% non-condensing |
| Dimensions (H x W x D) | 10.08 x 8.9 x 12.4 in (25.6 x 22.6 x 31.5 cm) |
| Weight | 64.8 lbs (29.4 kg) |
| Certifications | UL 1741, RoHS compliant |
| Warranty | 2-year limited warranty |
| UPC | 037332141071 |
