Description
The Eaton Tripp Lite PINV3000SWL-120 is a heavy-duty 3000W pure sine wave power inverter designed to deliver clean, stable AC power from a 12V DC battery system. Ideal for mobile work environments, fleet vehicles, RVs, boats, and off-grid applications, it safely powers sensitive electronics, power tools, and appliances where utility power is unavailable.

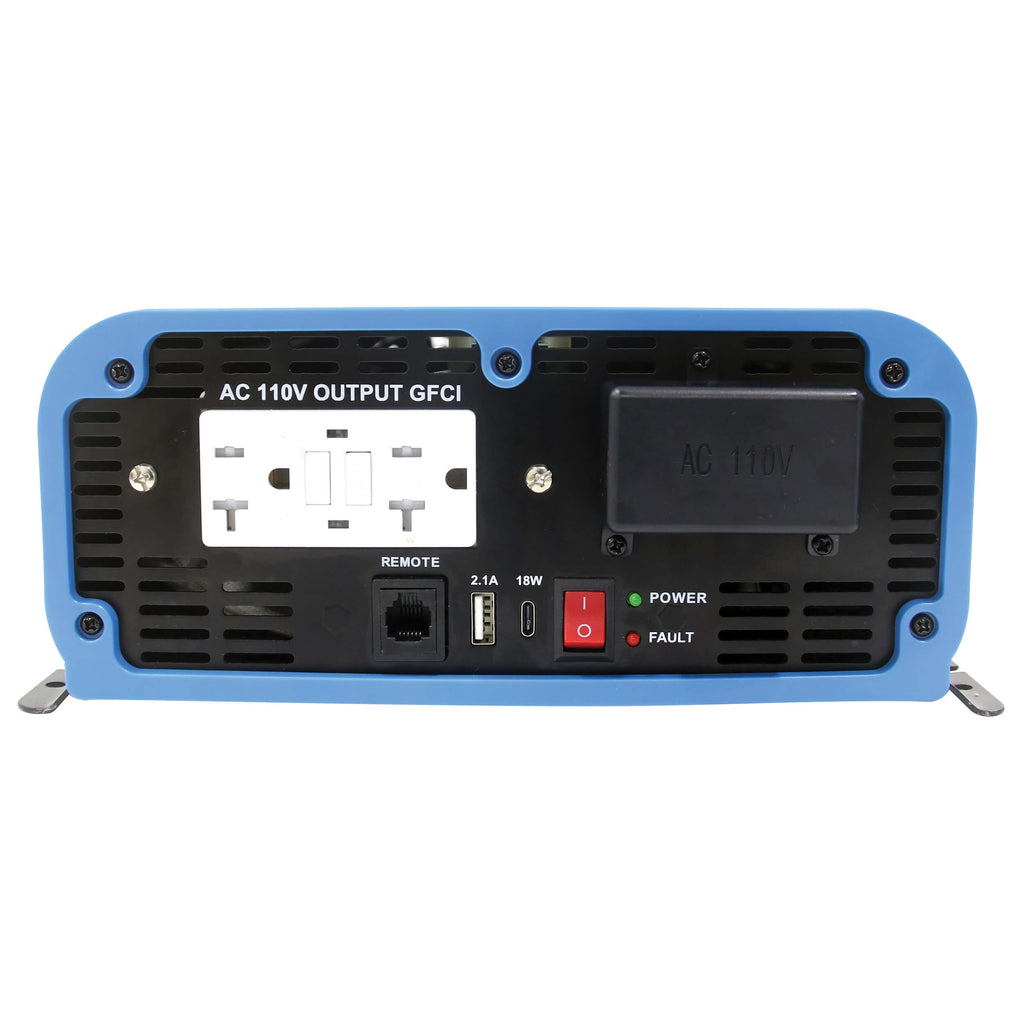

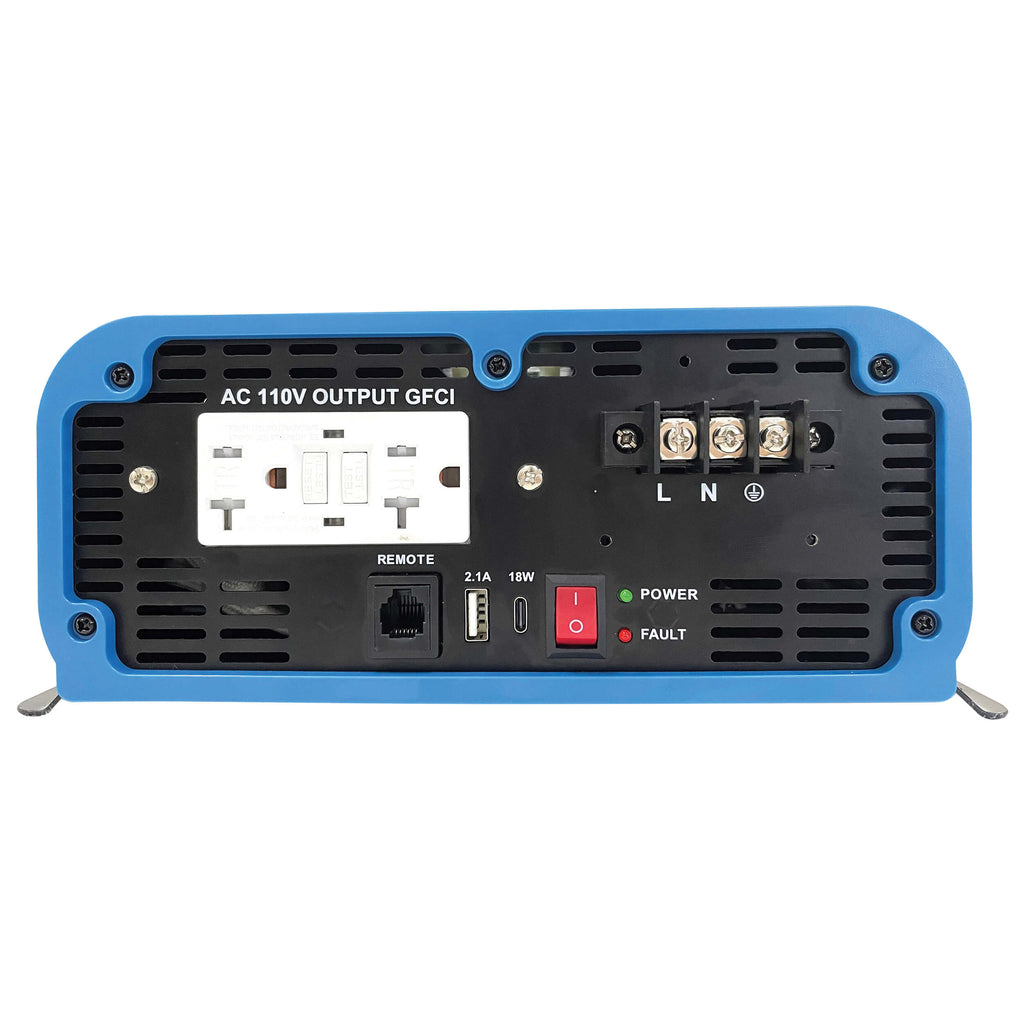

This inverter converts 12V DC input into 110–120V AC pure sine wave output, ensuring compatibility with computers, medical devices, telecom equipment, and other precision electronics. Two GFCI-protected NEMA 5-15/20R outlets and hardwire terminals provide flexible power distribution, while built-in USB-A and USB-C ports support fast charging for smartphones, tablets, and laptops—even when AC output is switched off.

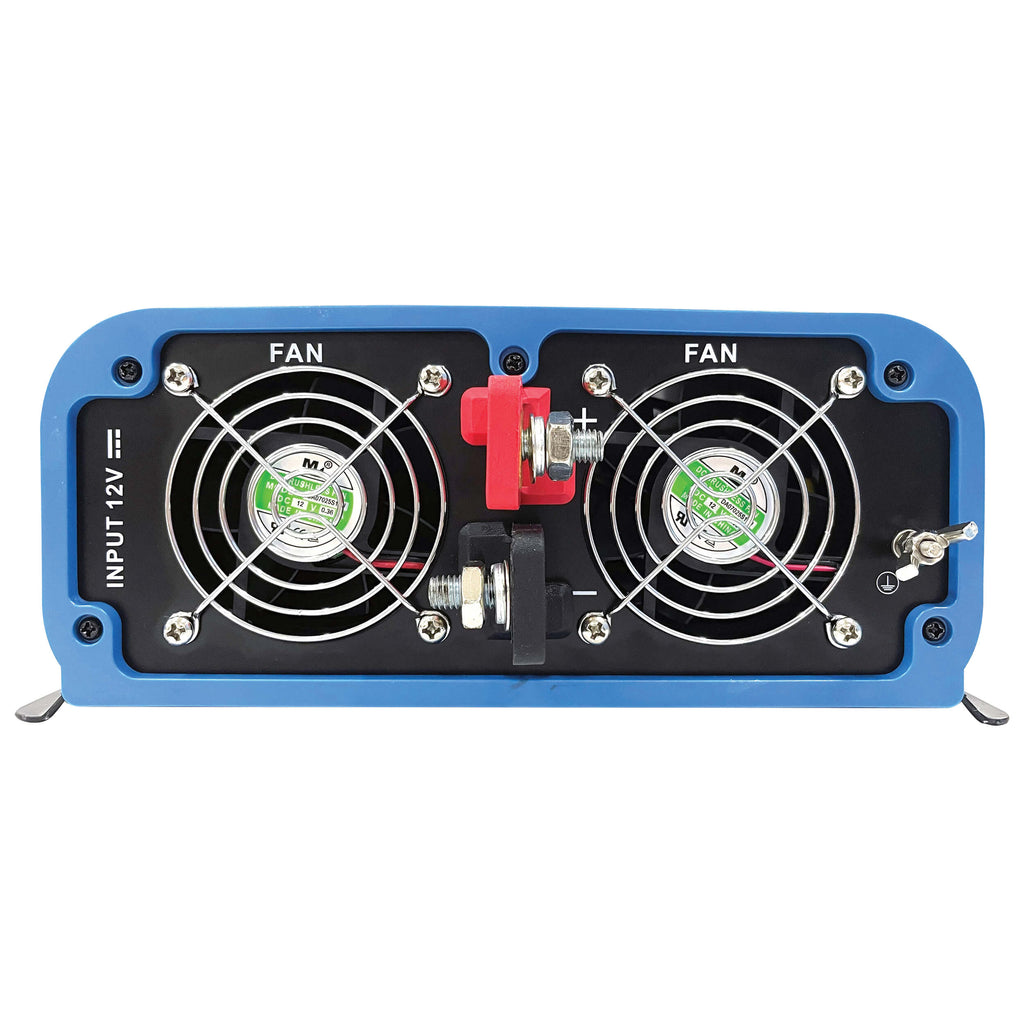

Designed for durability, the aluminum housing includes temperature-controlled cooling fans, overload protection, low-voltage shutdown, and audible alarms for fault conditions. A wired remote control with a 20-foot cable allows convenient on/off operation from inside the vehicle cab, making the PINV3000SWL-120 a reliable power solution for demanding mobile and remote environments.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite Series |
| Model | PINV3000SWL-120 |
| Inverter Type | Pure Sine Wave |
| Continuous Output Power | 3000 Watts |
| Peak Surge Power | 6000 Watts |
| Input Voltage | 12V DC |
| Output Voltage | 110–120V AC |
| Output Frequency | 60 Hz |
| AC Outlets | (2) NEMA 5-15/20R GFCI |
| Hardwire Output | Yes |
| USB Ports | (1) USB-A 5V/2.1A, (1) USB-C 5V/9V/12V up to 18W |
| Battery Connection | DC terminal posts |
| Protection Features | Overload, over-temperature, high/low voltage shutdown, audible alarm |
| Cooling | Temperature-controlled fans |
| Remote Control | Wired remote with 20 ft cable |

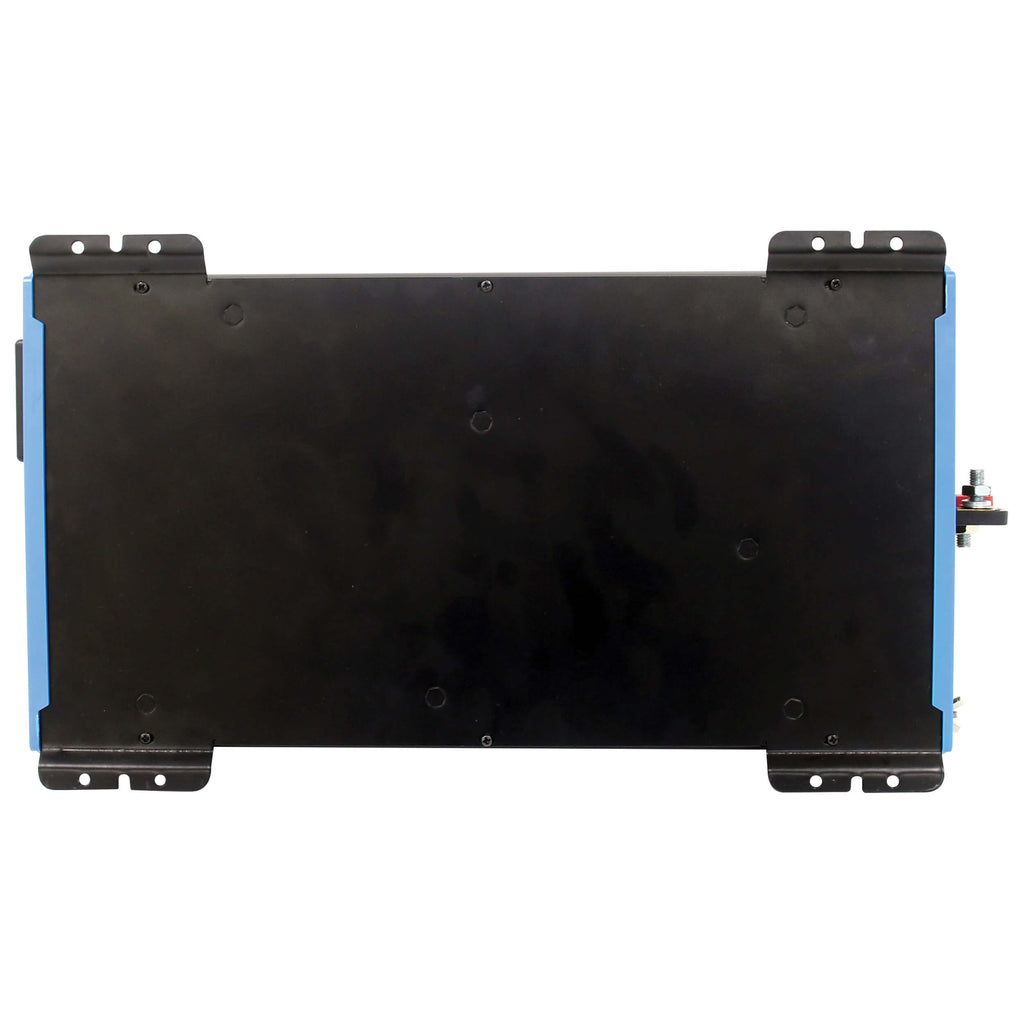

| Mounting Options | Horizontal floor or wall mount |
| Housing Material | Aluminum, steel, ABS |
| Unit Dimensions (H × W × D) | 4.0 × 9.3 × 18.4 in |
| Unit Weight | 15.1 lbs |
| Certifications | UL 458, CSA, FCC Class B |
| Warranty | 2-Year Limited Warranty |
