Description
The Eaton HCINT350SNR is a 350W 230V medical-grade inverter/charger designed for mobile medical carts and clinical environments that demand safety, reliability, and compliance. Built to IEC 60601-1 standards, it provides isolated, pure sine wave AC power to sensitive medical devices inside or outside patient care areas.
Featuring an advanced three-stage charging system, this unit ensures long battery life and continuous operation even during recharge. Its internal automatic transfer switch (ATS) seamlessly powers connected equipment while charging. EMI/RFI suppression technology minimizes interference from other hospital equipment, ensuring clean and stable power delivery.

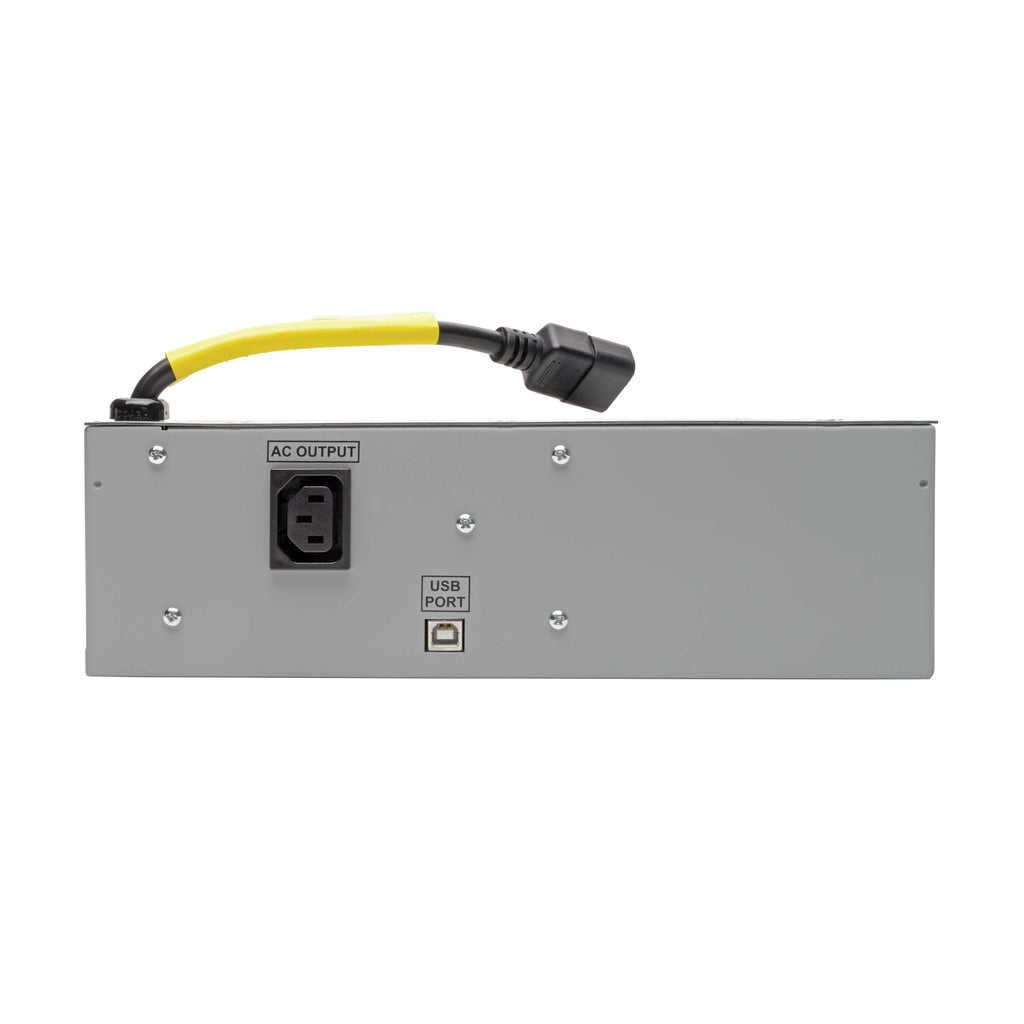

The compact steel chassis includes a USB communication port and a C13 outlet for easy integration into hospital systems. When paired with Eaton’s PowerAlert® software, it protects valuable patient data from corruption or loss during low-battery conditions. Ideal for powering computers, barcode scanners, monitors, and other mobile medical electronics.
| Category | Specification |
|---|---|
| Model Number | HCINT350SNR |
| Power Capacity | 350W Continuous / 350W Peak |
| Input Voltage | 230V AC, Single-Phase |
| Input DC Voltage | 12V DC |
| Output Voltage | 230V AC Pure Sine Wave |
| Frequency Compatibility | 50 Hz |
| Output Receptacle | (1) C13 |
| Battery Type (Supported) | Sealed Lead Acid (SLA) |
| Charging System | Advanced 3-Stage (9–20A) Smart Charger |
| Runtime (Full Load) | Up to 6 hours (varies by load and battery condition) |
| Automatic Transfer Switch (ATS) | Yes – simultaneous power and recharge |
| EMI/RFI Suppression | Yes – AC line noise filtering |
| User Interface (Optional) | Remote User Interface (RUI) with On/Off and Alarm-Mute Switches |
| Audible Alarm | Low Battery Alarm |
| Communication Port | USB |
| Form Factor | Tower |
| Cooling Method | Fan |
| Material | Steel |
| Color | Gray |
| Dimensions (H x W x D) | 3.5 x 6.0 x 11.5 in (8.9 x 15.2 x 29.2 cm) |
| Weight | 14 lb (6.35 kg) |
| Certifications | IEC 60601-1, CAN/CSA-C22.2 No. 601.1, UL 1778 |
| Compliance | RoHS |
| Warranty | 2-Year Limited Warranty (Optional 1-, 2-, or 3-Year Extension) |
