Description

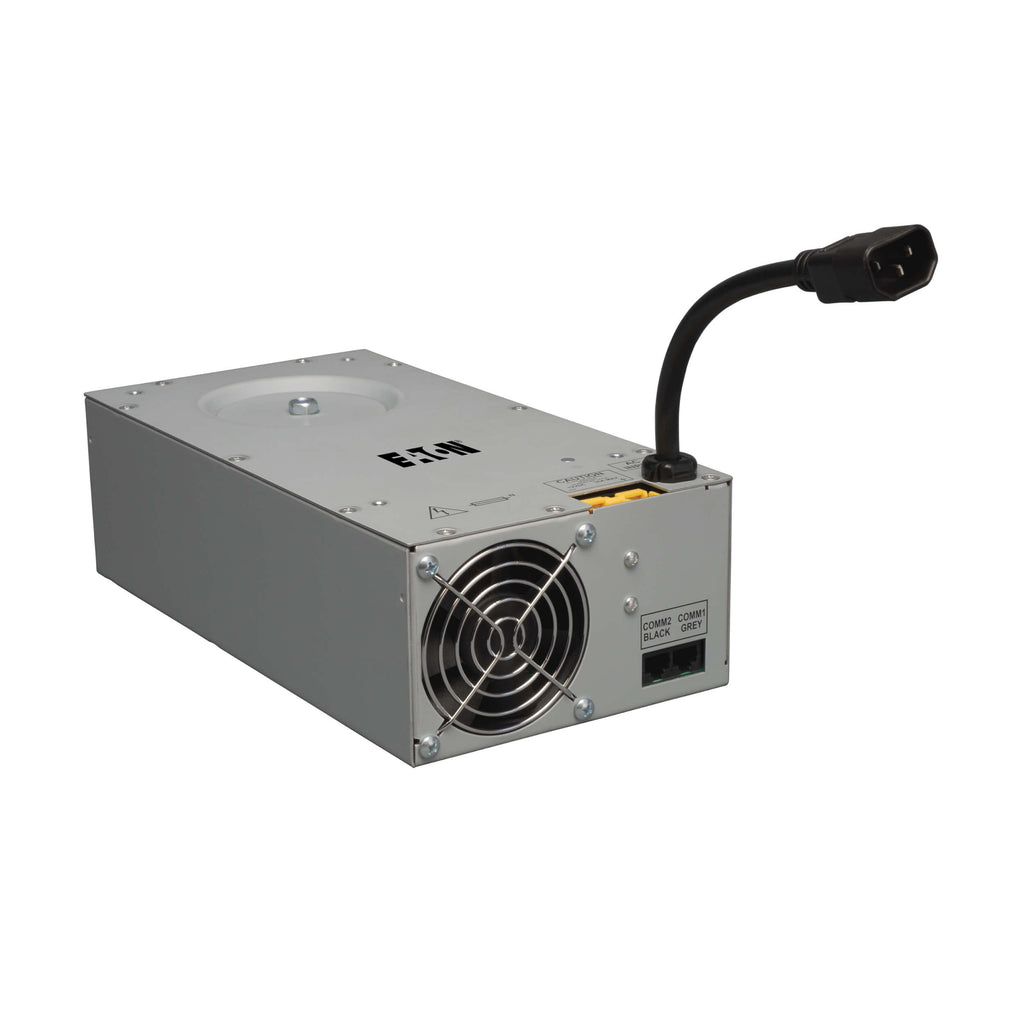

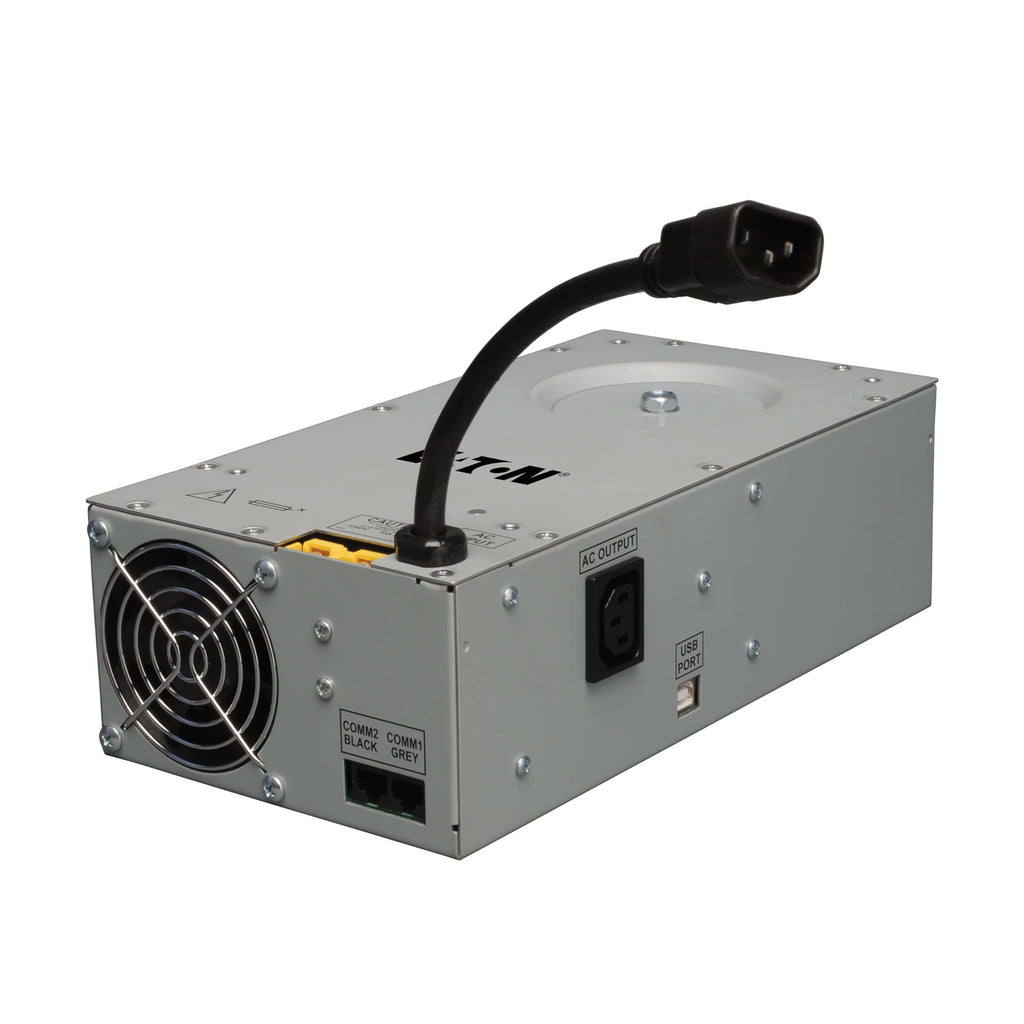

The Eaton HC350SR is a 350-watt medical-grade inverter/charger designed to provide IEC 60601-1-compliant power for mobile medical carts and healthcare equipment used both inside and outside patient-care areas. Featuring an isolation transformer to reduce shock potential and ensure full safety compliance, it supports SLA 12 V batteries (not included) for reliable, long-duration power. Its advanced three-stage charger ensures fast, safe recharging while the automatic transfer switch (ATS) allows equipment to stay powered even during charging.
The HC350SR combats EMI/RFI interference, protecting sensitive medical electronics from noise and data loss. A remote user interface (RUI) provides real-time monitoring of battery and output status, while PowerAlert® software safeguards patient data during power interruptions. Housed in rugged steel for durability in demanding environments, it includes a C13 output receptacle, USB communication port, and 2-year limited warranty with optional extensions.
| Category | Specification |
|---|---|
| Model Number | HC350SR |
| Power Capacity | 350 W (continuous 150 W, peak 225 W) |
| Input Voltage | 120 V AC / 12 V DC |
| Input Phase | Single-phase |
| Recommended Electrical Service | 15 A 120 V |
| Input Connection Type | IEC |
| Output Voltage | 120 V AC pure sine wave |
| Output Receptacle | (1) C13 outlet on 6-inch dongle |
| Frequency Compatibility | 60 Hz |
| Battery Type Compatibility | SLA (12 V, external battery not included) |
| Charger Type | Advanced 3-stage (9–20 A) |
| Runtime (Full Load) | Up to 6 hours (typical, varies by battery and load) |
| EMI/RFI Suppression | Yes |
| Cooling Method | Fan |
| Indicators & Controls | RUI with LEDs for AC Power and Battery Status; On/Off & Alarm Mute Switch |
| Communications Interface | USB |
| Form Factor / Material | Tower / Steel chassis |
| Unit Dimensions (H × W × D) | 3.5 × 11.5 × 6.0 in (8.9 × 29.2 × 15.2 cm) |
| Unit Weight | 14 lb (6.35 kg) |
| Certifications | IEC 60601-1, CAN/CSA-C22.2 No. 601.1, UL 1778, RoHS |
| Warranty | 2-year limited warranty (extensions available: WEXT1E, WEXT2E, WEXT3E) |

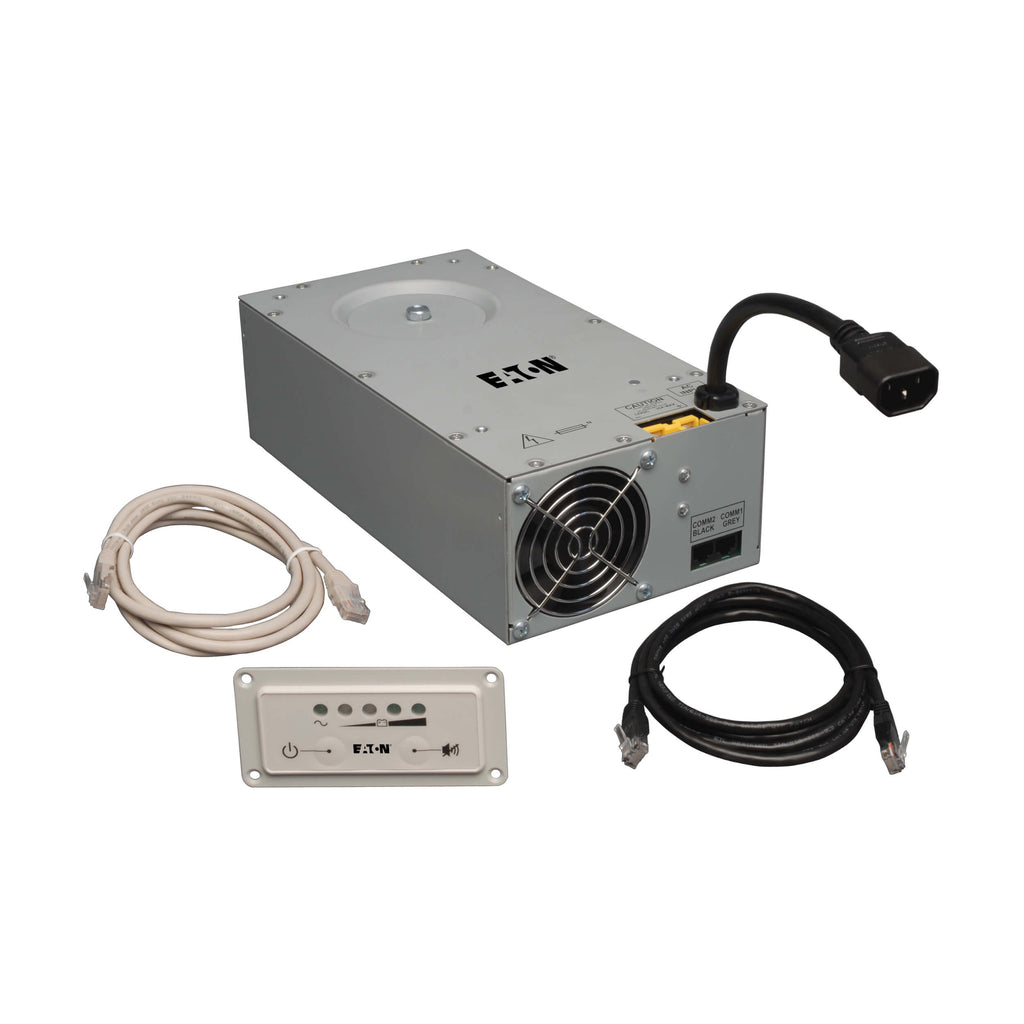

| Included Accessories | Remote User Interface (RUI) |
| Compliance Standards | NFPA, NEC, Joint Commission, EN60601-1-2:2015 (4th Edition) |
