Description
The Tripp Lite N858B-30M-3X8MG is a high-performance OM4 multimode fiber optic trunk cable designed for ultra-high-density data center and enterprise network environments. Supporting 40G, 100G, and 400G Ethernet speeds, this cable delivers reliable, low-loss connectivity for modern cloud, hyperscale, and telecom infrastructure.
Built with 50/125 µm OM4 multimode fiber, the cable supports high-bandwidth transmission up to 100 meters at 850 nm and remains fully backward compatible with 10G and 25G networks, making it an ideal future-proof solution. Its magenta low-smoke zero-halogen (LSZH) jacket enables fast visual identification while reducing toxic emissions in the event of fire.

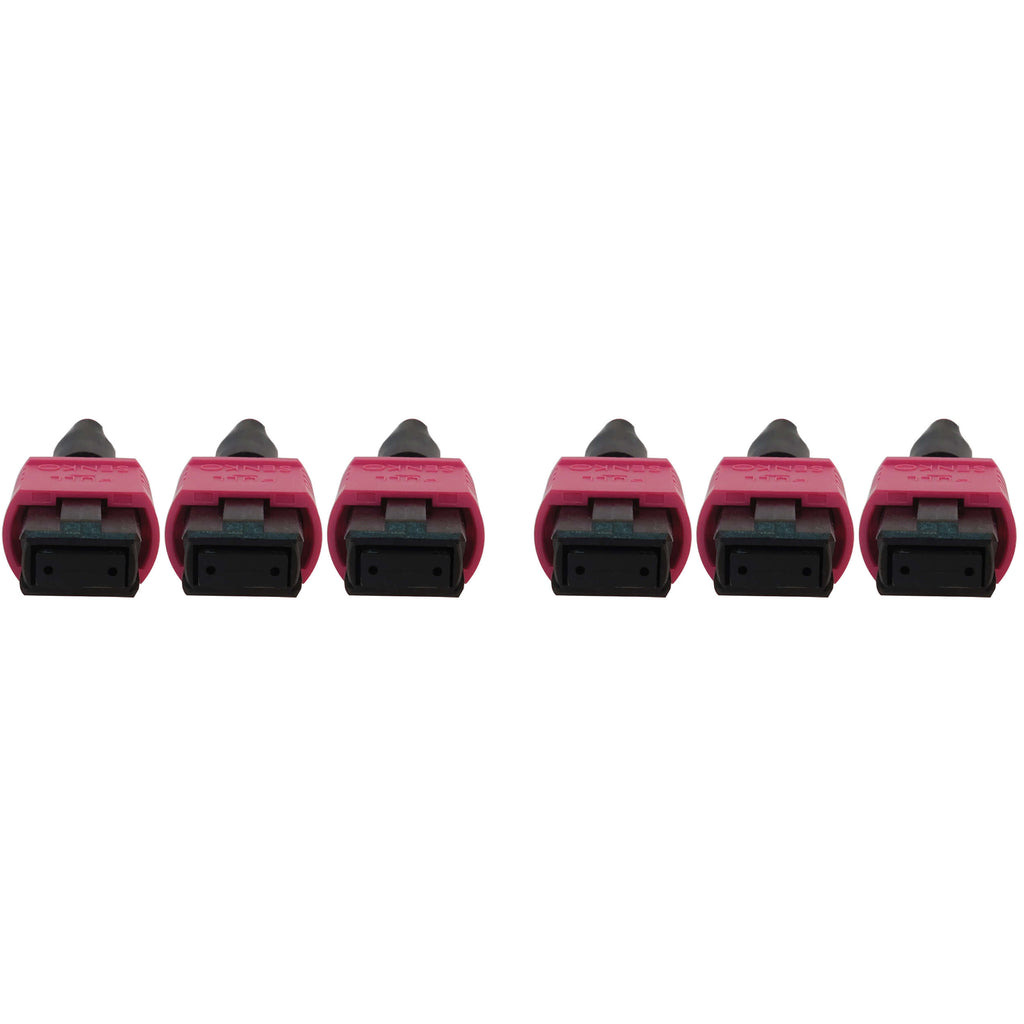

Featuring a 3×8-fiber MPO/MTP female-to-female breakout configuration with Type-B polarity, this cable is optimized for trunk and breakout applications in crowded patch panels and high-density switch deployments.
| Specification | Details |
|---|---|
| Brand | Tripp Lite |
| Model | N858B-30M-3X8MG |
| Cable Type | Multimode Fiber Optic Trunk Cable |
| Fiber Type | OM4 50/125 µm |
| Total Fiber Count | 24 Fibers (3 × 8F Breakout) |
| Connector Type (Side A) | MPO/MTP Female |
| Connector Type (Side B) | MPO/MTP Female |
| Polarity | Type B (Cross) |
| Endface Polish | PC |
| Supported Data Rates | 40G / 100G / 400G Ethernet |
| Wavelength | 850 nm / 1300 nm |
| Maximum Distance | Up to 100 m @ 400G (850 nm) |
| Cable Length | 30 m (98.4 ft) |
| Jacket Material | Low-Smoke Zero-Halogen (LSZH) |
| Jacket Color | Magenta |
| Cable Outer Diameter | 4.5 mm |
| Minimum Bend Radius | 20 mm (dynamic), 10 mm (static) |
| Attenuation @ 850 nm | 3.5 dB/km |
| Attenuation @ 1300 nm | 1.5 dB/km |
| Insertion Loss | 0.35 dB |
| Operating Temperature | -10°C to 60°C |
| Compliance | RoHS, CE, REACH |
| Application | Data Centers, Telecom Rooms, Enterprise Networks |
