Description

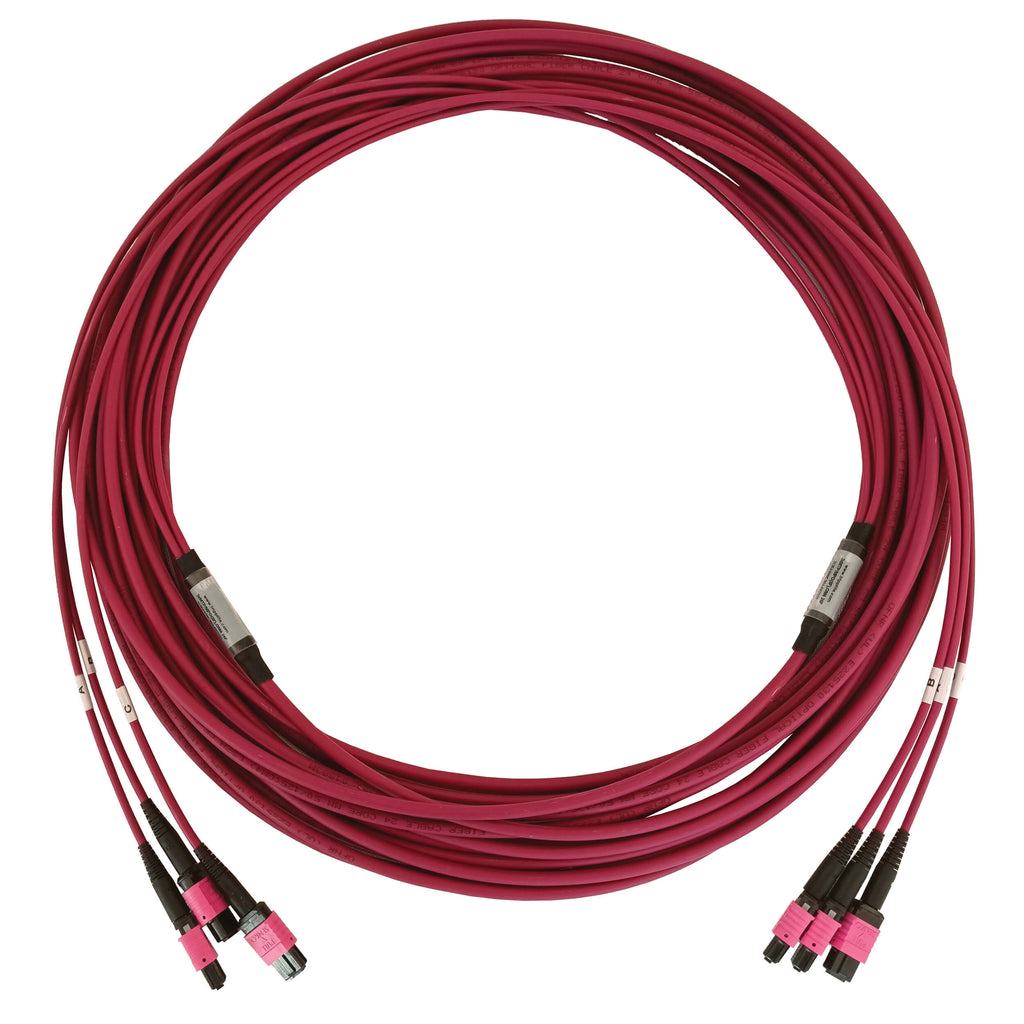

The Tripp Lite N858B-15M-3X8MG is a high-performance OM4 multimode fiber optic cable engineered for 40G, 100G, and 400G Ethernet applications in high-density data center and enterprise environments. Featuring a 3x8-fiber MPO/MTP female-to-female design, this cable enables reliable, high-bandwidth connections between switches, patch panels, and network equipment.
Its magenta low-smoke zero-halogen (LSZH) jacket allows quick identification in crowded racks while enhancing safety in enclosed or poorly ventilated spaces. Designed for short-reach, high-speed transmission, this OM4 cable is backward compatible with 10G and 25G networks, making it an ideal solution for scalable and future-ready fiber deployments.
| Specification | Details |
|---|---|
| Brand | Tripp Lite |
| Model Number | N858B-15M-3X8MG |
| Cable Type | Multimode Fiber Optic |
| Optical Mode | OM4 (50/125 Āµm) |
| Network Speeds Supported | 40G / 100G / 400G Ethernet |

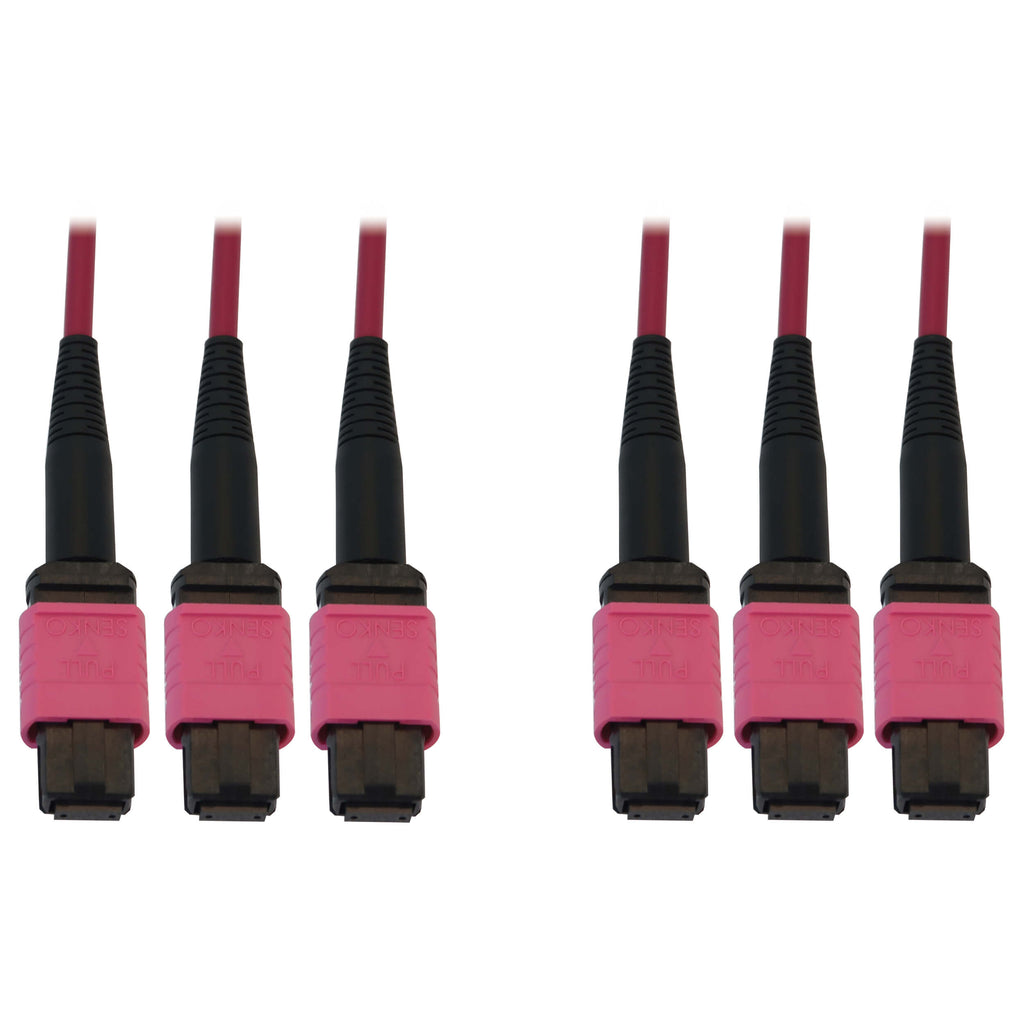

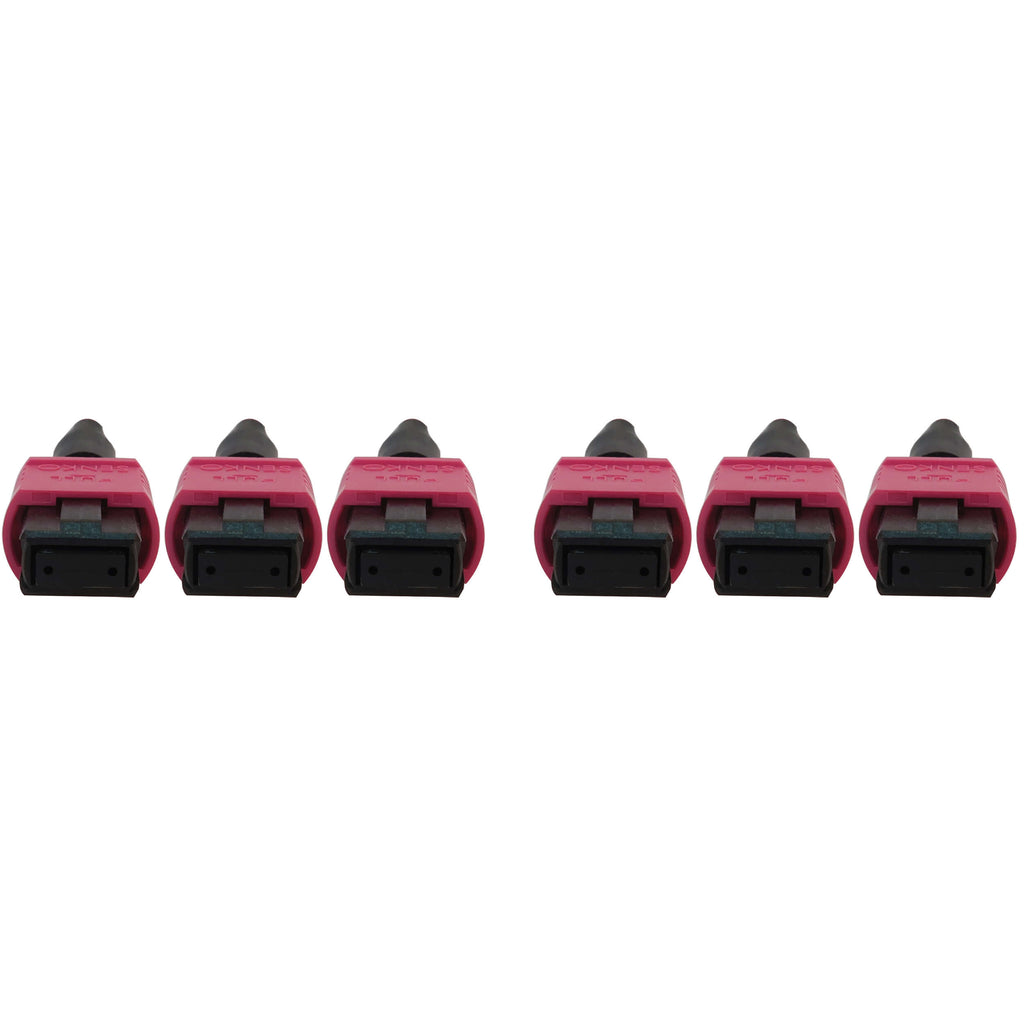

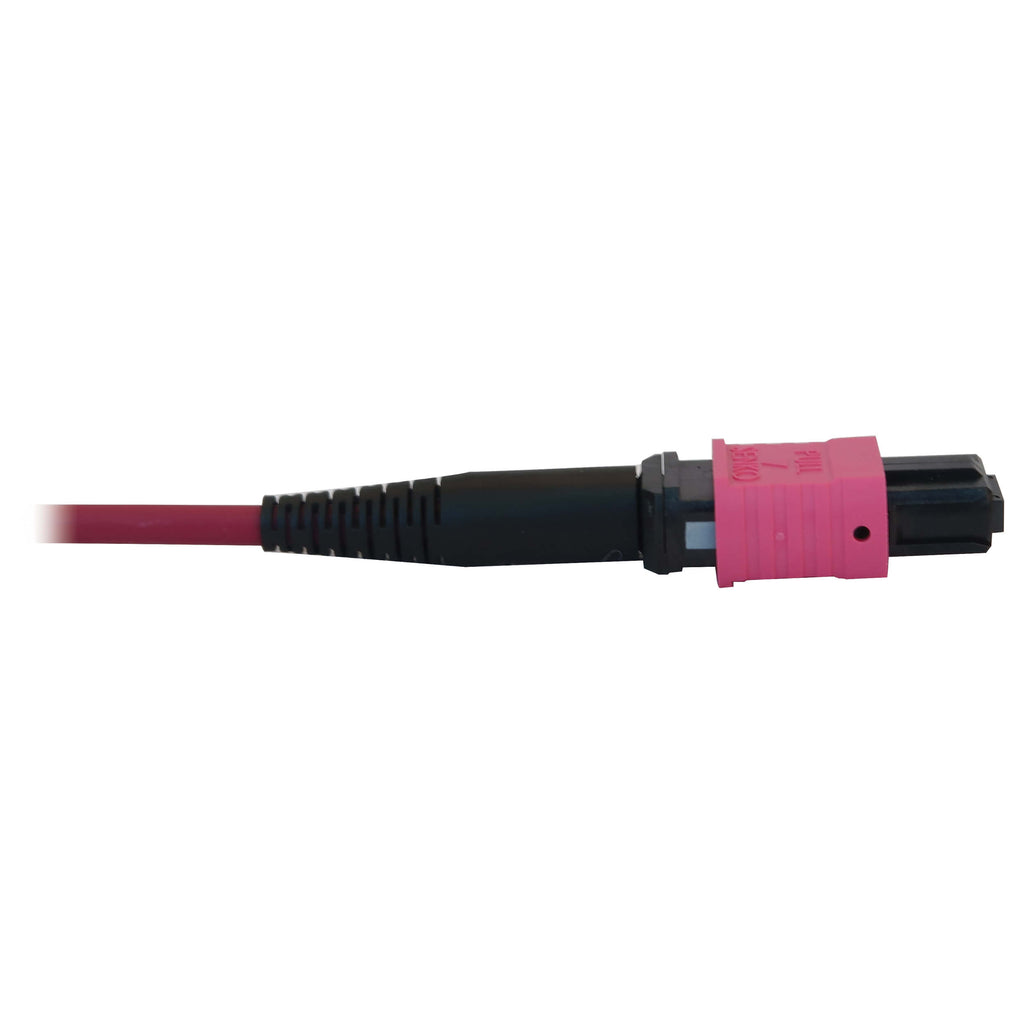

| Connector Type | MPO/MTP Female to Female |
| Fiber Configuration | 3 x 8-Fiber (24 fibers total) |
| Polarity | Type B (Cross) |
| Cable Length | 15 m (49.2 ft) |
| Jacket Color | Magenta |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Wavelength | 850 nm / 1300 nm |
| Insertion Loss | 0.35 dB |
| Minimum Bend Radius | 20 mm (dynamic), 10 mm (static) |
| Operating Temperature | -10Ā°C to 60Ā°C (14Ā°F to 140Ā°F) |
| Application | Data centers, telecom rooms, enterprise networks |
| Compliance | RoHS, CE, REACH |
| Warranty | Limited Lifetime |
