Description

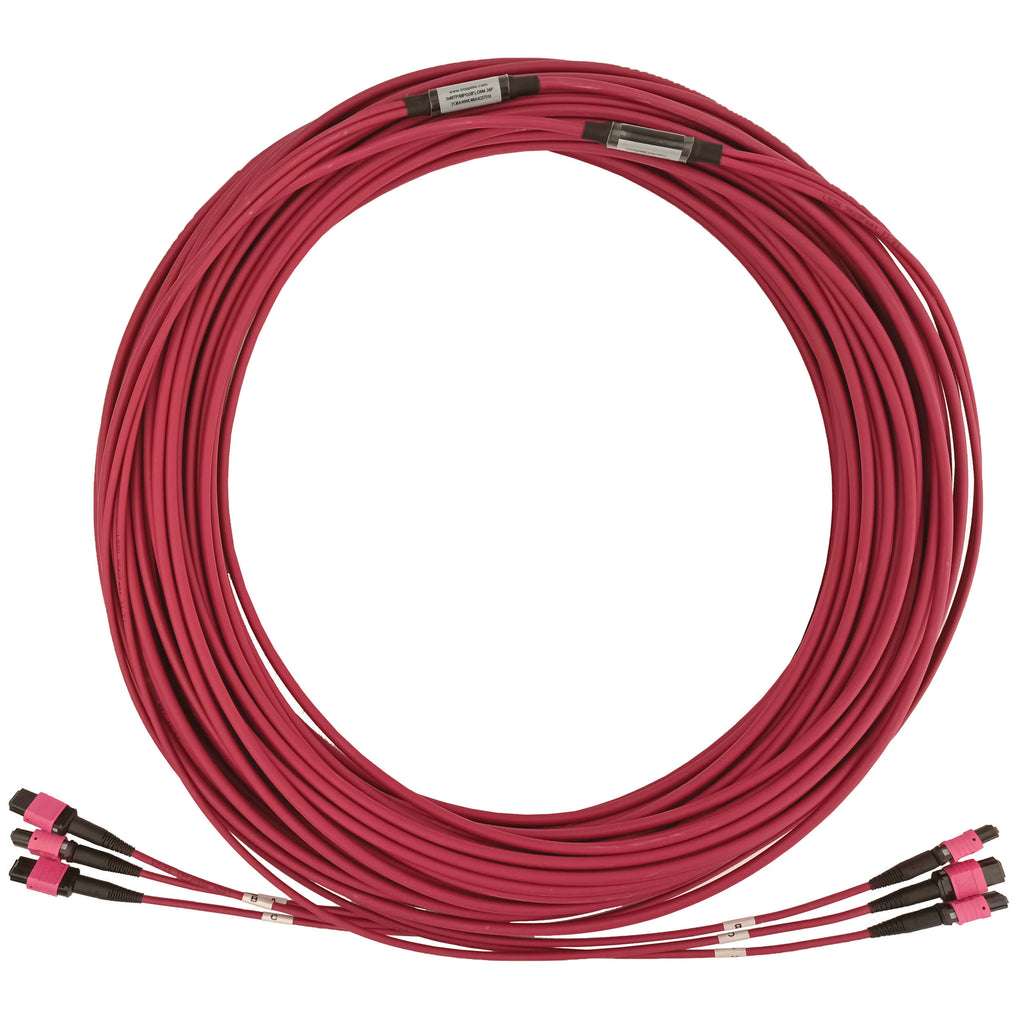

The Eaton N858B-38M-3X8MG is a premium 40/100 GbE multimode 50/125 OM4 fiber optic cable designed for high-density enterprise and data-center environments. Engineered for superior performance and bandwidth, this 38-meter (124.7 ft.) cable supports transmission speeds up to 400 Gb Ethernet across short distances, ensuring reliable connectivity for cloud services, hyperscale data centers, and telecom infrastructures.
Featuring a magenta LSZH (Low-Smoke Zero-Halogen) jacket, the cable allows easy identification in crowded racks while minimizing toxic smoke emissions during combustion—ideal for poorly ventilated installations. The 3×8-fiber MTP/MPO-PC connectors enable efficient trunking, quick deployment, and seamless scalability from 10 Gb to 400 Gb networks. Backward compatibility ensures investment protection for future network upgrades.
| Category | Details |
|---|---|
| Model Number | N858B-38M-3X8MG |
| Technology | Multimode Fiber Optic |
| Optical Mode | OM4 |
| Network Compatibility | 40 Gbps / 100 Gbps / 400 Gbps |
| Wavelengths Supported | 850 nm / 1300 nm |
| Attenuation | 3.5 dB/km (@ 850 nm); 1.5 dB/km (@ 1300 nm) |
| Insertion Loss | 0.35 dB |
| Polarity | Type B (Cross) |
| Endface Polish | PC |

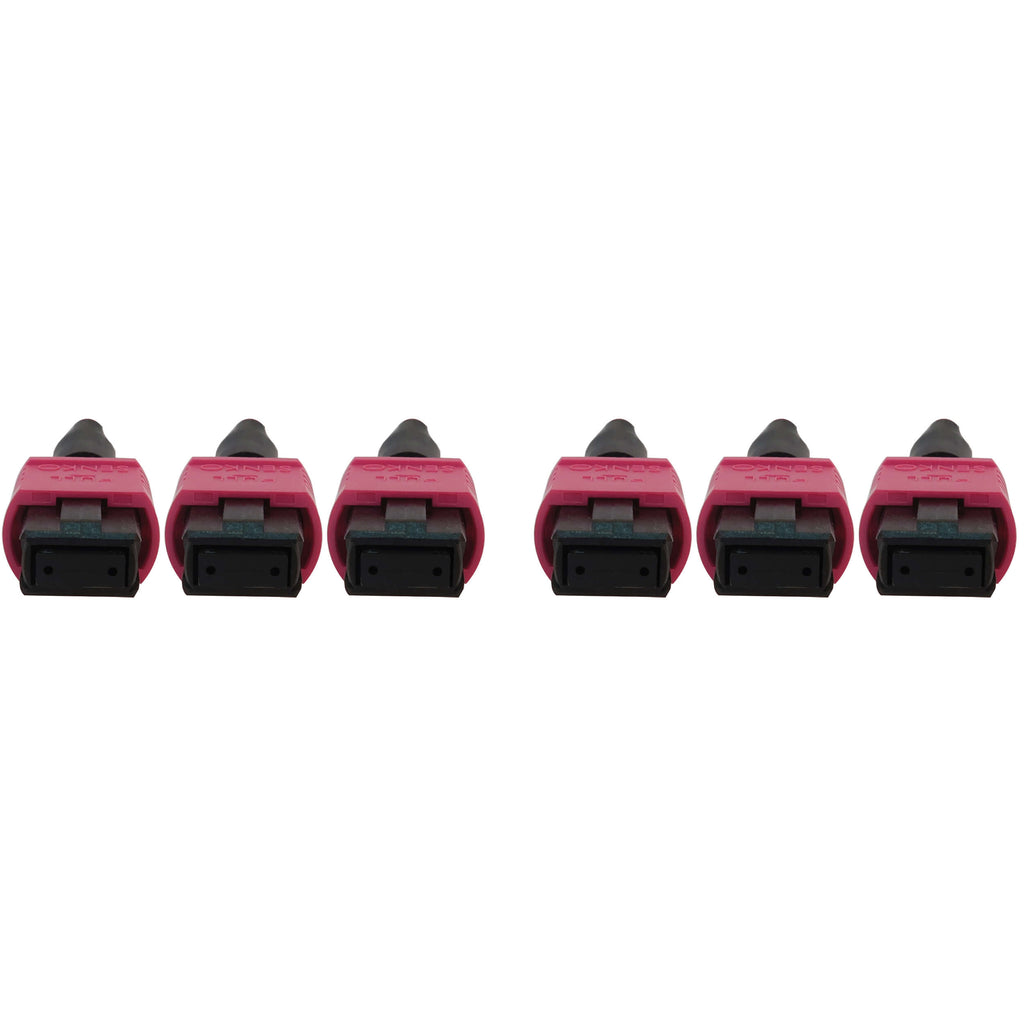

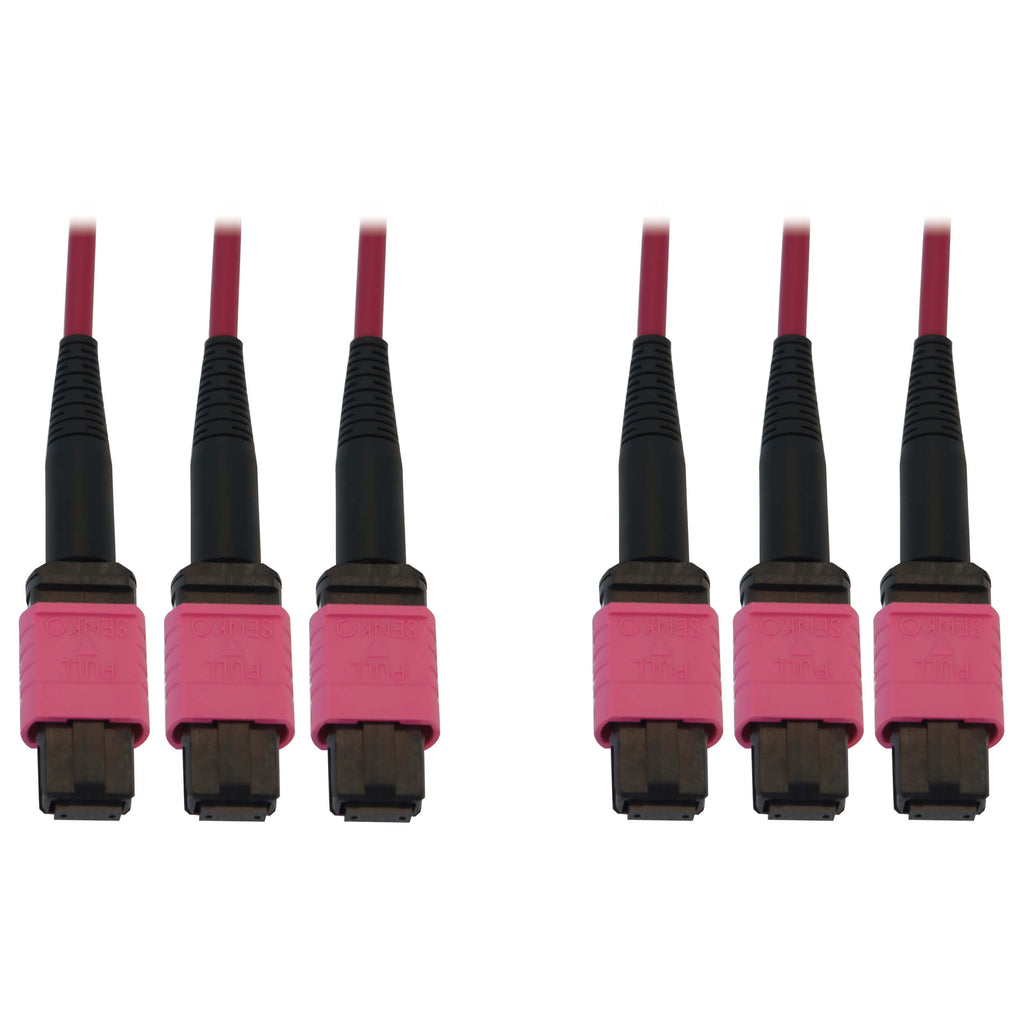

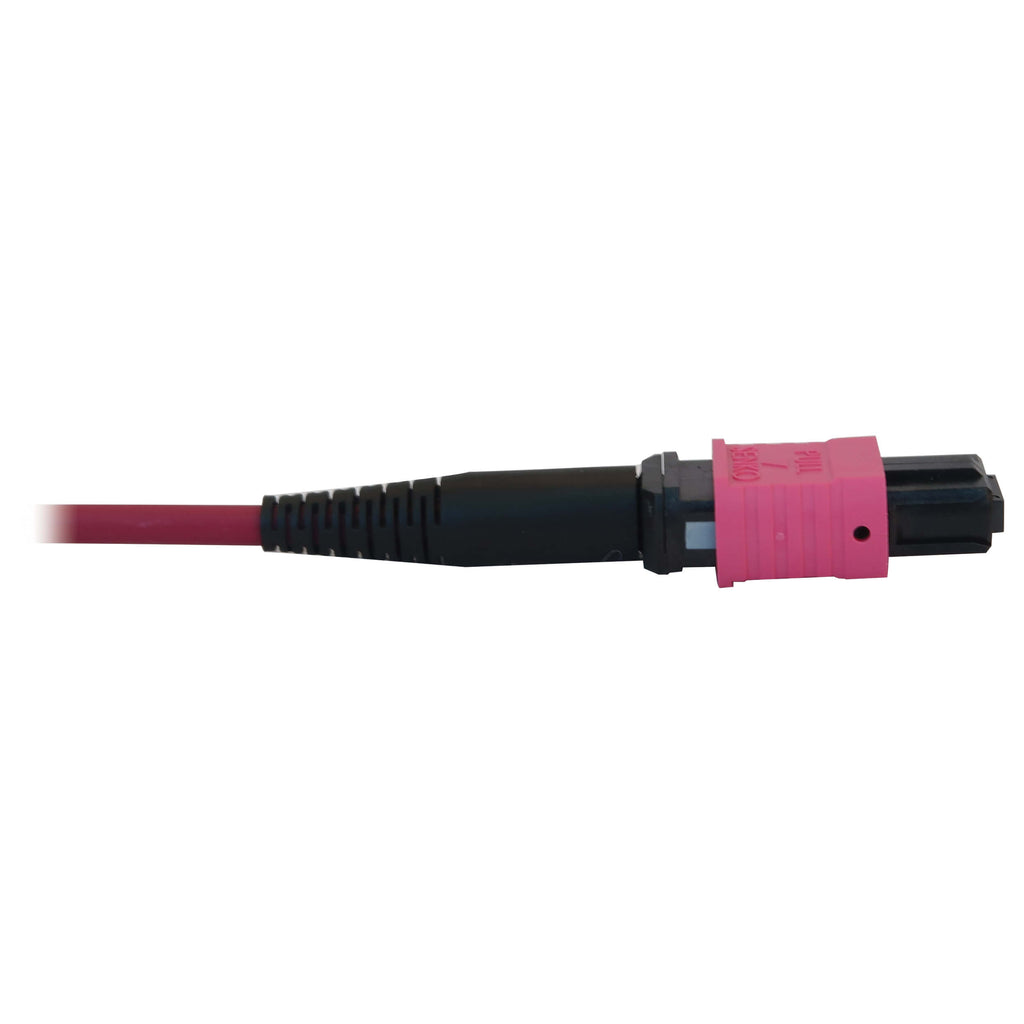

| Connectors | Side A: 12F MPO (Female); Side B: 24F MPO (Female) |
| Fiber Count | 24 Fibers (3×8 F) |
| Cable Length | 38 m (124.7 ft.) |
| Cable Jacket Material | LSZH, OFNR-rated |
| Jacket Color | Magenta |
| Connector Color | Black / Magenta |
| Outer Diameter | 4.5 mm |
| Minimum Bend Radius | 20 mm (dynamic) / 10 mm (static) |
| Operating Temperature | –10 °C to 60 °C (14 °F to 140 °F) |
| Operating Humidity | 5 % – 85 % RH (non-condensing) |
| Certifications | UL 1666, CE (Europe), RoHS, REACH |
| Warranty | Lifetime Limited Warranty |
