Description

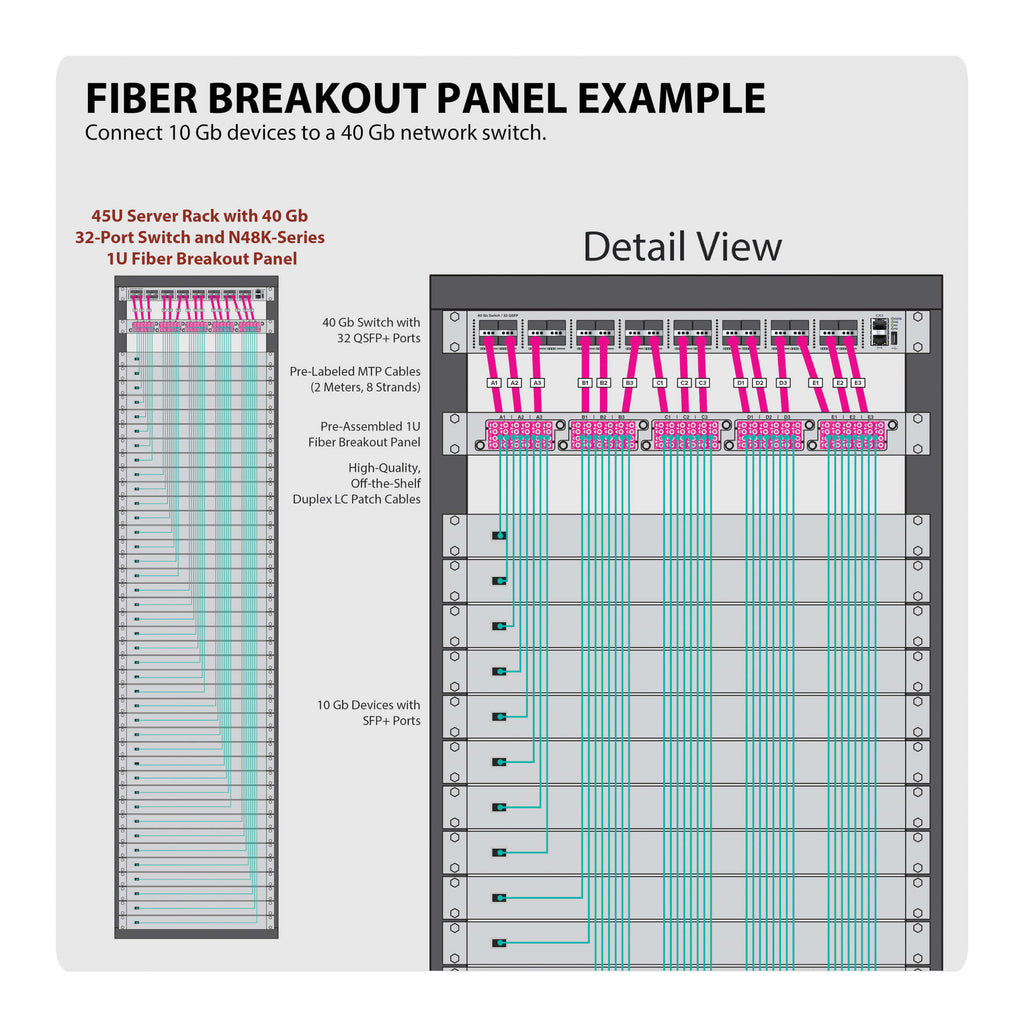

The Eaton Tripp Lite N48K-15M8L60-B is a high-density 50/125 multimode fiber breakout patch panel engineered to seamlessly connect 10G equipment with 40G networks or 25Gb gear with 100Gb systems. Designed with Base-8 OM4 wiring, it optimizes rack space, ensures 100% fiber utilization, and eliminates dead ports common in Base-12 configurations.

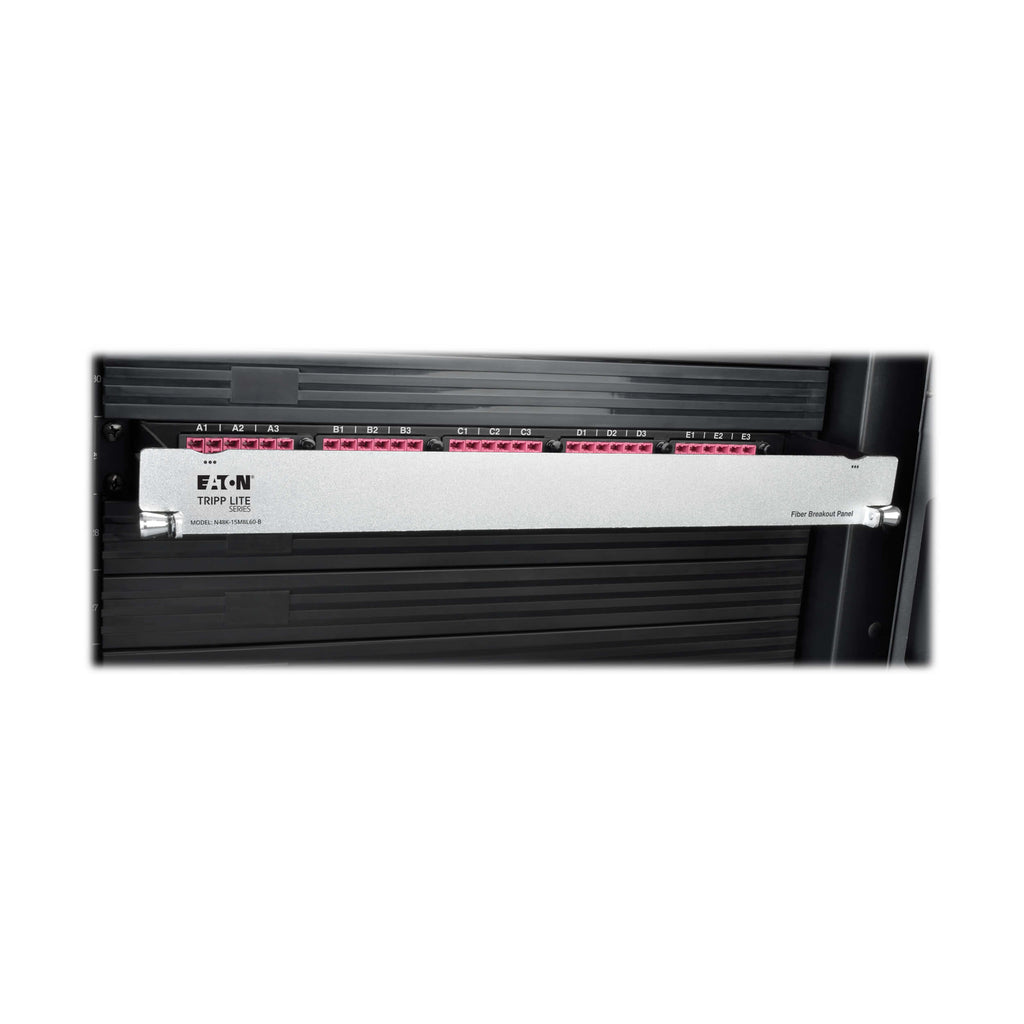

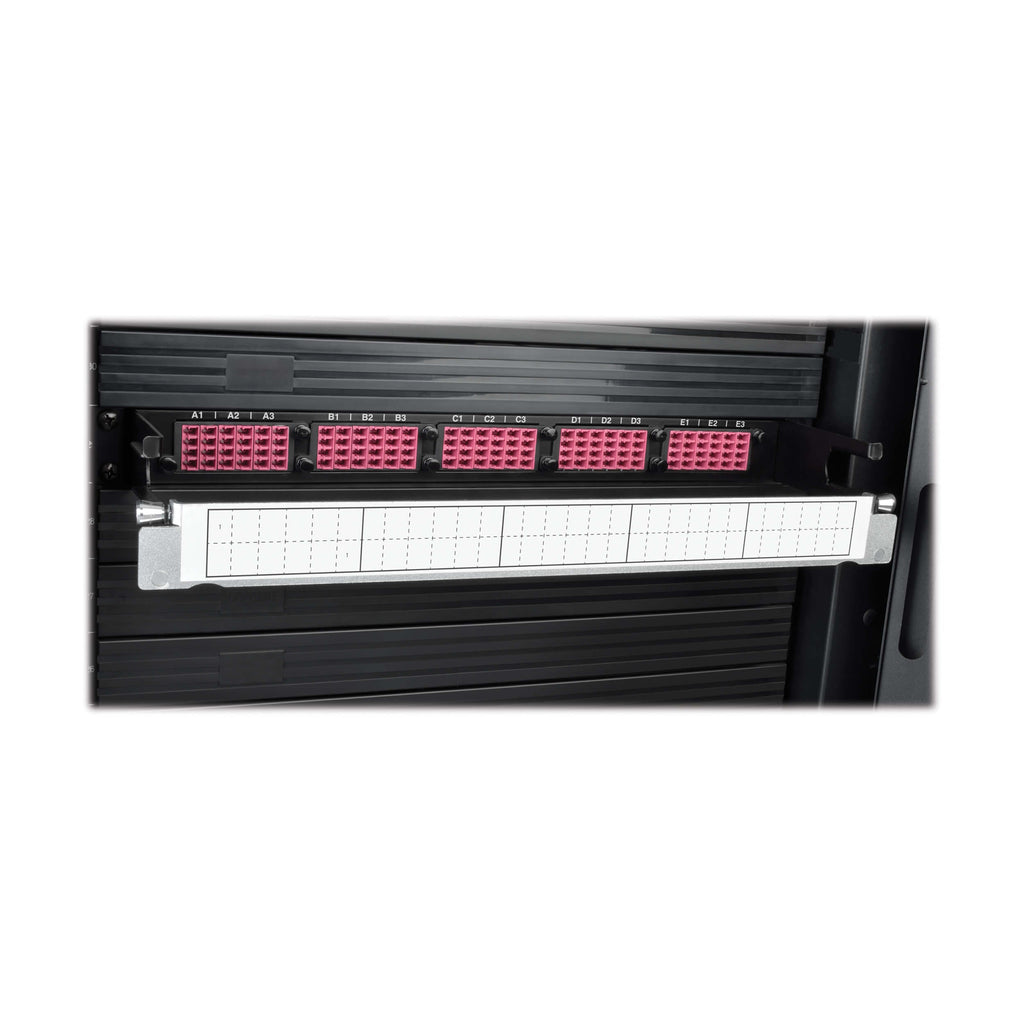

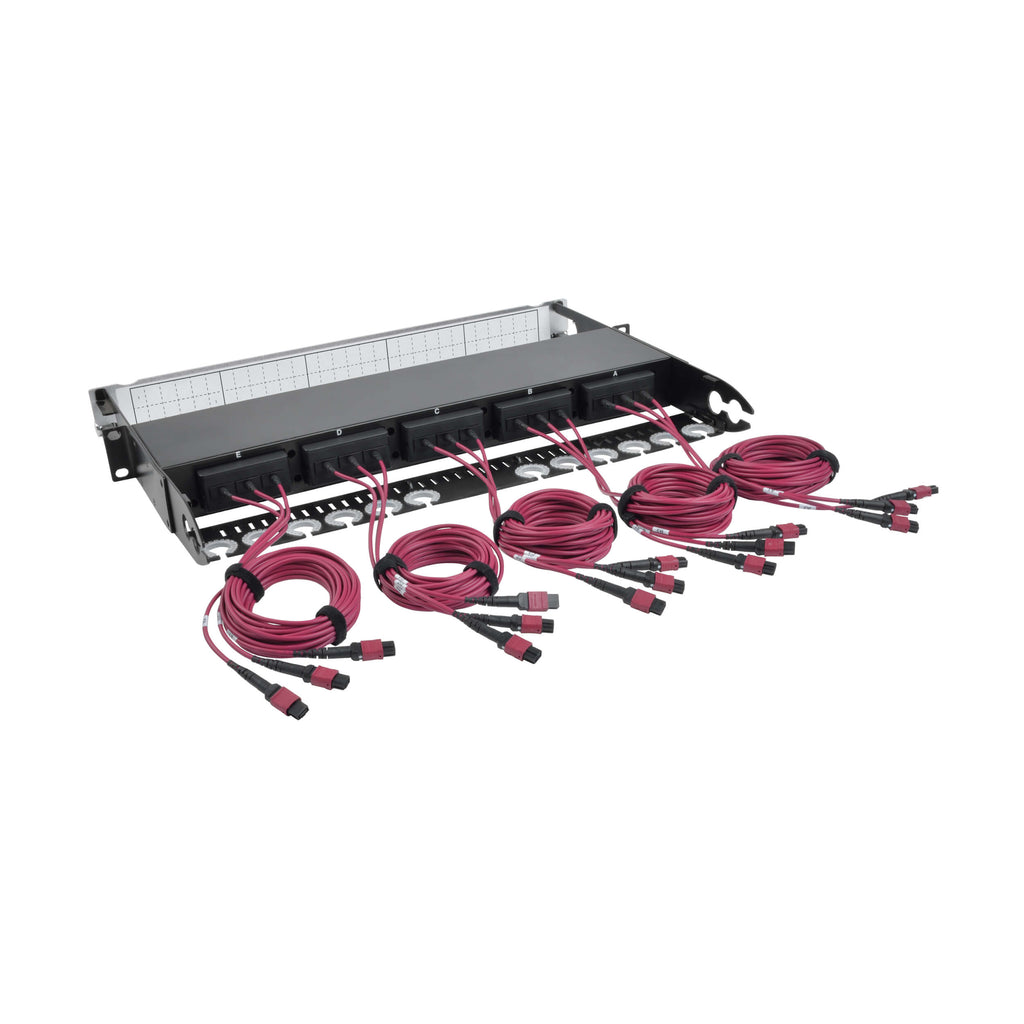

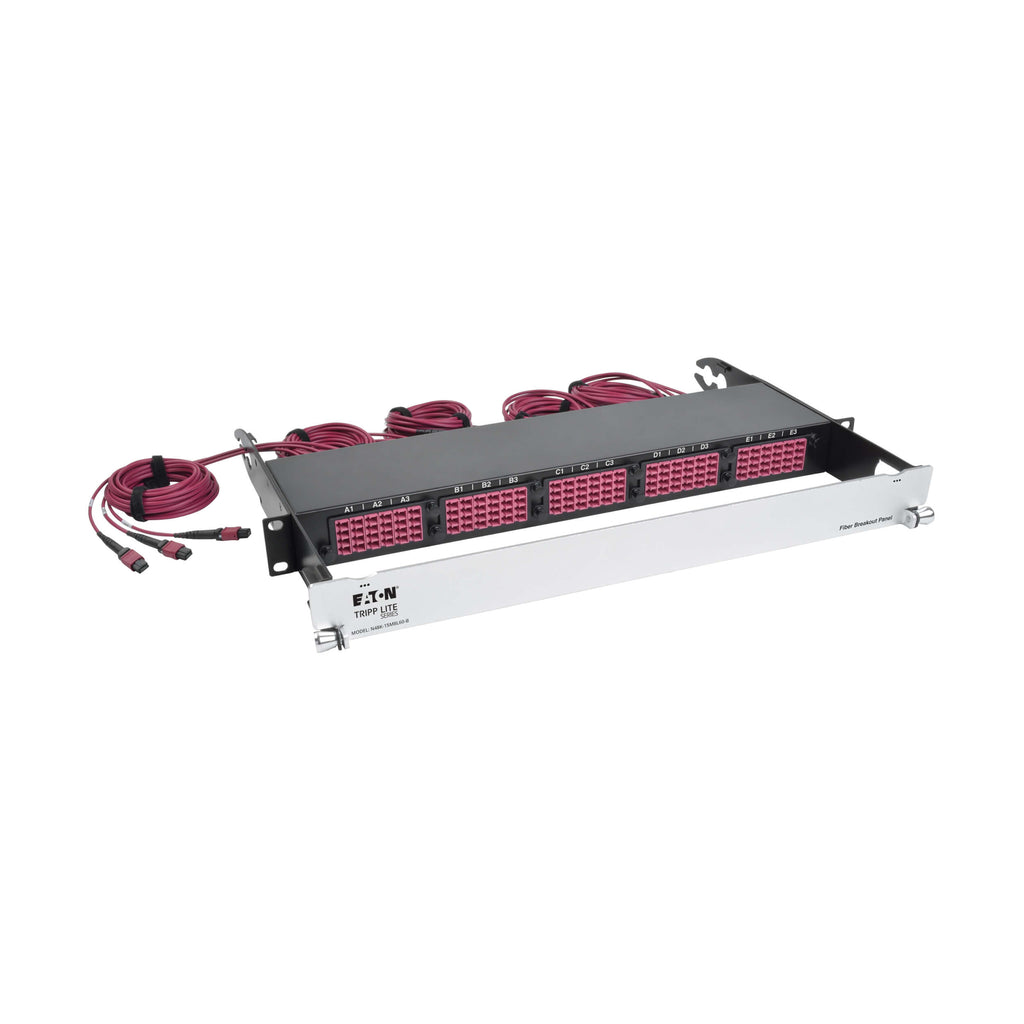

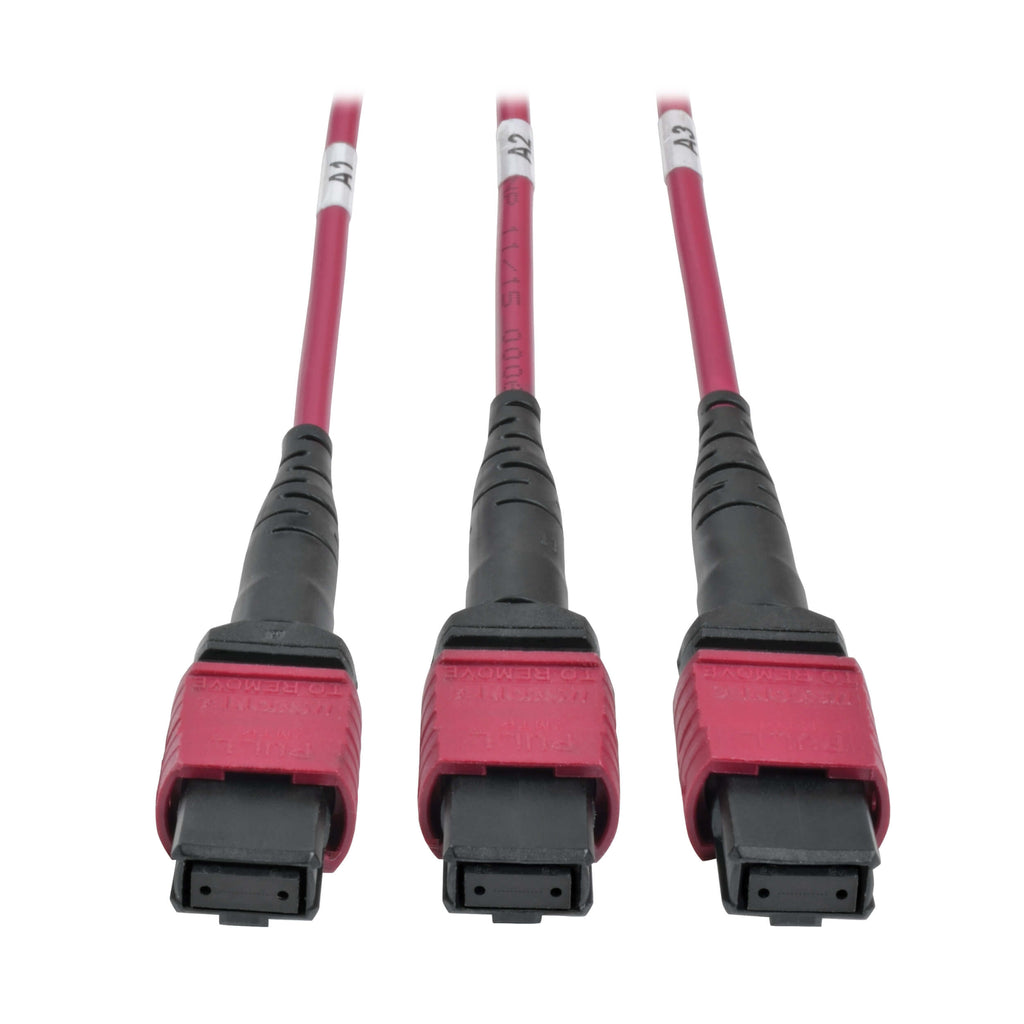

Housed in a 1U rackmount chassis, it features five preterminated breakout cassettes, each with 12 LC duplex ports and three built-in 2-meter MTP multimode cables, providing a total of 15 QSFP fiber switch ports and 60 LC ports. Hardwired cassette modules reduce insertion loss by up to 30%, while magenta color-coded OM4 cables simplify identification in dense installations. The fold-down front panel safeguards LC patch cords and includes writable space for port labeling and mapping.
Ideal for data centers, enterprise networks, and high-performance computing environments, this breakout panel offers future-ready scalability up to 200Gb, RoHS compliance, and Eaton’s lifetime limited warranty for long-term reliability.
| Category | Specification |
|---|---|
| Brand | Eaton (Tripp Lite) |
| Model | N48K-15M8L60-B |
| Product Type | Fiber Breakout Patch Panel |
| Form Factor | 1U Rackmount |
| Technology | Multimode |
| Optical Mode | OM4, 50/125 µm |
| Fiber Configuration | 40Gb to 4x10Gb, 100Gb to 4x25Gb |
| Base Type | Base-8 |
| Connector A | 15 × MTP/MPO (Female) |
| Connector B | 60 × LC Duplex (Female) |
| No. of Cassettes | 5 Breakout Cassettes (12 LC Duplex + 3x 2m MTP cables each) |
| Cable Length (per cassette) | 2 meters |
| Color | Black |
| Cable Color | Magenta (OM4) |
| Panel Style | Fiber Breakout |
| Features | Hardwired cassettes (30% less insertion loss), 50% reduction in link attenuation, fold-down front panel, port labeling area |
| Rack Compatibility | EIA-Standard 19-inch rack |
| Shipping Dimensions (H×W×D) | 3.80 × 21.30 × 18.80 in (9.65 × 54.10 × 47.75 cm) |
| Shipping Weight | 8.10 lb (3.67 kg) |
| Compliance | RoHS |
| Warranty | Lifetime Limited Warranty |
