Description

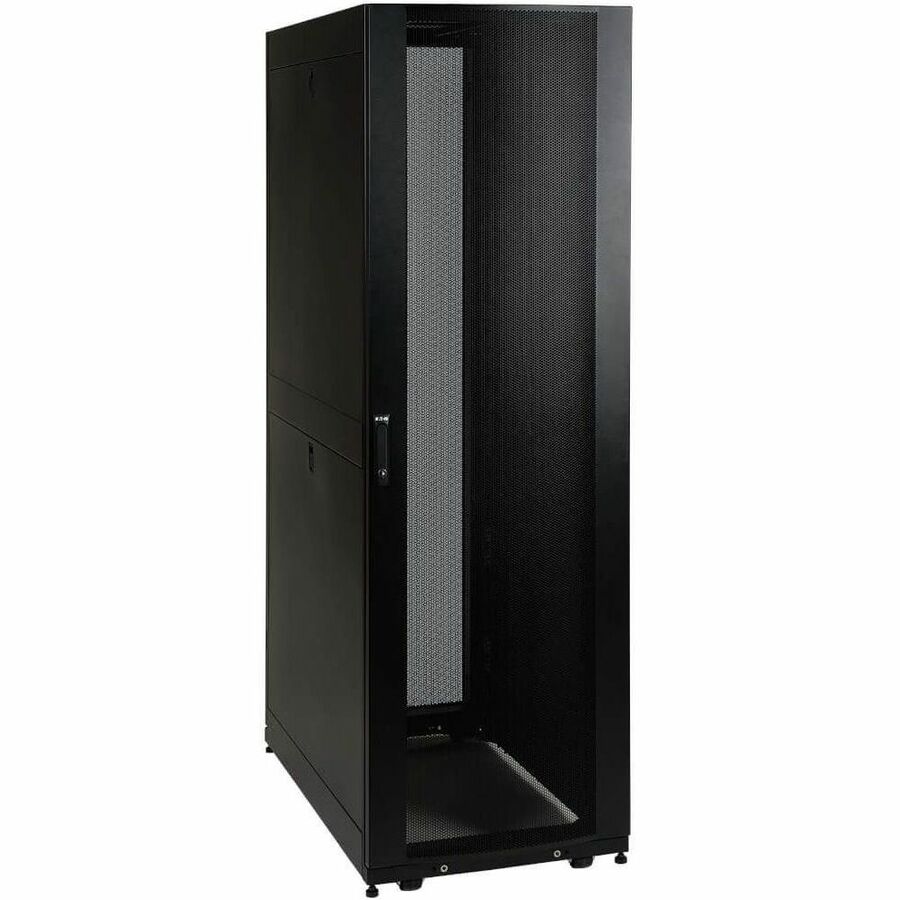

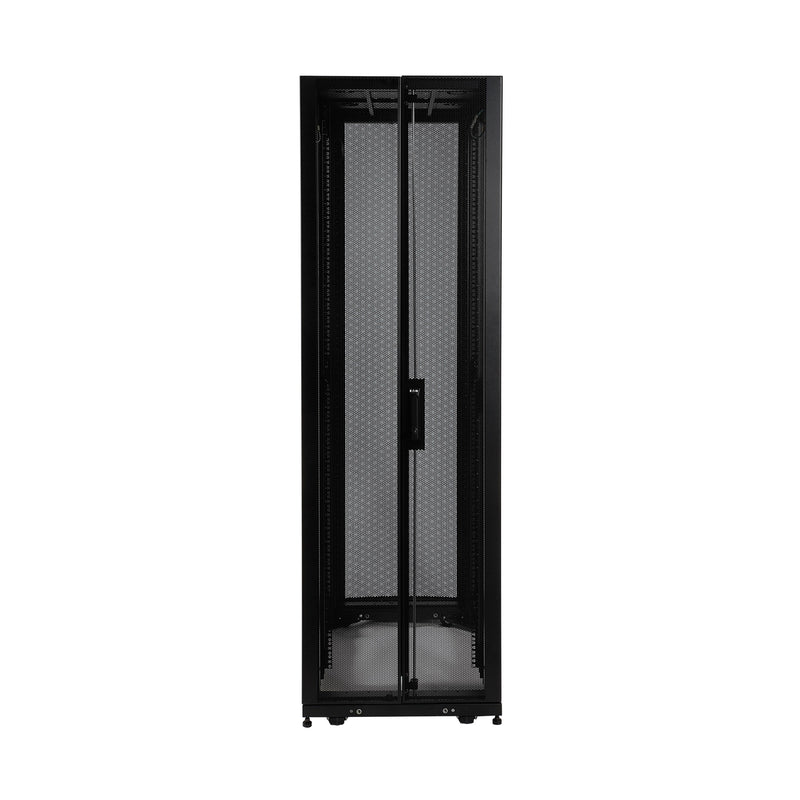

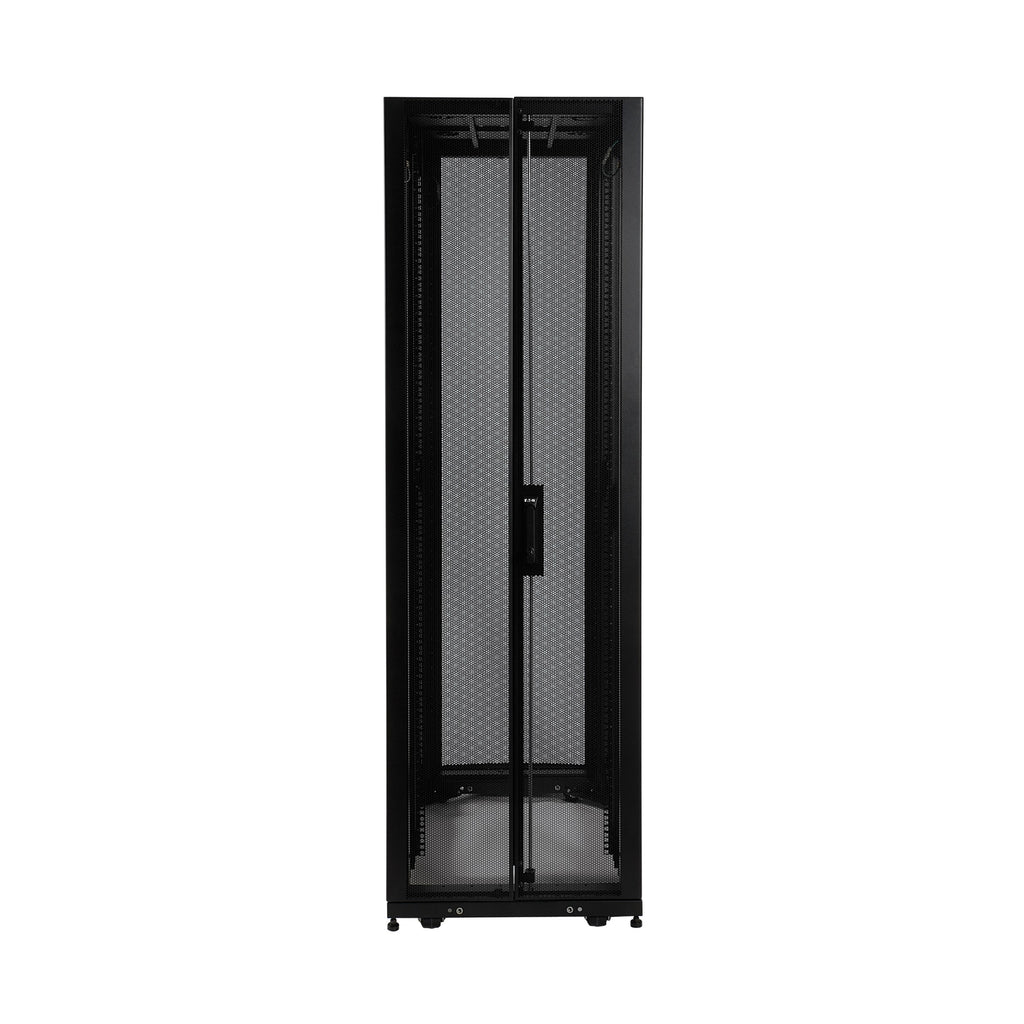

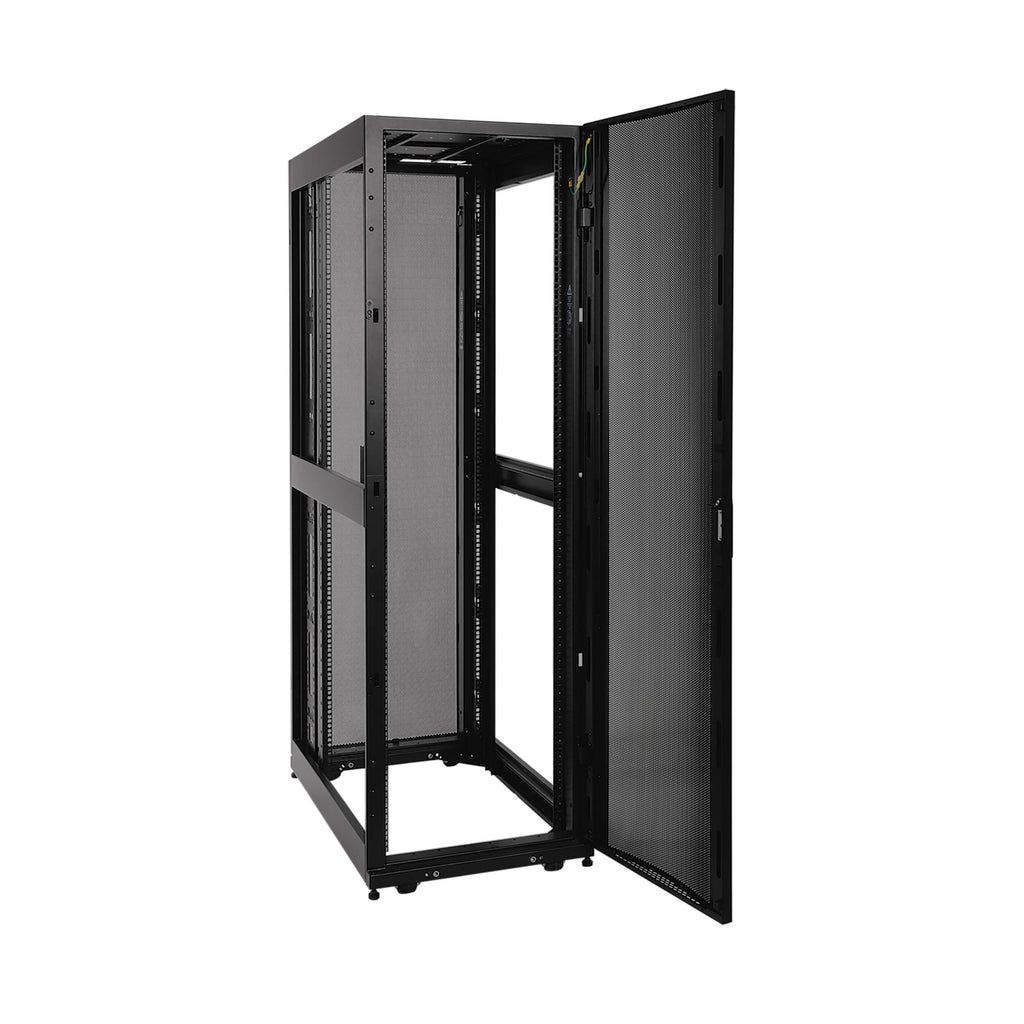

The Eaton Tripp Lite SR42UBSD is a 42U SmartRack Shallow-Depth Rack Enclosure Cabinet engineered for tight spaces and shallow-depth equipment like A/V or patch panels. With a compact 32-inch depth and robust design, it supports up to 3,500 lbs of stationary load and 2,250 lbs rolling. Designed for high airflow, tool-less accessory installation, and enhanced security, the SR42UBSD is PCI DSS compliant and ships fully assembled with locking front/rear doors and side panels. Ideal for IT, AV, and network applications with space constraints, this rack enclosure includes integrated cable management and casters for easy deployment.
| Specification | Details |
|---|---|
| Model Number | SR42UBSD |
| Rack Height | 42U |
| Rack Depth | Shallow (32 in / 825 mm) |
| Mounting Depth Range | 4 in to 27 in (102 mm to 686 mm) |
| Factory Preset Rack Depth | 19.25 in (489 mm) |
| Width | 24 in (600 mm) |
| Unit Dimensions (H x W x D) | 78.5 x 23.63 x 32.48 in (199.39 x 60.02 x 82.5 cm) |
| Shipping Dimensions | 78 x 25 x 32.5 in (198.12 x 63.5 x 82.55 cm) |
| Weight (Net / Shipping) | 261 lbs / 265 lbs (118.39 kg / 120.2 kg) |
| Load Capacity (Stationary) | 3,500 lbs (1588 kg) |
| Load Capacity (Rolling) | 2,250 lbs (1021 kg) |
| Number of Mounting Rails | 4 (with tool-less PDU/cable management support) |
| Cable Management | Integrated cable routing ports and open bottom |
| Ventilation | 65% perforation; top panel vented |
| Doors & Panels | Locking, removable, reversible front/rear doors; removable side panels (half-size) |
| Grounding | Grounding points on all panels and doors |
| Casters & Leveling Feet | Pre-installed casters and removable levelers |
| Certifications | UL 60950-1, RoHS, CE |
| Compliance | PCI DSS |
| Warranty | 5-Year Limited Warranty |
| UPC | 037332163936 |
