Description

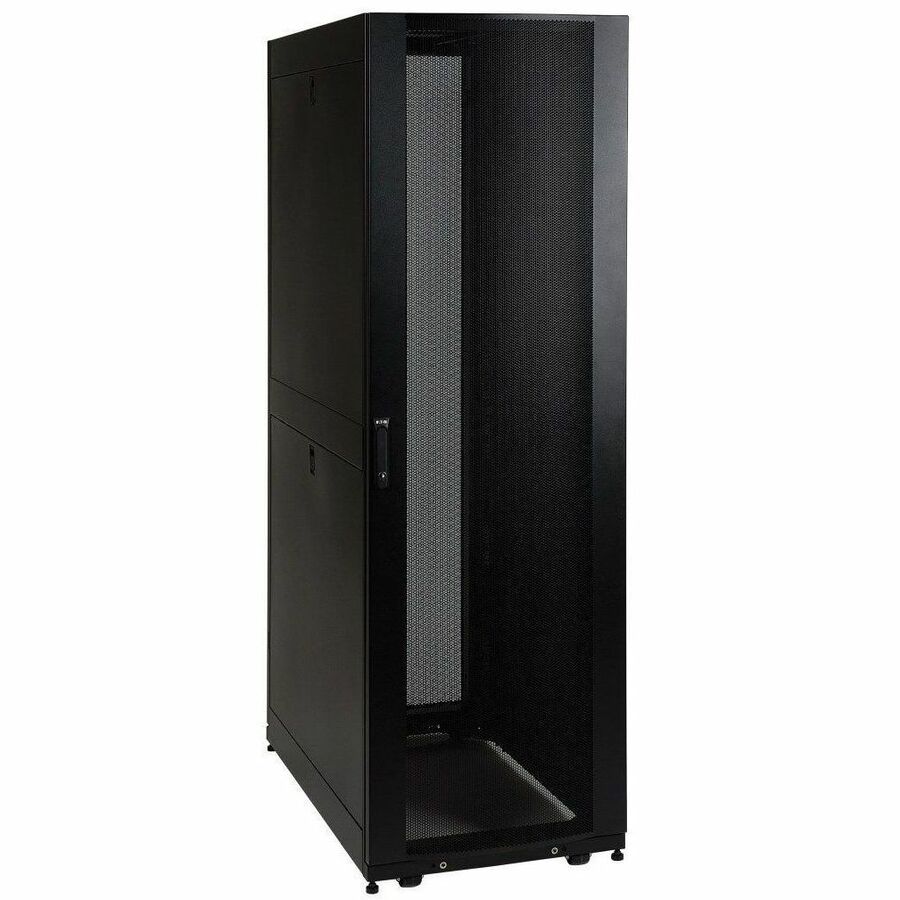

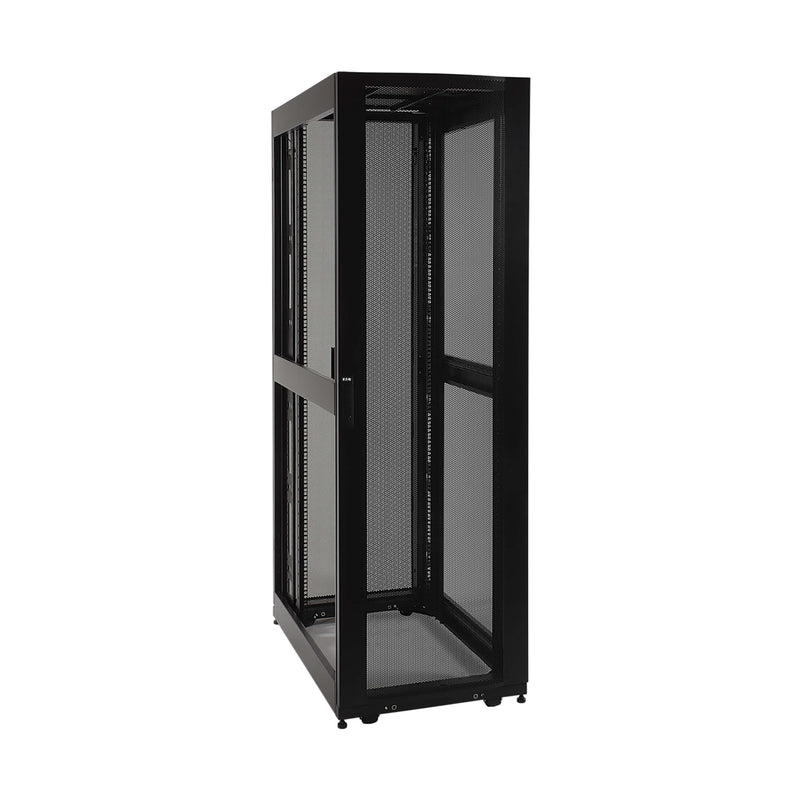

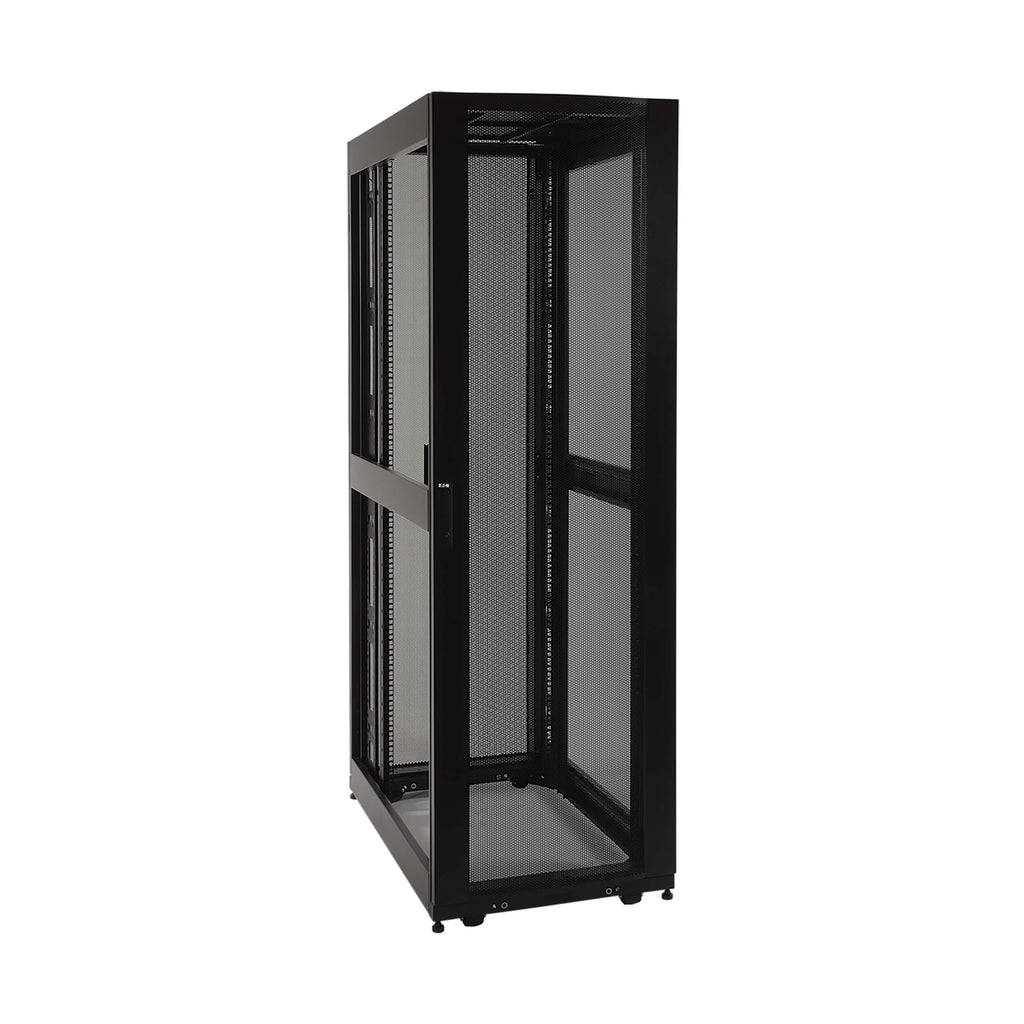

The Eaton Tripp Lite SmartRack SR42UB1032 is a fully assembled, 42U standard-depth rack enclosure cabinet designed for efficient IT equipment deployment in data centers and network environments. Featuring 10-32 threaded mounting holes and robust load capacity (up to 3,500 lbs stationary), this enclosure offers high airflow performance with more than 65% open door perforation to support server cooling requirements.

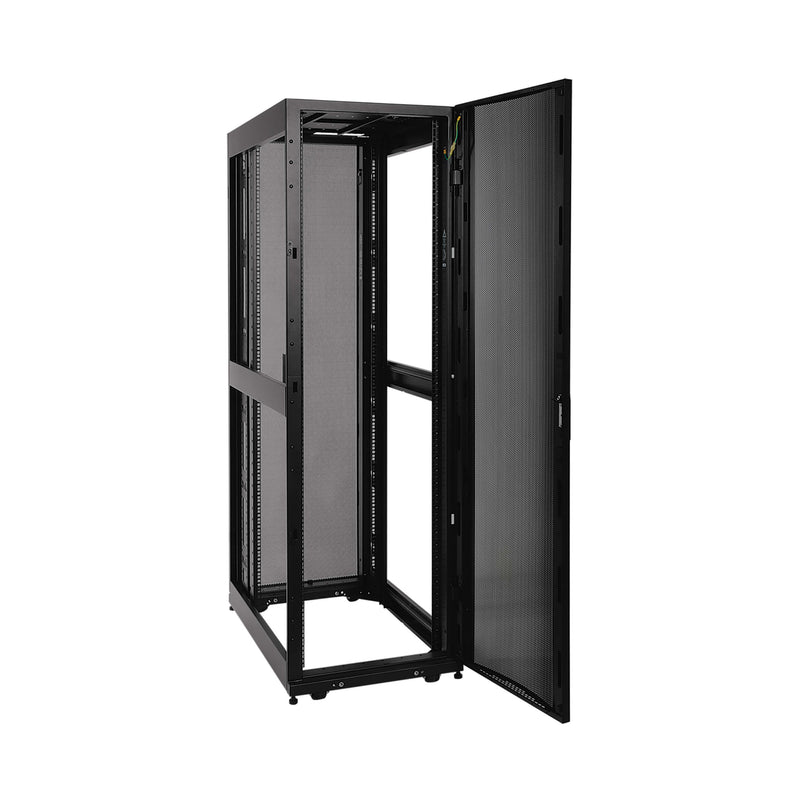

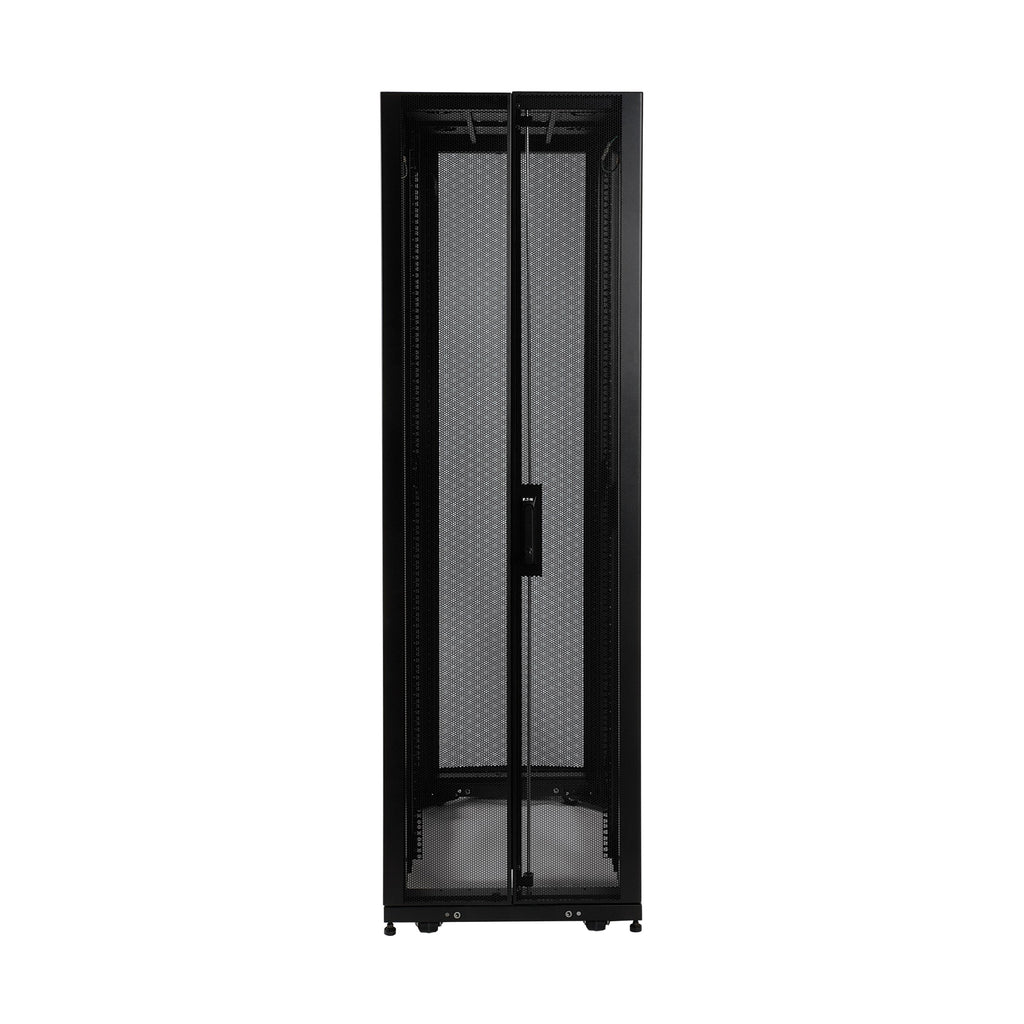

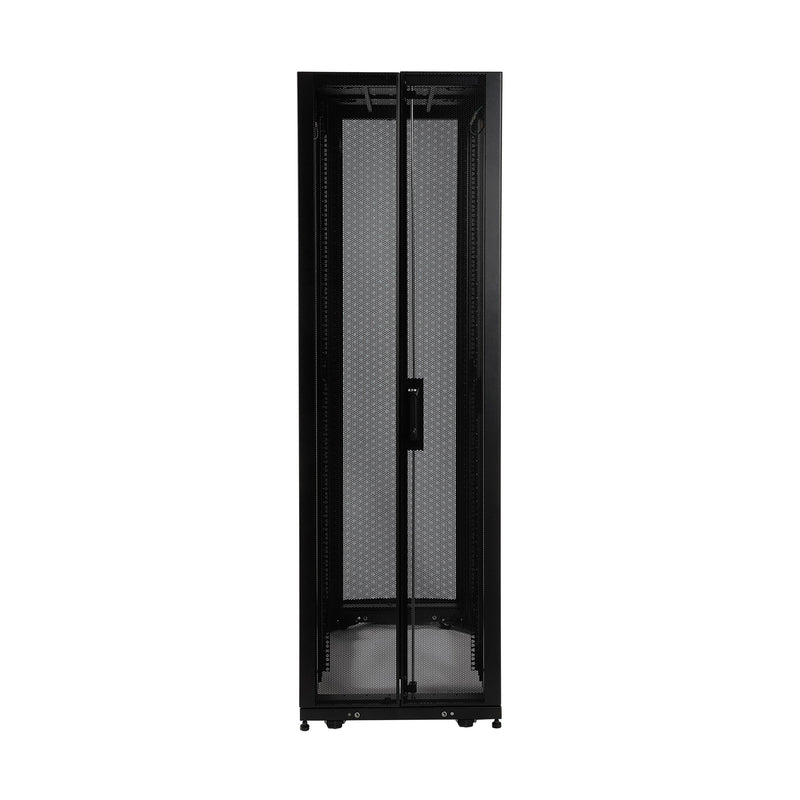

With reversible, lockable front and split rear doors, removable half-sized side panels, and pre-installed casters and levelers, the SR42UB1032 is built for quick setup, security, and convenient access. It also includes toolless cable routing access via top and bottom openings, integrated baying tabs for row alignment, and full PCI DSS compliance. Ideal for use with servers, UPS systems, switches, and patch panels.
| Specification | Detail |
|---|---|
| Model Number | SR42UB1032 |
| Rack Units (U) | 42U |
| Mounting Rail Type | Threaded 10-32 |
| Internal Rack Depth | Max: 37 in (94 cm) / Min: 4 in (10.16 cm) |
| Factory Preset Depth | 27.75 in (70.5 cm) |
| Dimensions (H x W x D) | 78.5 x 23.63 x 43 in (199.4 x 60 x 109.2 cm) |
| Shipping Dimensions (H x W x D) | 85 x 26 x 45.5 in (215.9 x 66 x 115.6 cm) |
| Unit Weight | 286 lbs (129.7 kg) |
| Shipping Weight | 336 lbs (152.4 kg) |
| Load Capacity - Stationary | 3500 lbs (1588 kg) |
| Load Capacity - Rolling | 2250 lbs (1021 kg) |
| Doors & Side Panels | Locking, reversible doors; half-size locking side panels |
| Ventilation | 65% open perforation front/rear doors |
| Cable Access | Open bottom + toolless removable vented top panel |
| Casters / Leveling Feet | Pre-installed; casters for repositioning only |
| Certifications | UL 60950-1, RoHS, CE, UKCA |
| Device Compatibility | Servers, UPS, Patch Panels, Network Switches |
| Grounding | Grounded to frame with quick-release door grounds |
| Included Accessories | Mounting hardware, side panels, locks, keys, manual |
| Warranty | 5-Year Limited Warranty |
