Description

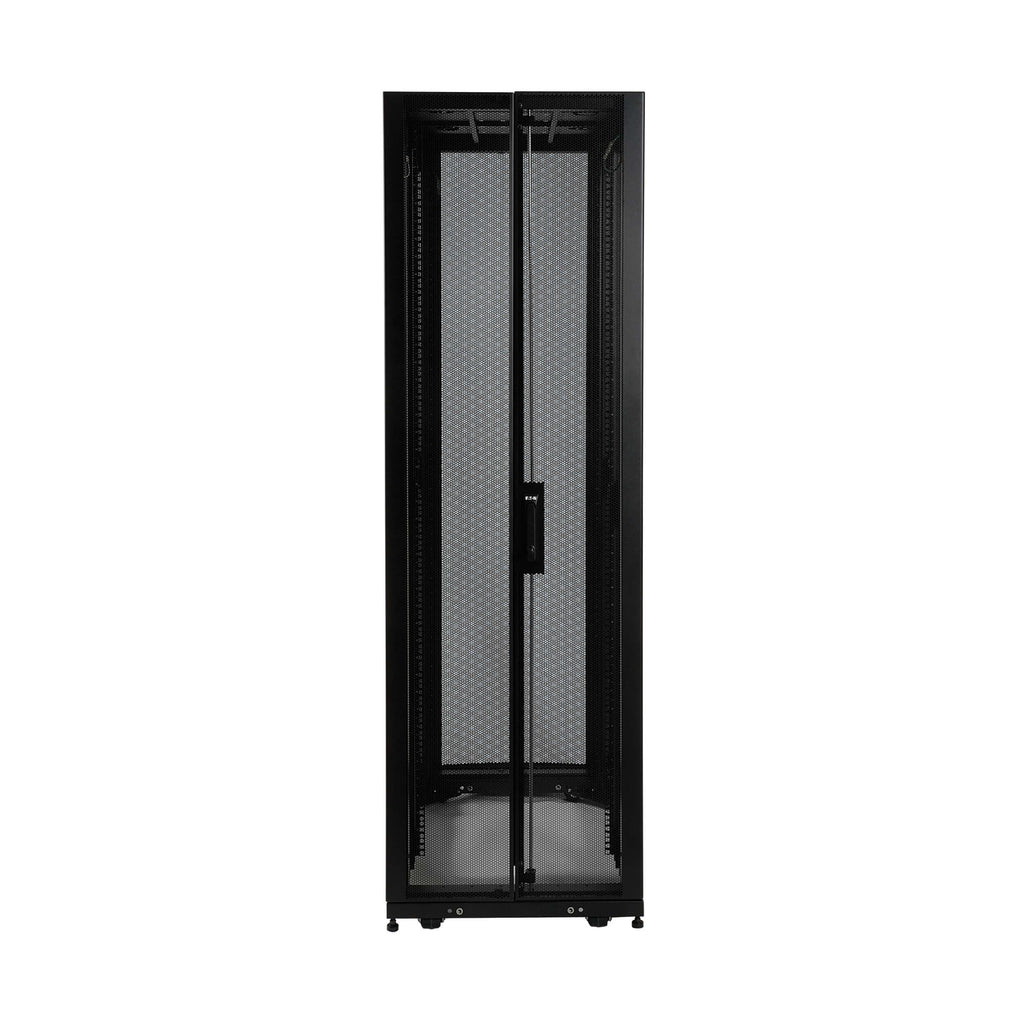

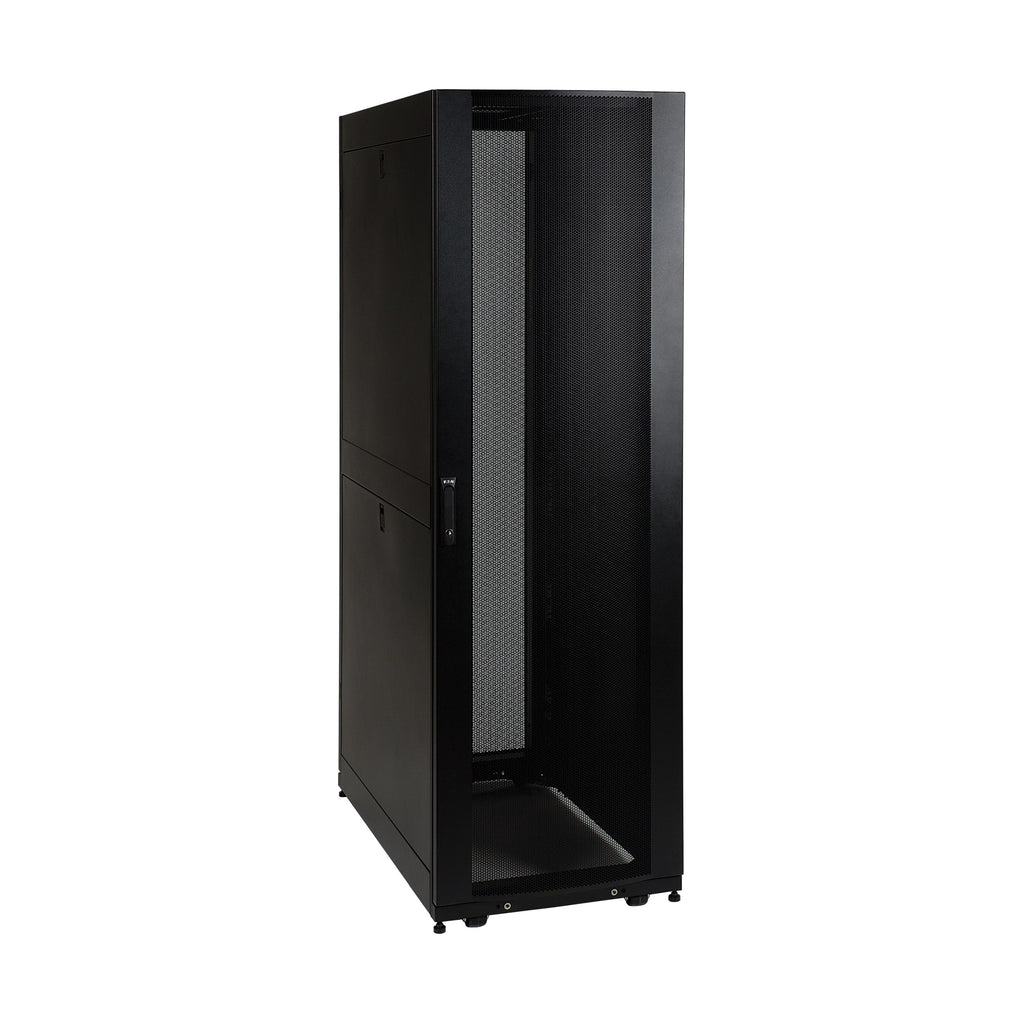

The Tripp Lite SR42UBSP1 SmartRack 42U Standard-Depth Rack Enclosure offers secure, high-density housing for servers, networking hardware, UPS systems, and PDUs. Built with IT environments in mind, it includes integrated cable management, power distribution compatibility, and airflow optimization.

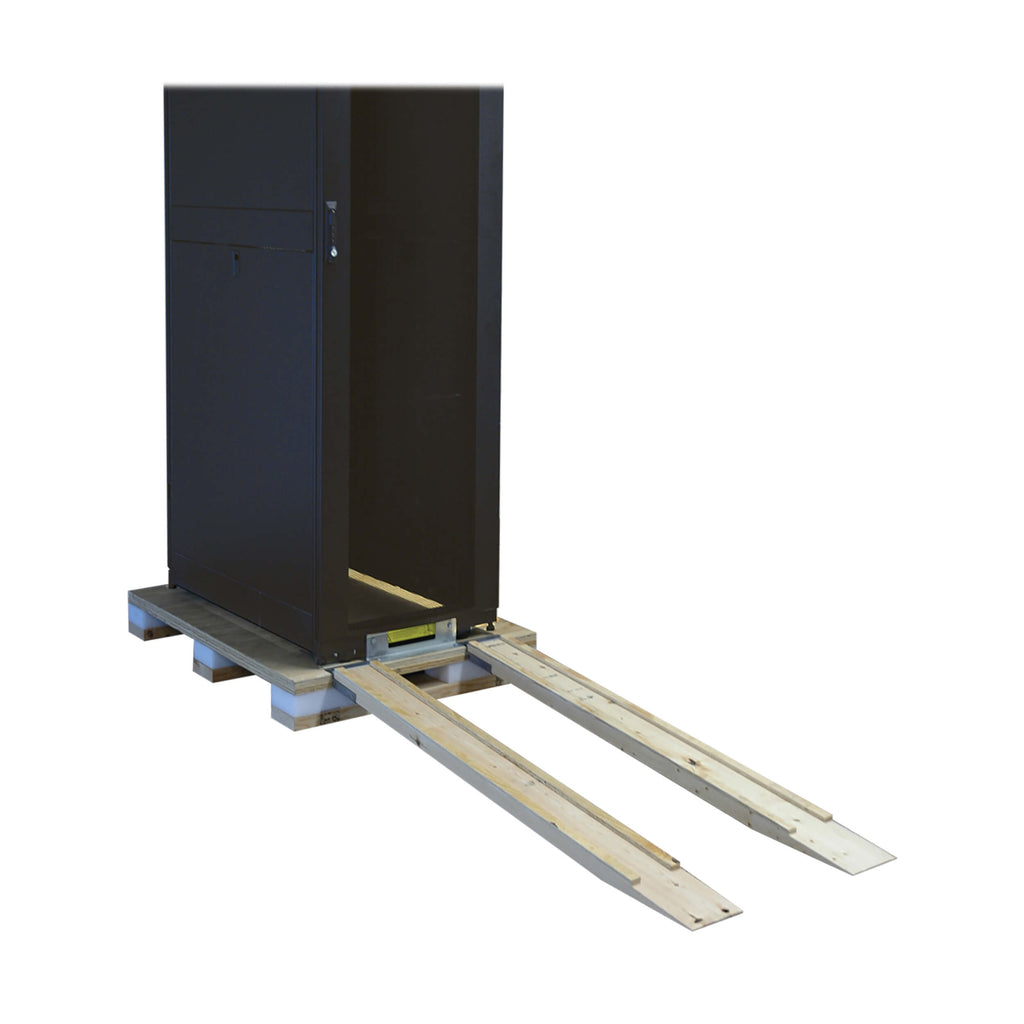

This special version ships mounted on a reinforced shock pallet with heavy-duty ramps, providing safe and convenient re-shipping for preconfigured racks. Its 3500 lb stationary capacity, perforated doors for maximum ventilation, and lockable panels make it ideal for mission-critical data centers. Fully assembled and designed for rapid deployment, the SR42UBSP1 supports PCI DSS compliance and rolls easily on pre-installed casters for on-site positioning.
| Category | Details |
|---|---|
| Model Number | SR42UBSP1 |
| Rack Type | Enclosure |
| Rack Height | 42U |
| Rack Depth | Standard (42" / 1050mm) |
| Width | 24" (600mm) |
| Color | Black |
| Mounting Rail Type | Square hole / cage nut (EIA-310-D compliant) |
| Device Compatibility | Patch panels, network switches, UPS, servers |
| Internal Depth (Max) | 37 in (94 cm) |
| Internal Depth (Min) | 4 in (10.16 cm) |
| Factory Preset Rack Depth | 27.75 in (70.5 cm) |
| Unit Dimensions (H x W x D) | 78.5 x 23.63 x 43.0 in (199.39 x 60.02 x 109.22 cm) |
| Unit Weight | 286 lbs (129.73 kg) |
| Shipping Weight | 336 lbs (152.41 kg) |
| Weight Capacity (Stationary) | 3500 lbs (1588 kg) |
| Weight Capacity (Rolling) | 2250 lbs (1020.6 kg) |
| Ventilation | 65% open perforated front/rear doors |
| Doors | Locking, reversible, removable (front & split rear) |
| Side Panels | Locking, removable half-size panels keyed alike |
| Casters & Leveling Feet | Pre-installed casters; removable levelers |
| Grounding System | Integrated with quick-release ground wires |
| Cable Access | Open bottom & tool-less top cable ports |
| Certifications | UL 60950-1, CE, RoHS |
| Compliance | Meets PCI DSS requirements |
| Warranty | 5-year limited warranty |
| UPC Code | 037332137401 |
