Description

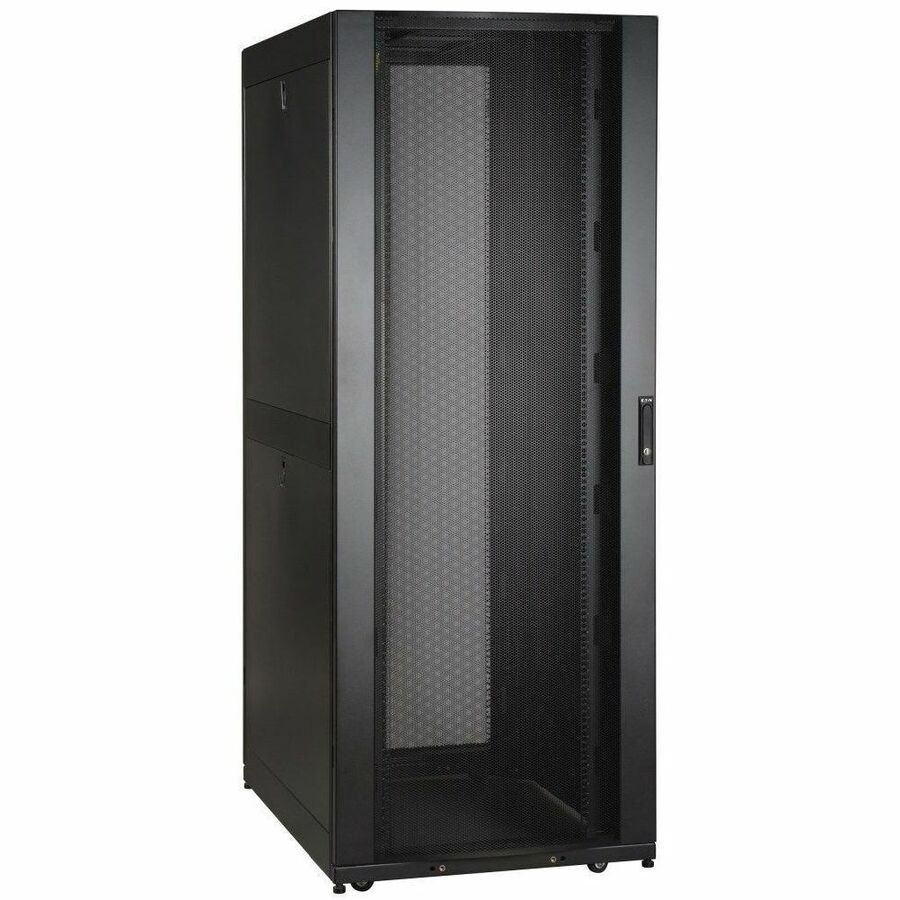

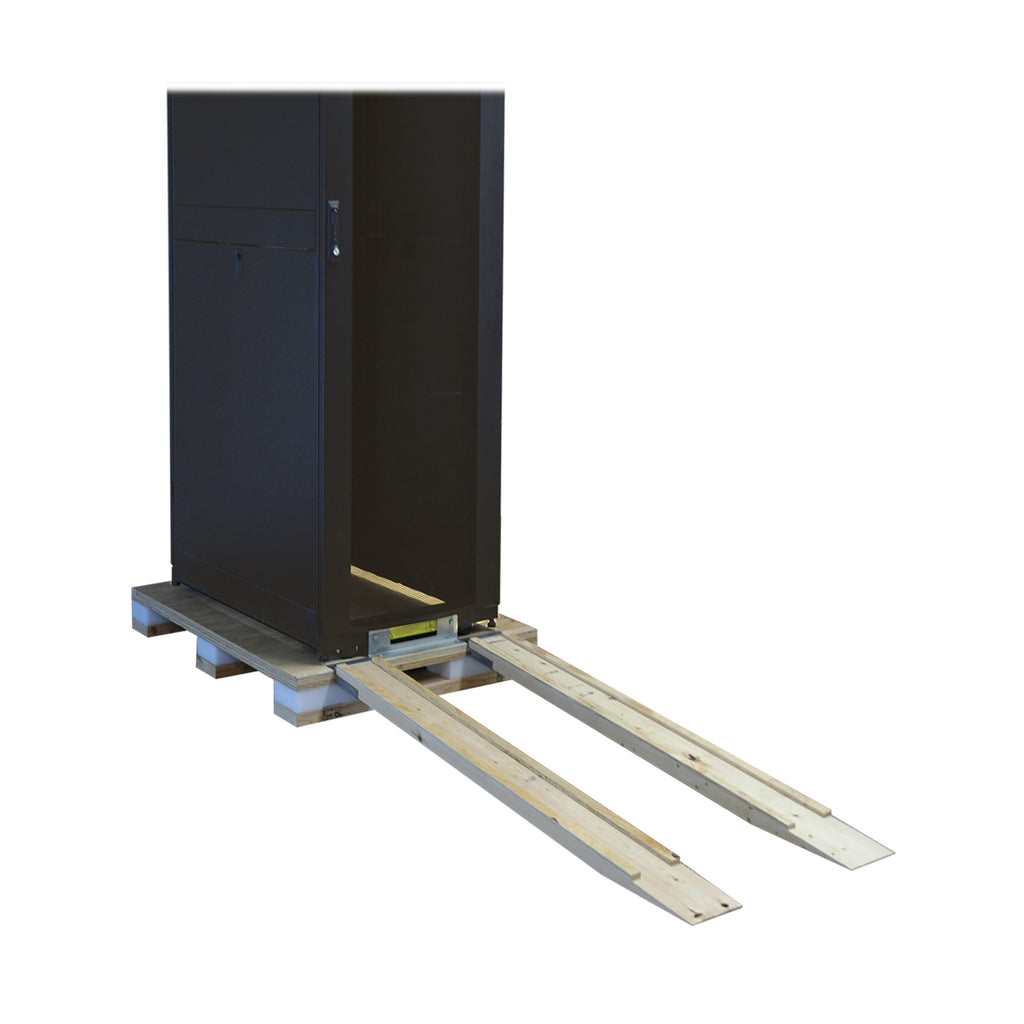

The Eaton Tripp Lite SR42UBWDSP1 is a 42U SmartRack enclosure engineered for high-density applications, offering an extra-wide (750mm) and standard-depth (1050mm) cabinet structure. Designed with reinforced shock-absorbing packaging for safe re-shipping, it supports up to 3500 lbs of stationary equipment and 2250 lbs while rolling. The enclosure includes locking front/rear doors and side panels, preinstalled casters, and leveling feet for mobility and stability. Its open-frame ventilation, tool-less top panel, and vertical cable management rails make it ideal for optimized airflow and organized data center installations. Ships fully assembled with accessories for rapid deployment.
| Specification | Details |
|---|---|
| Model Number | SR42UBWDSP1 |
| Rack Height | 42U |
| Rack Width / Depth | 30" (750mm) Wide / 42" (1050mm) Standard-Depth |
| Max Device Depth | 37 in. (94 cm) |
| Min Device Depth | 4 in. (10.16 cm) |
| Weight Capacity (Stationary / Rolling) | 3500 lbs (1588 kg) / 2250 lbs (1020.6 kg) |
| Shipping Weight / Dimensions | 390 lbs (176.9 kg) / 85" x 31.5" x 45" (216 x 80 x 114 cm) |
| Unit Weight / Dimensions | 315 lbs (142.88 kg) / 78.5" x 29.63" x 43" (199 x 75 x 109 cm) |

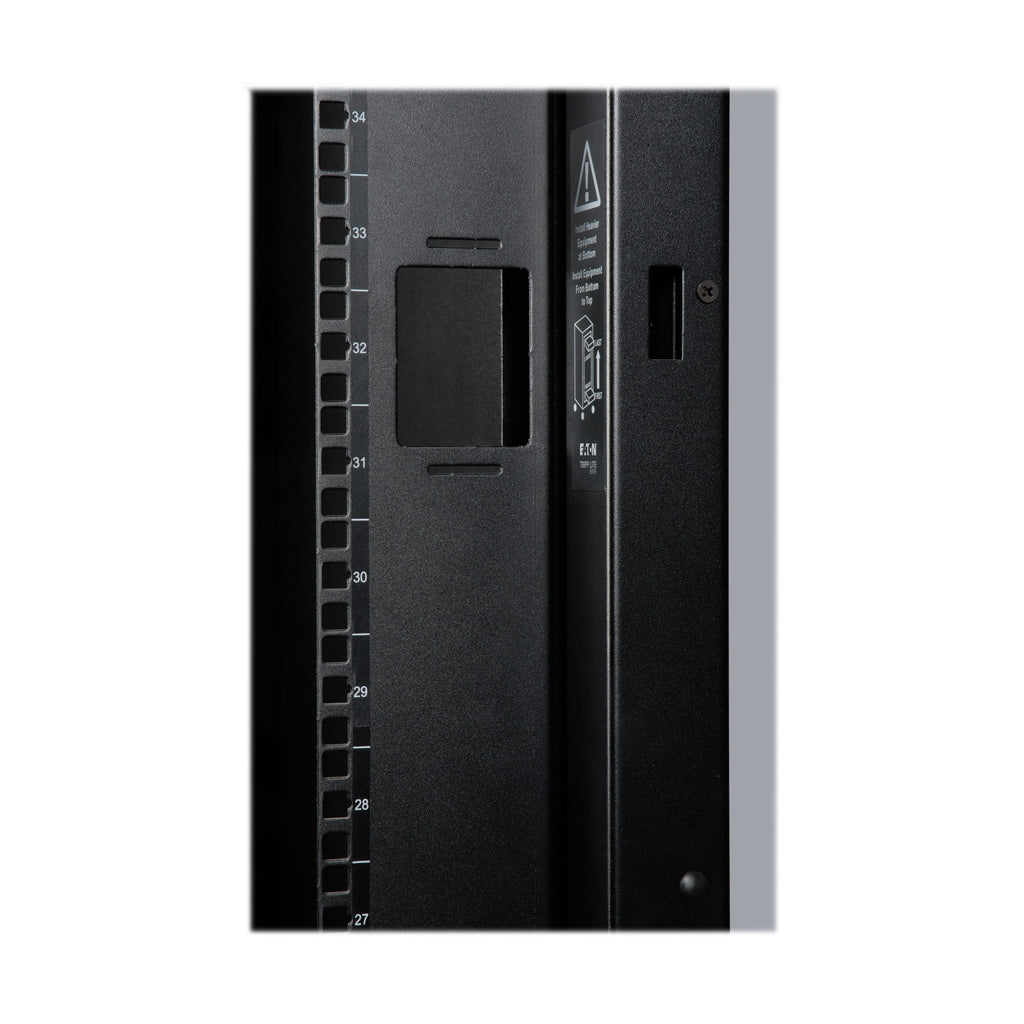

| Mounting Rails | 4 vertical posts, square hole, adjustable in 1/4" increments |
| Casters & Levelers | Pre-installed heavy-duty casters and removable levelers |

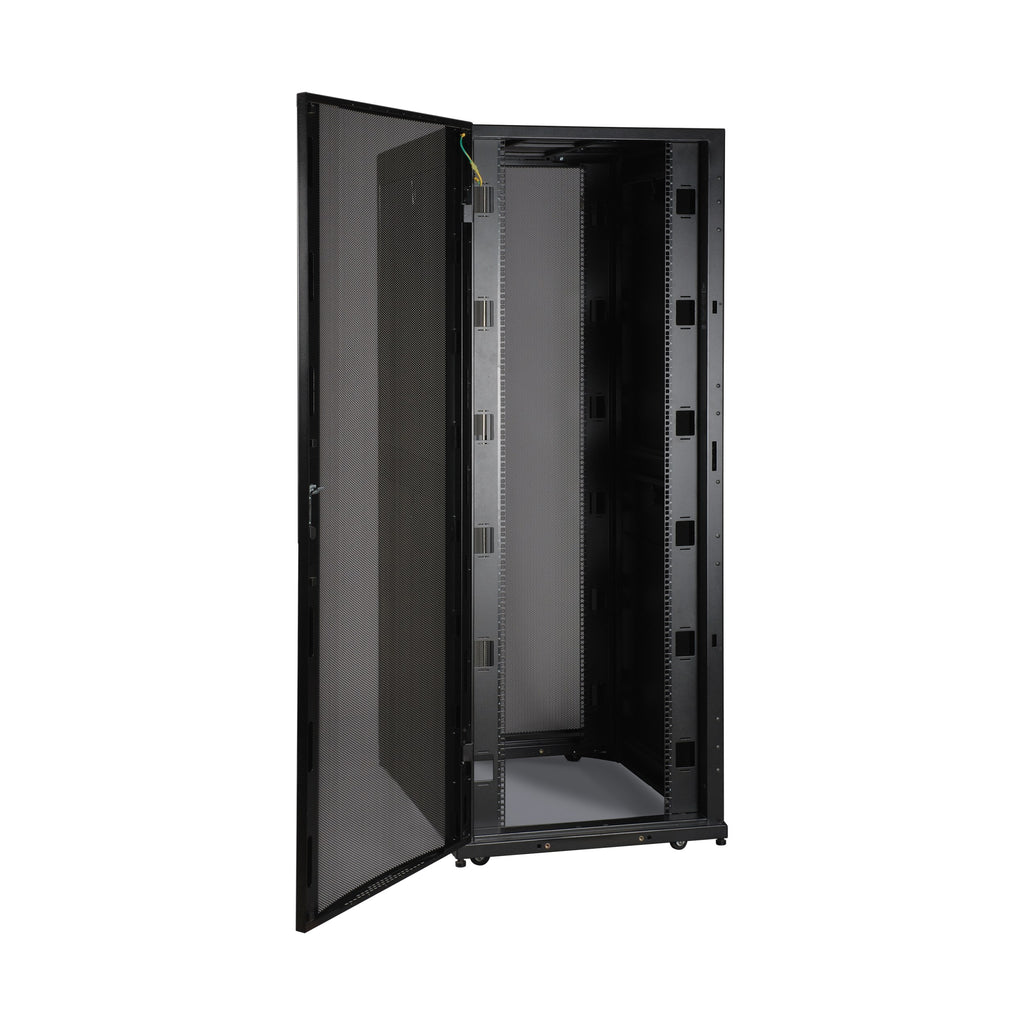

| Doors & Side Panels | Locking, removable, reversible; keyed alike |
| Ventilation | 65%+ open perforation for airflow; vented top panel |
| Cable Management | Built-in vertical rails; open bottom and top panel cable access |
| Grounding | Integrated grounding points; quick-release ground wires |
| Standards Compliance | PCI DSS compliant; UKCA |
| Warranty | 5-year limited warranty |
| Included Accessories | Ramps, keys, M6 cage nuts/screws/washers, side panels, owner's manual |
| UPC Code | 037332175373 |
| Compatibility | Patch Panels, Network Switches, UPS, Servers |
