Description

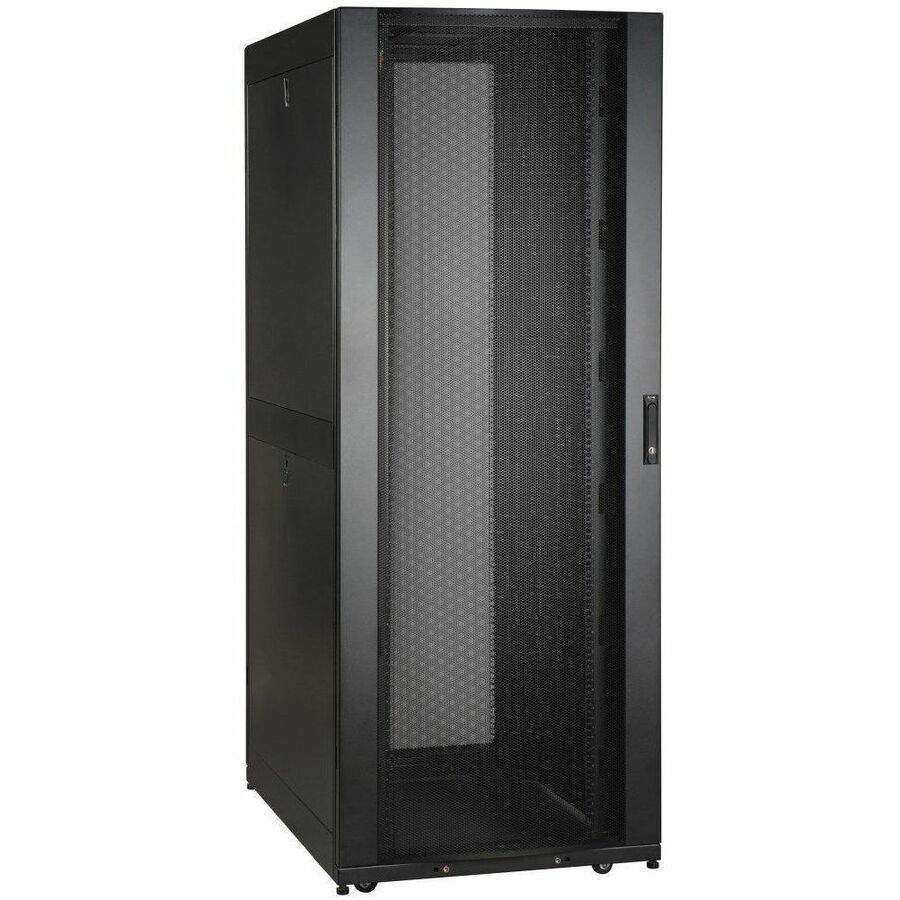

The Eaton Tripp Lite SR42UBWDVRT is a 42U SmartRack® enclosure cabinet designed with a wider 30" (750 mm) frame to accommodate high-density cable management needs. It comes with two pre-installed SRCABLEVRT3 6-ft vertical cable managers, ideal for eliminating cable stress and organizing large cable bundles. The cabinet includes locking, removable doors and side panels, adjustable mounting rails, and supports up to 3,500 lbs (stationary).
The SR42UBWDVRT provides enhanced airflow, PCI DSS compliance, and robust cable access through top and bottom panels. With its pre-installed casters and leveling feet, deployment is fast and adaptable to uneven floors. It ships fully assembled and is perfect for servers, UPS systems, network switches, and patch panels.
| Category | Details |
|---|---|
| Model Number | SR42UBWDVRT |
| Rack Height | 42U |
| Rack Type | Enclosure |
| Width | 29.63 in / 750 mm (Extra Wide) |
| Depth | 43 in / 1092 mm (Standard) |
| Height | 79.5 in / 2019 mm |
| Weight (Net) | 345 lbs / 156.49 kg |
| Weight (Shipping) | 395 lbs / 179.17 kg |
| Load Capacity (Stationary) | 3,500 lbs / 1588 kg |
| Load Capacity (Rolling) | 2,250 lbs / 1021 kg |
| Mounting Rails | 4x Vertical Rails with Square Holes (adjustable in 1/4" increments) |

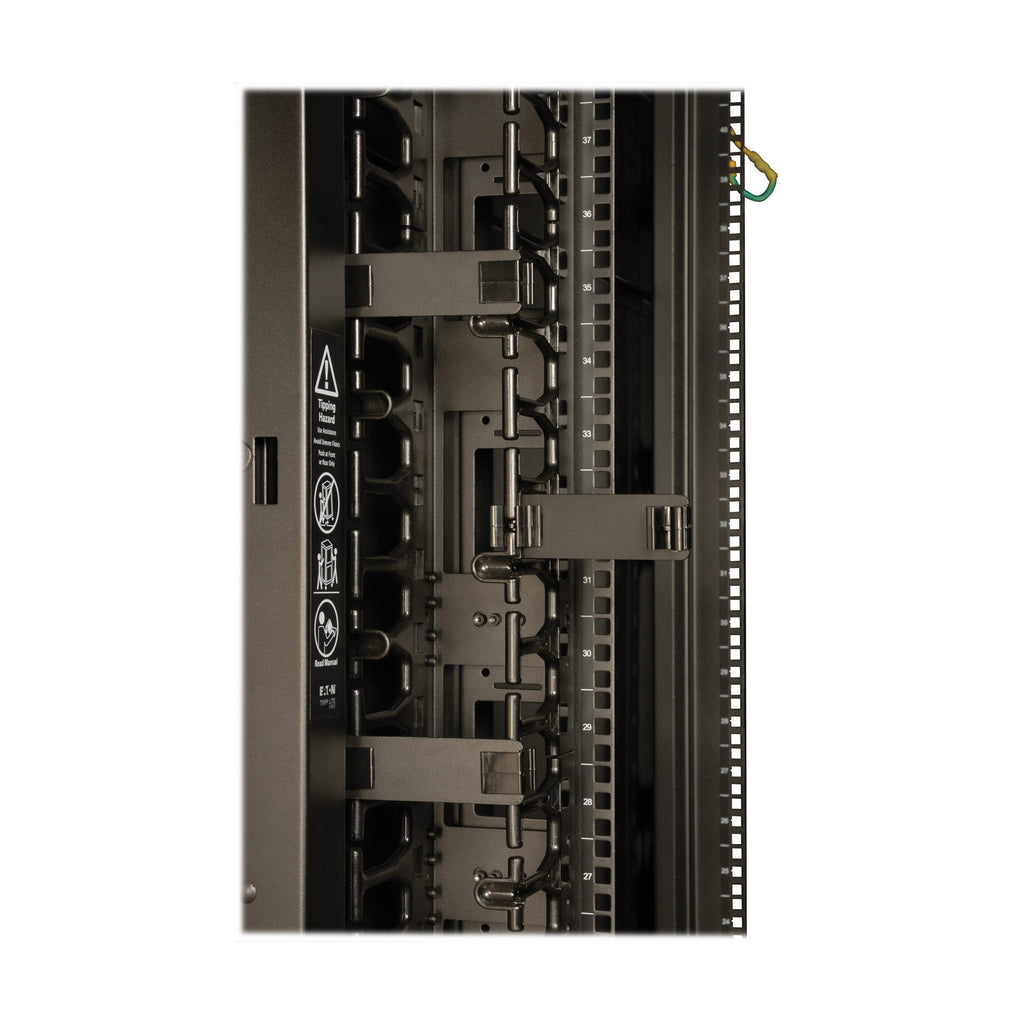

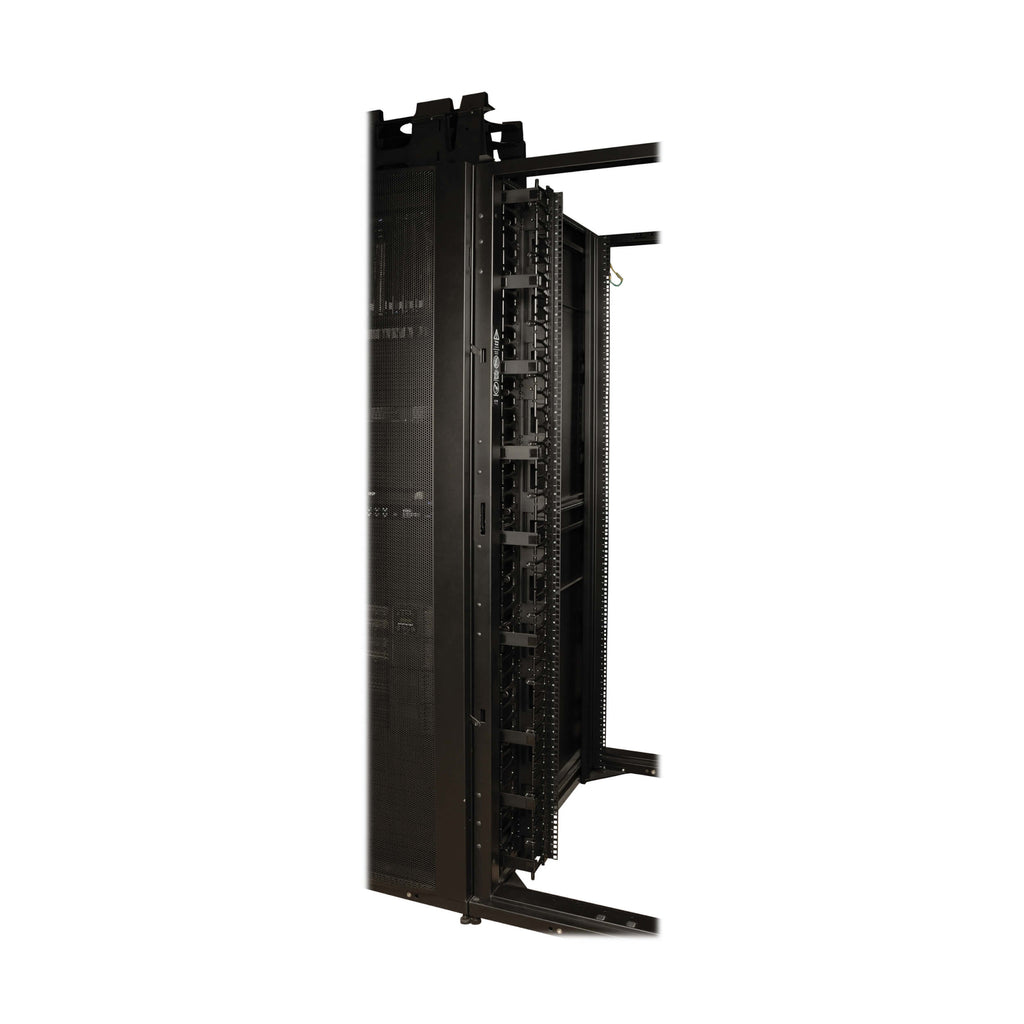

| Cable Management | 2x SRCABLEVRT3 (6-ft / 1.83 m, 3" width) vertical cable managers |
| Ventilation | 65%+ open perforation doors; top panel cable access |
| Doors | Locking, removable, reversible front and split rear doors |
| Side Panels | Locking, removable (4x half-size panels) keyed alike |
| Grounding | Front and rear grounding points, quick-release ground wires |
| Casters & Leveling Feet | Pre-installed heavy-duty casters and removable levelers |
| Compliance | PCI DSS, RoHS, UL 60950-1, CE, UKCA |
| Device Compatibility | Patch Panels, Network Switches, UPS, Servers |
| Included Accessories | (50) M6 cage nuts, (50) M6 screws, (50) M6 washers, 2 keys, owner's manual |
| Warranty | 5-Year Limited Warranty |
| UPC | 037332175380 |
