Description
The Eaton SR45UBDP48 SmartRack 45U Extra-Deep Server Rack Enclosure provides secure, efficient housing for high-density IT equipment and servers. Designed for data centers, wiring closets, and enterprise network environments, this 48-inch-deep cabinet accommodates deeper rack-mounted devices while offering superior cable management and airflow. Built from heavy-duty, powder-coated steel, it supports up to 3500 lbs (stationary) and 2250 lbs (rolling), ensuring strength and stability for critical infrastructure.
The rack arrives fully assembled with pre-installed casters for quick deployment and includes lockable reversible doors, split rear doors, and half-size side panels for convenient access and enhanced equipment protection. With integrated baying brackets, it can easily link with other racks for scalable expansion. The SR45UBDP48 also meets PCI DSS requirements for physical security, making it ideal for environments that process or store sensitive data.
| Category | Details |
|---|---|
| Brand | Eaton |
| Product Line | SmartRack |
| Model | SR45UBDP48 |
| Type | 45U Extra-Deep Server Rack Enclosure |
| Rack Height | 45U |
| Rack Depth | Extra Deep – 48 in. (1219 mm) |
| Color | Black |
| Material | Heavy-duty powder-coated steel |
| Unit Dimensions (H × W × D) | 83.75 × 23.63 × 50.89 in. (212.72 × 60.02 × 129.26 cm) |
| Unit Weight | 340 lbs (154.22 kg) |
| Shipping Dimensions (H × W × D) | 83.00 × 24.50 × 51.00 in. |
| Shipping Weight | 176.9 kg |
| Weight Capacity (Rolling) | 2250 lbs (1021 kg) |
| Weight Capacity (Stationary) | 3500 lbs (1588 kg) |
| Maximum Device Depth | 48 in. (1219 mm) |
| Minimum Device Depth | 4 in. (102 mm) |
| Mounting Rails | 4 adjustable vertical rails (quarter-inch increments) |
| Casters | Pre-installed, supports mobility |

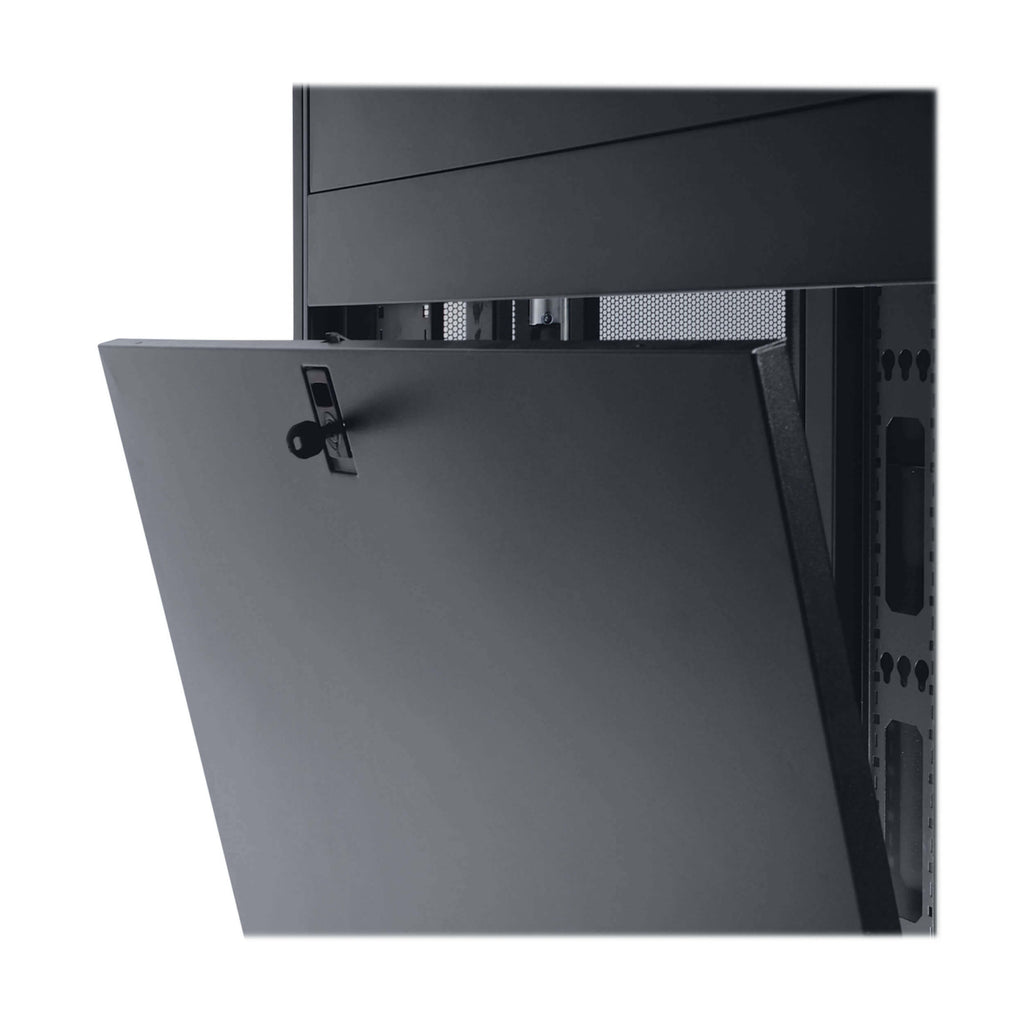

| Side Panels | Split, lockable, quick-release design |
| Doors | Reversible front, split rear doors with ventilation |
| Cable Management | Top access ports and open bottom for easy routing |
| Compliance | PCI DSS, RoHS, CE, UKCA, UL 60950-1 |
| Warranty | 5-year limited warranty |
| Device Compatibility | Patch Panels, Network Switches, UPS Systems, Servers |
| Included Accessories | (4) Side panels, (4) Locks, (2) Keys, (50) M6 screws/washers/cage nuts, Owner’s manual |
