Description

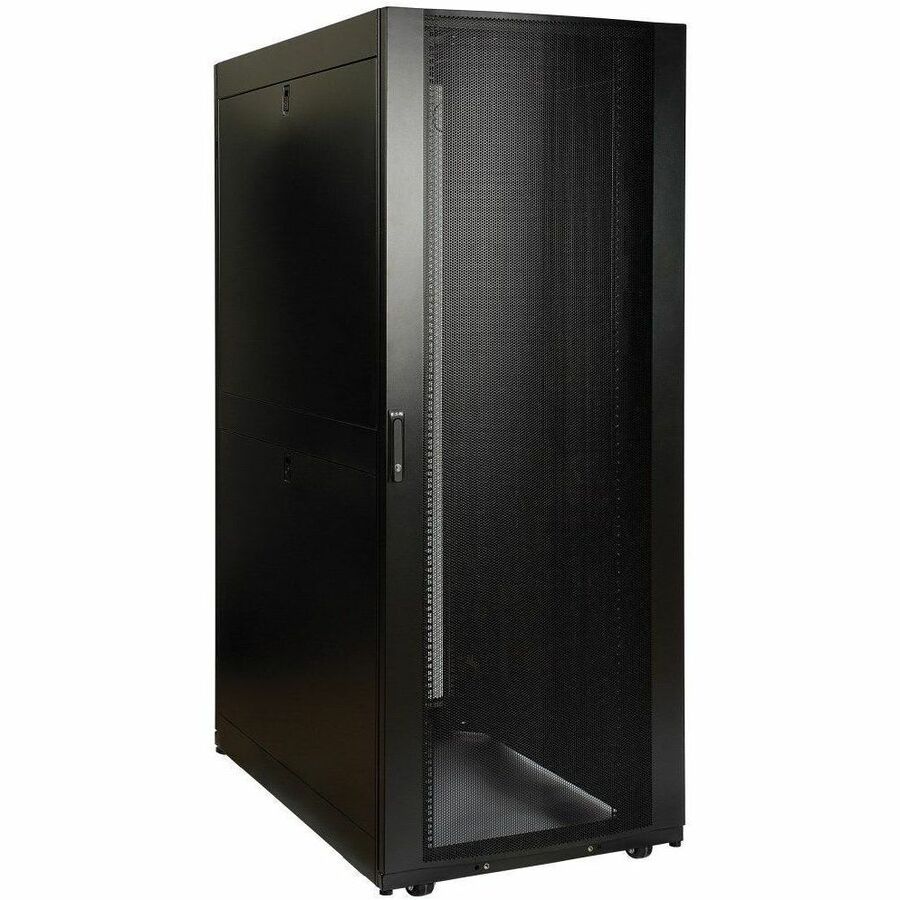

The Eaton Tripp Lite SR45UBDPWD is a 45U SmartRack® enclosure cabinet engineered for high-density IT applications. With its extra-deep 45" (1143mm) and extra-wide 30" (750mm) design, it provides ample space for large equipment, side-mounted cable management, and unobstructed airflow—essential for maintaining proper cooling in demanding environments.
Ideal for data centers and enterprise installations, the cabinet comes fully assembled and includes locking, reversible front and rear doors, removable side panels, integrated baying tabs, and massive front-to-rear ventilation. A pre-installed caster and leveling system supports easy positioning and stabilization on-site. Meets all PCI DSS physical security requirements.
| Specification | Details |
|---|---|
| Model Number | SR45UBDPWD |
| Rack Height | 45U |
| Rack Type | Enclosure |
| Rack Depth | Deep (45" / 1143 mm) |
| Rack Width | Wide (30" / 750 mm) |
| Internal Depth (Max) | 42 in / 1067 mm |
| Internal Depth (Min) | 4 in / 102 mm |
| Mounting Rails | Adjustable front & rear; 4 total |
| Load Capacity (Stationary) | 3,500 lbs / 1588 kg |
| Load Capacity (Rolling) | 2,250 lbs / 1021 kg |
| Ventilation | 65% perforated front/rear doors |
| Cable Access | Open-bottom + tool-less top panel ports |
| Side Panels | 4 half-size removable, locking panels |

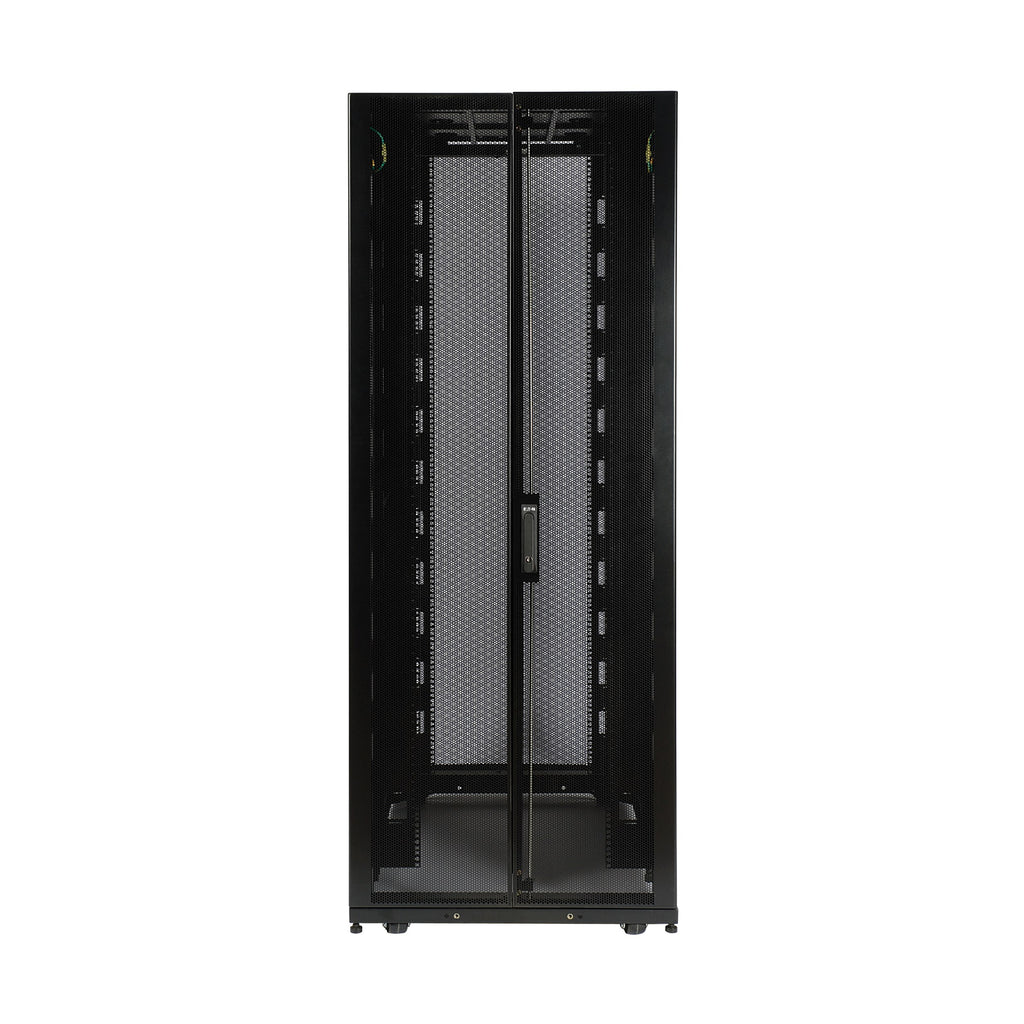

| Front & Rear Doors | Locking, reversible, removable; split rear |
| Casters & Leveling Feet | Pre-installed (casters for minor adjustments) |
| Grounding | Front/rear grounding points, quick-release |
| Baying Support | Yes – integrated baying tabs |
| Device Compatibility | Servers, UPS, Patch Panels, Network Switches |
| Compliance | UL 60950-1, RoHS, CE, UKCA, PCI DSS |
| Product Dimensions (HxWxD) | 83.76" x 29.53" x 48.55" (212.7 x 75.0 x 123.2 cm) |
| Shipping Dimensions (HxWxD) | 90.3" x 32.0" x 53.0" (229.4 x 81.3 x 134.6 cm) |
| Unit Weight | 370 lbs / 167.8 kg |
| Shipping Weight | 420 lbs / 190.5 kg |
| Warranty | 5-Year Limited Warranty |
