Description

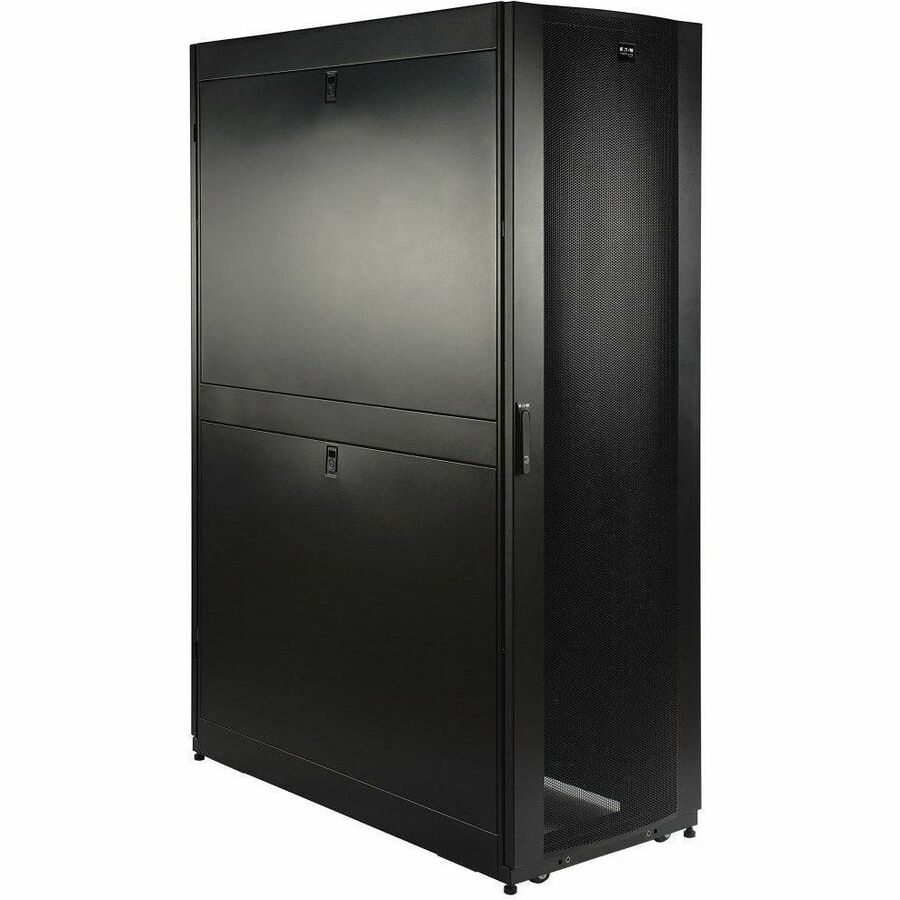

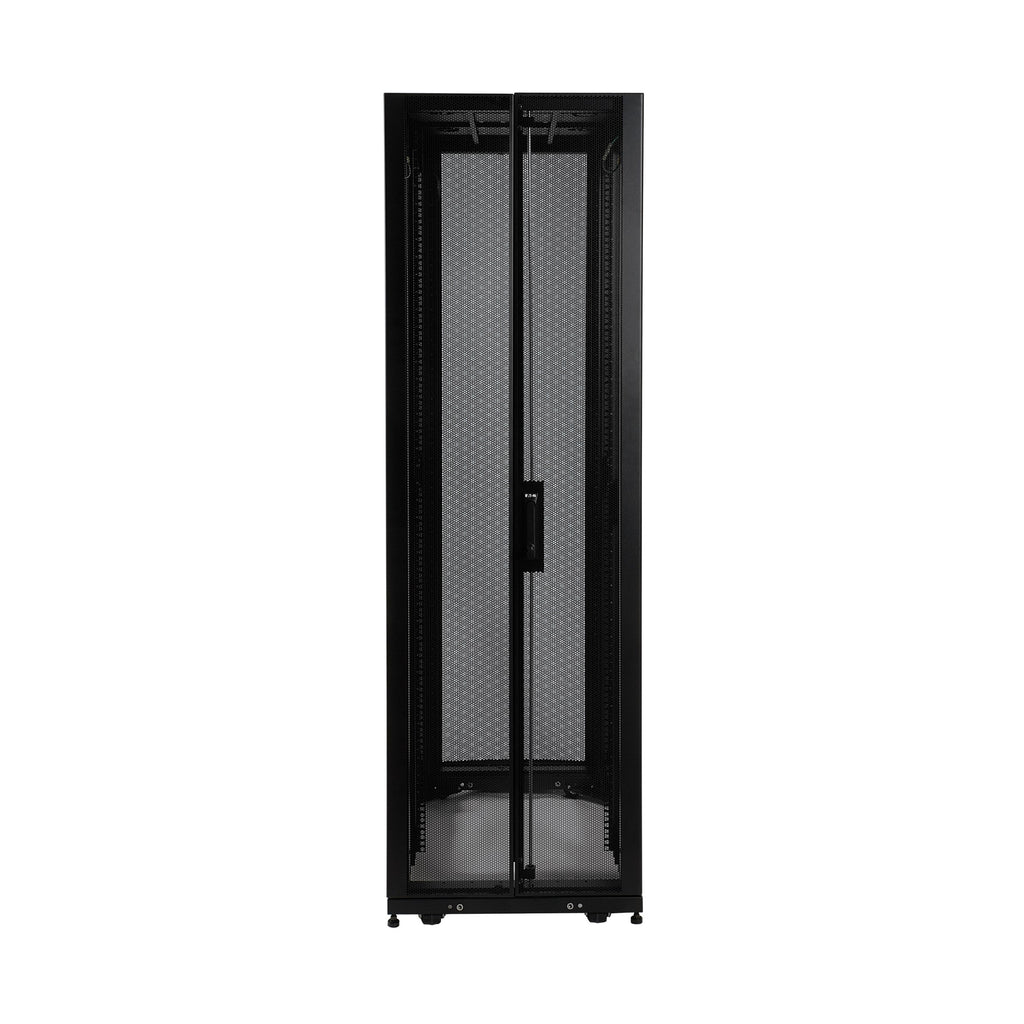

The Eaton Tripp Lite SR45UBDP is a 45U deep rack enclosure cabinet engineered to support high-density IT equipment deployments with enhanced cable management and airflow. At 45 inches (1143 mm) deep, it offers more internal depth than standard enclosures, making it ideal for servers with rear-facing hot-swap power supplies. Designed with security and convenience in mind, it features locking, reversible, and removable front and split rear doors, plus half-sized locking side panels keyed alike.
The SR45UBDP ensures optimal airflow with over 65% door perforation and is compliant with PCI DSS standards. It ships fully assembled and includes pre-installed casters and leveling feet for fast setup. Integrated baying tabs allow easy alignment in data center rows, and tool-less accessory rails simplify the mounting of PDUs and cable managers. This robust rack enclosure supports up to 3500 lbs stationary and 2250 lbs rolling.
| Specification | Details |
|---|---|
| Model Number | SR45UBDP |
| Rack Height | 45U |
| Rack Depth | Deep (45 in / 1143 mm) |
| Max Internal Depth | 42 in (1067 mm) |
| Min Device Depth | 4 in (102 mm) |
| Mounting Rails | Adjustable front/rear, tool-less vertical accessory rails |
| Ventilation | 65%+ open perforated doors; vented top; open bottom for airflow |
| Security | Locking/removable/reversible doors and side panels, keyed alike |
| Weight Capacity (Stationary) | 3500 lbs (1588 kg) |
| Weight Capacity (Rolling) | 2250 lbs (1021 kg) |
| Casters and Levelers | Pre-installed; casters for positioning only |
| Grounding | All components grounded; quick-release ground wires on doors |
| Cable Management | Built-in; compatible with Eaton PDUs and cable managers |
| Certifications | UL 60950-1, RoHS, CE, UKCA |
| Compliance | Meets PCI DSS standards |
| Material Finish | Textured powder coat |
| Unit Dimensions (HxWxD) | 83.75 x 23.63 x 48.5 in (212.7 x 60.02 x 123.19 cm) |
| Shipping Dimensions (HxWxD) | 90.3 x 26 x 53 in (229.4 x 66.04 x 134.6 cm) |
| Unit Weight | 340 lbs (154.2 kg) |
| Shipping Weight | 390 lbs (176.9 kg) |
| Included Accessories | (4) Side panels, (4) Side panel locks, (2) Keys, (50) M6 screws, cage nuts, washers, Owner’s Manual |
| Warranty | 5-Year Limited Warranty |
