Description

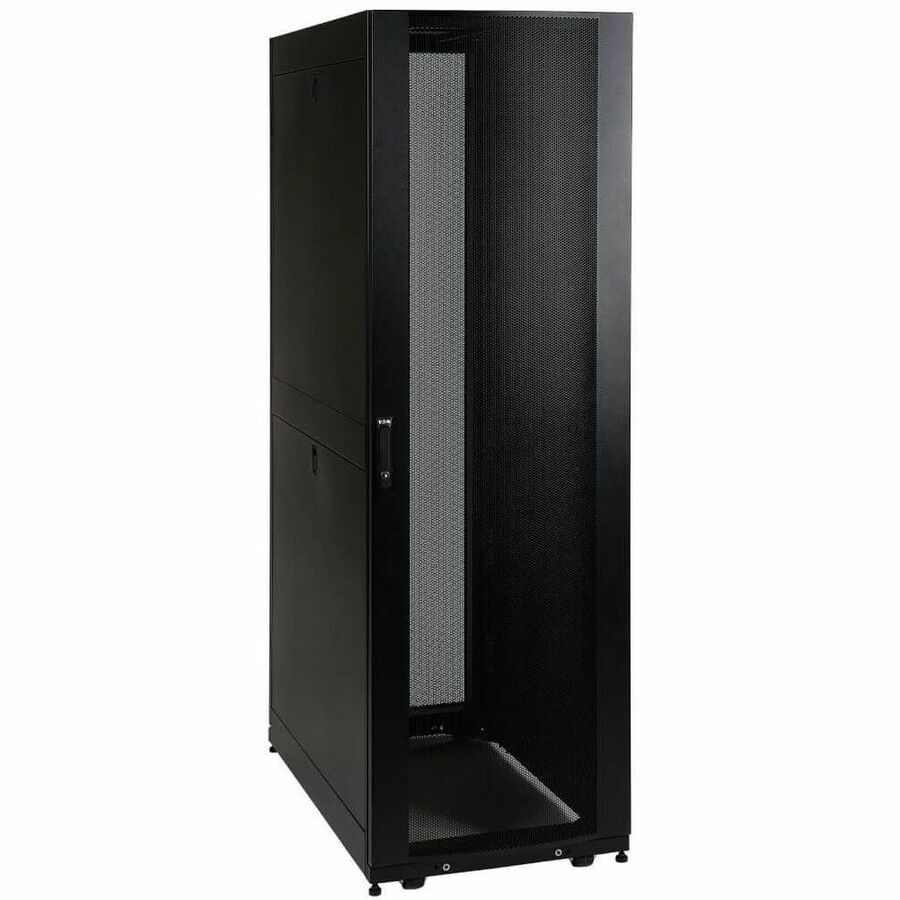

The Eaton Tripp Lite SR45UBMD is a robust 45U SmartRack mid-depth enclosure cabinet, engineered for secure, high-density server and network equipment installations. Designed with exceptional airflow, adjustable mounting rails, and tool-less PDU installation capability, it supports demanding data center and enterprise IT environments.

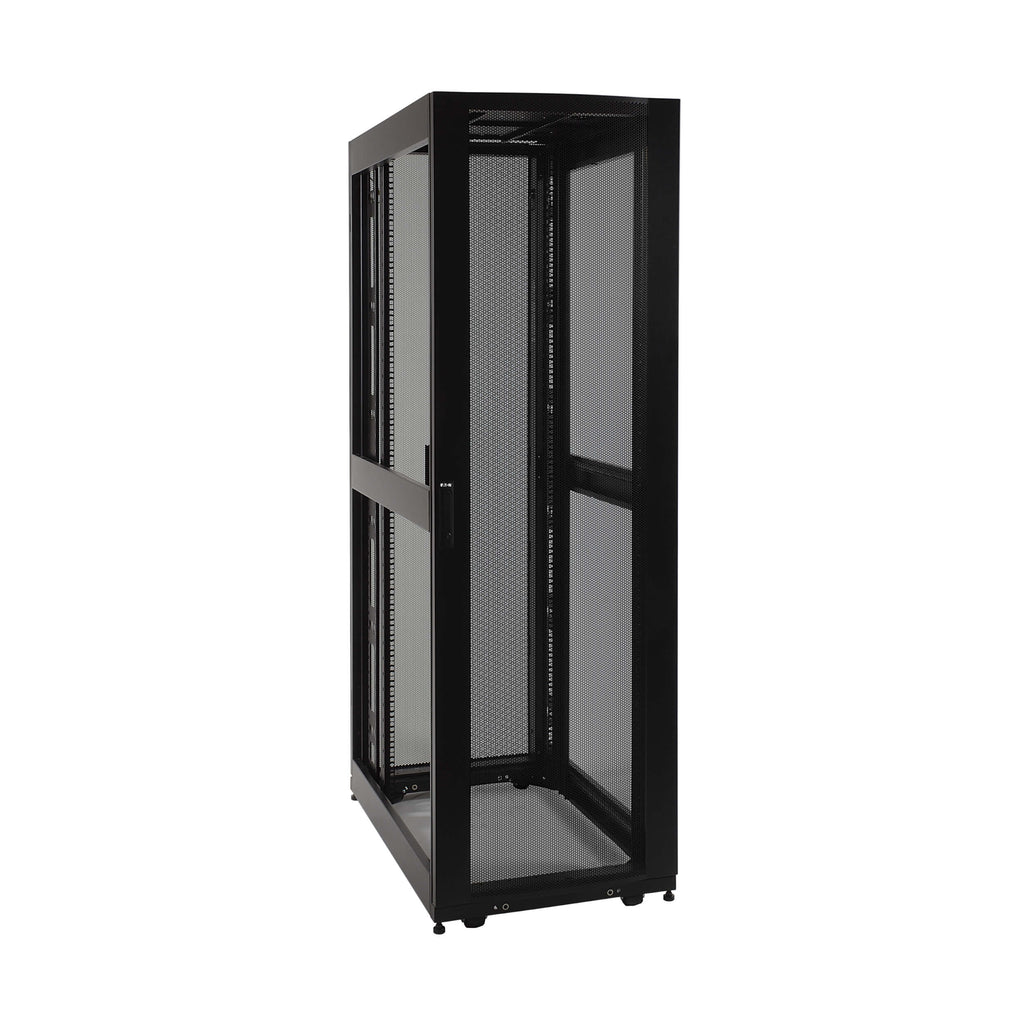

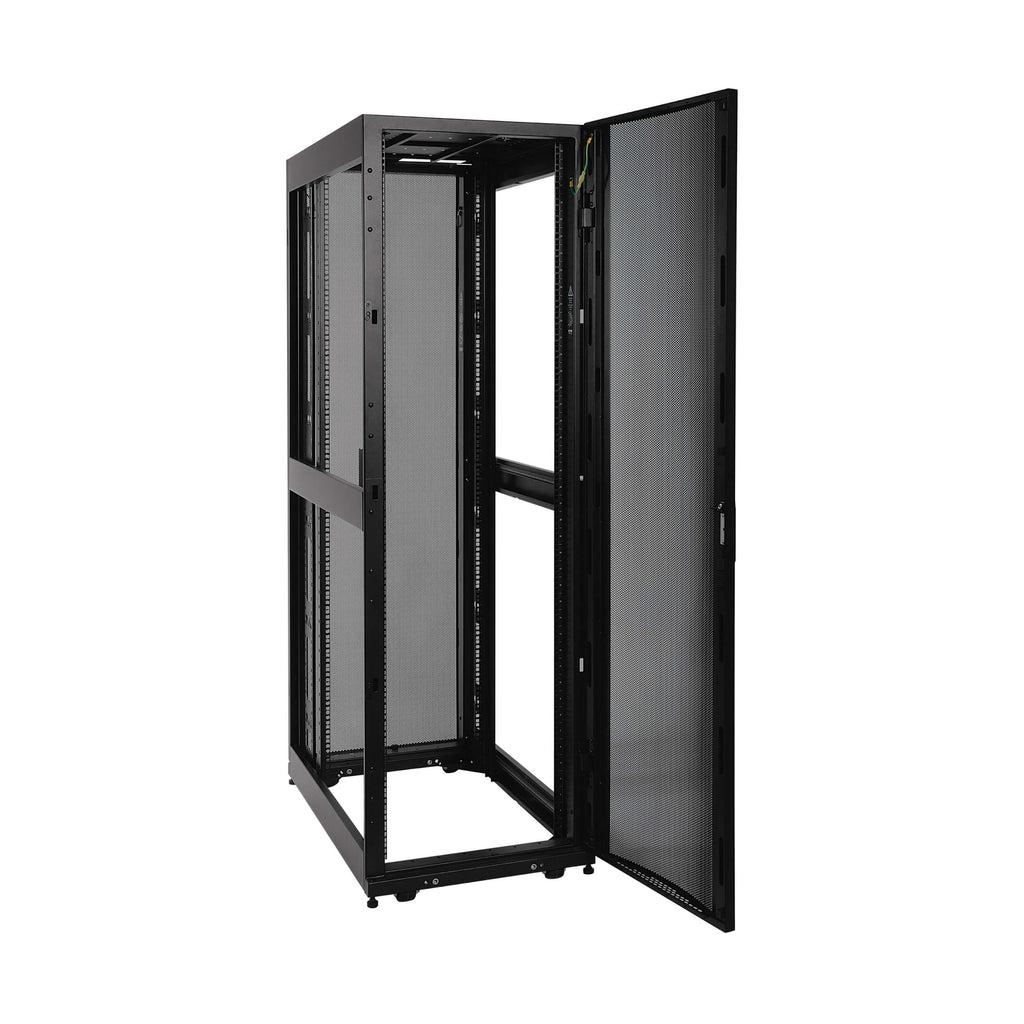

Its 36" depth with an adjustable mounting range (4" to 28.75") offers flexibility for various equipment sizes. The SR45UBMD comes fully assembled, featuring reversible, locking front and rear doors, half-size locking side panels, and integrated baying tabs for seamless row configuration. With a rolling load capacity of 2,250 lbs and stationary capacity of 3,500 lbs, it ensures safe deployment and optimal performance in PCI DSS-compliant environments.
| Specification | Details |
|---|---|
| Model Number | SR45UBMD |
| Rack Height | 45U |
| Rack Depth | Mid-depth, 36" (91.44 cm) |
| Mounting Depth Range | 4" to 28.75" (10.16 cm to 73 cm) |
| Maximum Device Depth | 31" (78.74 cm) |
| Factory Preset Rack Depth | 22.75" (57.8 cm) |
| Rack Width | 24" (600 mm) |
| Mounting Rail Holes | Square, adjustable in 1/4" increments |
| Vertical Mounting Rails | 4 (2 with toolless PDU mounting slots) |
| Ventilation | 65%+ perforated front and rear doors |
| Front & Rear Doors | Lockable, reversible, removable (rear doors are split) |
| Side Panels | Lockable, removable, half-size (4 total), keyed alike |
| Casters & Levelers | Pre-installed casters, removable levelers |
| Weight Capacity (Stationary) | 3,500 lbs (1,588 kg) |
| Weight Capacity (Rolling) | 2,250 lbs (1,021 kg) |
| Built-in Cable Management | Yes |
| Top Panel | Vented, removable, with cable access ports |
| Bottom Access | Open for cabling |
| Grounding Points | Front and rear doors with quick-release ground wires |
| Certifications | UL 60950-1, RoHS, CE |
| Device Compatibility | Patch Panel, Network Switch, UPS |
| Material Finish | Textured powder coat |
| Unit Dimensions (H x W x D) | 83.75 x 23.63 x 36 in (212.7 x 60 x 91.4 cm) |
| Shipping Dimensions (H x W x D) | 84 x 26 x 40 in (213.4 x 66 x 101.6 cm) |
| Unit Weight | 285 lbs (129.3 kg) |
| Shipping Weight | 335 lbs (152 kg) |
| Warranty | 5-year limited warranty |
