Description

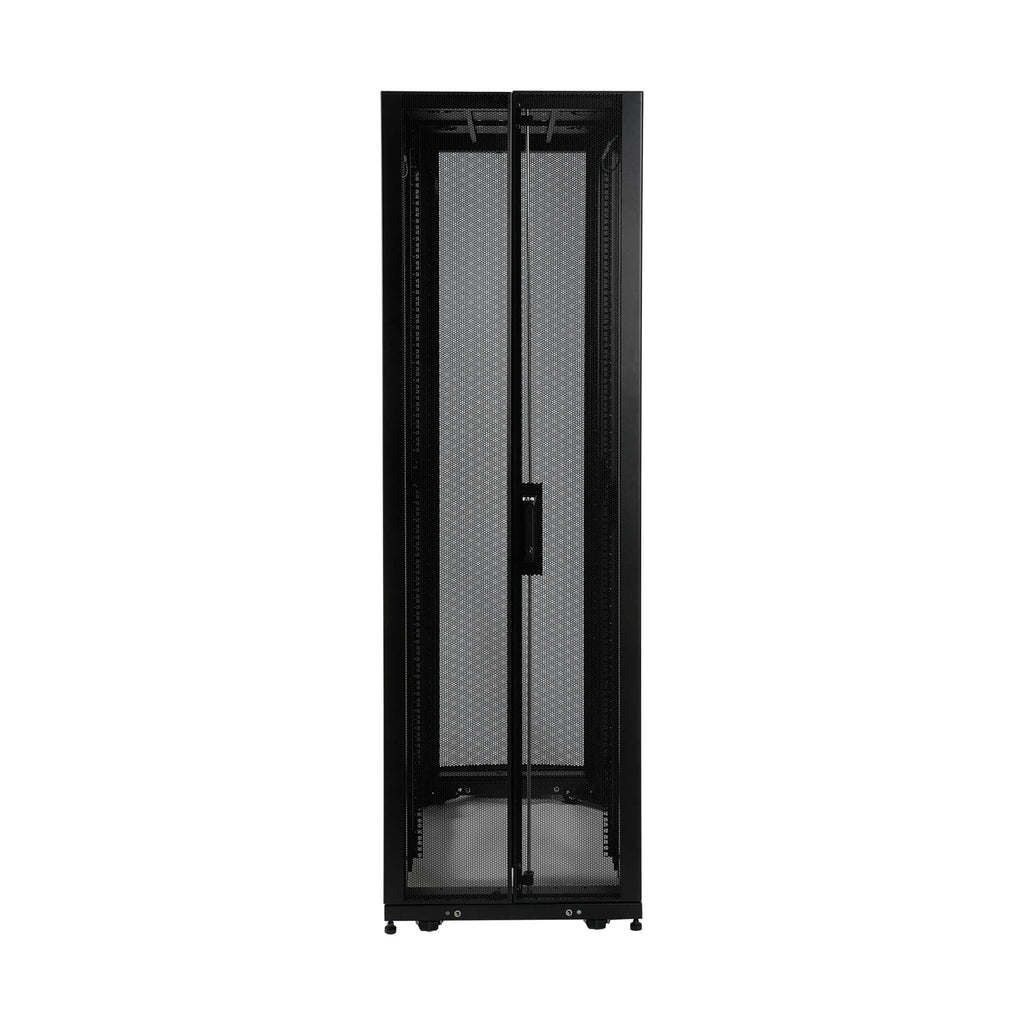

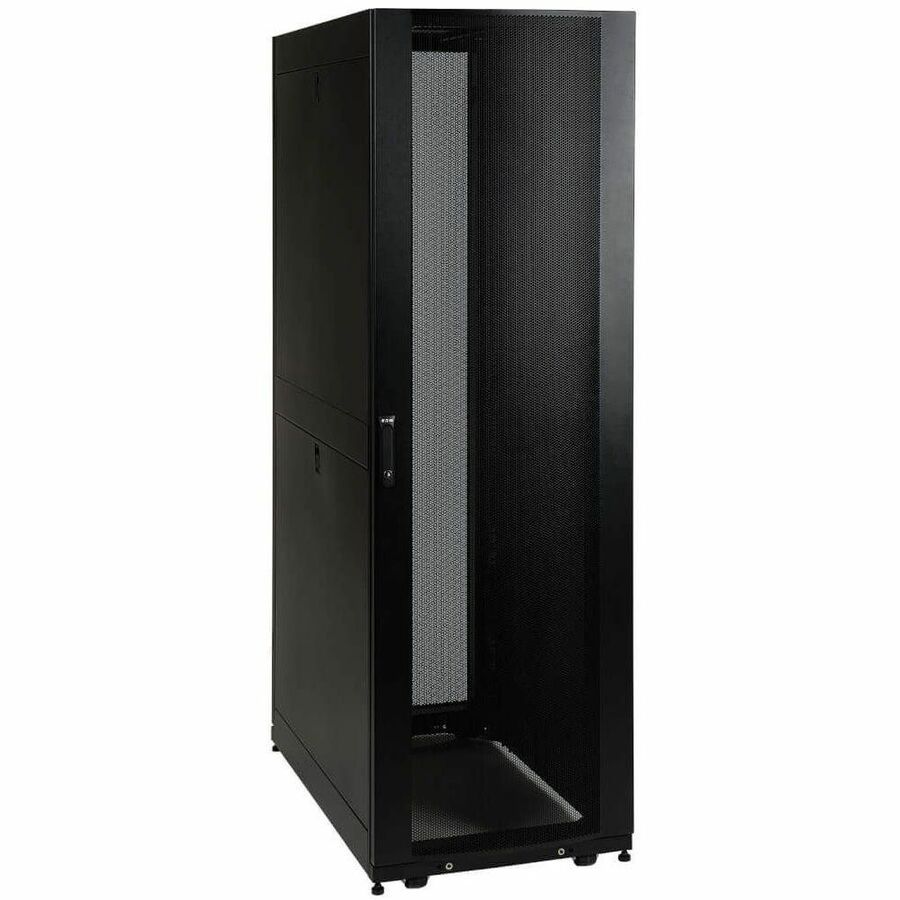

The Eaton Tripp Lite SR45UBSD is a 45U SmartRack Shallow-Depth Rack Enclosure Cabinet ideal for AV gear, edge applications, and areas with limited floor space. Designed with a 32" depth and full ventilation, it supports up to 3,500 lbs stationary and 2,250 lbs rolling. It includes locking, removable front and split rear doors, as well as half-height side panels—all keyed alike for security. The cabinet arrives fully assembled with preinstalled casters and levelers for quick deployment.
This cabinet features adjustable square-hole vertical mounting rails with a 4"–27" depth range and tool-less 0U PDU mounting support. With cable access ports, grounding points, an open bottom, and a vented top panel, the SR45UBSD meets PCI DSS compliance and is an efficient solution for network switches, patch panels, and shallow-depth equipment.
| Specification | Details |
|---|---|
| Model Number | SR45UBSD |
| Rack Height | 45U |
| Rack Type | Enclosure (Shallow Depth) |
| Unit Dimensions (H x W x D) | 83.75 x 23.63 x 32.48 in (212.73 x 60.02 x 82.5 cm) |
| Shipping Dimensions (H x W x D) | 90.5 x 26 x 34 in (229.87 x 66.04 x 86.36 cm) |
| Weight (Net / Shipping) | 232 lbs / 282 lbs (105.23 kg / 127.91 kg) |
| Load Capacity (Stationary / Rolling) | 3500 lbs / 2250 lbs (1588 kg / 1020.6 kg) |
| Adjustable Mounting Depth | 4–27 in (10.16–68.58 cm) |
| Vertical Mounting Rails | 4 (with tool-less PDU/cable manager support) |
| Doors & Panels | Locking, removable front and split rear doors; 4 half-height locking side panels |
| Ventilation | 65% open perforated doors, vented top panel |
| Cable Management | Open bottom, toolless top panel with access ports |
| Grounding | Front & rear grounding points with quick-release wires |
| Casters / Leveling Feet | Preinstalled, removable casters; adjustable levelers |
| Certifications | UL 60950-1, CE, RoHS, UKCA |
| Warranty | 5-Year Limited Warranty |
| Device Compatibility | Patch Panel, Network Switch, UPS |
| Compliance | Meets PCI DSS Requirements |
| UPC Code | 037332174895 |
