Description

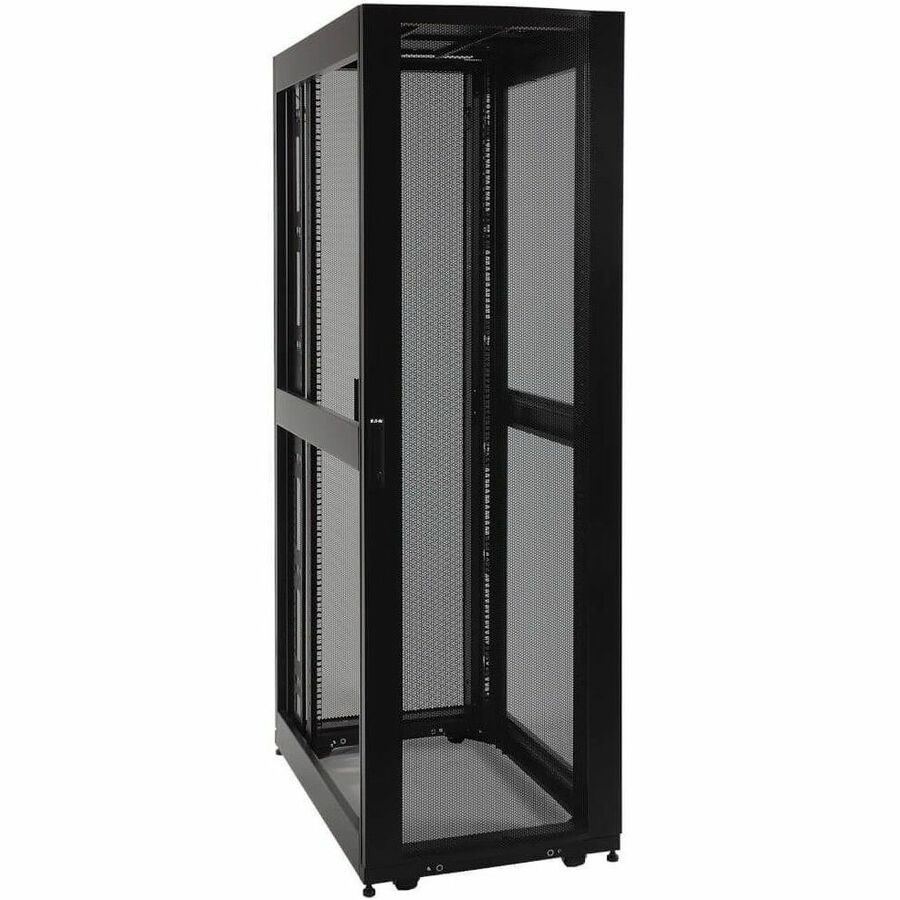

The Eaton Tripp Lite SR45UBEXP is a 45U SmartRack standard-depth rack enclosure cabinet designed as an expansion unit for baying multiple cabinets together in data centers. It includes front and rear locking doors, a vented top panel, and an open bottom for superior cable routing and airflow. Without side panels, this model facilitates efficient hot aisle/cold aisle configurations and seamless equipment access when bayed.
Featuring adjustable vertical mounting rails, toolless PDU/cable manager mounting slots, and a heavy-duty 3500 lb stationary load capacity, the SR45UBEXP is built for flexibility and high-density environments. It ships fully assembled on pre-installed casters and supports various rack-mount accessories from the SmartRack® ecosystem.
| Specification | Details |
|---|---|
| Model Number | SR45UBEXP |
| Rack Height | 45U |
| Rack Type | Enclosure (Expansion Model) |
| Width x Depth x Height | 23.63 x 43.00 x 83.75 in (60.02 x 109.22 x 212.73 cm) |
| Rack Depth | Standard (42 in / 1050 mm) |
| Factory Preset Rack Depth | 27.75 in (705 mm) |
| Device Depth Support | Min: 4 in (102 mm), Max: 37 in (940 mm) |
| Vertical Mounting Rails | 4 (with square holes, adjustable) |
| Side Panels | Not included |
| Doors | Locking, reversible, removable front and rear |

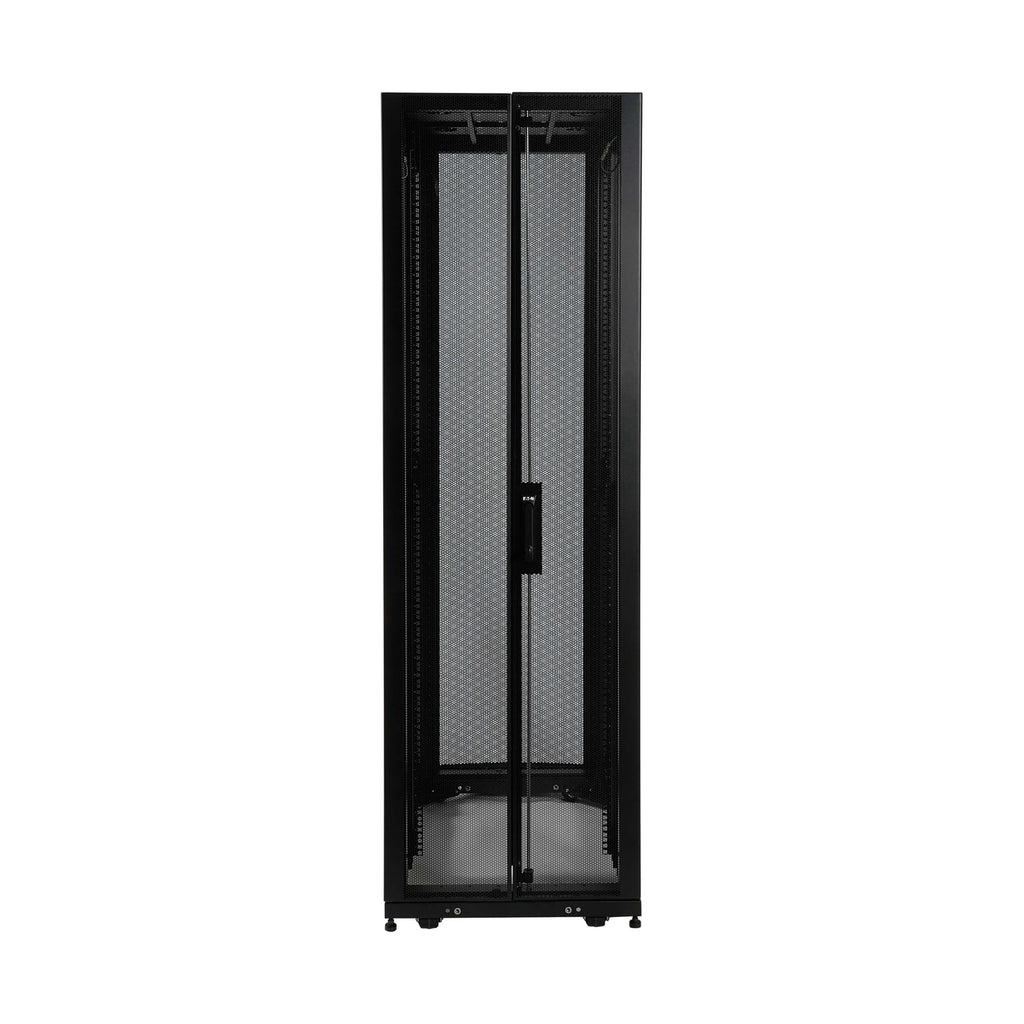

| Rear Door Type | Split for reduced clearance |
| Load Capacity (Stationary) | 3500 lbs (1588 kg) |
| Load Capacity (Rolling) | 2250 lbs (1021 kg) |
| Ventilation | 65%+ perforation on doors, vented top panel |
| Casters & Levelers | Pre-installed, for minor repositioning |
| Cable Management | Top panel cable access, open bottom |
| Grounding | Yes (front and rear grounding points) |
| Toolless Mounting | Yes (for PDUs and cable managers) |
| Finish | Textured black powder coat |
| Certifications | UL 60950-1, RoHS, CE |
| Warranty | 5-year limited warranty |
| Included Accessories | 50x M6 screws, 50x M6 cage nuts & washers, 2x keys, Owner’s Manual |
