Description

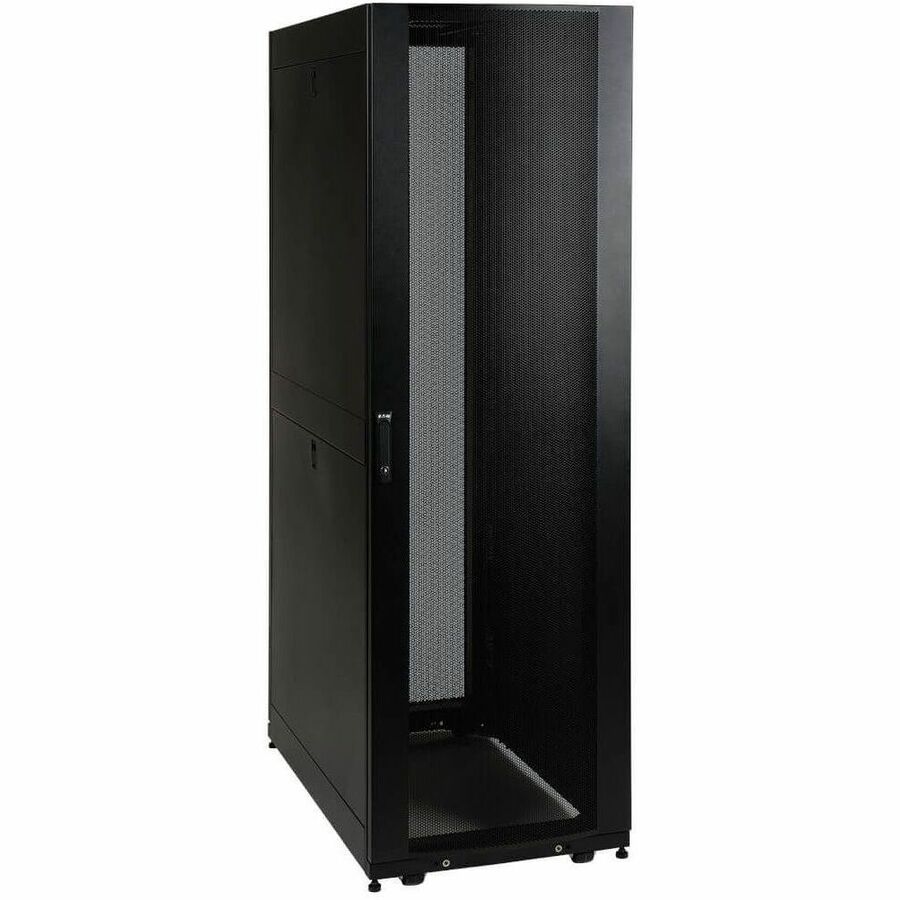

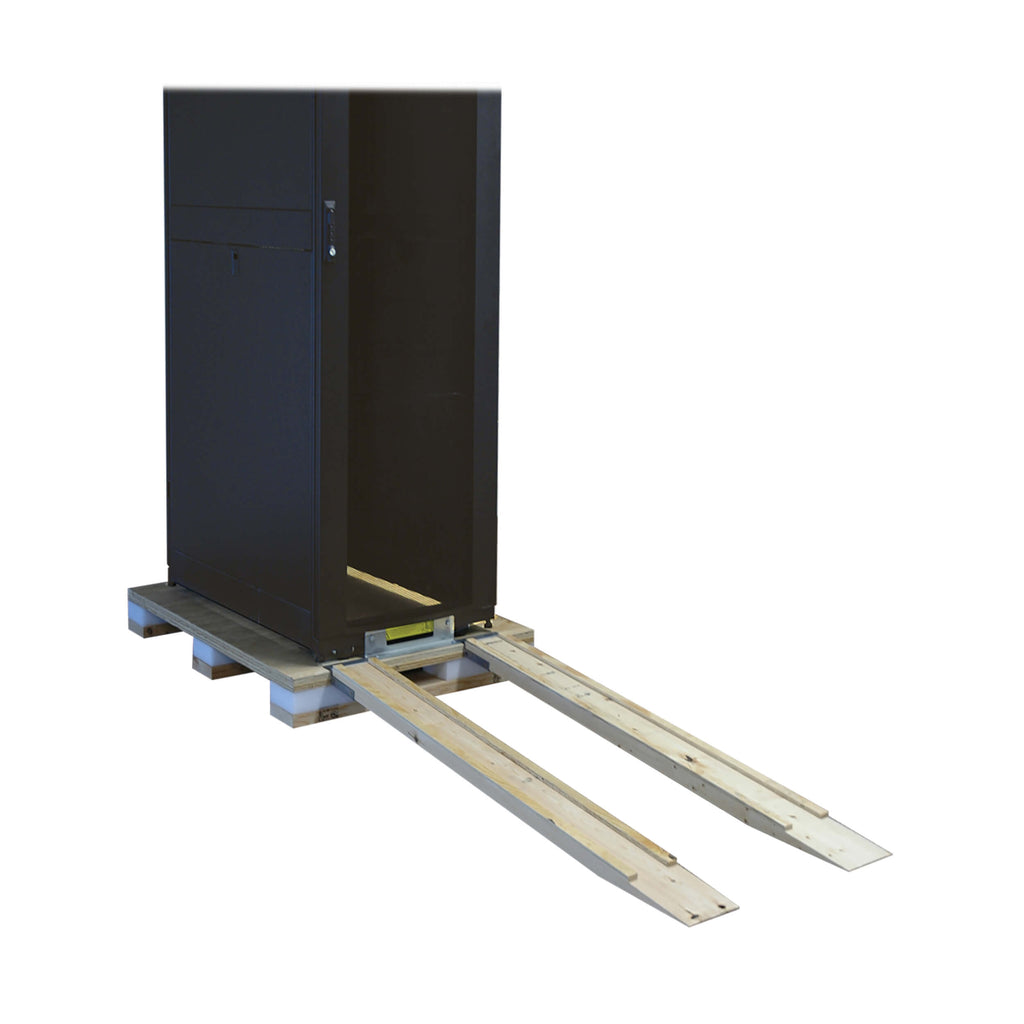

The Eaton Tripp Lite SR45UBSP1 is a 45U SmartRack® Standard-Depth Rack Enclosure designed for secure, high-capacity IT deployments with enhanced protection during transit. Shipped fully assembled on a reinforced shock-absorbing pallet, this enclosure supports remote-site preconfiguration and re-shipping, saving time and logistics cost.
With a load capacity of 3500 lbs (stationary) and 2250 lbs (rolling), the SR45UBSP1 features adjustable vertical rails, toolless PDU mounting, massive front-to-rear airflow, and PCI DSS-compliant security. Locking, removable doors and half-size side panels simplify maintenance, while the open-bottom and vented top panel support optimal cable and airflow management. Ideal for servers, UPS systems, KVM switches, and network gear in data centers or enterprise IT environments.
| Specification | Details |
|---|---|
| Model Number | SR45UBSP1 |
| Rack Height | 45U |
| Rack Depth | Standard (42" / 1050mm) |
| Load Capacity (Stationary) | 3500 lbs (1588 kg) |
| Load Capacity (Rolling) | 2250 lbs (1020.6 kg) |
| Device Compatibility | Patch Panels, Network Switches, UPS, Servers |
| Vertical Mounting Rails | 4 (with square holes, adjustable in ¼" increments) |
| Maximum Device Depth | 37 in. (94 cm) |
| Minimum Device Depth | 4 in. (10.16 cm) |
| Factory Preset Rack Depth | 27.75 in. (705 mm) |
| Grounding | Front & rear door frames, quick-release grounding wires |
| Pre-Installed Casters | Yes (removable) |

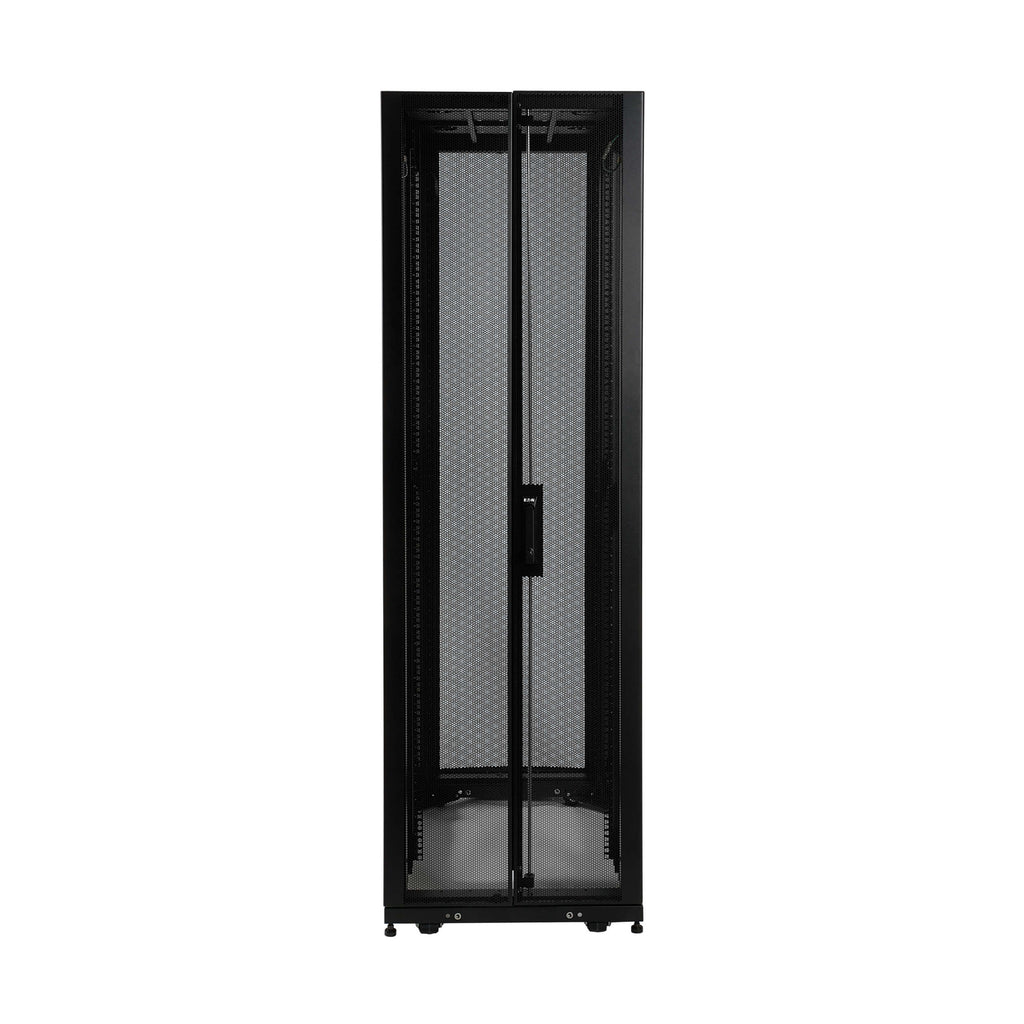

| Doors & Side Panels | Locking, reversible/removable front/rear doors; half-size side panels |
| Cable Access | Open-bottom, toolless removable top panel with large cable access ports |
| Ventilation | Over 65% open perforated front/rear doors |
| Shipping Dimensions (HxWxD) | 90.25 x 26.00 x 45.00 in (229.2 x 66 x 114.3 cm) |
| Unit Dimensions (HxWxD) | 83.75 x 23.63 x 43.00 in (212.7 x 60 x 109.2 cm) |
| Unit Weight | 307 lbs (139.25 kg) |
| Shipping Weight | 357 lbs (161.9 kg) |
| Certifications | UL 60950-1, RoHS, CE, UKCA |
| Warranty | 5-year limited warranty |
