Description

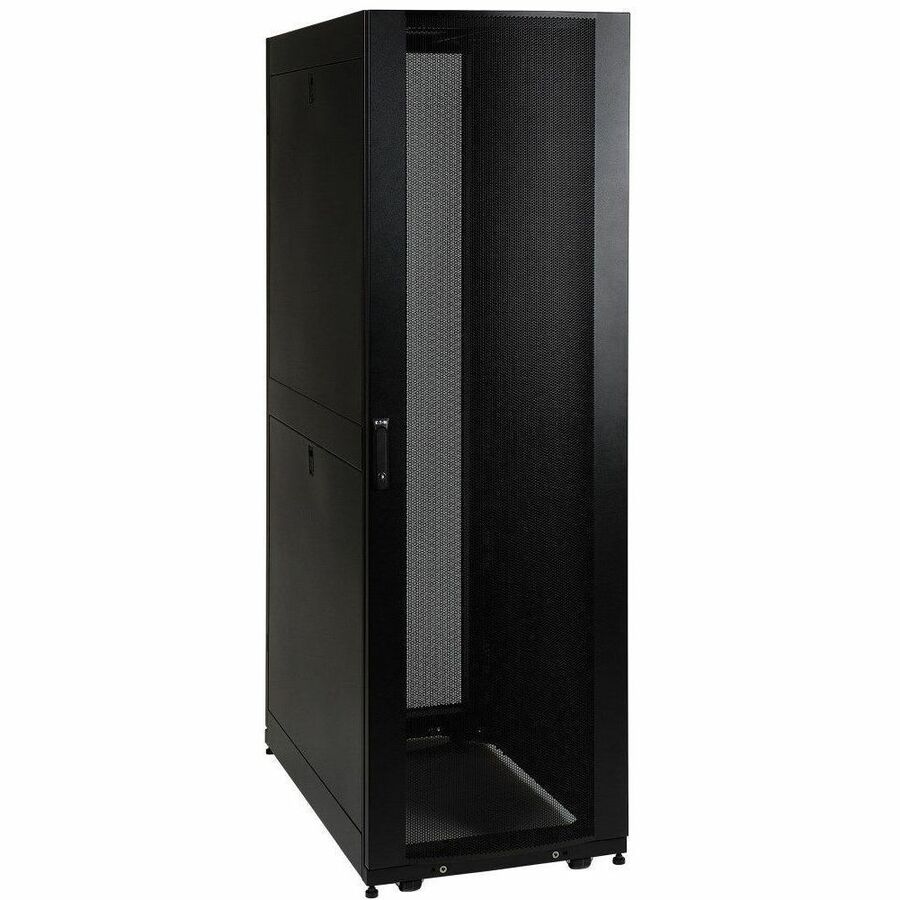

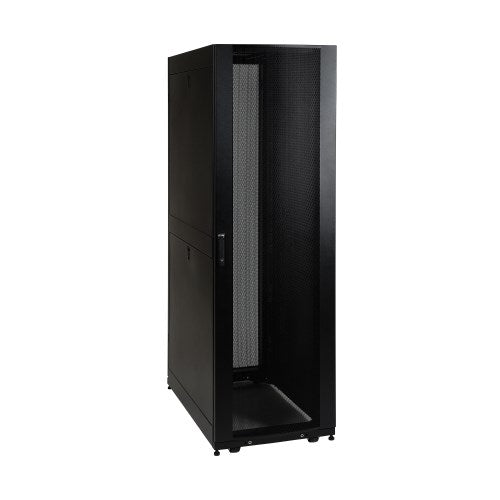

The Eaton Tripp Lite SR45UB is a robust 45U SmartRack standard-depth server rack enclosure designed for secure, high-performance data center and IT environments. Built to support up to 3,500 lbs of equipment, it features exceptional front-to-rear airflow, compatibility with hot/cold aisle configurations, and tool-less mounting for PDUs and cable management.
This rack includes locking, reversible front and rear doors, half-size locking side panels for easy access, and baying tabs for seamless row configurations. With pre-installed casters and leveling feet, deployment is fast and easy. Built for maximum cable management and thermal efficiency, the SR45UB meets all PCI DSS requirements and is backed by a 5-year limited warranty.
| Specification | Details |
|---|---|
| Model Number | SR45UB |
| Brand | Eaton (Tripp Lite Series) |
| Rack Height | 45U |
| Rack Depth | Standard (42"/1050mm) |
| Usable Mounting Depth | 4 to 37 in (102mm to 940mm) |
| Mounting Rail Type | Square hole, adjustable in 1/4" increments |
| External Dimensions (HxWxD) | 83.75 x 23.63 x 43 in (212.73 x 60.02 x 109.22 cm) |
| Shipping Dimensions (HxWxD) | 89 x 24.5 x 43.5 in (226.06 x 62.23 x 110.49 cm) |
| Weight (Unit / Shipping) | 307 lbs / 357 lbs (139.25 kg / 161.93 kg) |
| Load Capacity (Stationary / Rolling) | 3500 lbs / 2250 lbs (1588 kg / 1021 kg) |
| Material Finish | Black, textured powder coat |

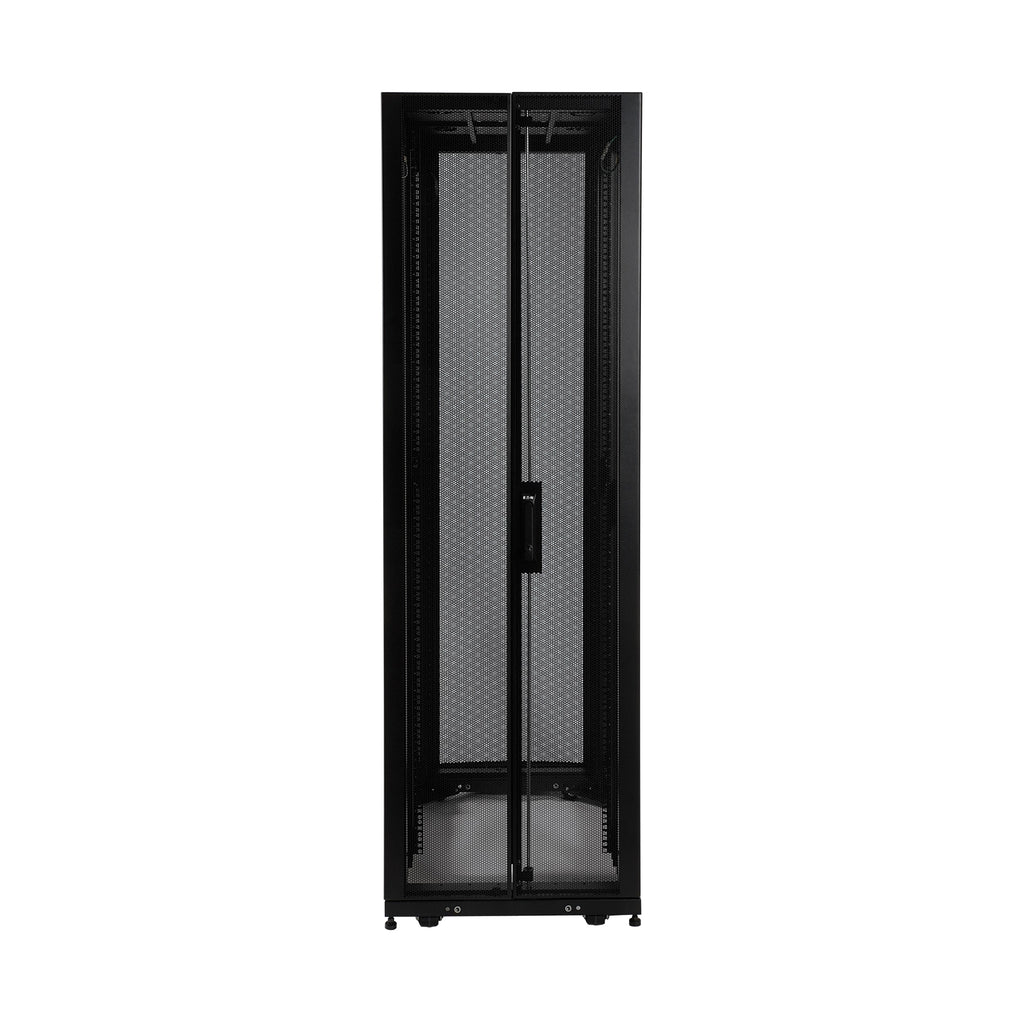

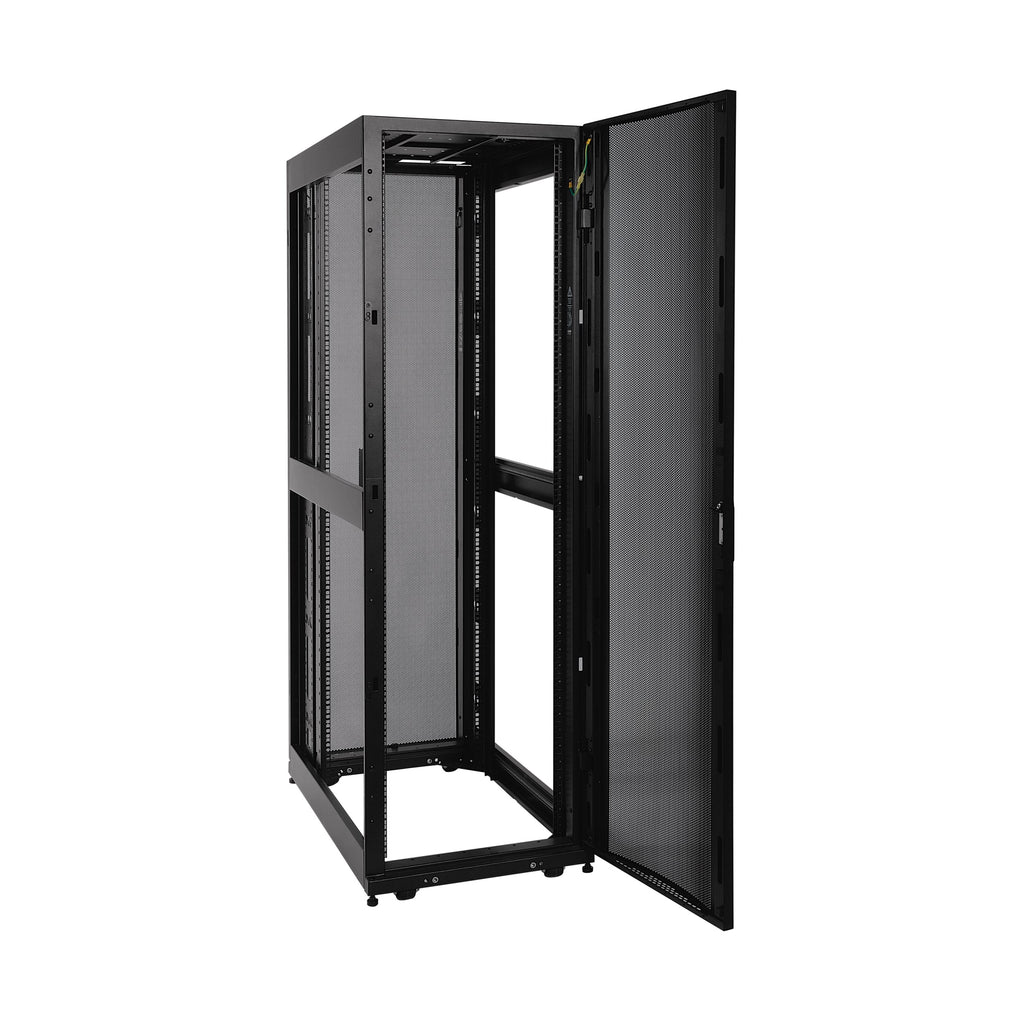

| Doors | Locking, reversible, removable (split rear) |
| Side Panels | Locking, removable, half-size (keyed alike) |
| Casters / Leveling Feet | Pre-installed (removable casters, adjustable feet) |
| Cable Management | Built-in vertical mounting rails for PDUs & cable managers |
| Ventilation | Over 65% perforation for optimal airflow |
| Top & Bottom Access | Open bottom; removable top with cable pass-through |
| Grounding | Front/rear grounding points, grounded components |
| Certifications | UL 60950-1, CE, RoHS |
| Compliance | PCI DSS |
| Warranty | 5-Year Limited Warranty |
| Included Accessories | 50x M6 screws, 50x M6 cage nuts, 2x keys, Owner’s Manual |
