Description

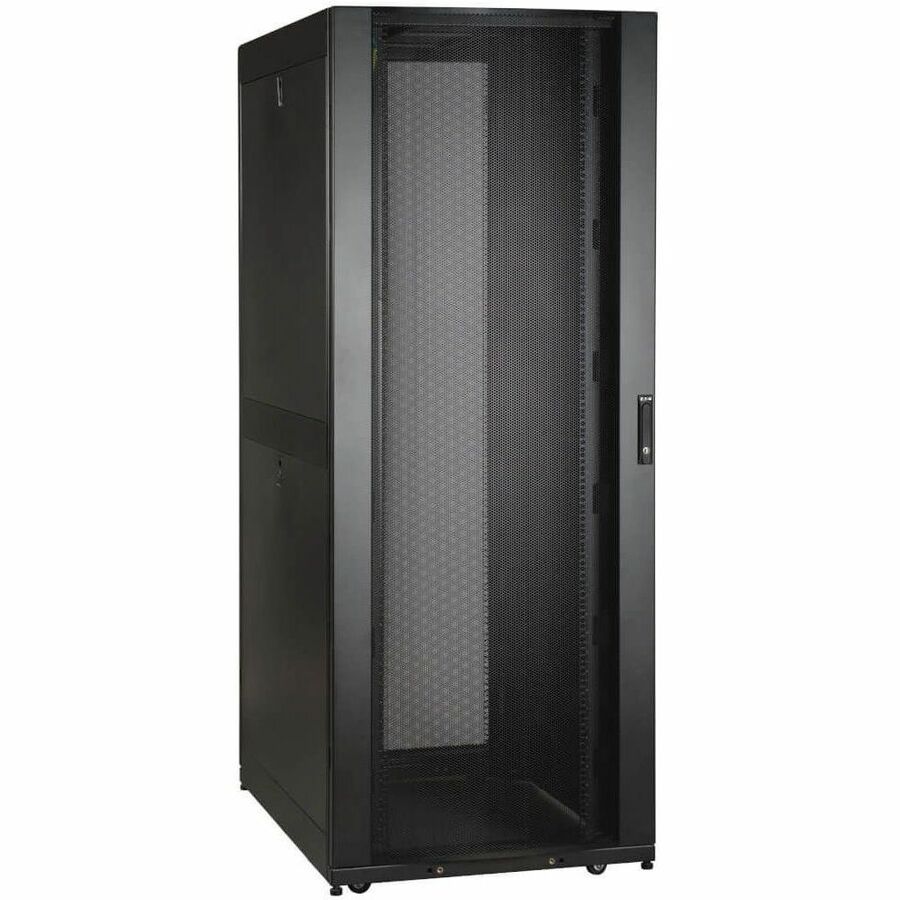

The Eaton Tripp Lite SR45UBWDVRT is a 45U SmartRack® wide rack enclosure cabinet designed for high-density IT applications. With a 30-inch (750mm) width and 42-inch (1050mm) depth, it offers extra space for large cable bundles and includes two pre-installed 6-ft. vertical cable managers (SRCABLEVRT3). The cabinet supports up to 3,500 lbs (stationary) of standard 19" rack equipment and features tool-less mounting, numbered U spaces, and fully adjustable square-hole mounting rails.
Equipped with locking, removable, and reversible doors and side panels, the SR45UBWDVRT provides enhanced physical security. Its high airflow doors, open bottom, and vented top panel ensure efficient cooling. Casters and levelers simplify setup, while full compliance with PCI DSS makes it ideal for secure environments.
| Specification | Details |
|---|---|
| Model Number | SR45UBWDVRT |
| Rack Units | 45U |
| Rack Width | 30 in. (750 mm) |
| Rack Depth | 42 in. (1050 mm) |
| Max Device Depth | 37 in. (940 mm) |
| Min Device Depth | 4 in. (102 mm) |
| Rack Type | Enclosure |
| Construction | Steel frame, powder-coated |
| Doors & Panels | Locking, removable, reversible front/rear doors; 4 half-size side panels |

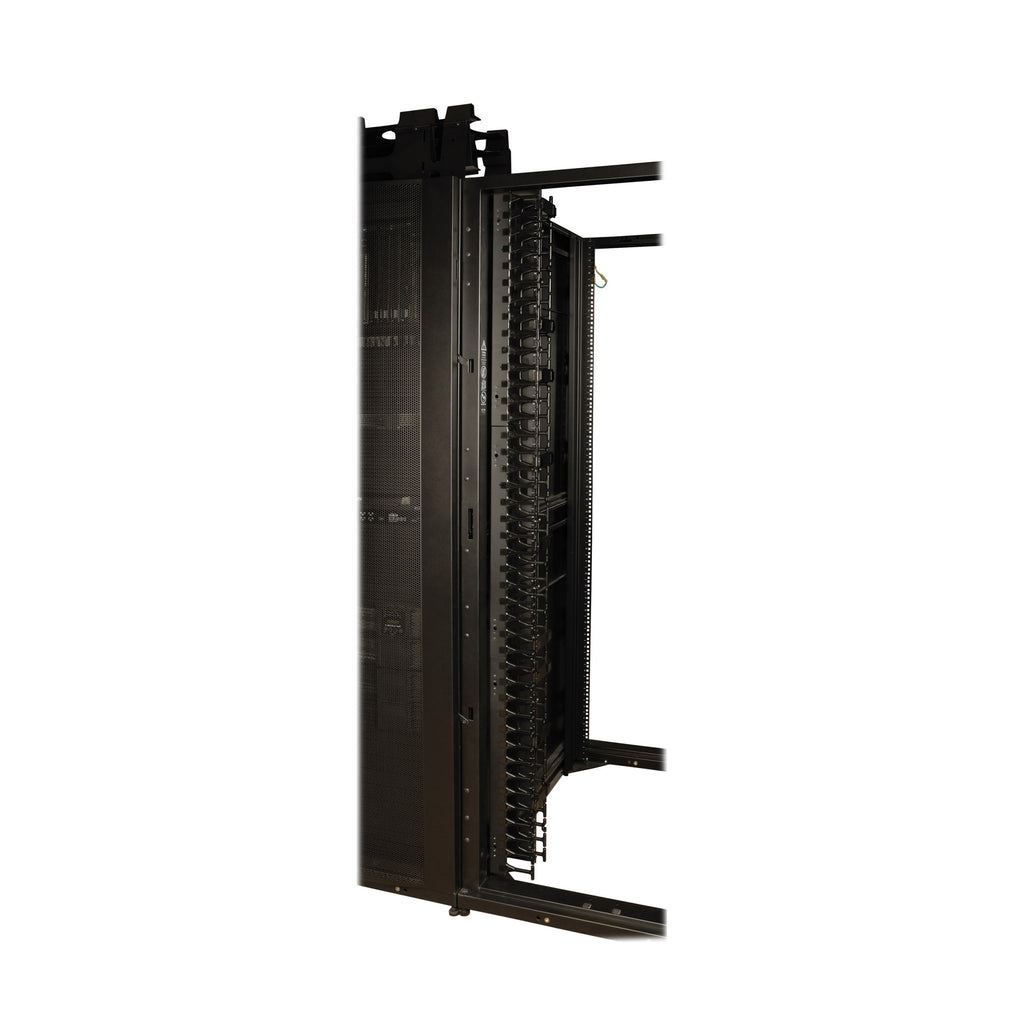

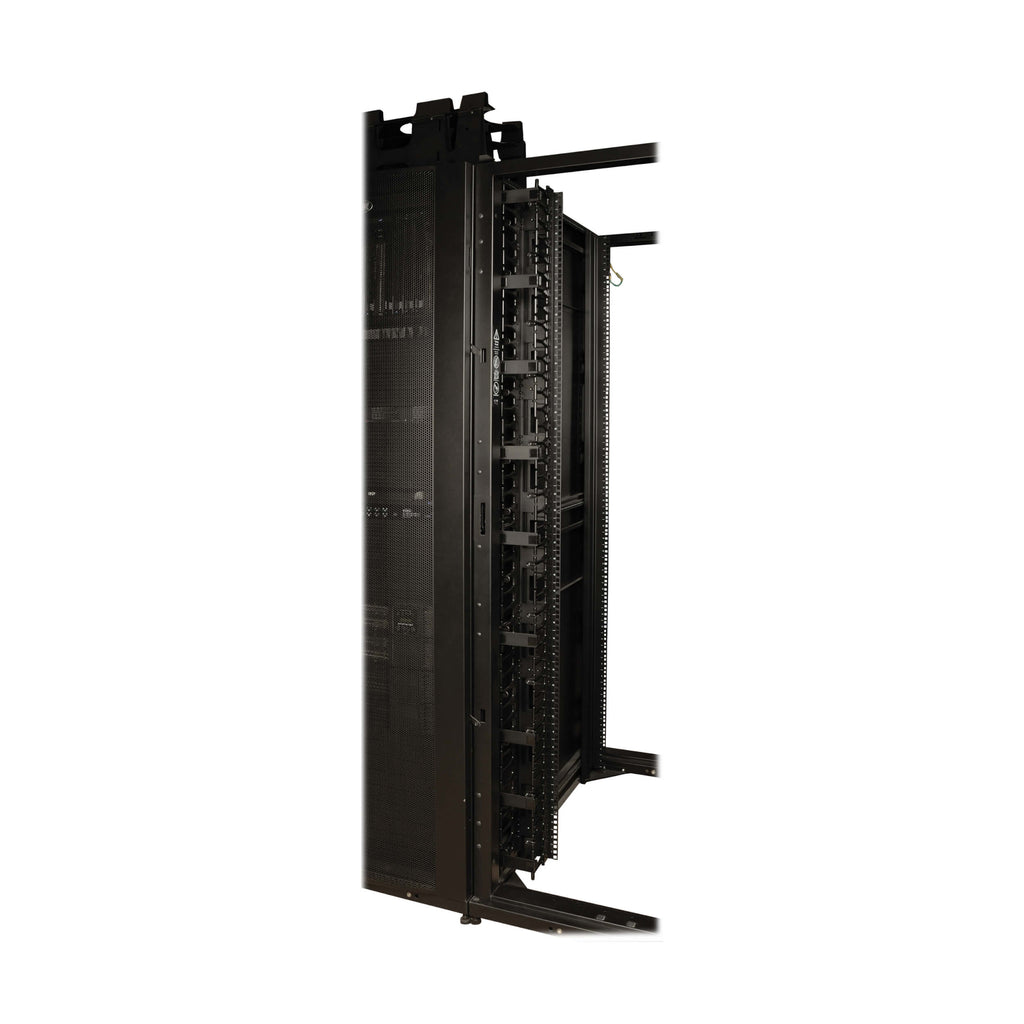

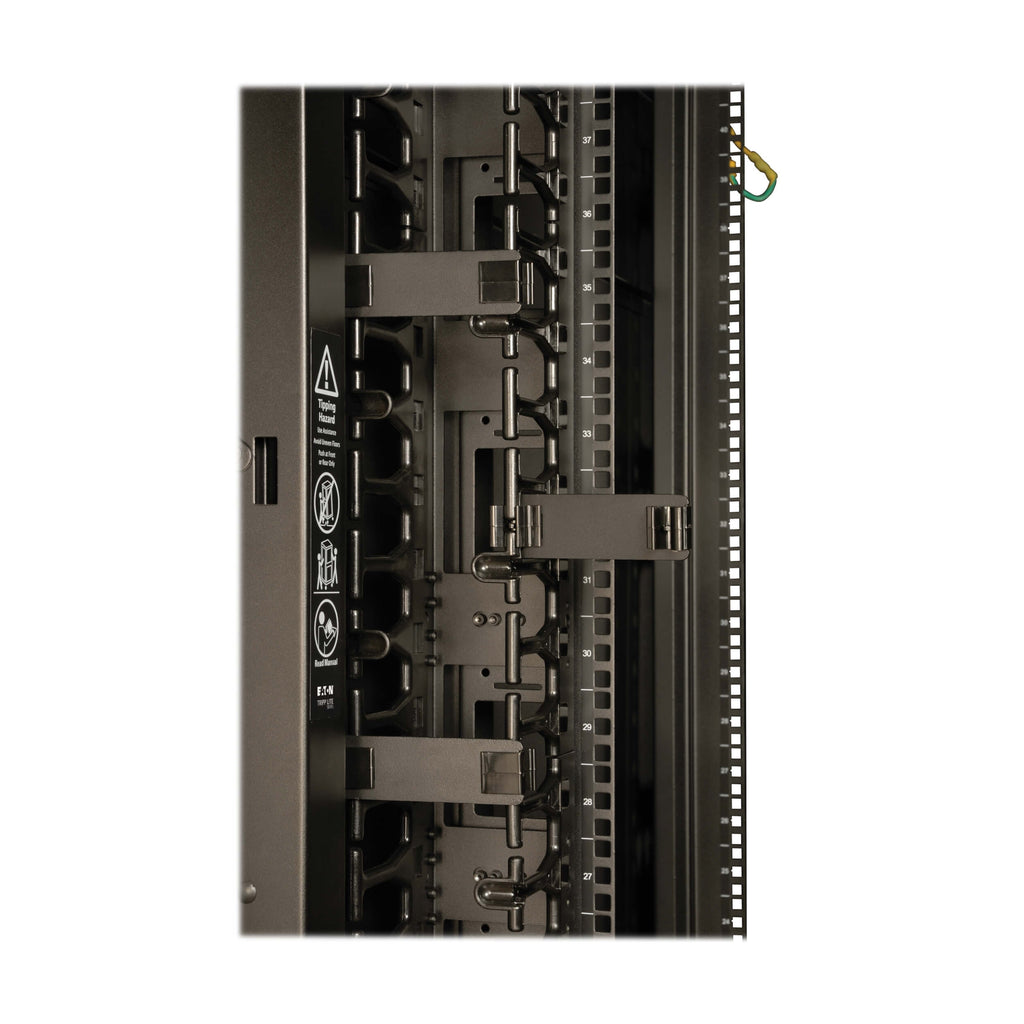

| Cable Management | (2) SRCABLEVRT3 vertical cable managers (6 ft., 3 in. wide) pre-installed |
| Ventilation | 65% open perforated doors; vented top panel; open bottom |
| Load Capacity (Stationary) | 3,500 lbs (1588 kg) |
| Load Capacity (Rolling) | 2,250 lbs (1021 kg) |
| Mounting Rail Type | 4 vertical rails, square-hole, adjustable in 1/4" increments |
| Factory Preset Rack Depth | 21.75 in. (552 mm) |
| Mounting Hardware Included | 50 M6 screws, 50 M6 washers, 50 M6 cage nuts |
| Casters & Levelers | Pre-installed heavy-duty casters and levelers |
| Grounding | Yes, with threaded grounding points |
| Certifications | UL 60950-1, RoHS, CE, UKCA |
| Warranty | 5-year limited warranty |
| Unit Dimensions (HxWxD) | 83.75 x 29.53 x 43.00 in. (212.72 x 75.1 x 109.22 cm) |
| Shipping Dimensions (HxWxD) | 90.25 x 32.00 x 45.00 in. (229.24 x 81.28 x 114.3 cm) |
| Unit Weight | 340 lbs (154.22 kg) |
| Shipping Weight | 390 lbs (176.9 kg) |
