Description

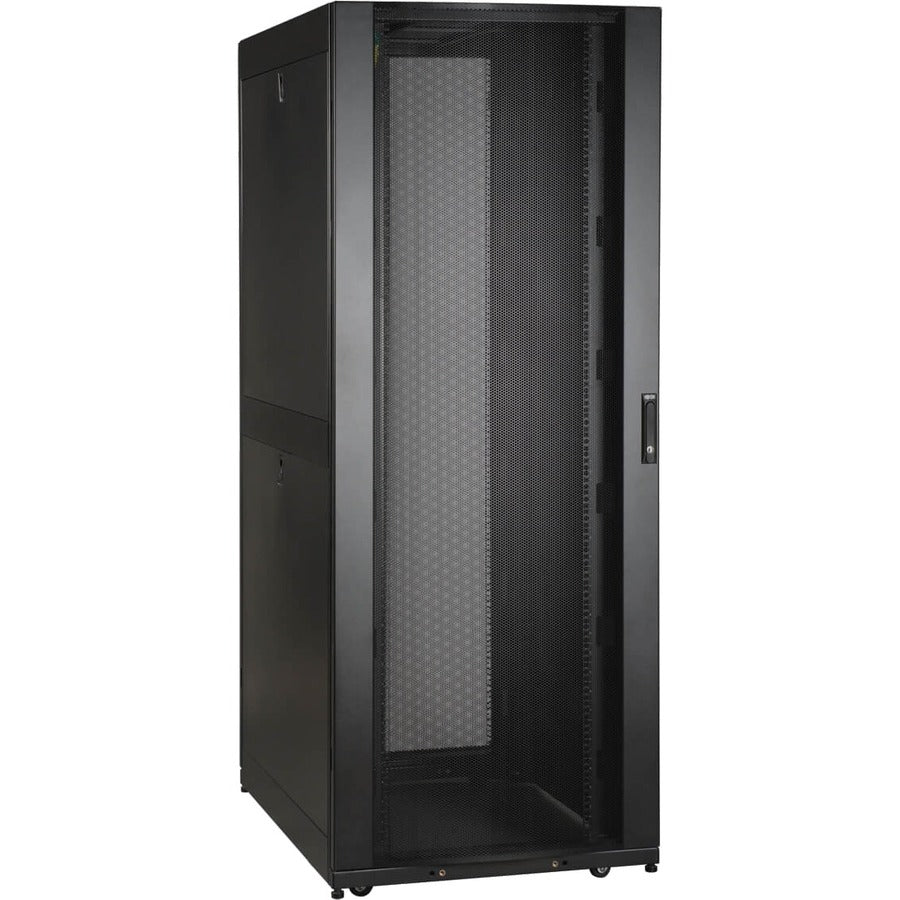

The Eaton Tripp Lite SR45UBWD is a 45U wide-format SmartRack enclosure designed for high-density IT environments requiring optimized airflow and superior cable management. With a 30-inch (750mm) width and standard 42-inch (1050mm) depth, this cabinet supports up to 3,500 lbs of equipment and features a massive front-to-rear ventilation capacity that meets or exceeds server cooling standards.

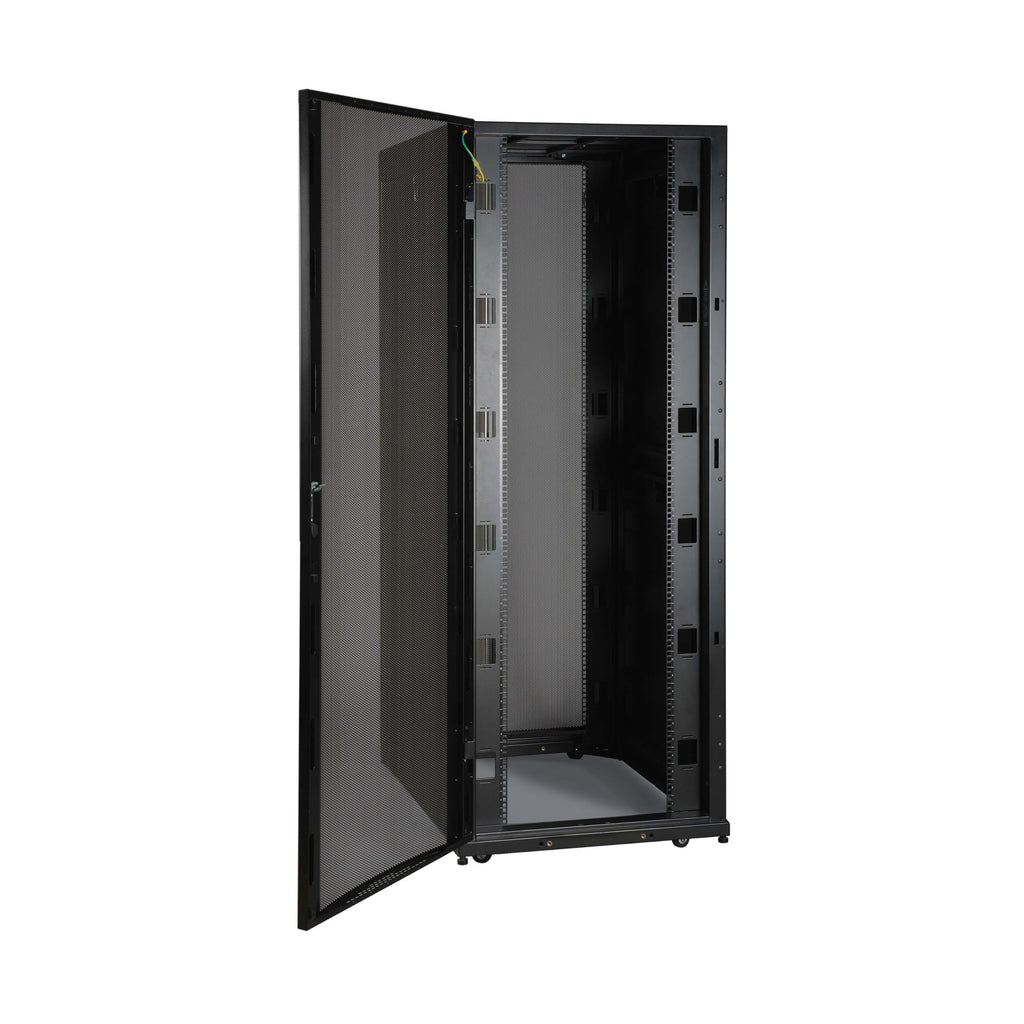

Ideal for data centers and network closets, it includes locking, reversible, and removable doors and side panels for enhanced security and easy maintenance. Pre-installed casters and leveling feet simplify deployment, while integrated baying tabs allow seamless alignment in multi-rack rows.

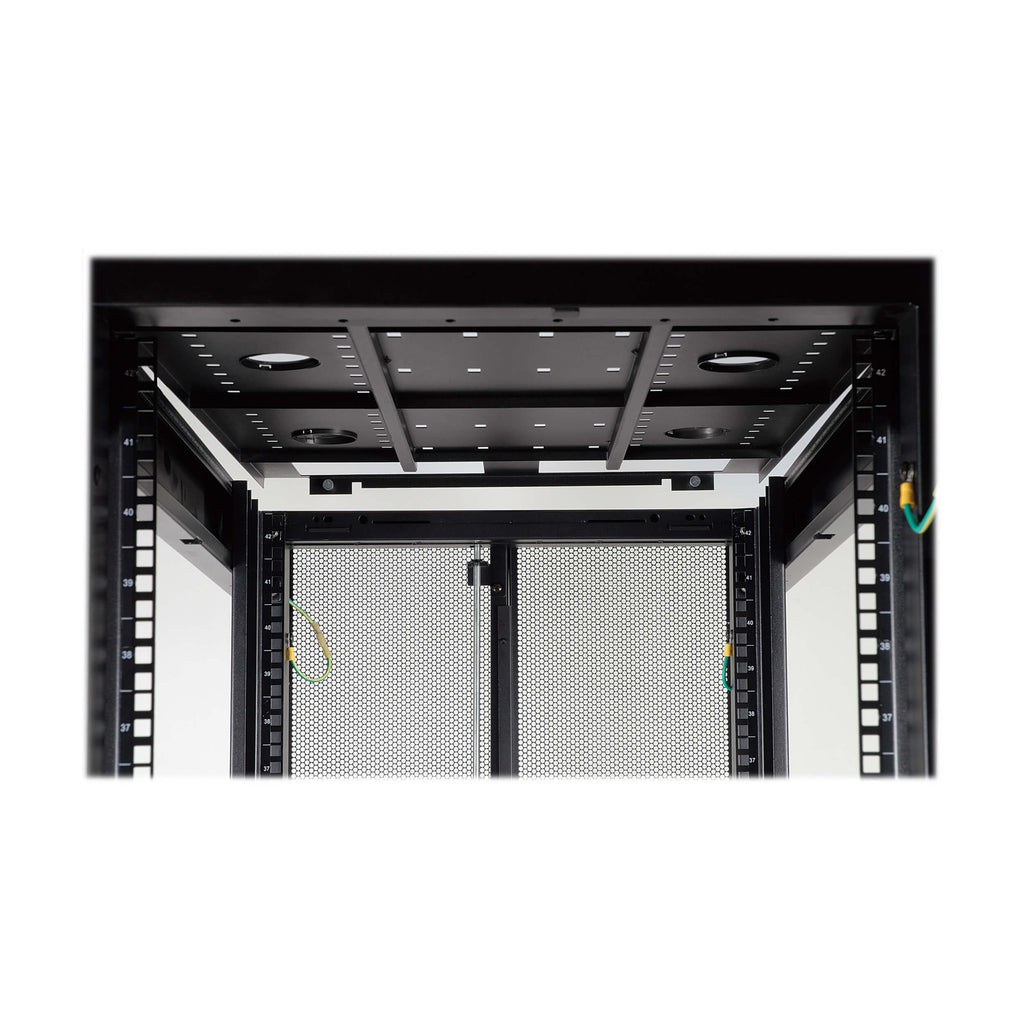

The SR45UBWD is compliant with PCI DSS standards and features open-bottom and vented top panel designs for improved cable access and thermal management.
Package Includes
-
SR45UBWD Rack Enclosure
-
(4) Side Panels
-
(4) Side Panel Locks
-
(2) Door & Side Panel Keys
-
(50) M6 Screws, (50) M6 Cage Nuts, (50) M6 Washers
-
Owner’s Manual
| Specification | Details |
|---|---|
| Model Number | SR45UBWD |
| Rack Height | 45U |
| Rack Width | 30 in / 750 mm (extra wide) |
| Rack Depth | 42 in / 1050 mm (standard) |
| Maximum Usable Depth | 37 in / 94 cm |
| Color | Black |
| Weight Capacity (Stationary) | 3500 lbs / 1588 kg |
| Weight Capacity (Rolling) | 2250 lbs / 1021 kg |
| Unit Dimensions (H x W x D) | 83.75 x 29.53 x 43 in (212.73 x 75.01 x 109.22 cm) |
| Shipping Dimensions (H x W x D) | 90.3 x 31 x 45 in (229.36 x 78.74 x 114.3 cm) |
| Unit Weight | 340 lbs / 154.2 kg |
| Shipping Weight | 390 lbs / 176.9 kg |
| Vertical Mounting Rails | 4 with unthreaded square holes |
| Grounding | Front/rear door grounding points included |

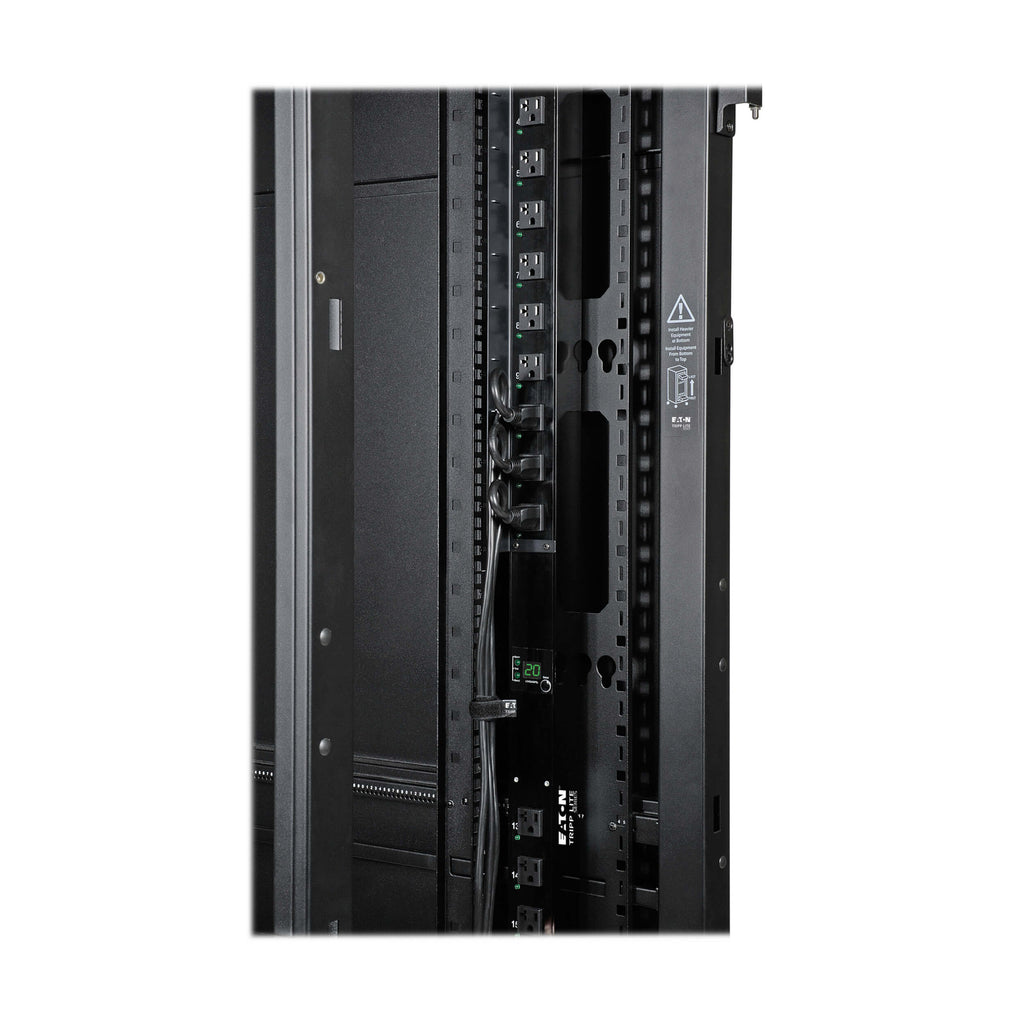

| Cable Management | Built-in; Toolless mounting for PDUs and managers |
| Doors & Side Panels | Locking, removable, reversible |
| Compliance | PCI DSS, UL 60950-1, CE, RoHS, UKCA |
| Warranty | 5-year limited warranty |
| UPC | 037332175038 |
