Description

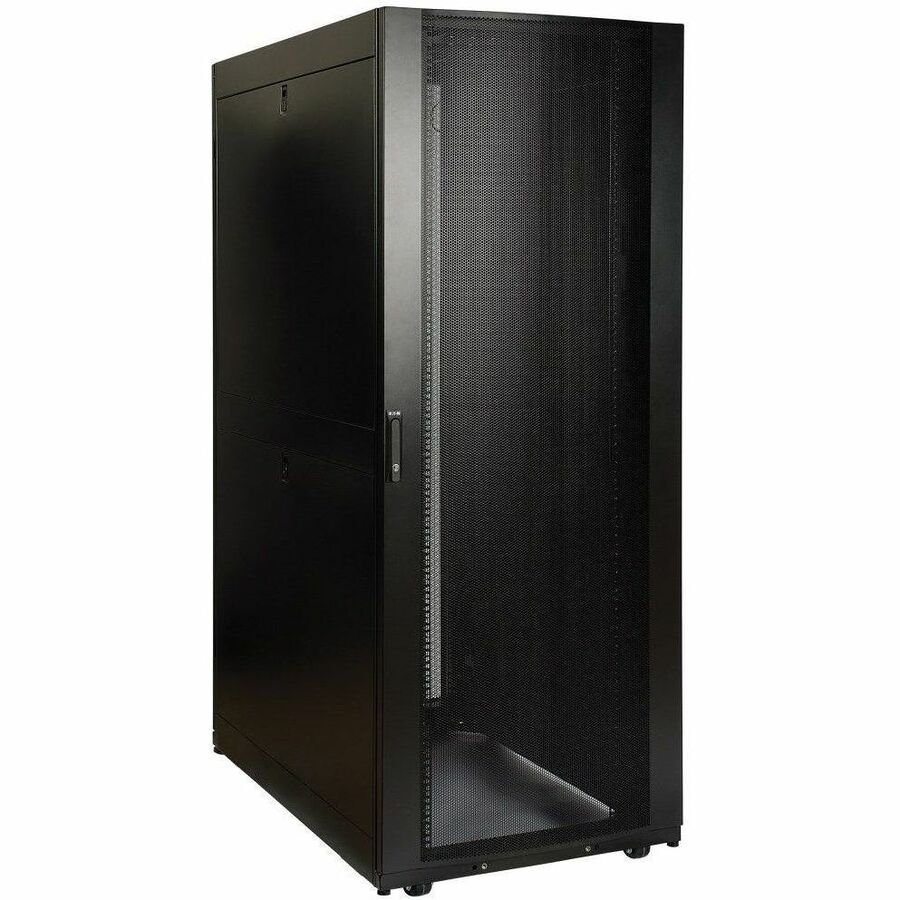

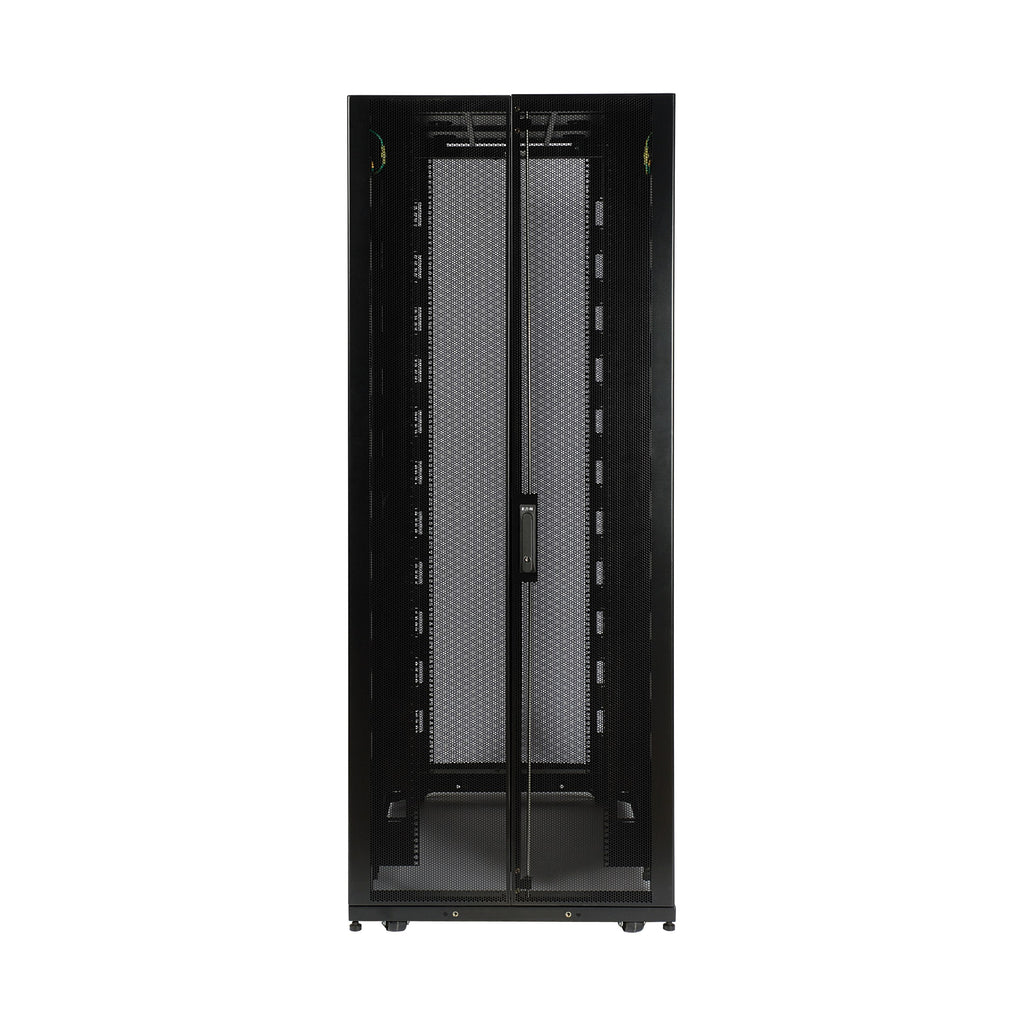

The Eaton Tripp Lite SR48UBDPWD is a premium 48U SmartRack® enclosure cabinet designed for high-density IT environments. With an extra-deep 45-inch (1143mm) and wide 30-inch (750mm) frame, this rack provides enhanced space for advanced cable management, airflow optimization, and compatibility with deep-mount equipment. It supports up to 3500 lbs of stationary equipment and features a fully assembled design, pre-installed casters, reversible doors, removable side panels, and extensive ventilation that exceeds server manufacturer requirements.
Engineered for rapid deployment and secure installations, the SR48UBDPWD supports PCI DSS compliance, offers tool-less cable access and accessory mounting, and integrates with hot/cold aisle containment strategies. Ideal for data centers, server rooms, and demanding enterprise installations.
| Specification | Details |
|---|---|
| Model Number | SR48UBDPWD |
| Rack Height | 48U |
| Rack Depth | Deep (45 in / 1143 mm external) |
| Rack Width | 30 in (750 mm) |
| Maximum Internal Depth | 42 in (1067 mm) |
| Minimum Device Depth | 4 in (102 mm) |
| Material Finish | Black, Textured Powder Coat |
| Weight Capacity (Stationary) | 3500 lbs (1588 kg) |
| Weight Capacity (Rolling) | 2250 lbs (1021 kg) |
| Shipping Dimensions (HxWxD) | 95.0 x 33.5 x 52.75 in (241.3 x 85.1 x 134 cm) |
| Unit Dimensions (HxWxD) | 89 x 29.53 x 48.5 in (226.1 x 75.1 x 123.2 cm) |
| Shipping Weight | 430 lbs (195.04 kg) |
| Unit Weight | 378 lbs (171.46 kg) |
| Mounting Rails | 4 Adjustable Vertical Rails |
| Casters and Leveling Feet | Pre-installed, removable |
| Doors and Panels | Locking, removable, reversible (front/rear); split rear doors; keyed alike |
| Cable Access | Vented top panel with ports; open bottom |
| Ventilation | >65% perforated doors for optimal airflow |
| Grounding | Front and rear grounding points with quick-release wires |
| Certifications | UL 60950-1, RoHS, CE, UKCA |
| Warranty | 5-Year Limited Warranty |
| Included Accessories | 50 M6 screws, 50 M6 cage nuts, 50 washers, Allen wrench, keys, panel locks, owner’s manual |
