Description

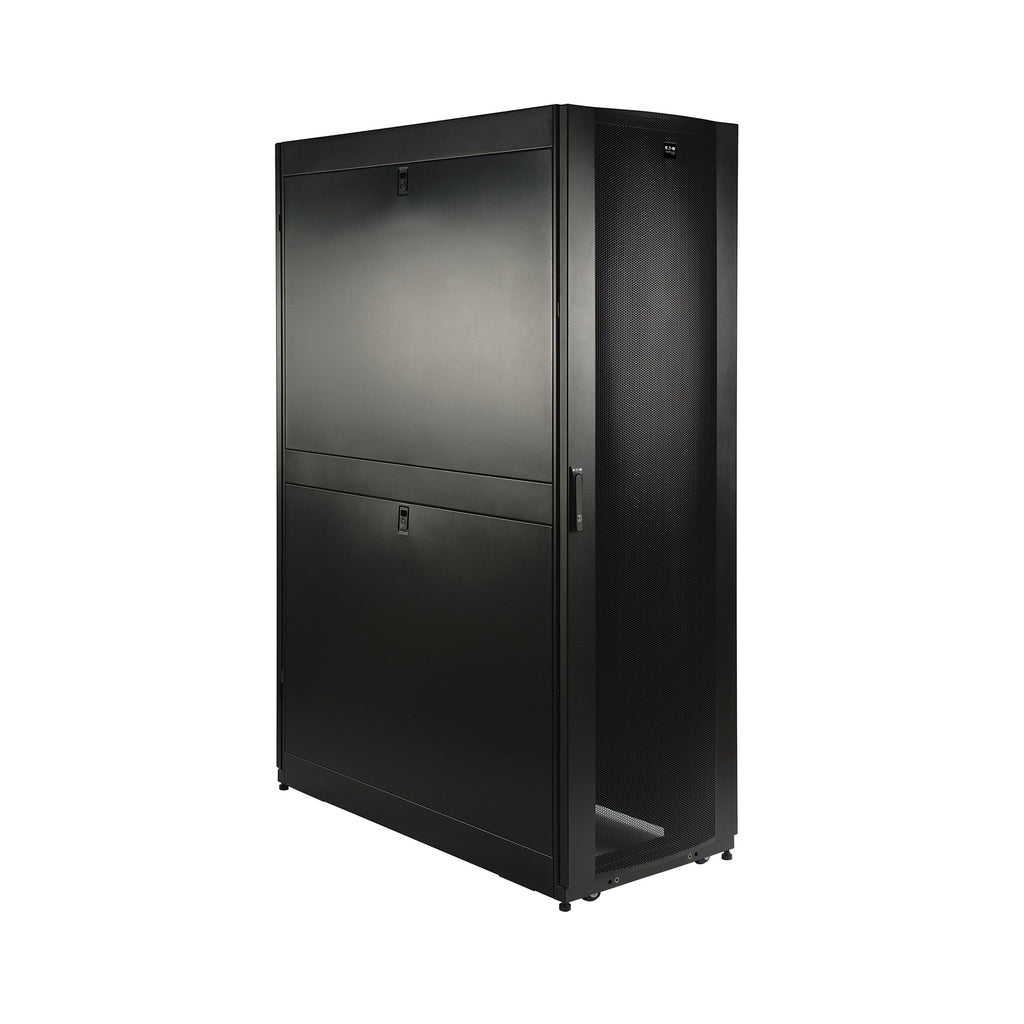

The Eaton Tripp Lite SR48UBDP 48U SmartRack Deep Premium Enclosure is engineered for high-density IT deployments requiring additional interior space. With a 45-inch (1143 mm) depth, it accommodates extra-deep servers, UPS systems, and network equipment while optimizing cable management and airflow. The rack supports up to 3,500 lbs (1,588 kg) stationary and features adjustable vertical rails with square mounting holes, allowing precise depth adjustments in ¼-inch increments for consistent setup.
Designed for security and efficiency, the SR48UBDP includes locking, removable, reversible front and rear doors, half-size locking side panels, and toolless mounting rails for PDUs and cable managers. The vented top panel enhances heat dissipation and provides large cable routing ports, while an open bottom design ensures flexible cable entry. Pre-installed casters and leveling feet make it easy to position, and built-in grounding points meet PCI DSS, RoHS, and CE compliance standards.
Ideal for data centers, server rooms, and enterprise network environments, the SR48UBDP delivers robust performance, superior protection, and convenient access for large-scale deployments.
| Category | Specification |
|---|---|
| Model Number | SR48UBDP |
| Product Type | 48U SmartRack Deep Premium Enclosure |
| Brand | Eaton (Tripp Lite Series) |
| Rack Type | Enclosure |
| Device Compatibility | Servers, UPS systems, Network Switches, Patch Panels |
| Rack Height | 48U |
| Rack Width | 24 in (600 mm) |
| Rack Depth | 45 in (1143 mm) – Deep model |
| Maximum Internal Depth | 42 in (1067 mm) |
| Adjustable Rail Range | 4 – 42 in (10.16 – 106.7 cm) |
| Material & Finish | Textured powder-coat steel |
| Ventilation | 65% open perforation doors for superior airflow |

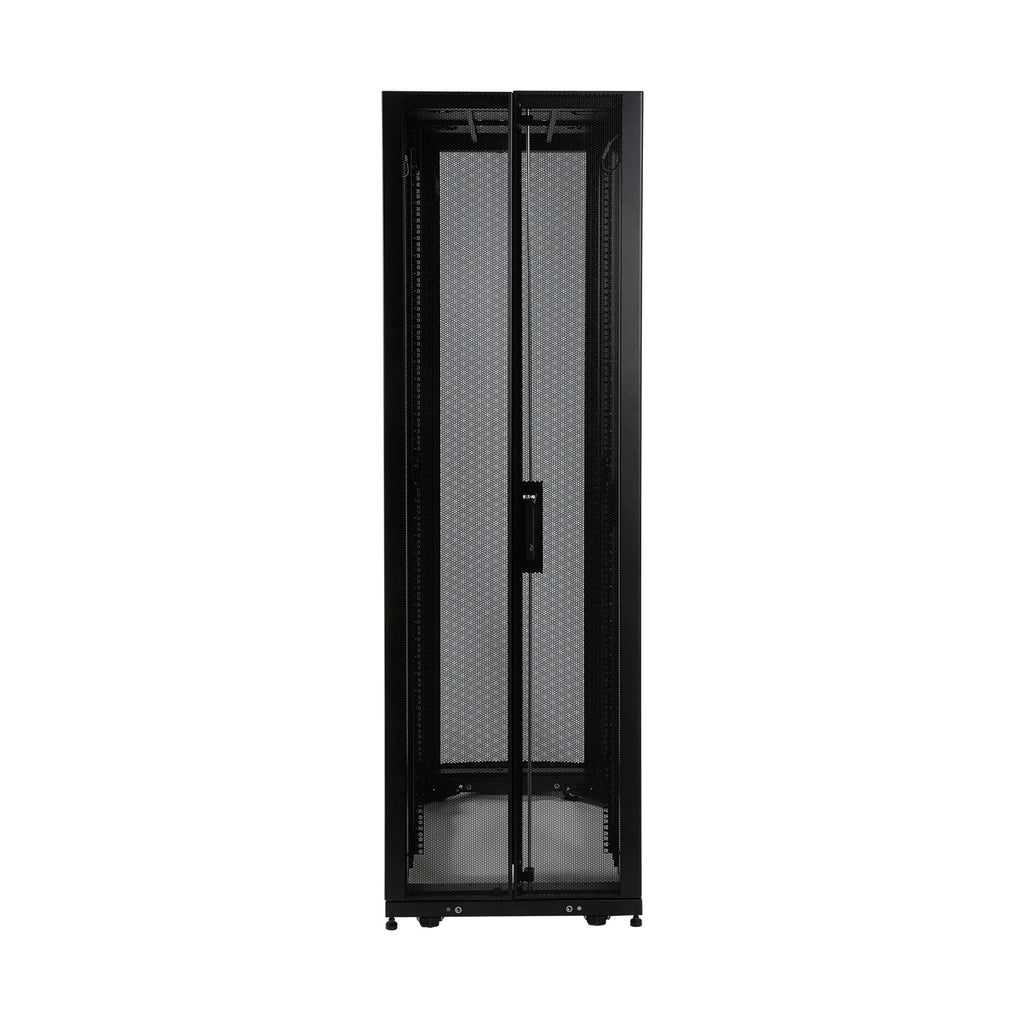

| Front Door | Locking, reversible, removable |
| Rear Doors | Split, locking, reversible, removable |
| Side Panels | Half-size, locking, removable, keyed alike |
| Mounting Rails | 4 vertical, adjustable with square holes |
| Toolless Accessory Mounts | 2 rails supporting up to 4 PDUs or cable managers |
| Grounding System | All components grounded; front/rear grounding points |
| Top Panel | Vented with large cable access holes, removable without tools |
| Bottom Panel | Open for cable access |
| Mobility | Pre-installed casters and leveling feet |
| Load Capacity (Stationary) | 3,500 lbs (1,588 kg) |
| Load Capacity (Rolling) | 2,250 lbs (1,021 kg) |
| Unit Dimensions (H x W x D) | 89.0 x 23.63 x 48.5 in (226.06 x 60.02 x 123.19 cm) |
| Shipping Dimensions (H x W x D) | 95.0 x 26.0 x 52.75 in (241.3 x 66.04 x 133.98 cm) |
| Unit Weight | 315 lbs (142.88 kg) |
| Shipping Weight | 380 lbs (172.37 kg) |
| Certifications | UL 60950-1, RoHS, CE (Europe), UKCA |
| Compliance | Meets PCI DSS requirements |
| Warranty | 5-Year Limited Warranty |
