Description

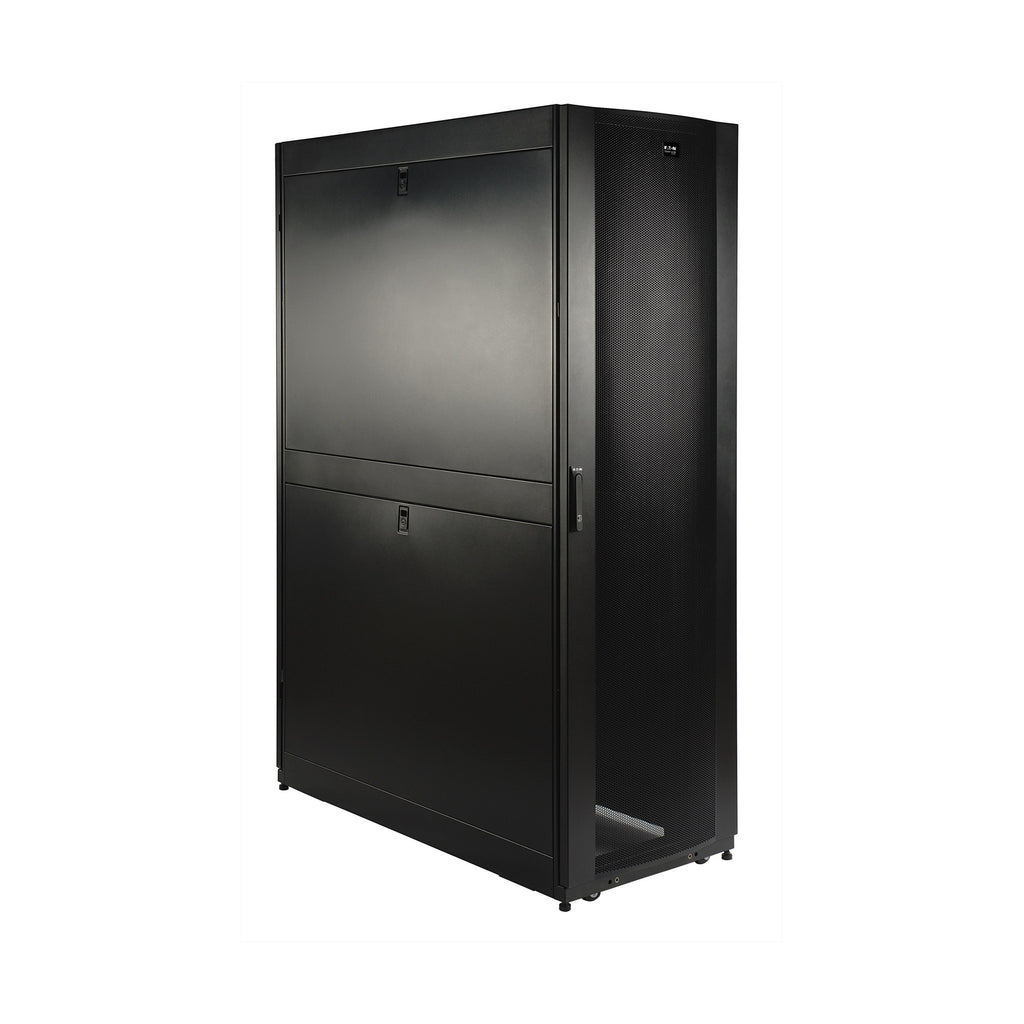

The Eaton SR48UBDP48 SmartRack 48U Extra-Deep Server Rack Enclosure is engineered to accommodate high-density IT and networking environments that demand maximum equipment depth and secure access. Constructed from heavy-duty, powder-coated steel, this 48U enclosure provides 48 inches (1219 mm) of rack depth—ideal for organizing deeper-than-standard servers, UPS systems, and network switches.
Designed for data centers, server rooms, and enterprise network closets, it features locking front, rear, and side panels for enhanced physical security, while the vented doors ensure optimized front-to-rear airflow. The rack ships fully assembled with pre-installed casters for effortless positioning and built-in baying brackets for multi-cabinet alignment.
The SR48UBDP48 also meets PCI DSS (Payment Card Industry Data Security Standard) requirements for equipment and media protection, making it a dependable choice for businesses managing sensitive data.
| Category | Specification |
|---|---|
| Brand | Eaton |
| Product Line | SmartRack |
| Model | SR48UBDP48 |
| Rack Type | Enclosure |
| Rack Height | 48U |
| Rack Depth | Extra Deep (48 in / 1219 mm) |
| Device Compatibility | Patch Panel, Network Switch, UPS, Server |
| Construction Material | Heavy-duty steel with black powder-coated finish |

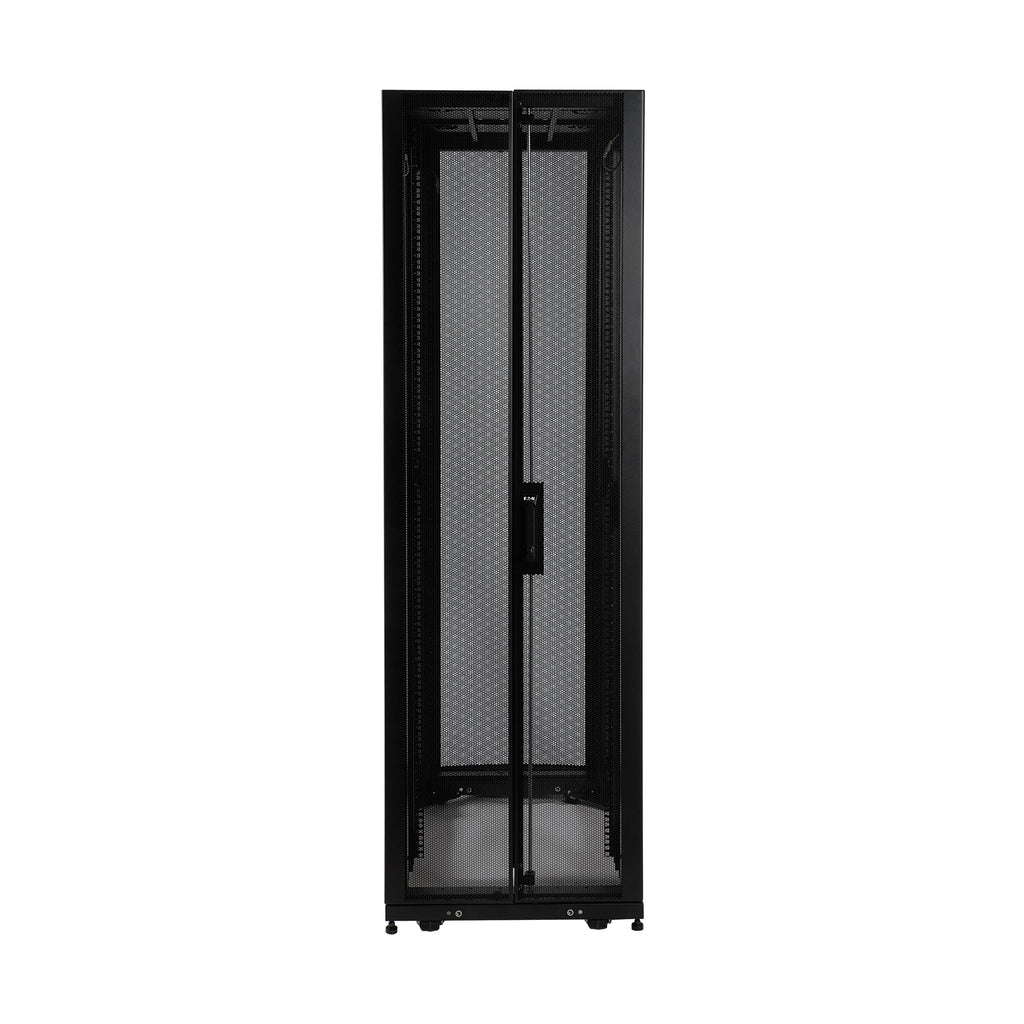

| Doors & Panels | Reversible locking front door, split rear doors, half-size locking side panels |
| Airflow | Front-to-rear ventilation |
| Cable Access | Top access ports and open bottom |
| Mounting Rails | 4 adjustable rails, quarter-inch increments, 0U mounting support for up to 4 PDUs |
| Load Capacity (Stationary) | 3500 lbs (1588 kg) |
| Load Capacity (Rolling) | 2250 lbs (1021 kg) |
| Factory Preset Rack Depth | 28.125 in (714 mm) |
| Minimum Device Depth | 4 in (102 mm) |
| Maximum Device Depth | 48 in (1219 mm) |
| Unit Dimensions (H x W x D) | 89.0 x 23.63 x 50.91 in (226.06 x 60.02 x 129.31 cm) |
| Unit Weight | 327.6 lbs (148.6 kg) |
| Shipping Dimensions (H x W x D) | 95.0 x 33.5 x 52.75 in |
| Shipping Weight | 208.2 kg |
| Grounding Details | Front and back door frames |
| Pre-installed Casters | Yes |
| Baying Capability | Yes, supports multiple cabinet alignment |
| Compliance & Certification | UL 60950-1, RoHS, CE (Europe), UKCA |
| Security Standard | PCI DSS compliant |
| Warranty | 5-year limited warranty |
