Description

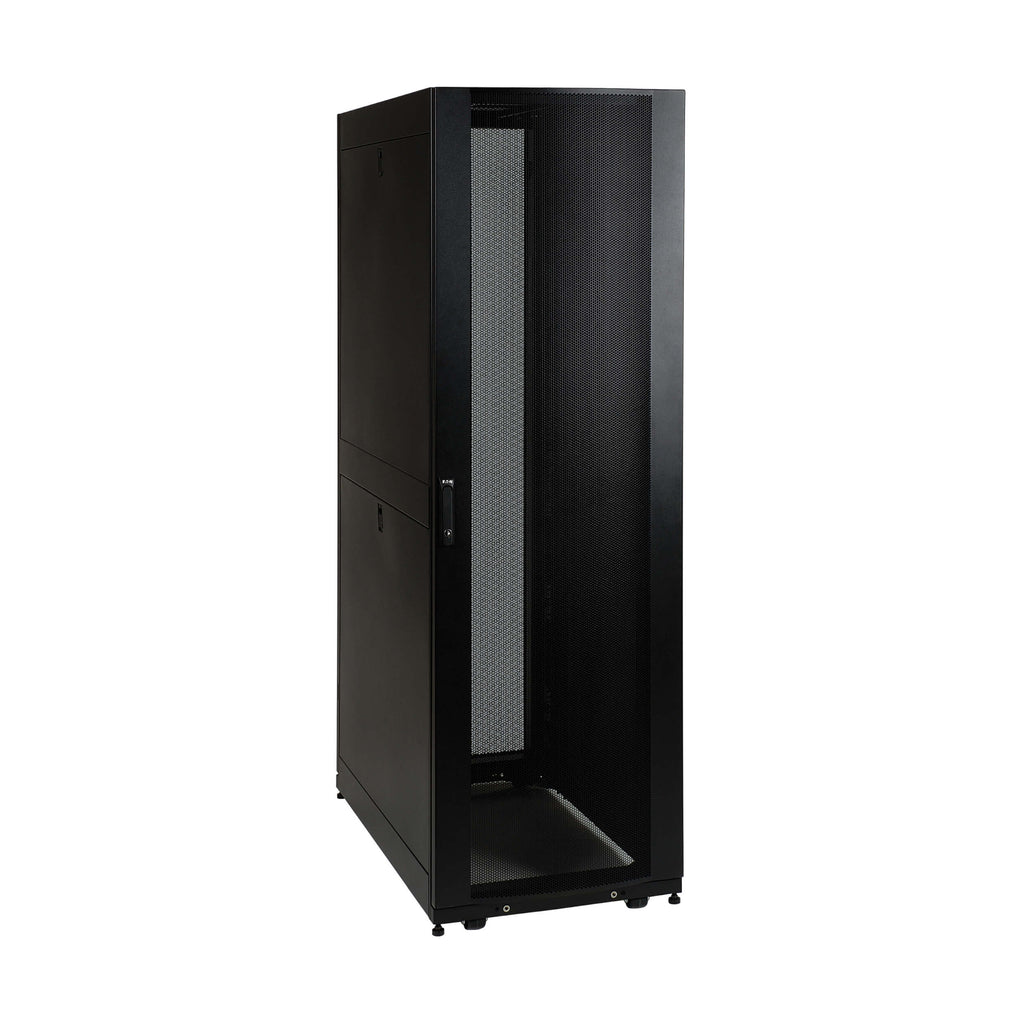

The Tripp Lite SR48UB SmartRack® Enclosure is a 48U standard-depth rack cabinet designed for high-density server, network, and data center environments. Built for security, airflow, and rapid deployment, this enclosure ships fully assembled and rolls easily into place on heavy-duty casters.
Vendor-neutral square-hole mounting rails ensure full compatibility with all EIA-310-D compliant 19-inch equipment. The SR48UB supports integrated cooling, power distribution, and cable management, making it an ideal solution for mission-critical IT infrastructure. Perforated front and rear doors provide exceptional front-to-rear airflow, exceeding typical server ventilation requirements and supporting hot-aisle/cold-aisle configurations.
With locking, removable doors and side panels, adjustable mounting rails, and a robust load capacity, the SR48UB delivers flexibility, durability, and long-term reliability for enterprise data centers, server rooms, and network closets.
| Specification | Details |
|---|---|
| Brand | Tripp Lite |
| Model Number | SR48UB |
| Rack Type | Server Rack Enclosure |
| Rack Height | 48U |
| Rack Width | 24 in (600 mm) |
| Rack Depth | Standard Depth |
| Maximum Device Depth | 37 in (940 mm) |
| Minimum Device Depth | 4 in (102 mm) |
| Mounting Rails | 4 vertical rails, square-hole |
| Rail Adjustment | 1/4 in increments |
| Load Capacity (Stationary) | 3,500 lbs (1,588 kg) |
| Load Capacity (Rolling) | 2,250 lbs (1,021 kg) |
| Doors | Locking, removable, reversible front; split rear |
| Side Panels | Locking, removable, keyed alike |
| Ventilation | 65%+ perforated airflow doors |
| Casters | Pre-installed heavy-duty casters |
| Leveling Feet | Included |
| Cable Access | Open bottom and removable top panel |
| Color | Black |
| Finish | Textured powder-coat |
| Included Hardware | M6 cage nuts, screws, washers |
| Compliance | PCI DSS enclosure requirements |
| Certifications | UL 60950-1, RoHS, CE, UKCA |
| Warranty | 5-Year Limited Warranty |
