Description

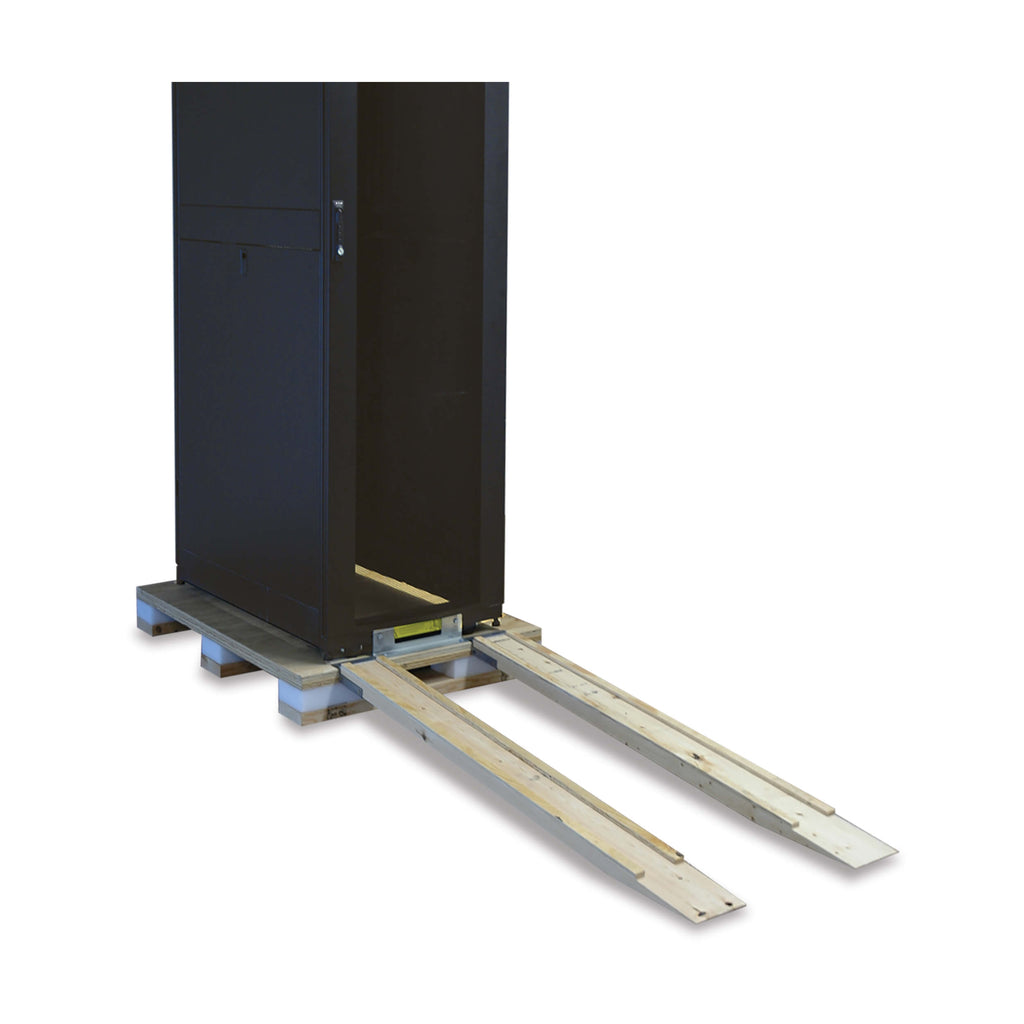

The Eaton Tripp Lite SR48UBSP1 is a 48U SmartRack standard-depth rack enclosure designed for secure, high-density server and networking installations. It ships fully assembled on a reinforced shock pallet with loading ramps, making it ideal for pre-configuration, safe transport, and re-shipping to remote installation sites.
Built for data centers, IT rooms, and enterprise environments, this rack supports EIA-310-D compliant 19-inch equipment and includes locking removable doors, keyed side panels, adjustable mounting rails, heavy-duty casters, and front-to-rear airflow ventilation. With a 3,500 lb stationary load capacity and 2,250 lb rolling capacity, it provides dependable support for servers, UPS systems, PDUs, switches, KVMs, and other critical infrastructure.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| SKU | SR48UBSP1 |
| Product Type | Rack Enclosure Cabinet |
| Rack Height | 48U |
| Rack Width | 24 in. |
| Rack Depth | Standard Depth |
| Color | Black |
| Rack Compatibility | EIA-310-D compliant 19 in. equipment |
| Device Compatibility | Servers, UPS systems, network switches, patch panels, PDUs, KVMs |
| Maximum Device Depth | 37 in. / 940 mm |
| Minimum Device Depth | 4 in. / 102 mm |
| Factory Preset Rack Depth | 27.75 in. / 705 mm |
| Unit Dimensions | 89.00 x 23.63 x 43.00 in. |
| Shipping Dimensions | 95.00 x 26.00 x 45.00 in. |
| Unit Weight | 315 lb / 142.88 kg |
| Shipping Weight | 403 lb / 182.80 kg |
| Stationary Load Capacity | 3,500 lb / 1,588 kg |
| Rolling Load Capacity | 2,250 lb / 1,021 kg |
| Shock Pallet Capacity | Up to 1,250 lb total shipping load |
| Doors | Locking, removable, reversible front and rear doors |
| Side Panels | Locking, removable side panels |
| Mounting Rails | 4 vertical mounting rails |
| Casters | Pre-installed heavy-duty casters |
| Ventilation | Perforated front and rear doors for front-to-rear airflow |
| Cable Access | Open bottom and removable top panel with cable access holes |
| Grounding | Front and rear door frame grounding |
| Certifications | UL 60950-1 |
| Compliance | RoHS, CE, UKCA |
| Warranty | 5-year limited warranty |
