Description

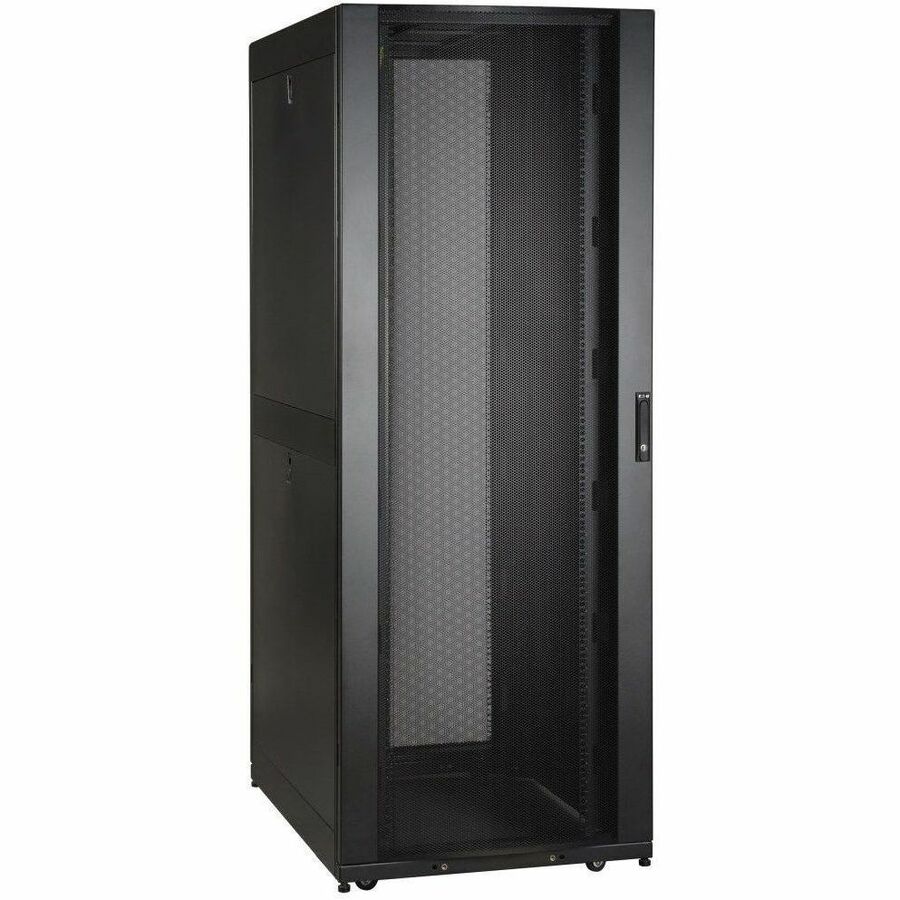

The Eaton Tripp Lite SR48UBWD is a 48U wide-format SmartRack enclosure cabinet designed for high-density data center and enterprise environments. With a 30" (750mm) width and standard 42" (1050mm) depth, this enclosure provides extra space for improved airflow and side-mounted cable management, helping to optimize cooling efficiency and reduce cord clutter.
Engineered for rapid deployment, it ships fully assembled and includes locking, removable doors and side panels for maximum equipment security. Its integrated ventilation and grounding systems meet or exceed PCI DSS requirements, while tool-less vertical rails support easy installation of PDUs and cable managers.
Ideal for servers, UPS systems, patch panels, and network switches, the SR48UBWD combines durability with smart design—featuring 3,500 lbs stationary load capacity, baying tabs for easy row alignment, and adjustable vertical rails with quick-depth indexing.
| Category | Details |
|---|---|
| Model Number | SR48UBWD |
| Rack Units | 48U |
| Rack Type | Enclosure |
| Rack Depth | Standard (42" / 1050mm) |
| Width | 30" (750mm) |
| Device Compatibility | Servers, UPS, Patch Panels, Network Switches |
| Vertical Mounting Rails | 4 (Square-hole, adjustable in ÂĽ" increments) |
| Max Equipment Depth | 37 in. (94 cm) |
| Min Equipment Depth | 4 in. (10.16 cm) |
| Load Capacity | 3,500 lbs (stationary) / 2,250 lbs (rolling) |
| Ventilation | >65% perforated doors, open bottom & vented top |
| Doors & Panels | Lockable, removable, reversible front/rear doors; half-size side panels keyed alike |

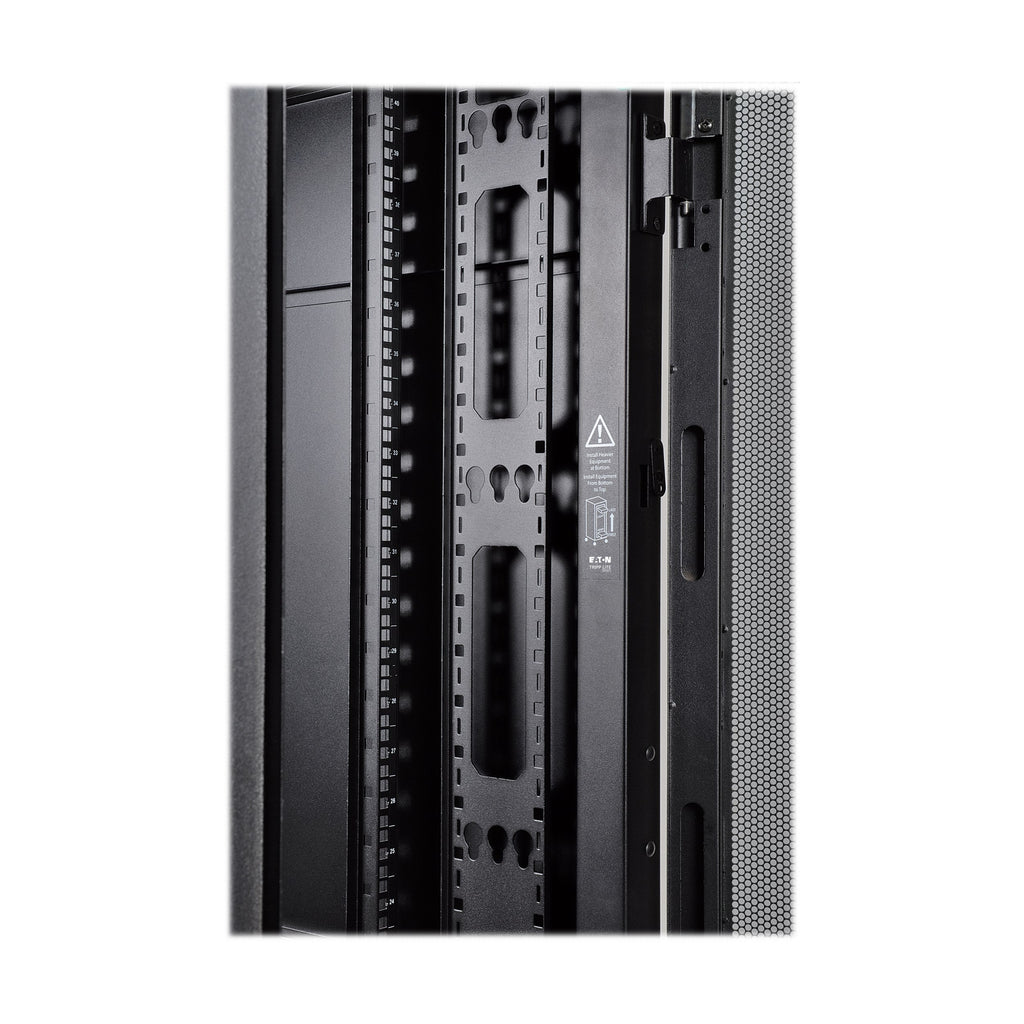

| Cable Management | Supports up to 4 vertical 0U PDUs or cable managers |
| Casters & Levelers | Pre-installed (casters for repositioning only) |
| Grounding | Quick-release ground wires, front/rear grounding points |
| Compliance | PCI DSS, UL 60950-1, RoHS, CE, UKCA |
| Finish | Black textured powder coat |
| Dimensions (HWD) | 89 x 29.53 x 43 in (226.06 x 75.01 x 109.22 cm) |
| Shipping Dimensions | 95 x 33.5 x 45 in (241.3 x 85.09 x 114.3 cm) |
| Weight (Unit / Shipping) | 343 lbs / 395 lbs (155.58 kg / 179.17 kg) |
| Warranty | 5-Year Limited Warranty |
| UPC Code | 037332156815 |
